OL6KRT2UTFTAA

DISCONTINUED
  • Step-down transformer: 5000VA / 5000W
  • Output: 120V 50/60Hz
  • Power conversion: 208V from utility, UPS, and generator to 120V Output
  • Plug type & cord: NEMA L6-30P plug; 6-ft. cord
  • Outlets: 12 NEMA 5-20R (supports 5-15P and 5-20P input)
  • Form factor: 2U Rack/Tower convertible
  • Over temperature protection: Yes
  • Warranty: 3 year
Overview

Product Overview

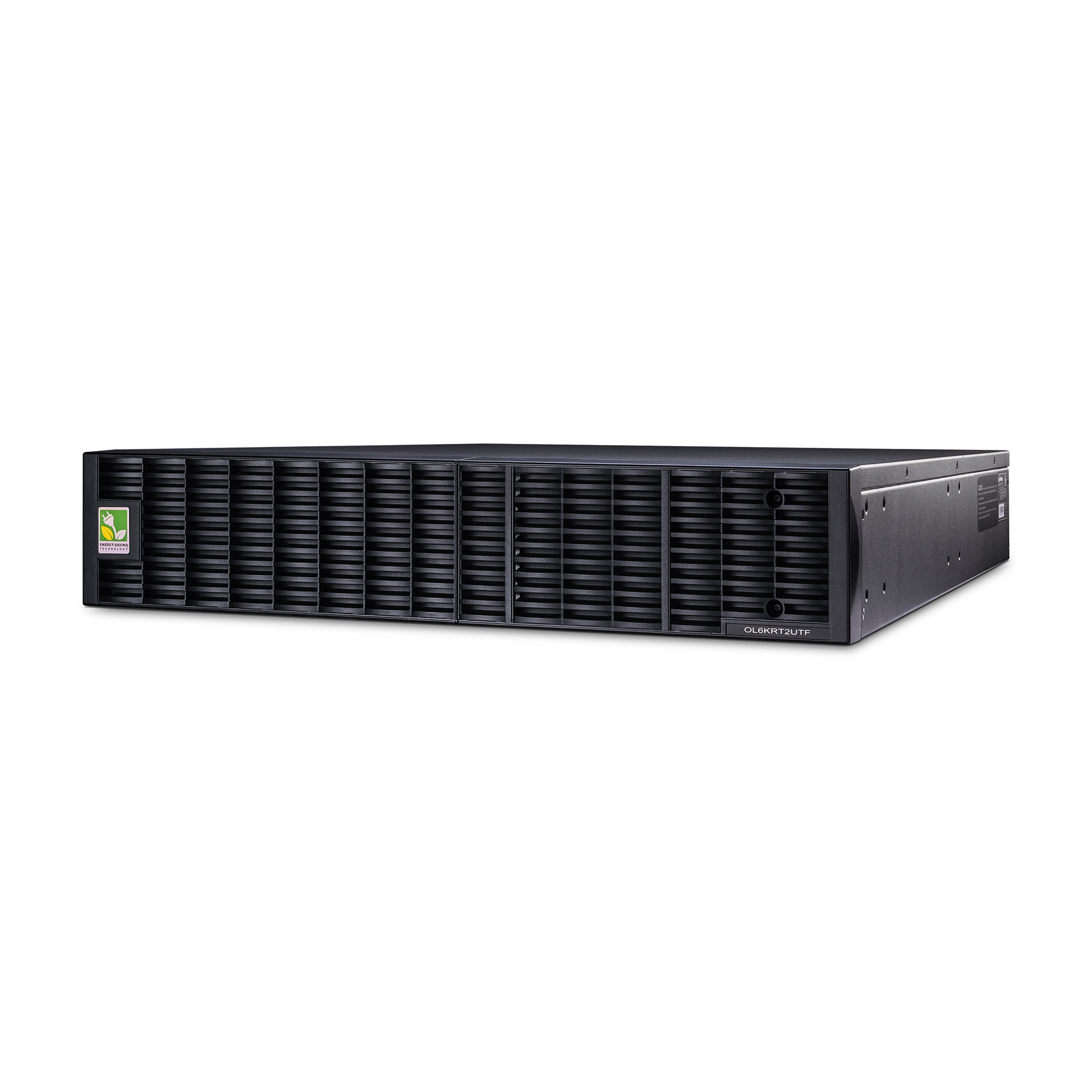

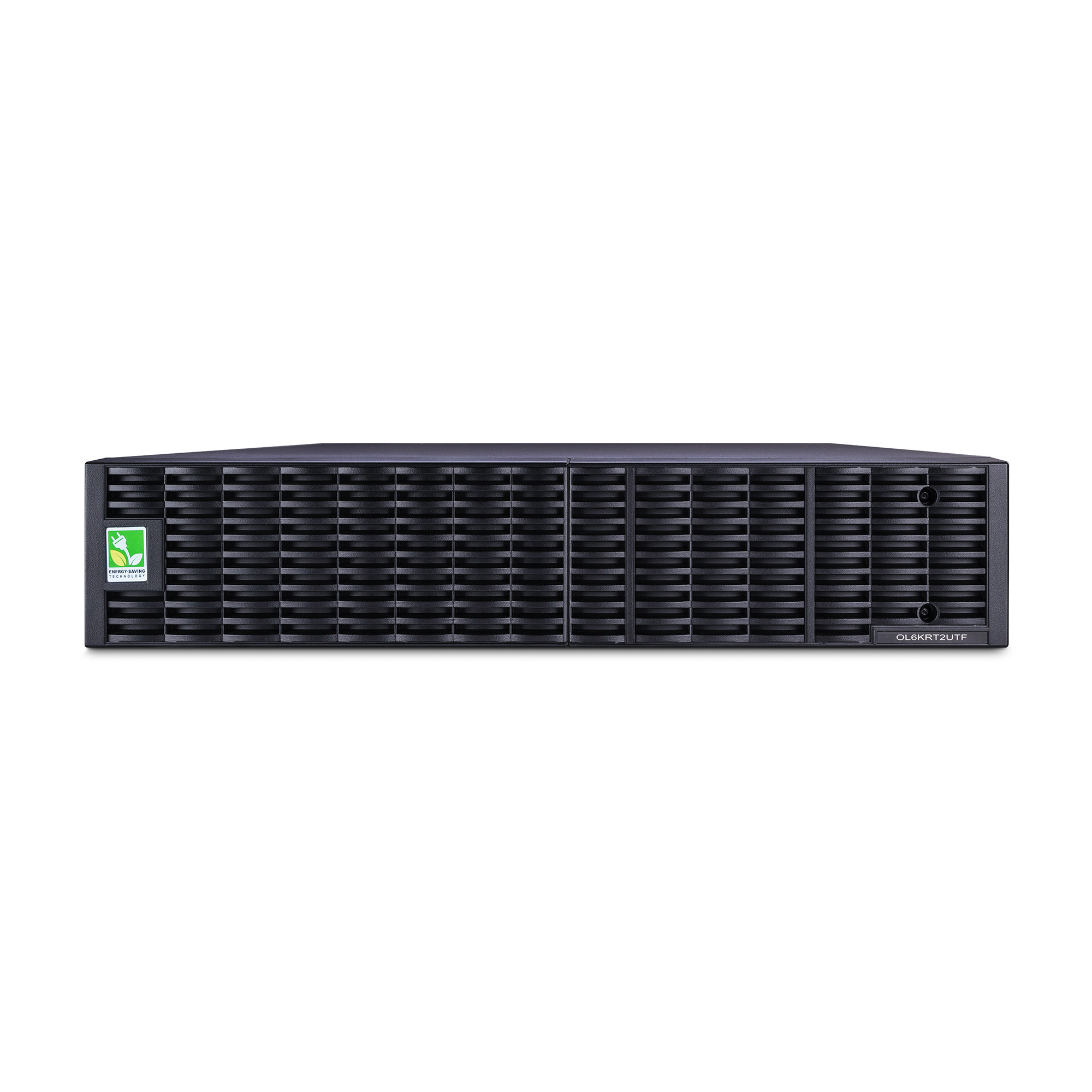

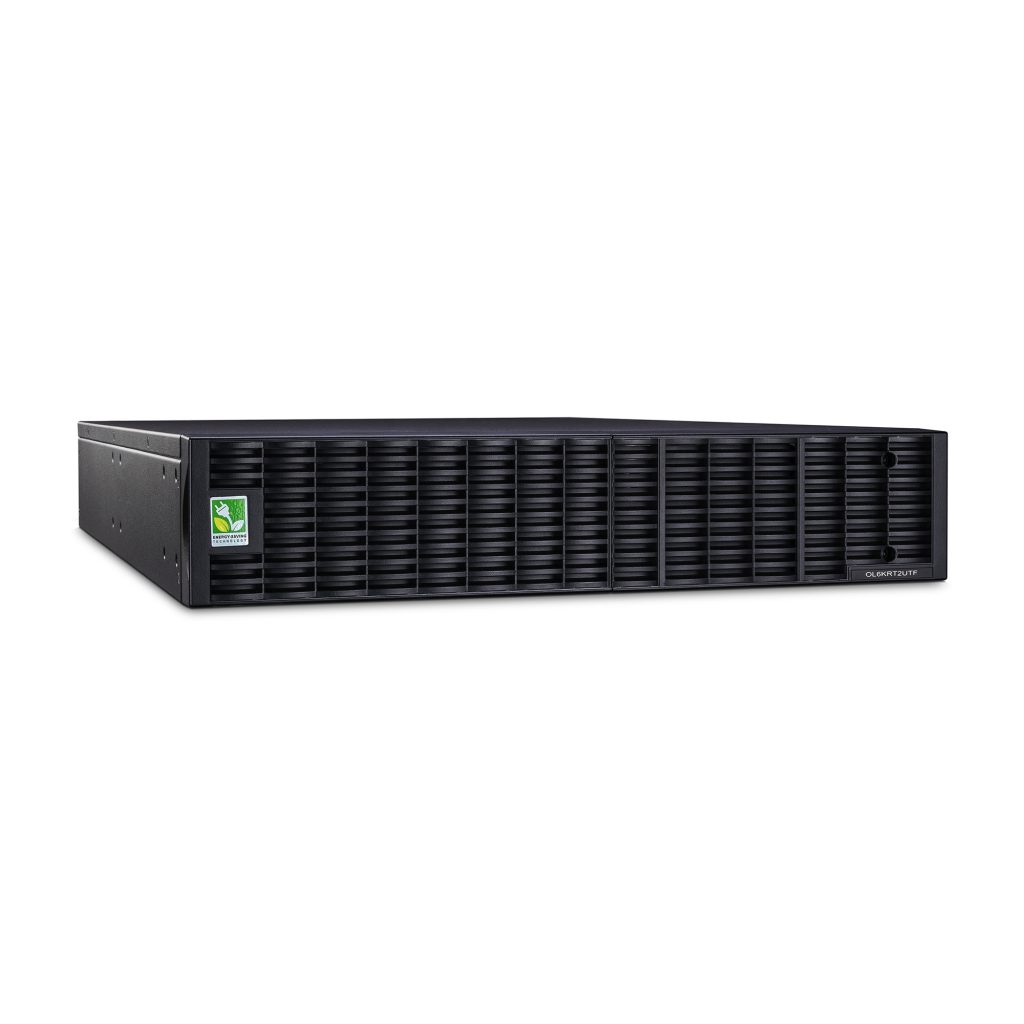

The CyberPower Smart App Online OL6KRT2UTFTAA rack/tower step-down isolation transformer converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output. A 6-foot cord, with a 30A NEMA L6-30P plug, connects the OL6KRTUTF to input power. Over temperature protection safeguards your OL6KRT2UTFTAA from damage if the internal heat exceeds safe operating parameters.

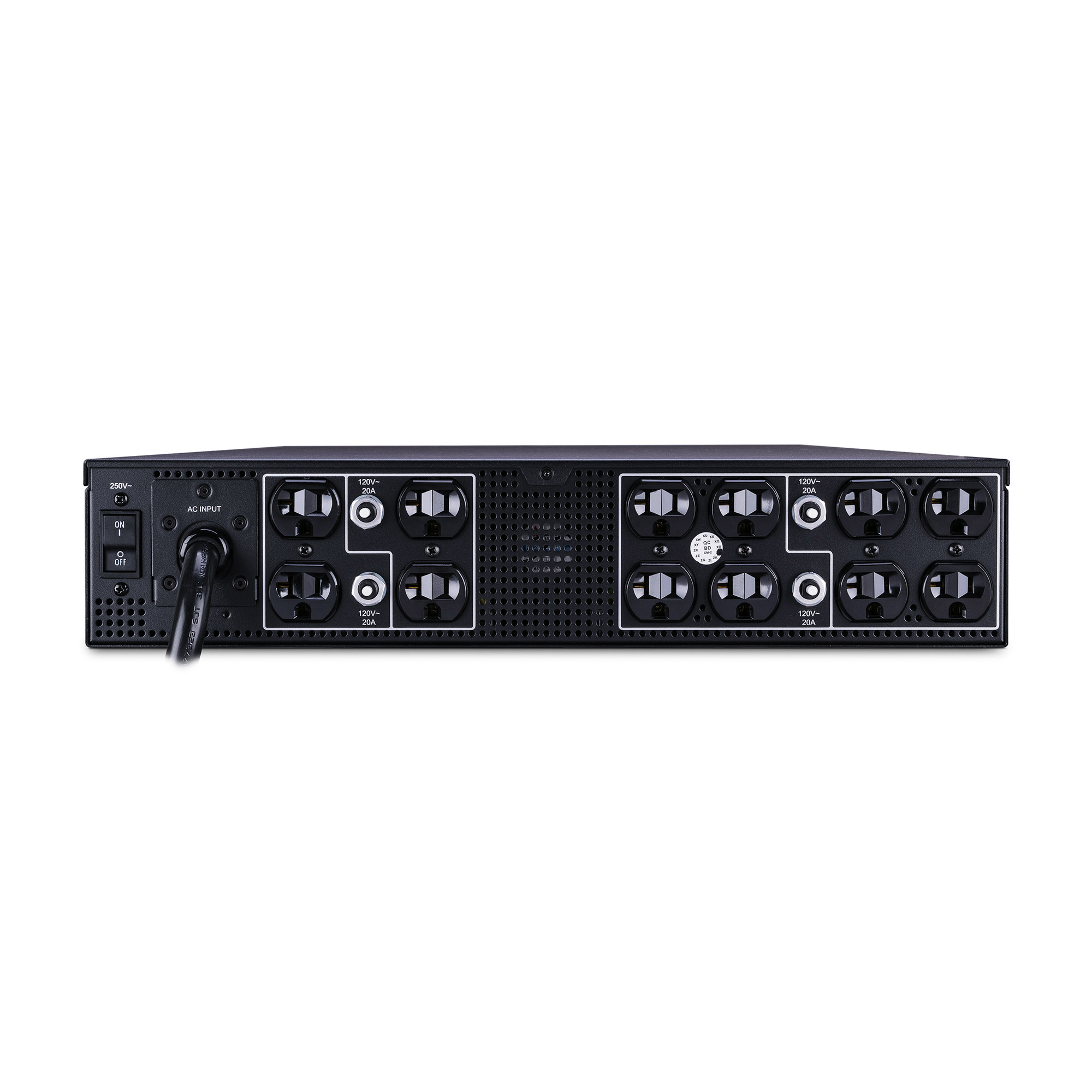

The OL6KRT2UTFTAA has a capacity of 5,000VA / 5,000Watts at 120V. It features twelve NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plugs. A three-year warranty backs the OL6KRT2UTFTAA.

Product Features
  • Step-Down Transformer
    Provides IT managers the ability to support both 120V and 200-240V output requirements with a single UPS solution.
  • 12 NEMA 5-20R Outlets
    Allow users to connect multiple 120V devices running at 15A and/or 20A. CyberPower PDUs can be used if additional outlets are needed.
  • NEMA L6-30P Plug
    A 6-ft. cord with a NEMA L6-30P plug converts 208V 30A input from a UPS, utility power, or a generator to 120V low voltage output.
  • Rack/Tower Versatility
    Allows for horizontal rack or vertical tower installation.
  • Frequency Supported
    The OL6KRT2UTFTAA has the flexibility to support both 50Hz and 60Hz output.
  • Over Temperature Protection
    Protects the OL6KRT2UTFTAA from damage if the internal heat exceeds safe operating parameters.
  • Resettable Input and Output Circuit Breakers
    Convenient, resettable switches that provide protection from an input or output overload and faults.
  • Three-Year Warranty
    CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.
Compatible Products
WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
General
Over Temperature Protection Yes
Input
Cord Length 6 ft (1.8 m)
Input Frequency Range 50 Hz – 60 Hz
Input Plug Type NEMA L6-30P
Input Voltage Range 200 VAC – 240 VAC
Maximum Input Current 30A (Derated to 24A)
Nominal Input Voltage 208 VAC
Output
Nominal Output Voltage 120 VAC
Outlet Type 12 – NEMA 5-20R
Outlets – Total 12
Output Frequency 50/60 Hz (auto-sensing/configurable)
Overload Protection 20A Output Circuit Breakers X 4
USB Charge Port No
VA 5000 VA
Watts 5000 W
Physical
Form Factor Rack / Tower
Material of Construction Metal
Mounting Hardware Yes
Rack Height 2U
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.89 x 66.04 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.5 x 26 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 89 x 660 (mm)
Physical Weight (kg) 58.2
Physical Weight (lb) 128.3
Dimensions – Shipping
Shipping – Weight (kg) 77.56
Shipping – Weight (lb) 171
Environmental
Audible noise at 1.5M from surface of unit 55 dBA
Online Thermal Dissipation 2048 BTU/hr
Operating Elevation 0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity 0 – 90 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Compatibility
Models OL6000RT3U, OL6000RT3UTF, OL8000RT3U, OL8000RT3UTF, OL10000RT3U, OL10000RT3UTF, PR5000LCDRTXL5U, PR6000LCDRTXL5U
UPS Models OL6000RT3U
OL6000RT3UTF
OL8000RT3U
OL8000RT3UTF
OL10000RT3U
OL10000RT3UTF
PR5000LCDRTXL5U
PR6000LCDRTXL5U
Certifications
Environmental RoHS Compliant
Safety UL
cUL
CE
Warranty
Extended Warranty Option WEXT5YR-ACC2C
Product Warranty 3 Year Limited Warranty
