EC650LCD

Ecologic UPS Series


EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals

Product Overview

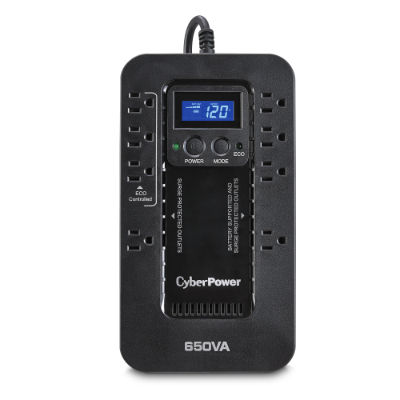

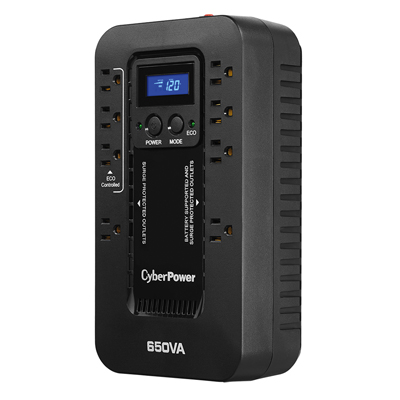

A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs—USB connection required. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone lines from causing damage to electronics.
  • Standby Topology
    Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ High-Efficiency Design
    Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • ECO Mode
    Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.
  • LED Status Lights
    Indicate Power On, ECO on/off.
  • Multifunction LCD Panel
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • PowerPanel® Personal Edition Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

What's In The Box

UPS System, User Manual, USB A+B Type Cable

EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals
General
UPS Topology Standby
Energy Saving GreenPower UPS™ High Efficiency
ENERGY STAR® Qualified Yes
Input
Voltage 120 VAC
Frequency Range 47 – 63 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset
Cord Length 5 ft
Output
VA 650 VA
Watts 390 W
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 50/60 Hz ± 1% (auto-sensing)
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets - Total 8
Outlets - Eco Controlled 3
Outlets - Battery & Surge Protected 4
Outlets - Surge-Only Protected 4
Outlets - Widely Spaced 2
Overload Protection Internal Circuitry Limiting
Circuit Breaker
Transfer Time 4 ms
Battery
Runtime at Half Load 8 minutes
Runtime at Full Load 2 minutes
Battery Type Sealed Lead-Acid
Typical Recharge Time 8 hours
Surge Protection & Filtering
Surge Suppression 526 J
Phone Protection RJ11 1-In, 1-Out
EMI/RFI Filtration Yes
Management & Communications
HID Compliant USB Port Yes
Management Cable USB Cable
LED Indicators Power On
ECO on/off
Audible Alarms On Battery
Low Battery
Overload
Software PowerPanel® Personal Edition
Multifunction LCD Panel Yes
Physical
Form Factor Compact
Keyhole Mounting Slots Yes
Dimensions - W×H×D (in) 10.6 × 3.1 × 5.9 inches
Weight (lbs) 6.4 lbs
Shipping Dimensions - W×H×D (in) 13.2 × 4.3 × 8.1 inches
Shipping Weight (lbs) 6.5 lbs
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Humidity 0 – 90% (non-condensing)
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Elevation 0 – 50,000 ft (0 – 15,000 m)
Certifications
Safety UL1778
cUL 107.3
FCC DOC Class B
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $100,000
EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals
GreenPower UPS Technology

GreenPower UPS™ Technology from CyberPower consists of three different energy-saving designs that improve operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

ECO Mode: Our ECO Mode is a form of bypass technology that can be switched on full time, set for noncritical times (such as nights and weekends), or switched off. This flexibility can help conserve power and save money.

Bypass Design: Our patented bypass design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.

High-Efficiency Design: significantly decreases power consumption to create an ultra-efficient backup battery for home and office use.


Power Protection without the Noise

CyberPower UPS systems harness high-efficiency ventilation, GreenPower UPS™ technology, and innovative system components to ensure ultra-quiet operation.

Noise Filtering improves picture and sound quality in audio/video systems, CyberPower uses advanced EMI/RFI noise filtering coils to decrease problems caused by electromagnetic fields and radio frequency interference. The filters smooth minor current fluctuations which cause disruptive humming and static.

Line Conditioning with automatic voltage regulation (AVR), prolongs the life of sensitive electronic equipment. AVR line conditioning adjusts the incoming AC voltage, keeping it within safe levels and reducing stress caused by power fluctuations.


Energy-Saving ECO Mode

The Ecologic UPS Series offers energy-conserving ECO Mode functionality and surge protected ECO outlets. These outlets are specifically designed to provide energy and cost saving benefits. It's easy to use the ECO Mode technology. Activate the ECO outlets by pressing the ECO Mode button on the front of the UPS. When ECO Mode is turned on (and the computer is properly connected to the UPS), the UPS can detect whether the attached computer is turned off or is in sleep mode. The UPS will then safely remove power from the ECO outlets to shut down the connected devices, reducing power usage.

ECO outlets provide easy-to-use flexibility. When activated, ECO mode helps reduce energy waste by switching off AC power to connected equipment. (If you need to use the ECO outlets as standard surge-protected outlets, simply turn off ECO Mode.) CyberPower's ECO Mode outlet technology, combined with ENERGY STAR® compliant GreenPower UPS™ high-efficiency design, increases energy savings, reduces heat dissipation, and provides quiet, eco-friendly power protection.

EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals

Shutdown software supports most Window systems

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

View UPS via the USB connection to your Mac

EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals
Where is the serial number located on the unit?

The serial number is located on a white label adhered to the unit. The serial number is shown directly underneath the barcode.

EC650LCD | Ecologic UPS Series
Protect SOHO networks, computers, and peripherals
Model Output VA Output Watts Outlets MSRP
EC350G 350 VA 255 W 8 NEMA 5-15R $47.95
EC550G 550 VA 330 W 8 NEMA 5-15R $64.95
EC750G 750 VA 450 W 12 NEMA 5-15R $89.95
EC650LCD 650 VA 390 W 8 NEMA 5-15R $79.95
EC850LCD 850 VA 510 W 12 NEMA 5-15R $97.95
