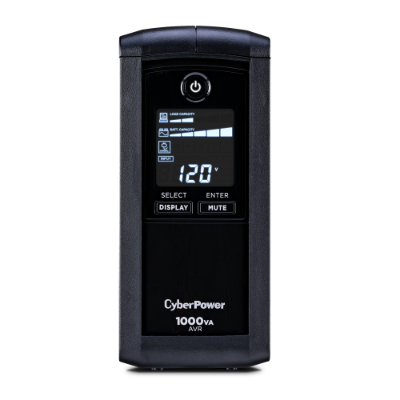

The CyberPower Intelligent LCD CP1000AVRLCD is a mini-tower UPS with line interactive topology. This model provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The LCD CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.
UPS System, User Manual, USB A+B Type Cable
| General | |
|---|---|
| UPS Topology | Line Interactive |
| ENERGY STAR® Qualified | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Input | |
| Voltage | 120 VAC |
| Frequency Range | 57 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle |
| Cord Length | 6 ft |
| Output | |
| VA | 1,000 VA |
| Watts | 600 W |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |

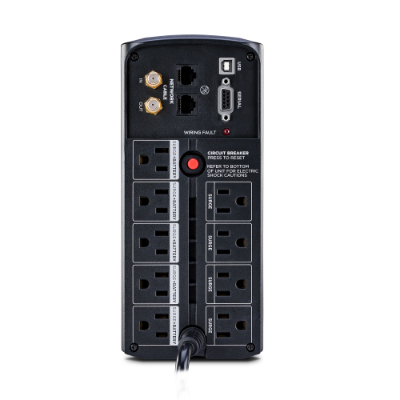

| Outlet Type | NEMA 5-15R |
| Outlets - Total | 9 |
| Outlets - Battery & Surge Protected | 5 |
| Outlets - Surge-Only Protected | 4 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker |
| Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 6 minutes |
| Runtime at Full Load | 1 minute |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9Ah |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1290 |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,080 J |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coaxial Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Panel | Displays: Current/Load Level Runtime Battery Level AVR In Use Battery In Use Input Voltage Output Voltage Output Frequency Overload Wiring Fault Silent Mode |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On Wiring Fault |
| Audible Alarms | On Battery Low Battery Overload |
| Software | PowerPanel® Personal Edition |
| Serial Port | Yes |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions - W×H×D (in) | 4.25 × 8.75 × 10.5 inches |
| Weight (lbs) | 15.9 lbs |
| Environmental | |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Certifications | |
| Safety | UL1778 cUL 107.1 FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $350,000 |
This product was awarded a Best Pick by the reviewers of Bestcovery.com.
GreenPower UPS™ Technology from CyberPower consists of three different energy-saving designs that improve operating efficiency, reduce heat generation, and consume less power than conventional UPS models.
ECO Mode: Our ECO Mode is a form of bypass technology that can be switched on full time, set for noncritical times (such as nights and weekends), or switched off. This flexibility can help conserve power and save money.
Bypass Design: Our patented bypass design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
High-Efficiency Design: significantly decreases power consumption to create an ultra-efficient backup battery for home and office use.
CyberPower UPS systems harness high-efficiency ventilation, GreenPower UPS™ technology, and innovative system components to ensure ultra-quiet operation.
Noise Filtering improves picture and sound quality in audio/video systems, CyberPower uses advanced EMI/RFI noise filtering coils to decrease problems caused by electromagnetic fields and radio frequency interference. The filters smooth minor current fluctuations which cause disruptive humming and static.
Line Conditioning with automatic voltage regulation (AVR), prolongs the life of sensitive electronic equipment. AVR line conditioning adjusts the incoming AC voltage, keeping it within safe levels and reducing stress caused by power fluctuations.
Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.
How AVR Works in a Line Interactive UPS
A line interactive UPS includes an AVR autotransformer—a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.
This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.
Shutdown software for Linux. Requires Linux kernel >2.6.12
Shutdown software for Linux. Requires Linux kernel >2.6.12
The serial number is located on a white label adhered to the unit. The serial number is shown directly underneath the barcode.
| Model | Output VA | Output Watts | Outlets | MSRP |
|---|---|---|---|---|
| CP600LCD | 600 VA | 340 W | 8 NEMA 5-15R | $74.95 |
| CP750LCD | 750 VA | 420 W | 8 NEMA 5-15R | $87.95 |
| CP825LCD | 825 VA | 450 W | 8 NEMA 5-15R | $91.95 |
| CP685AVRLCD | 685 VA | 390 W | 8 NEMA 5-15R | $97.95 |
| AVRG750LCD | 750 VA | 450 W | 12 NEMA 5-15R | $99.95 |
| CP825AVRLCD | 825 VA | 450 W | 8 NEMA 5-15R | $105.95 |
| AVRG900LCD | 900 VA | 480 W | 12 NEMA 5-15R | $125.95 |
| CP850AVRLCD | 850 VA | 510 W | 9 NEMA 5-15R | $119.95 |
| CP1000AVRLCD | 1000 VA | 600 W | 9 NEMA 5-15R | $124.95 |
| CP1350AVRLCD | 1350 VA | 810 W | 8 NEMA 5-15R | $155.95 |
| CP1500AVRLCD | 1500 VA | 900 W | 8 NEMA 5-15R | $179.95 |
| BRG850AVRLCD | 850 VA | 510 W | 10 NEMA 5-15R | $154.95 |
| BRG1000AVRLCD | 1000 VA | 600 W | 10 NEMA 5-15R | $169.95 |
| BRG1350AVRLCD | 1350 VA | 810 W | 12 NEMA 5-15R | $209.95 |
| BRG1500AVRLCD | 1500 VA | 900 W | 12 NEMA 5-15R | $239.95 |
