USB Battery Banks

CPBC5200AC

DISCONTINUED
  • Power source: USB
  • Battery capacity: 5200mAH
  • Charges provided: 6 Smartphone charges
  • USB output: 2.1A (shared)
  • Ports: 2
  • Overload: Protected
  • Battery type: Lithium-ion
  • LED indicators: Yes
  • Warranty: 1 year
Overview

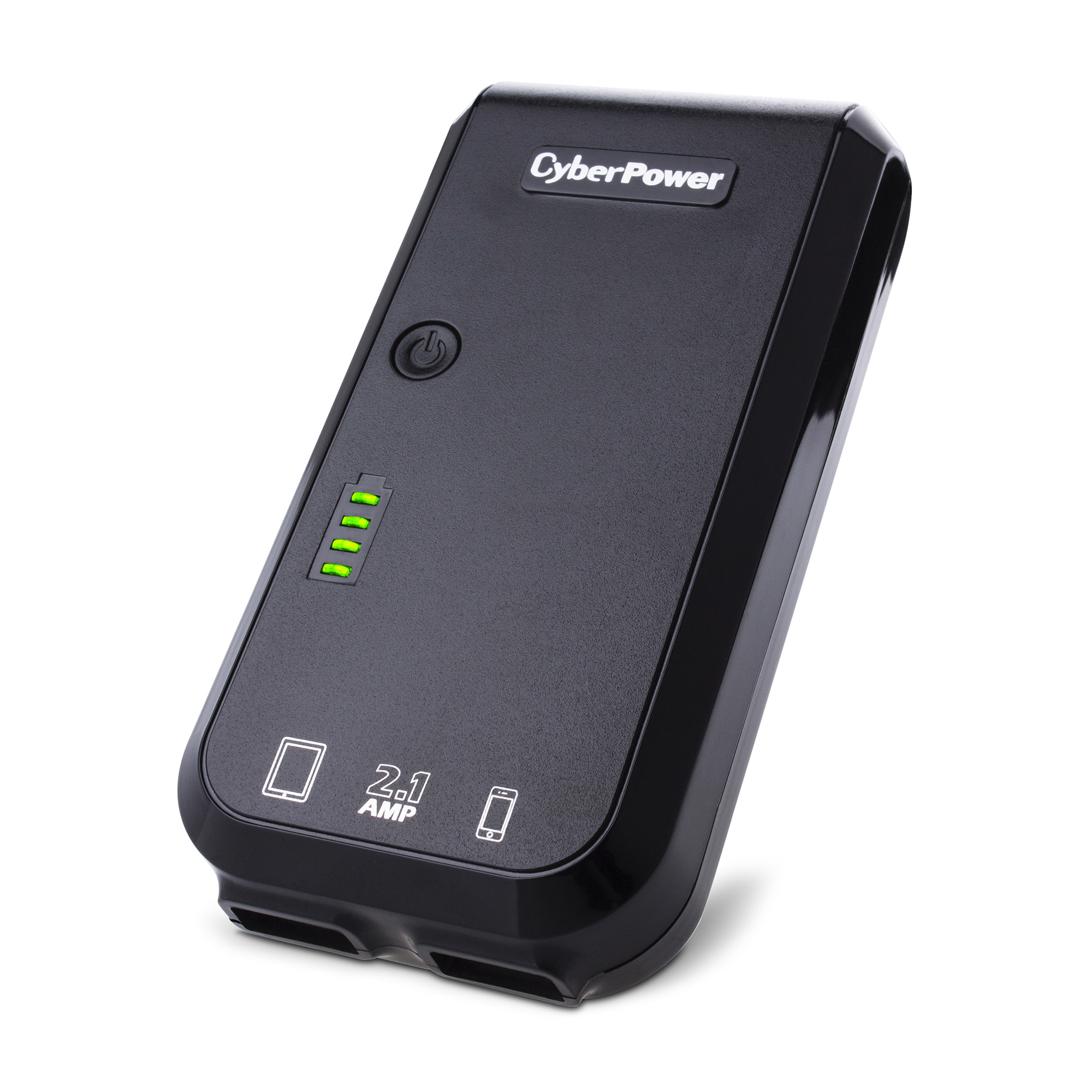

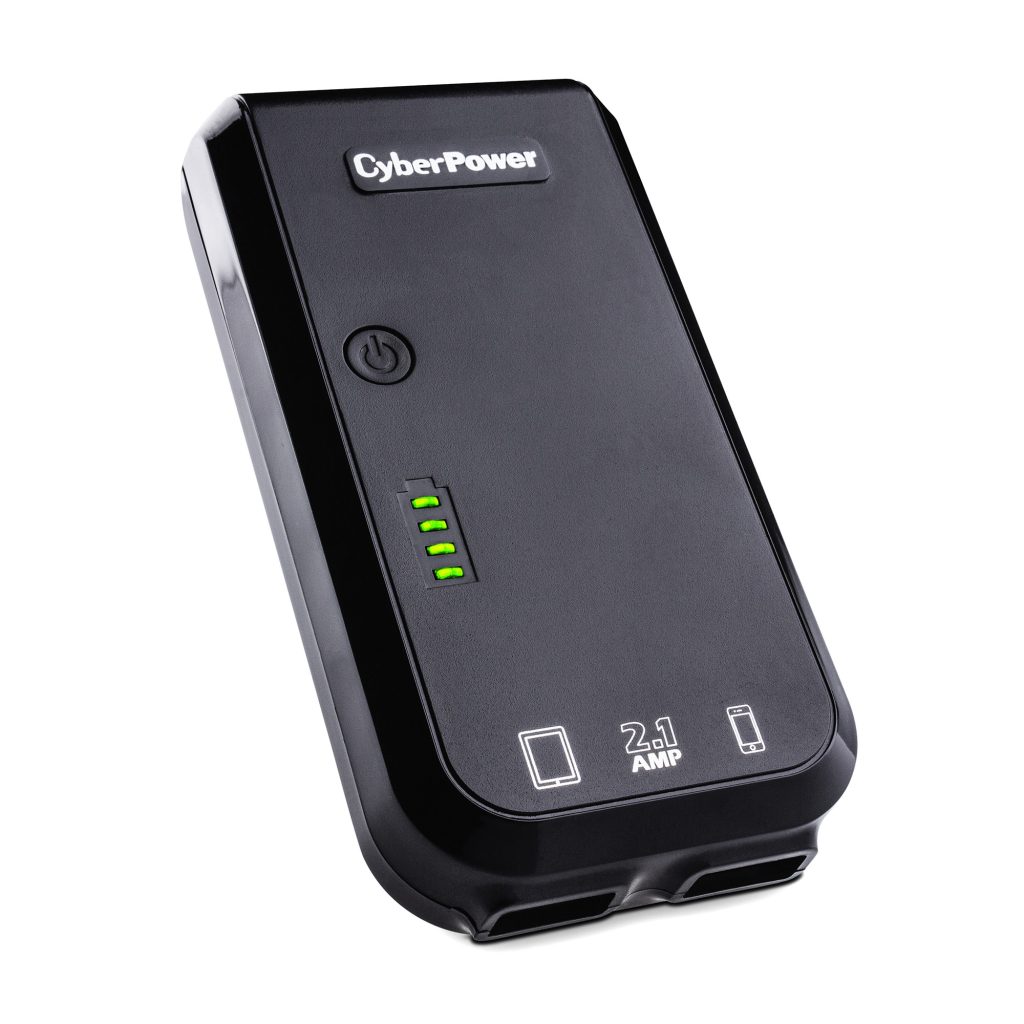

Product Overview

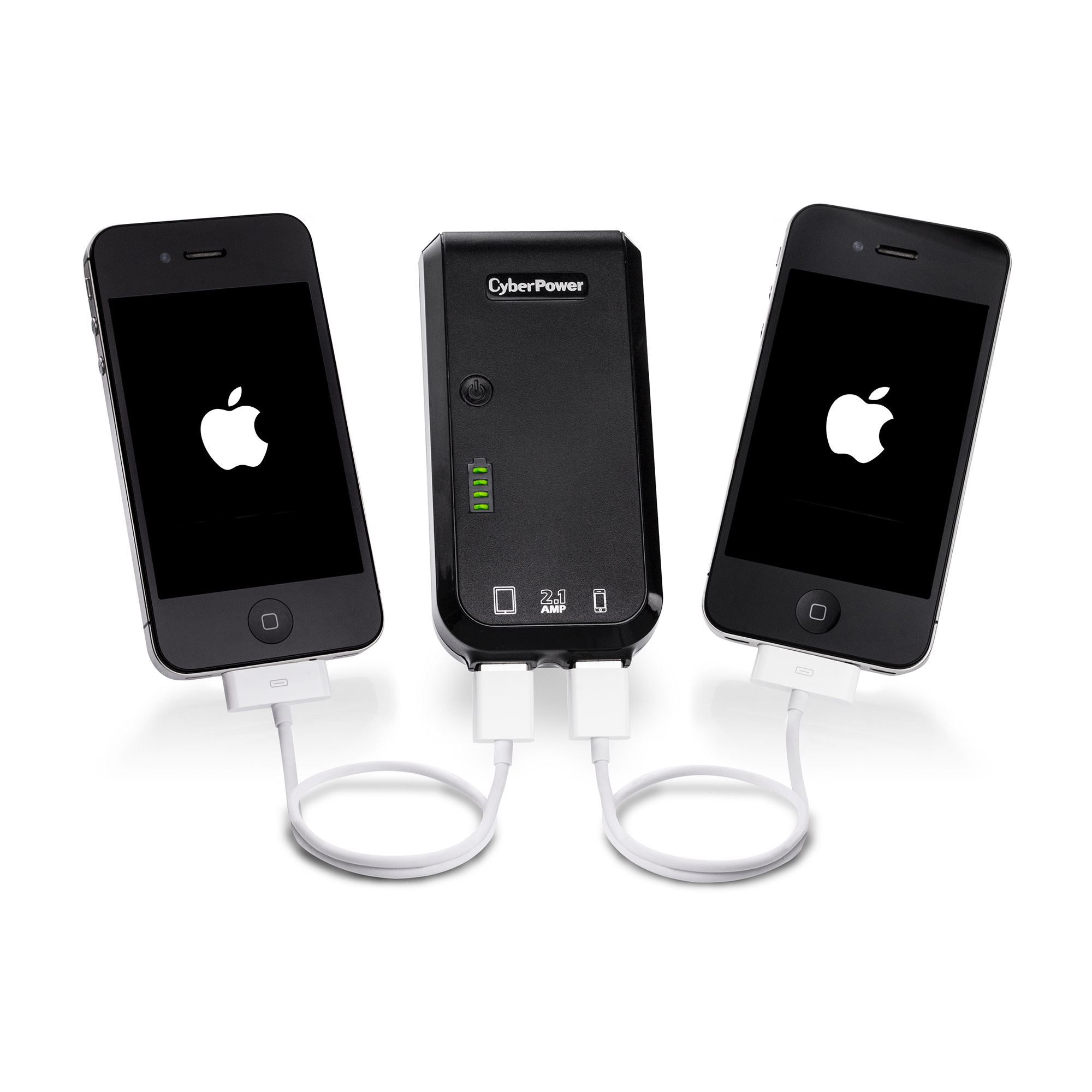

The CyberPower CPBC5200AC Mobile Battery Pack, with folding AC plug, charges and powers two mobile USB devices at the same time, including tablets, smartphones, MP3 players, and handheld gaming systems. The rechargeable compact lithium-ion battery provides up to 710 hours of runtime and offers convenient portability. Dual USB ports (2.1 Amp shared) work with any USB cable to charge and power electronic equipment up to 2.1A USB. The built-in folding AC plug fits into standard wall outlets to recharge the pack. (The typical recharge time is six hours.) The CPBC5200AC comes with a user guide and a one-year limited warranty.

Product Features
  • USB Charge Ports
    Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.

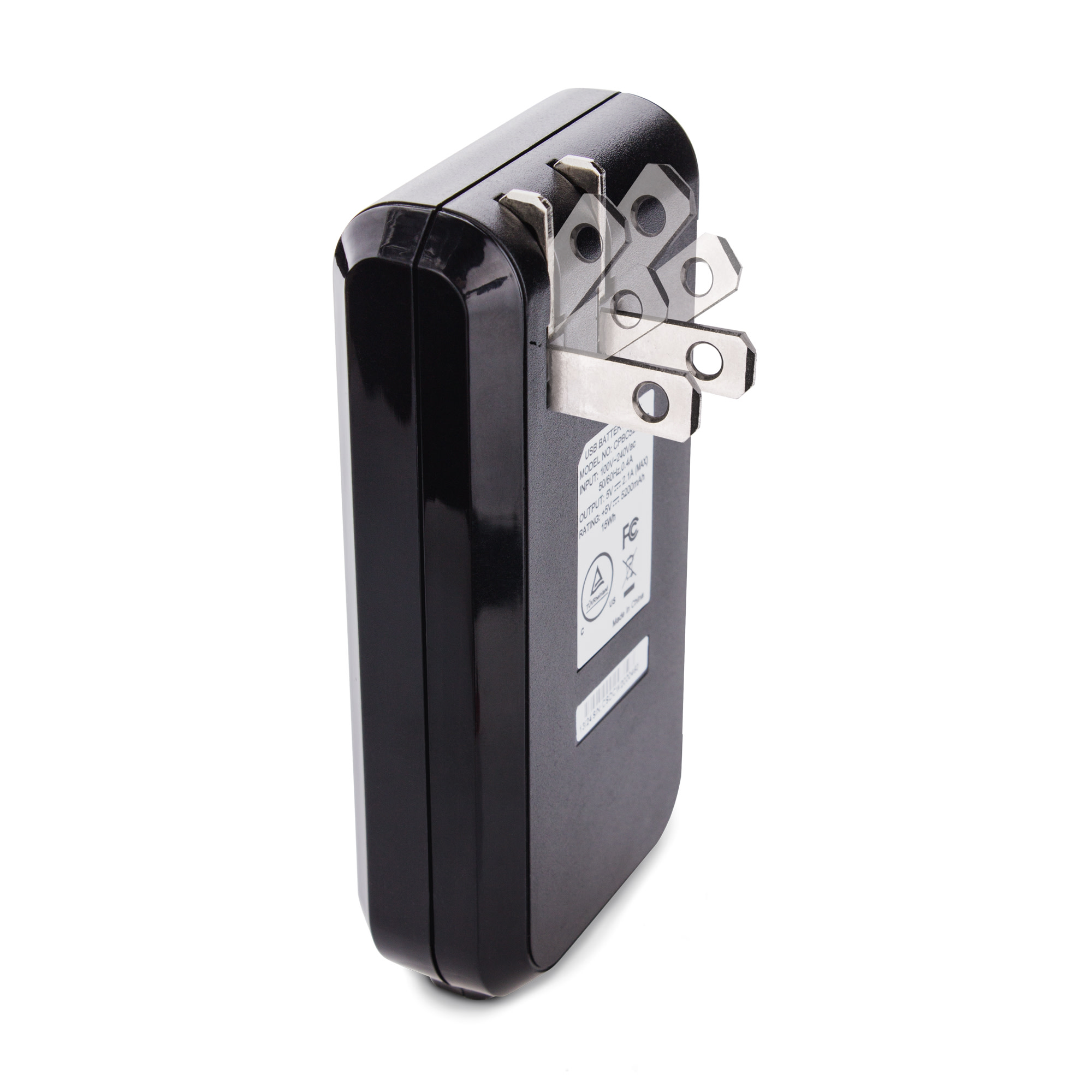

  • Folding AC Power Plug
    Fits into a standard wall outlet to recharge the battery pack.
  • Power Switch
    Activities and deactivates various functions of the battery pack. The Power Switch is a button located in the front of the battery pack.
  • LED Indicators
    Provide information about power status (on/off), overload, battery capacity, and battery failure.
  • One-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within one year of the purchase date. See warranty for details.
Compatible Products
Specifications
Expand All
General
Type USB Battery Pack
Input
Voltage 5V ± 5% DC
Current 0.4A
Power Source Folding AC Plug
Input Connector AC Plug
Output
USB Charge 5V ± 5%
USB Charge Port – Total 2
USB Charging Amperage 2.1A (shared)
Output Connector USB Type A (Female) x2
Special Features
Flashlight N/A
Battery
Battery Capacity 5200mAh
Battery Voltage 3.7V
Recharge Time – Hours (Typical) 6
Protection Features
Short Circuit Yes
Low Voltage N/A
Over Charging Yes
Over Discharging Yes
Discharge Over Current Yes
Energy Saving Mode Yes
LED Indicators
Power On/Off Yes
Battery Capacity 4 Green Bars
Overload Yes
Battery Failure Yes
Physical
Dimensions – W×H×D (in) 2.2 x 0.96 x 4.26 inches
Weight (lbs) 0.37 lbs
Environmental
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature 14°F to 122°F / -10°C to 50°C
Certifications
Safety TUV/FCC/CE
Environmental RoHS Compliant
Warranty
Product Warranty 1 Year Limited
Feature Focus
USB Chargers

A USB (Universal Serial Bus) charger generates the 5 Volt DC power required to charge a USB device. To operate, a charger plugs into an AC outlet. A USB cable connects the charger to the USB device via a Type A socket. USB chargers vary in the amount of electrical amps they handle. USB chargers from CyberPower Systems charge iPods, PDAs, phones, cameras and other personal electronics.

Our USB chargers have various features, depending upon the model. Significant features of this product line include vehicle ports, 2.1-Amp Quick Charge Technology, energy-efficient design elements, and LED indicators. Quick Charge Technology provides fast charging power for tablets, smartphones, and similar devices. USB chargers, cables, and hubs are among the many power accessories available from CyberPower for computer and consumer electronics. Other power accessories include mobile batteries and power inverters.


Lithium Ion Batteries and Quality Performance

Lithium-ion provides quick, efficient performance for rechargeable batteries. Common in notebooks, mobile phones, and other devices, rechargeable lithium-ion batteries have a high power density. Lightweight and convenient, these batteries function well upon frequent, shallow discharges before having to be recharged.

Although lithium-ion batteries can be recharged many times, they may eventually require replacement. Spent batteries should always be recycled or disposed separately from household waste.


Downloads

CPBC5200AC

575 KB

CPBC5200AC

1.02 MB
