Multi Pack Surge Protectors

MP1075WS

DISCONTINUED

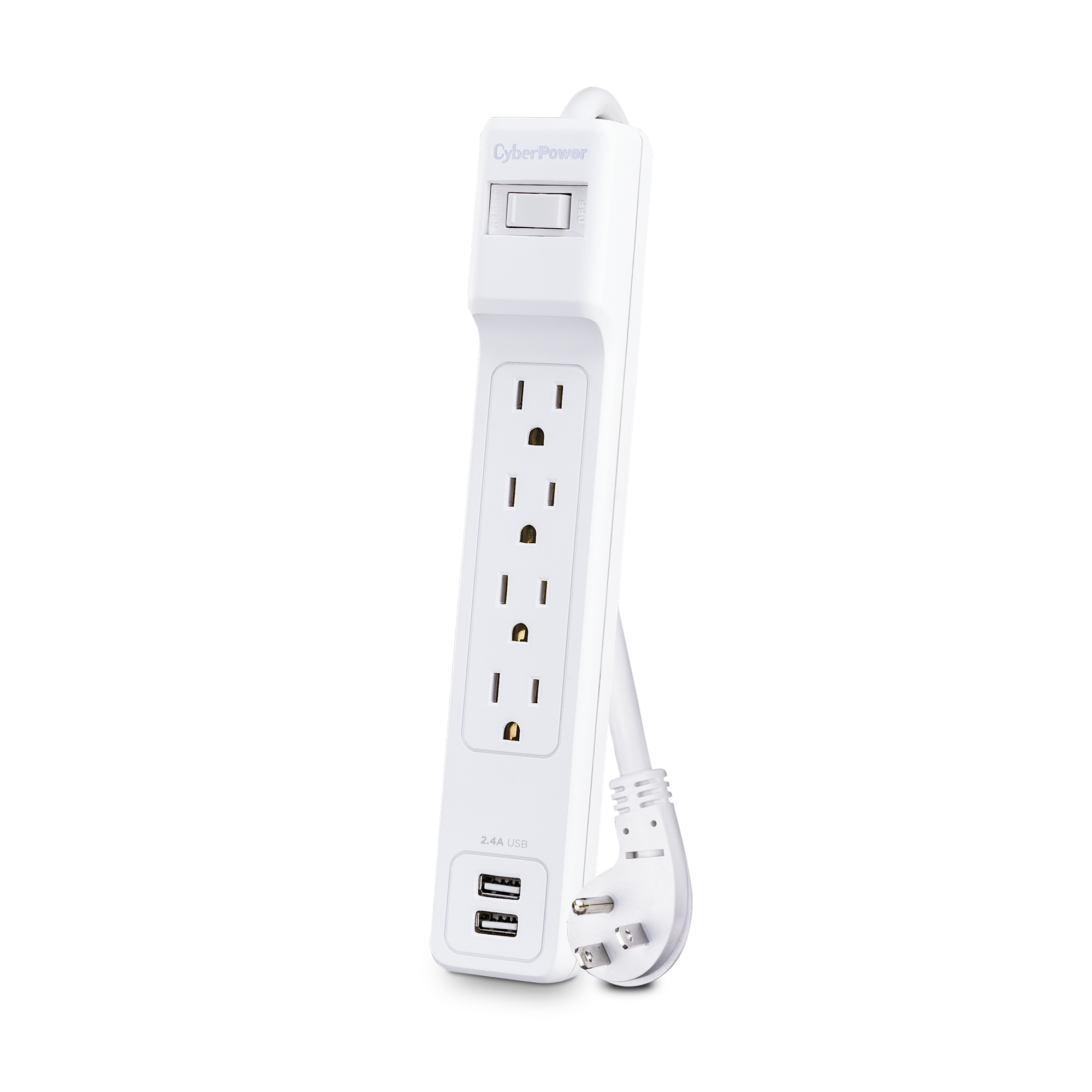

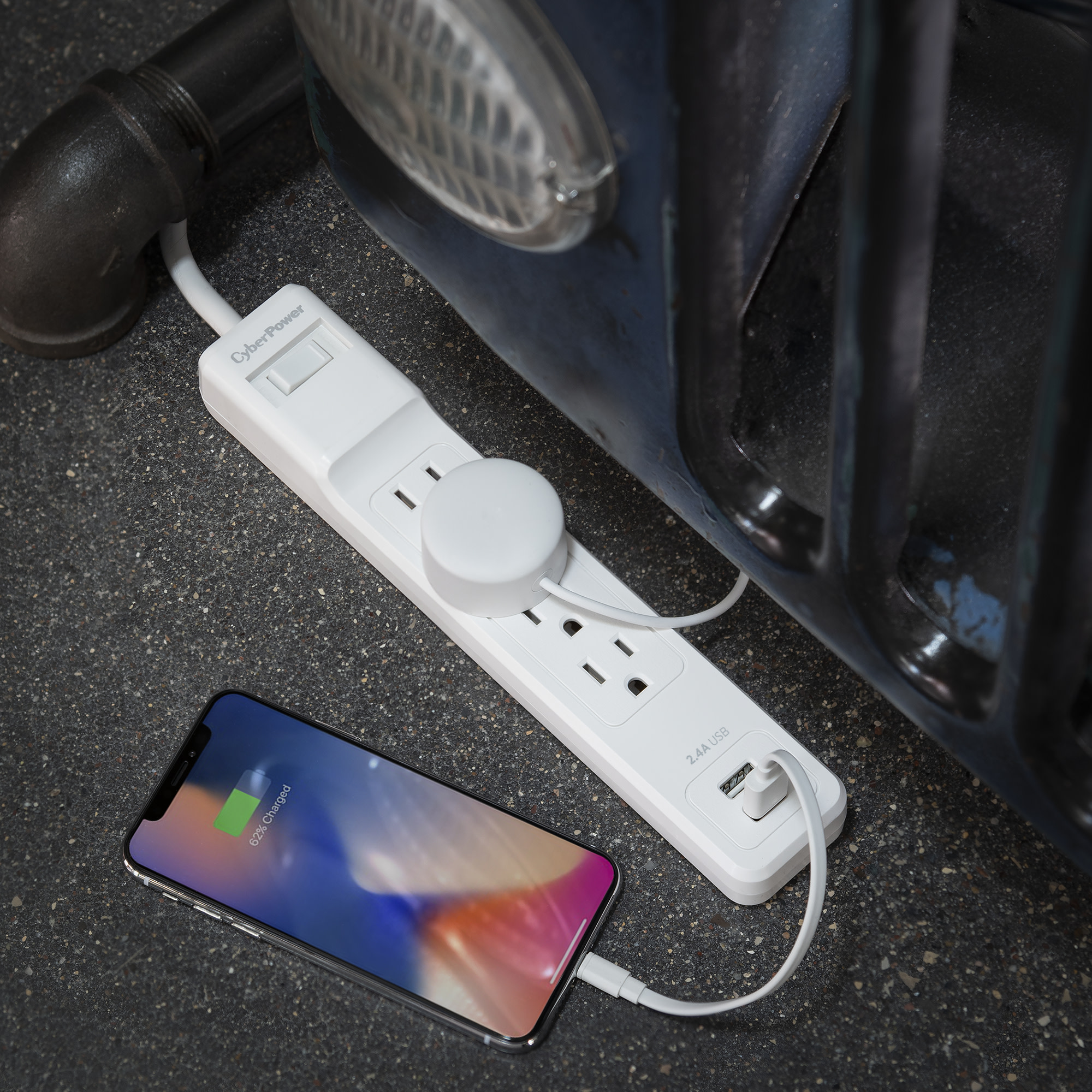

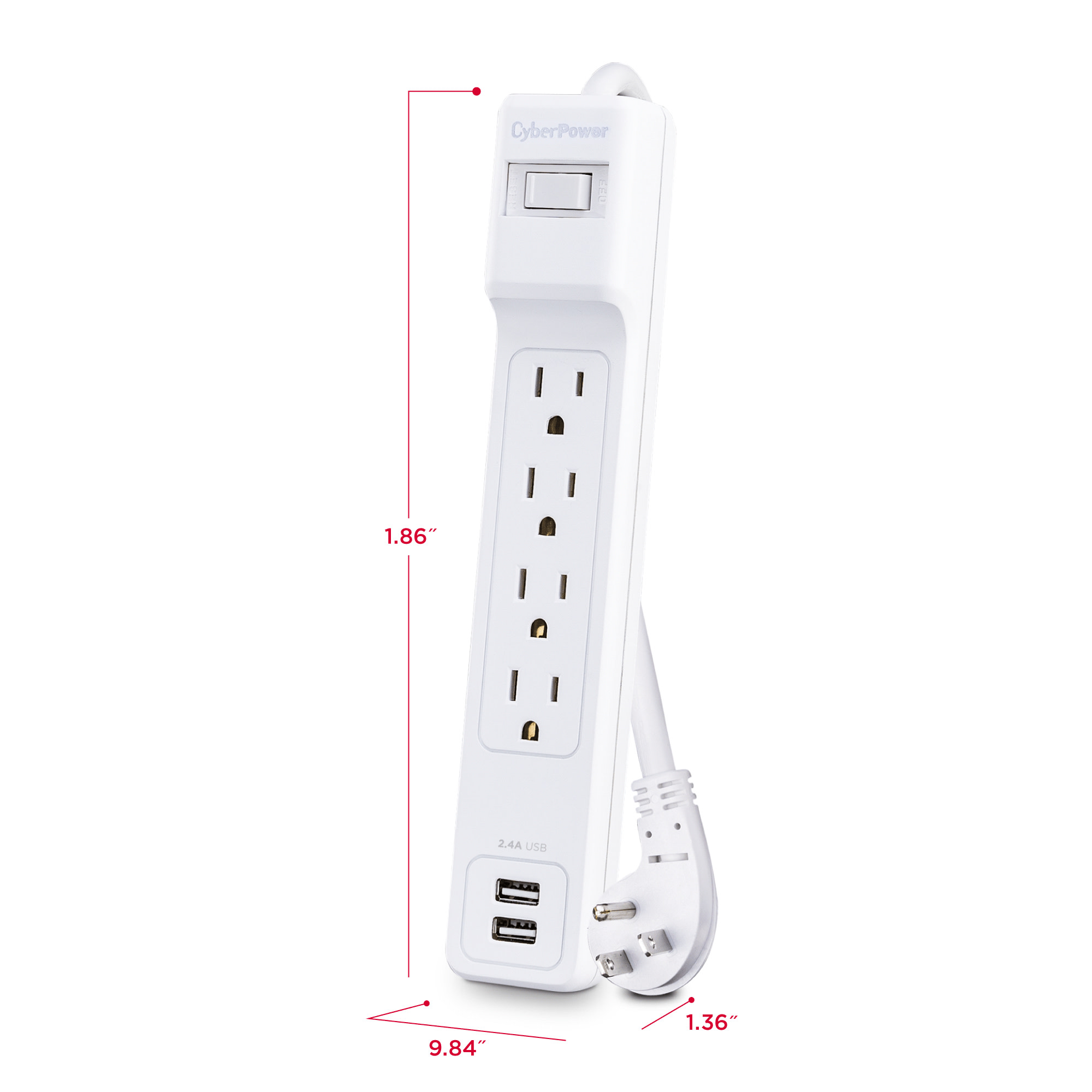

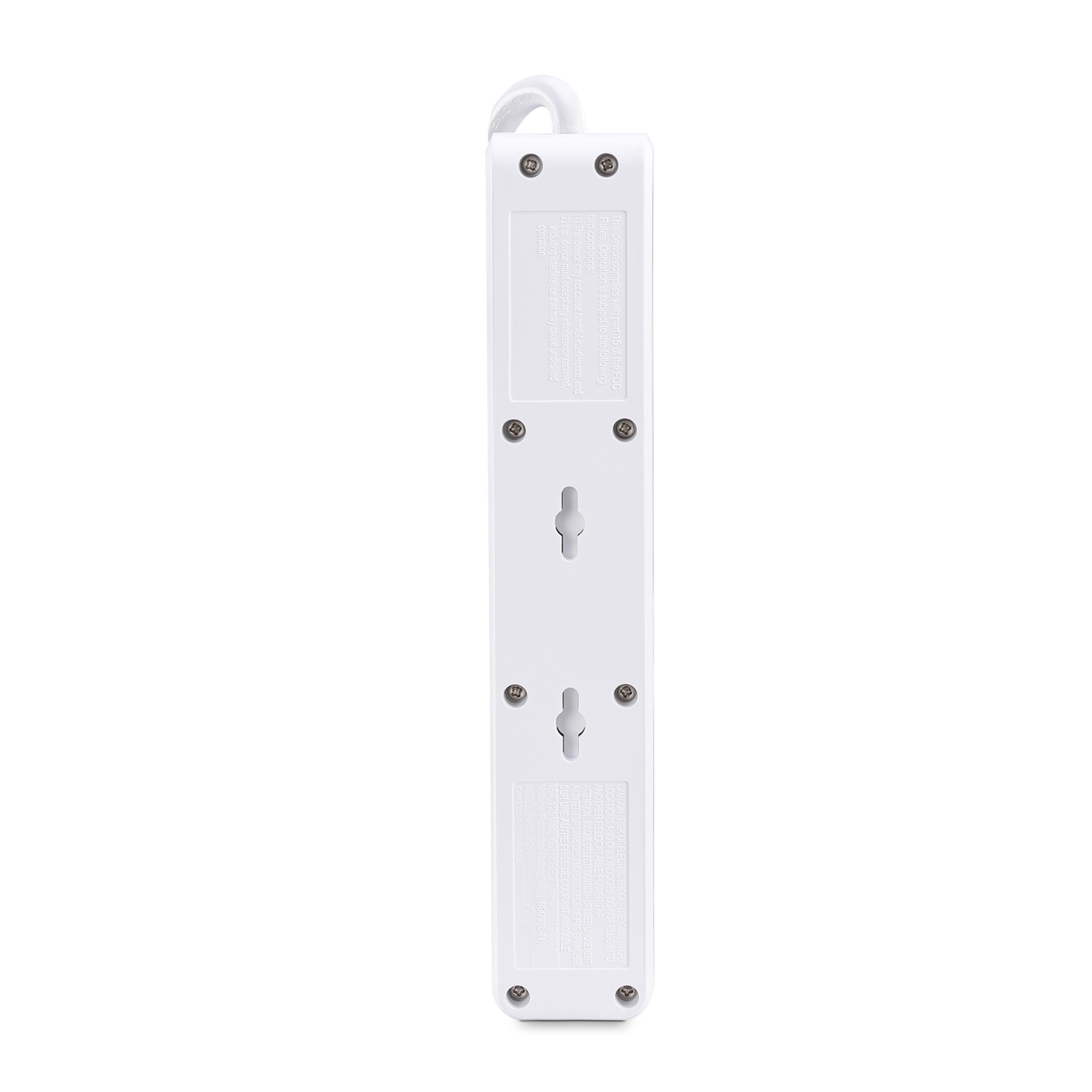

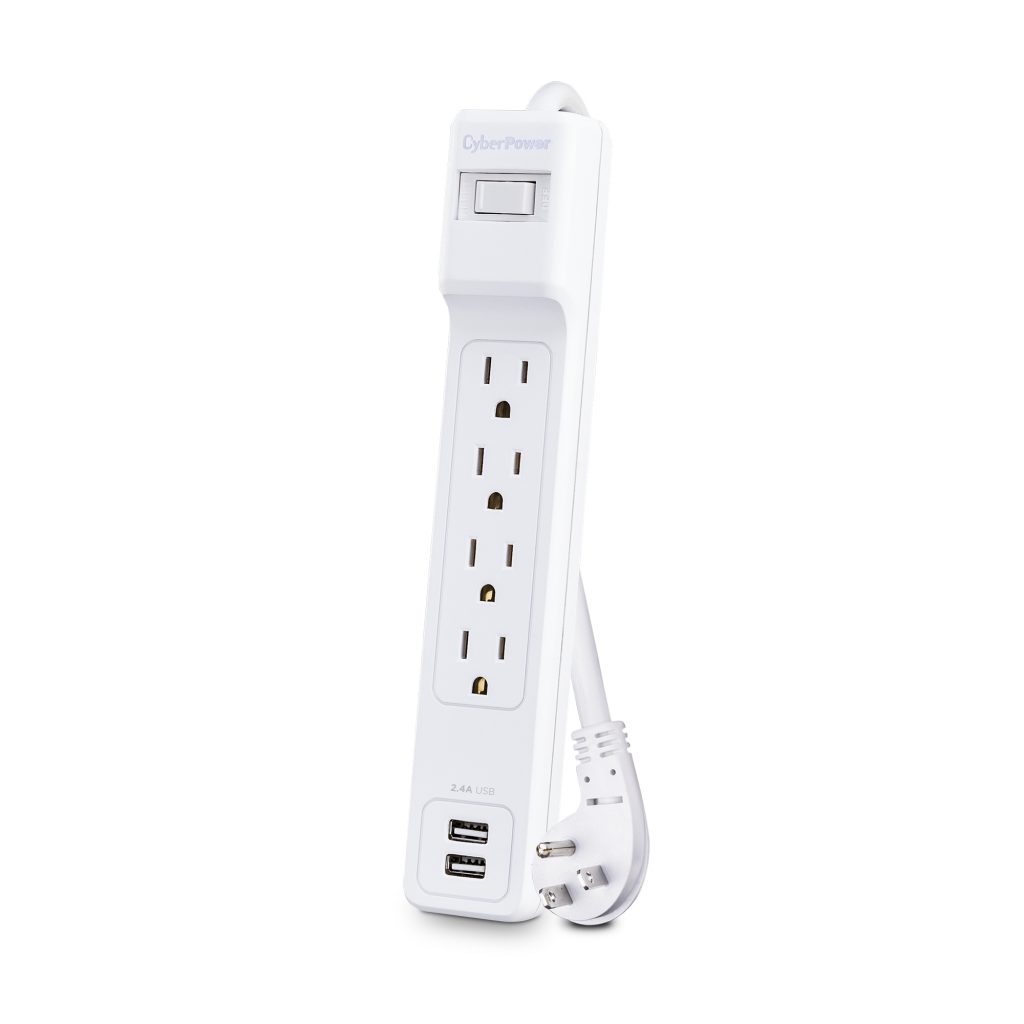

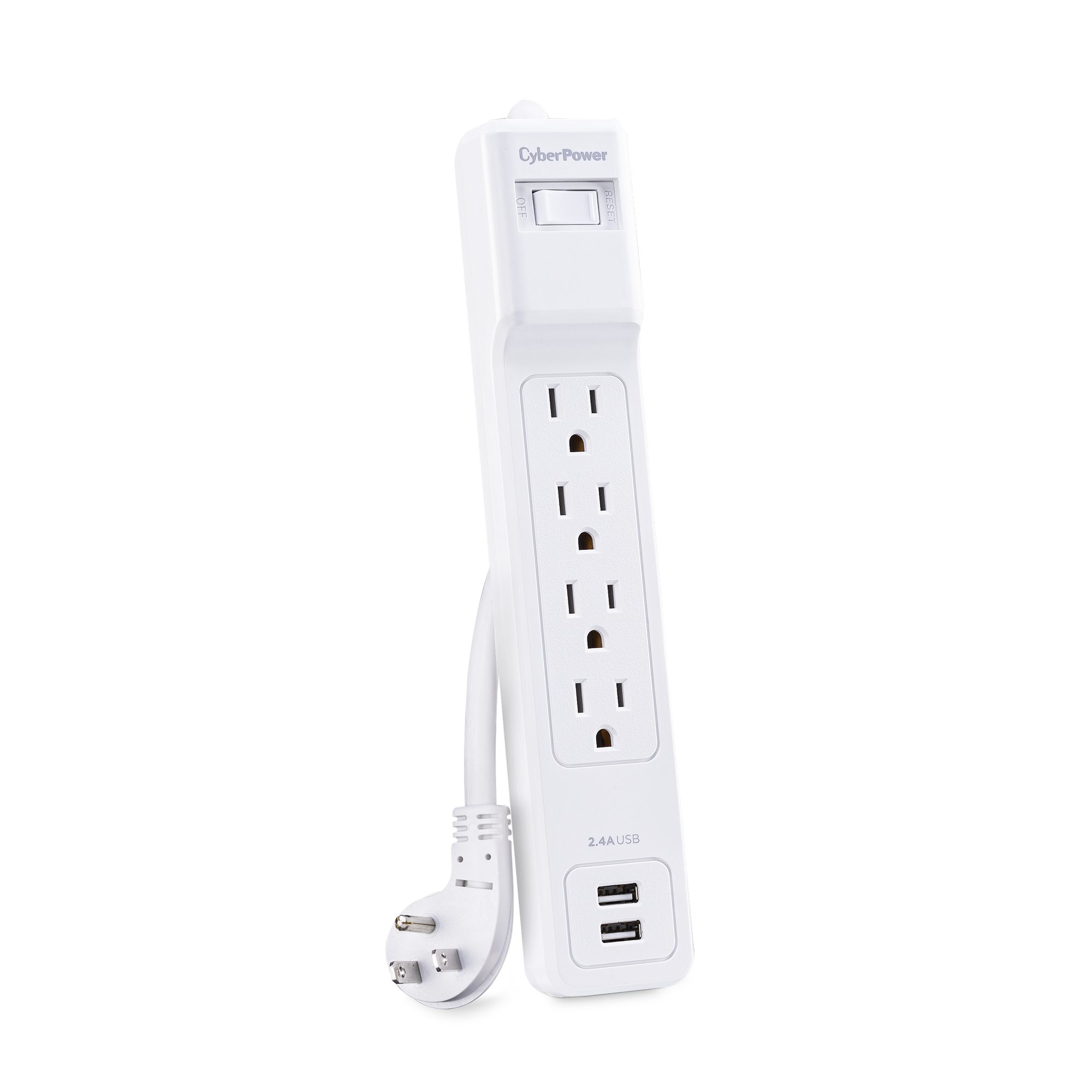

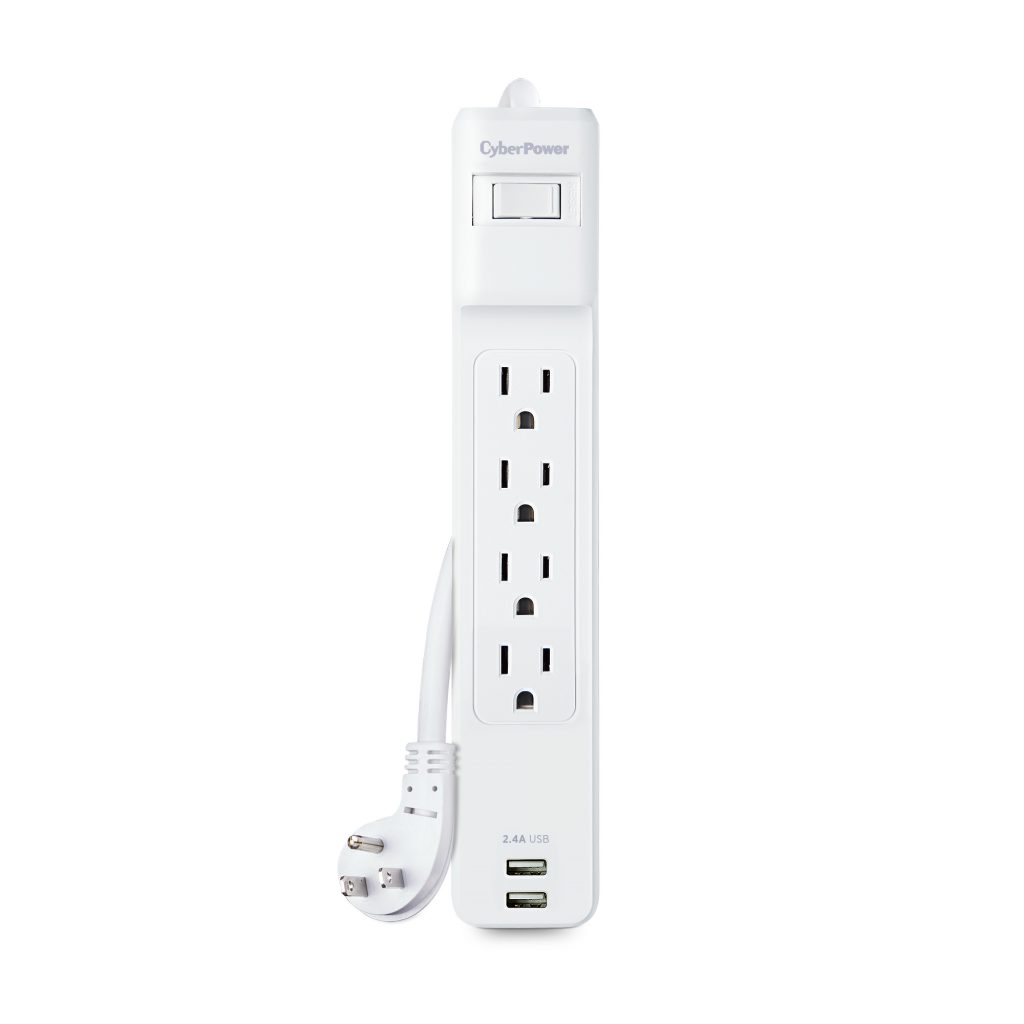

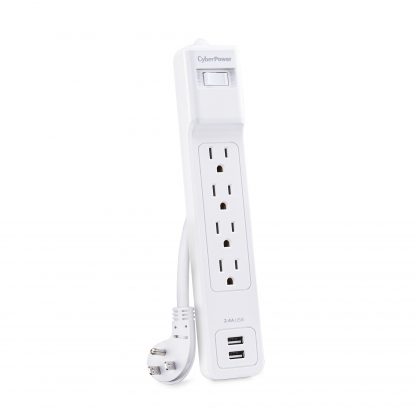

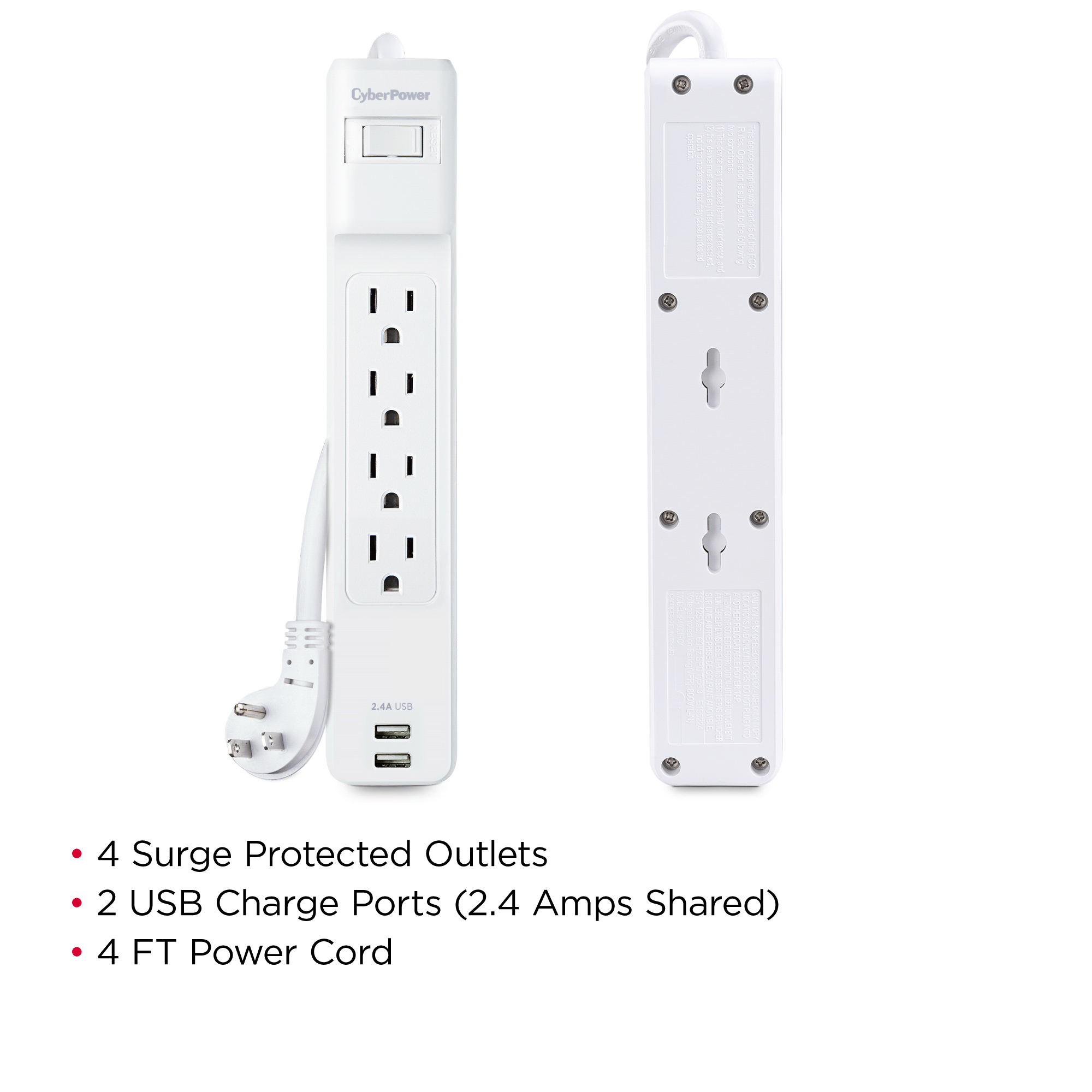

  • Surge Protector Power Strip with USB
  • AC outlets: 4
  • Outlet type: NEMA 5-15R
  • Surge suppression: 500J
  • USB ports: 2
  • USB output: 2.4A (shared)
  • Plug type: NEMA 5-15P
  • Plug style: Right-angle 45° offset
  • Power cord length: 3 ft.
  • Power cord type: braided
  • Warranty: One Year Limited Warranty
  • Connected Equipment Guarantee: $15,000

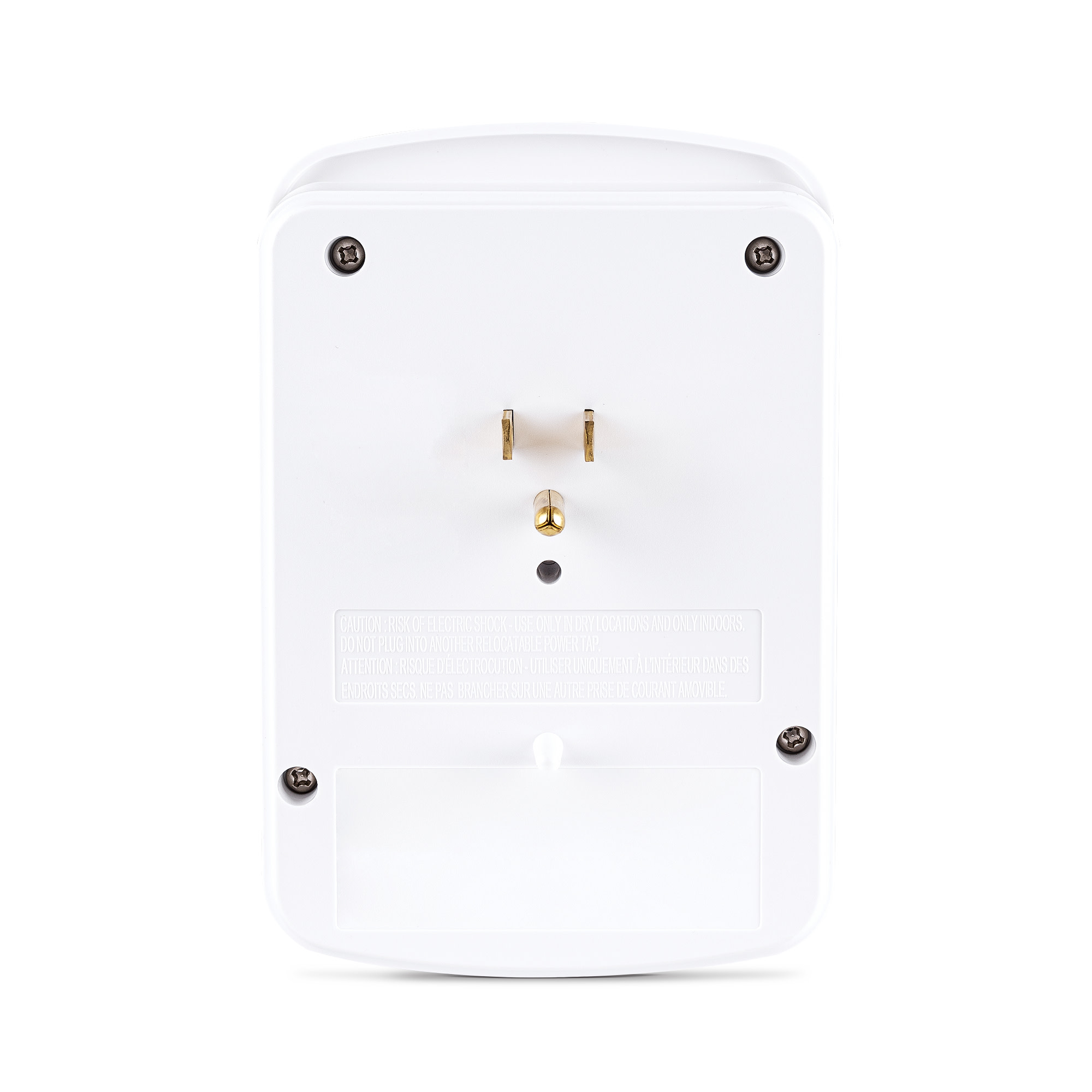

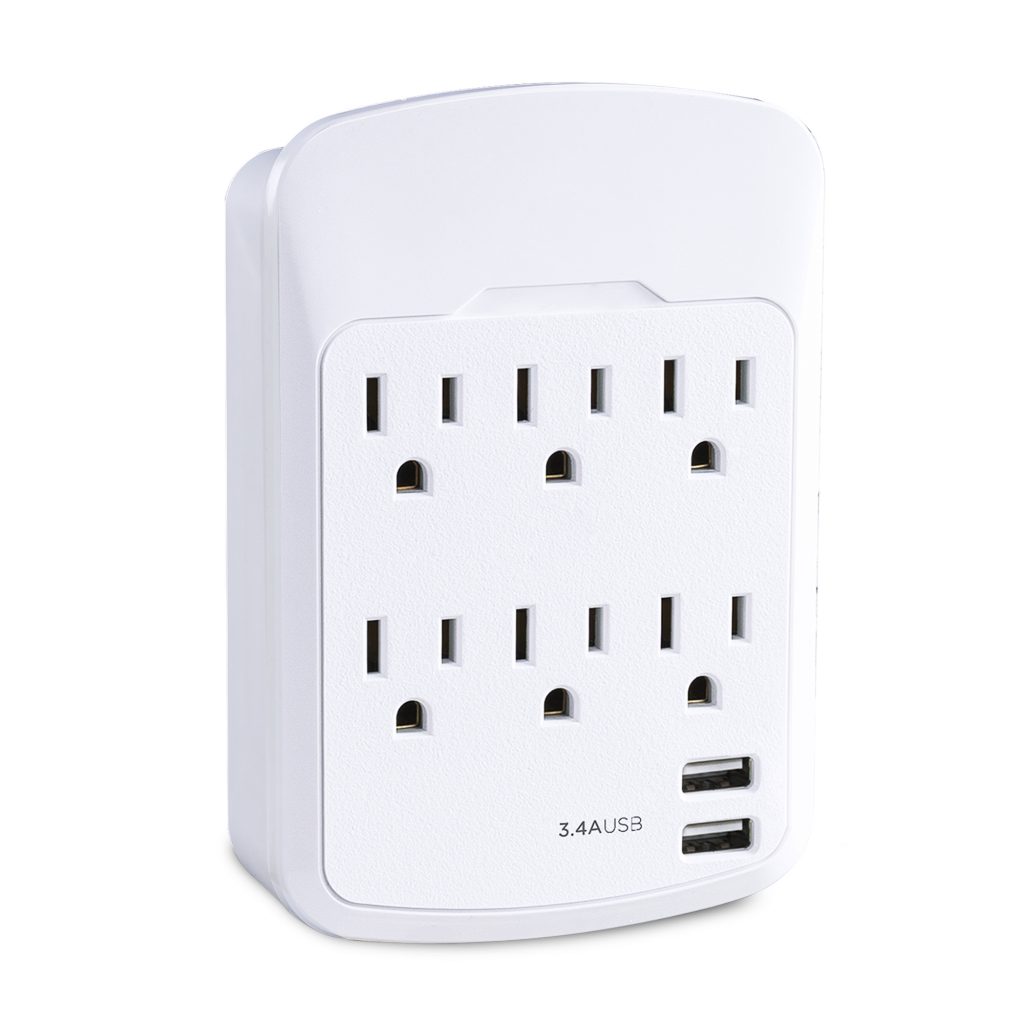

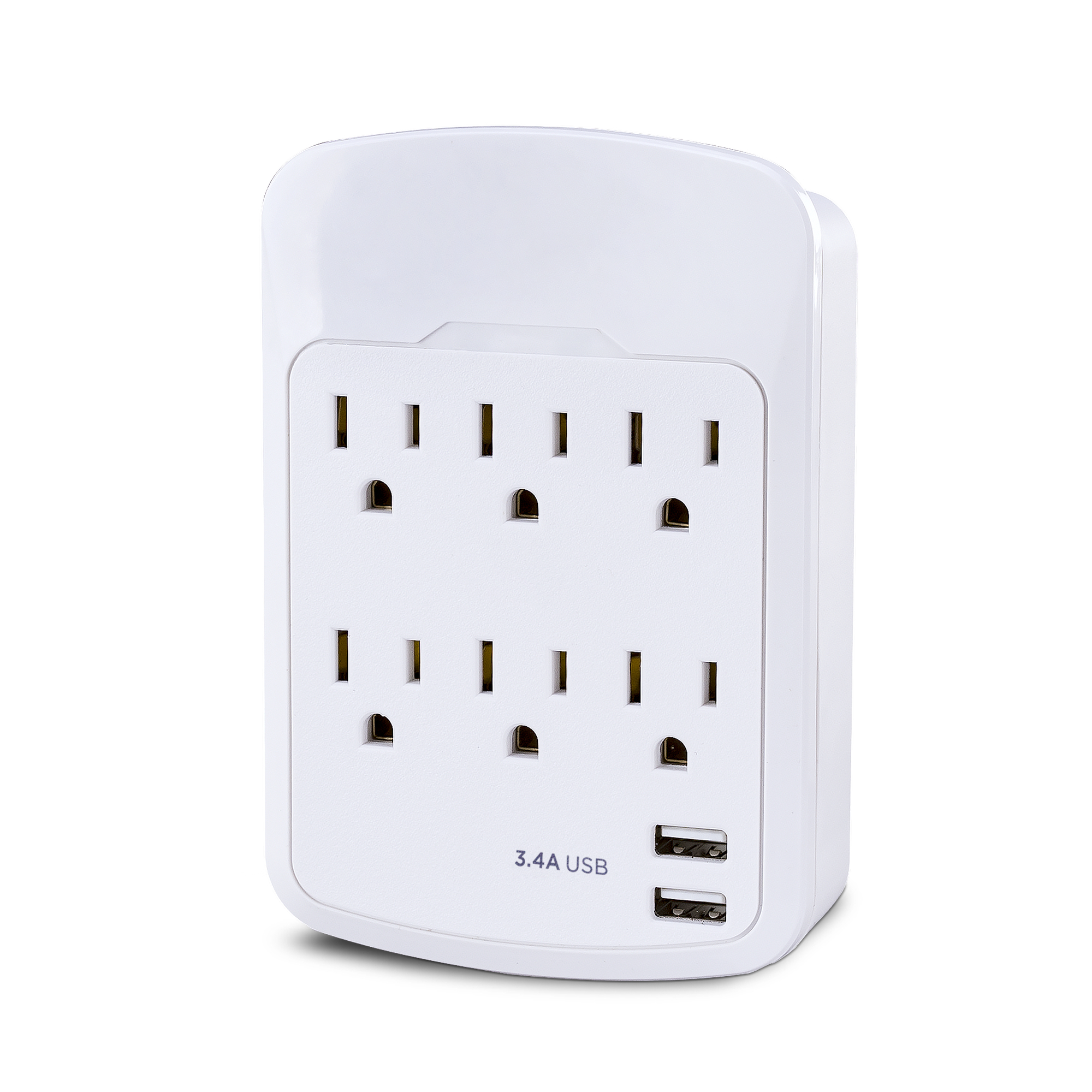

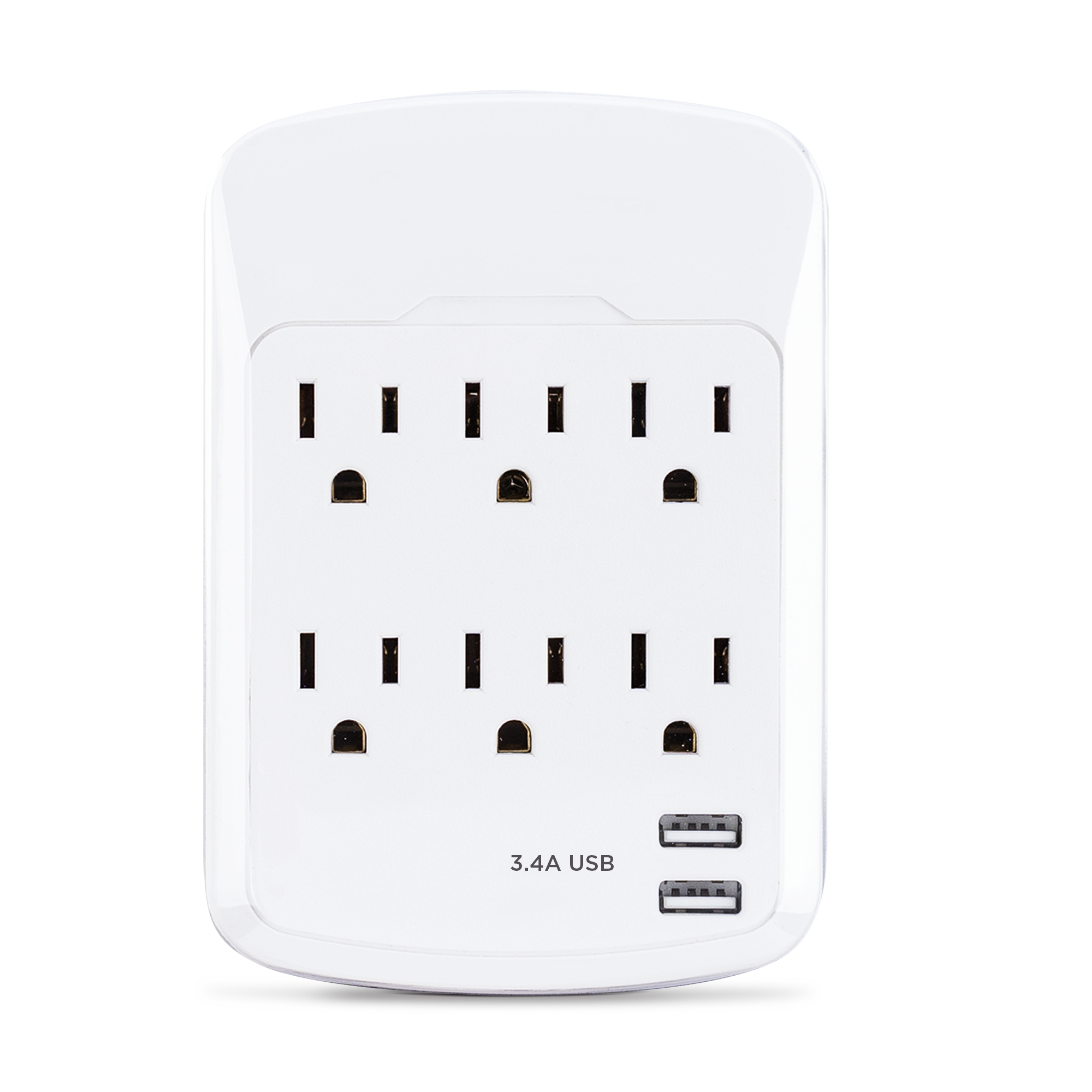

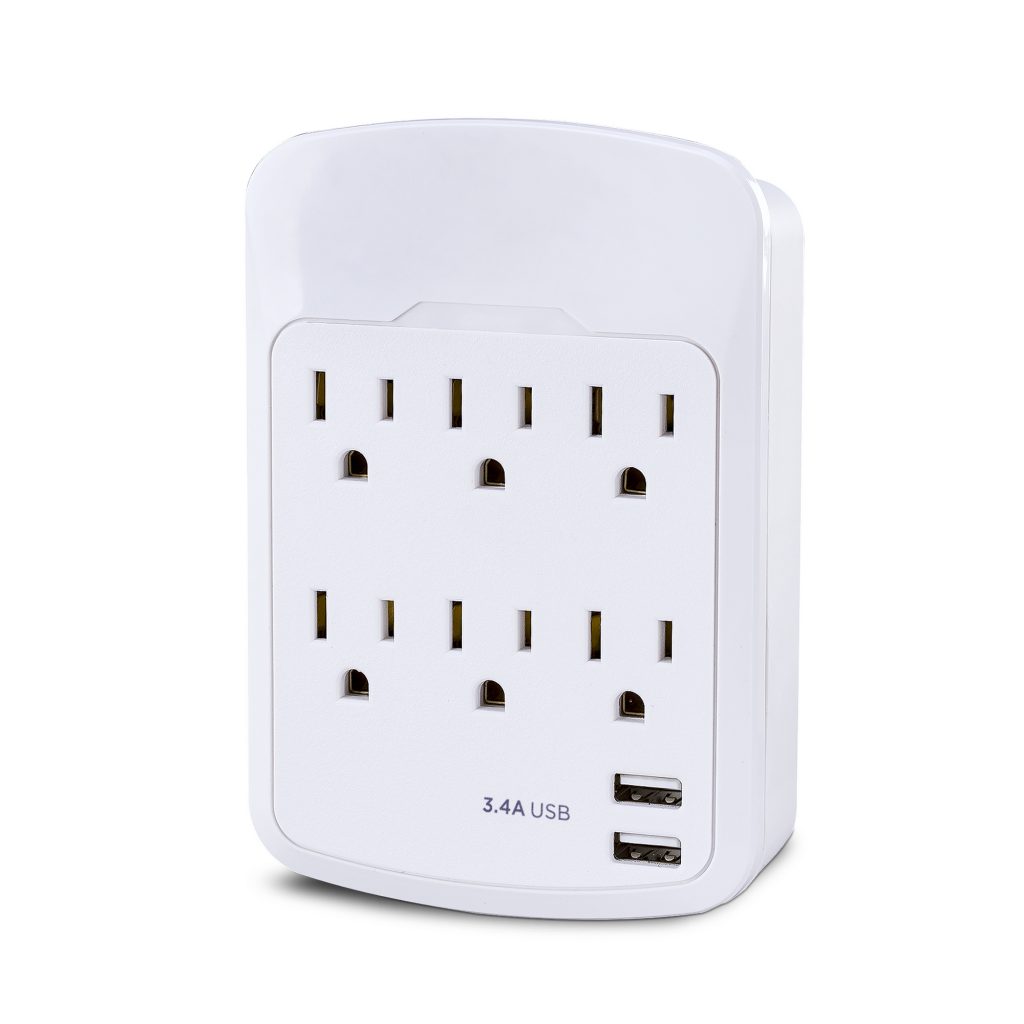

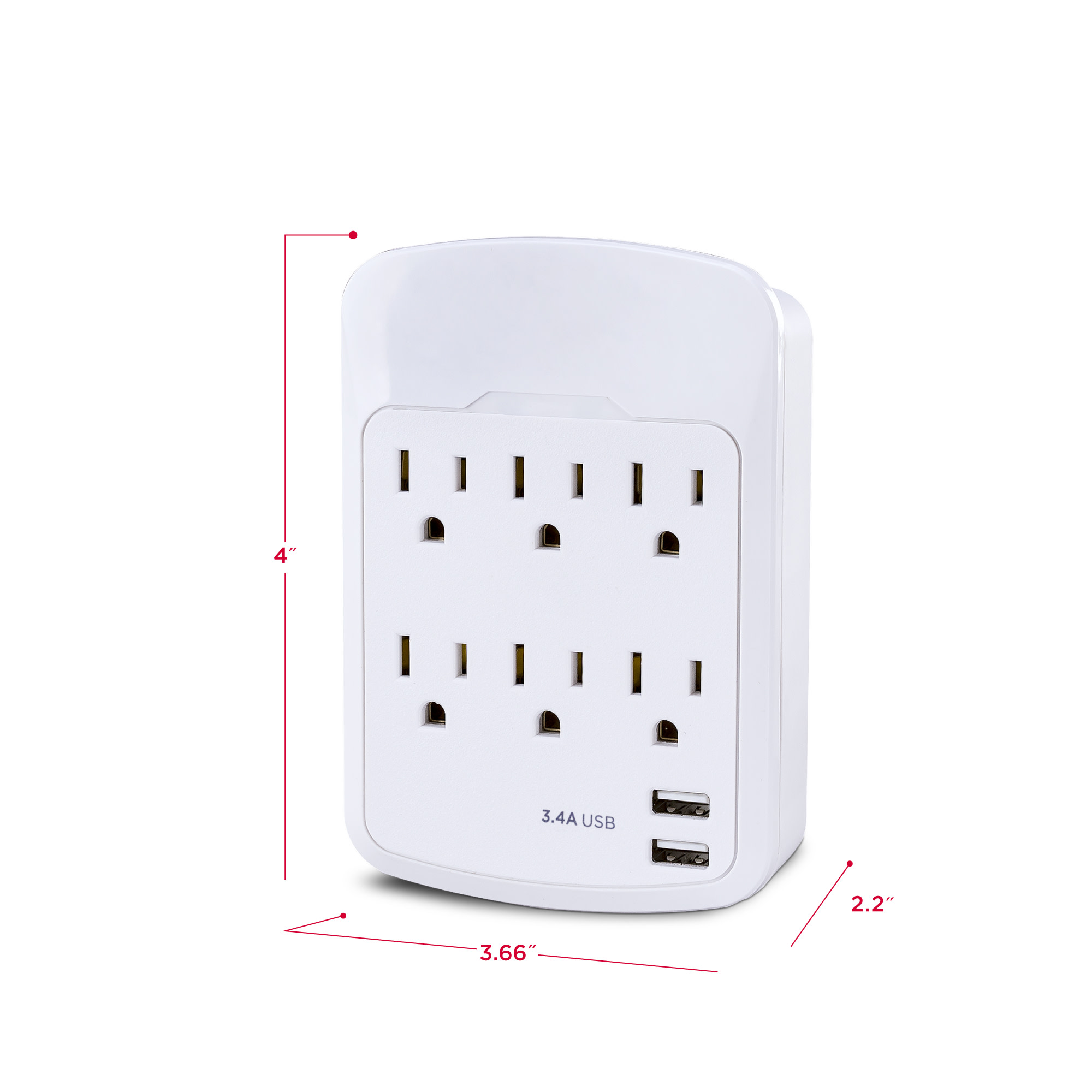

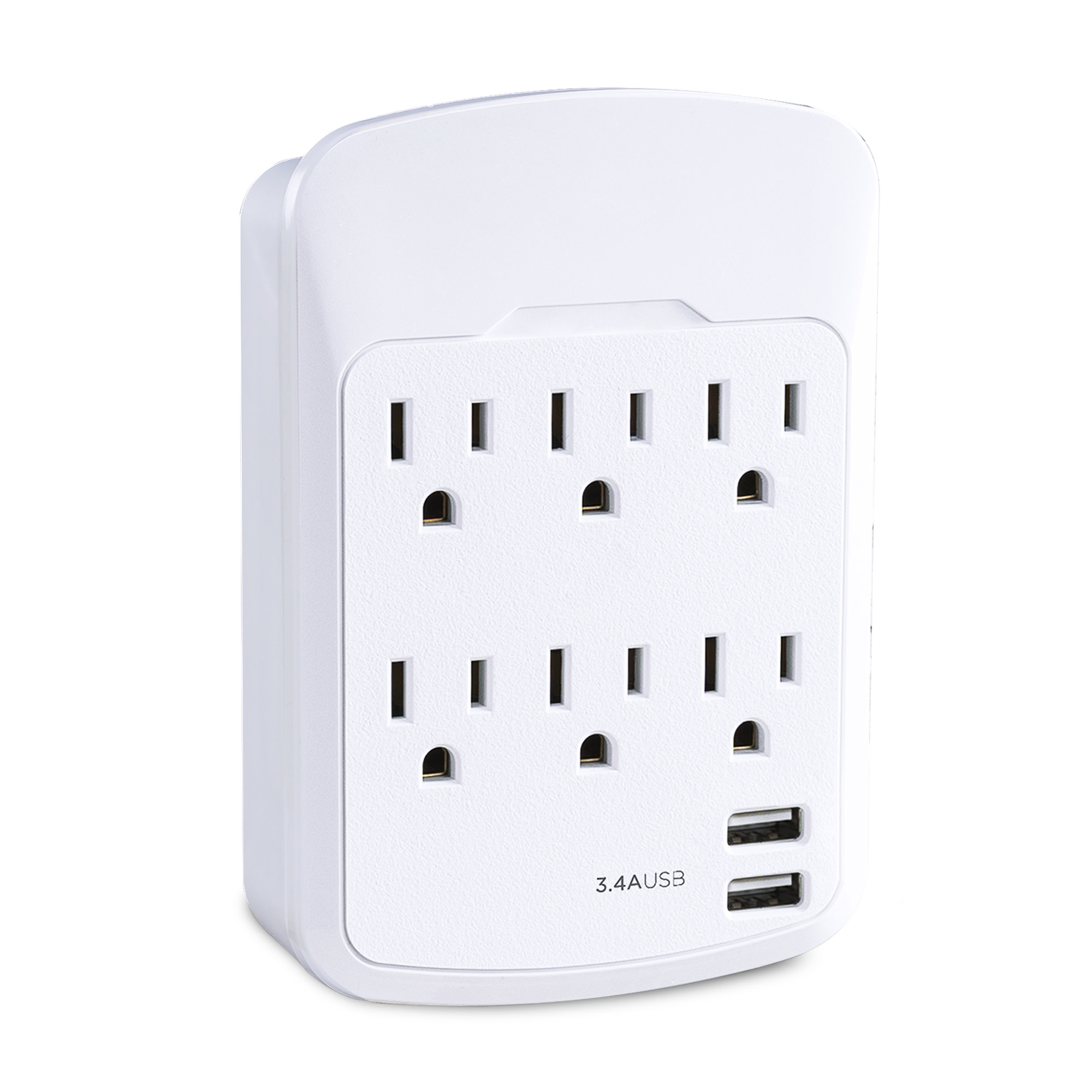

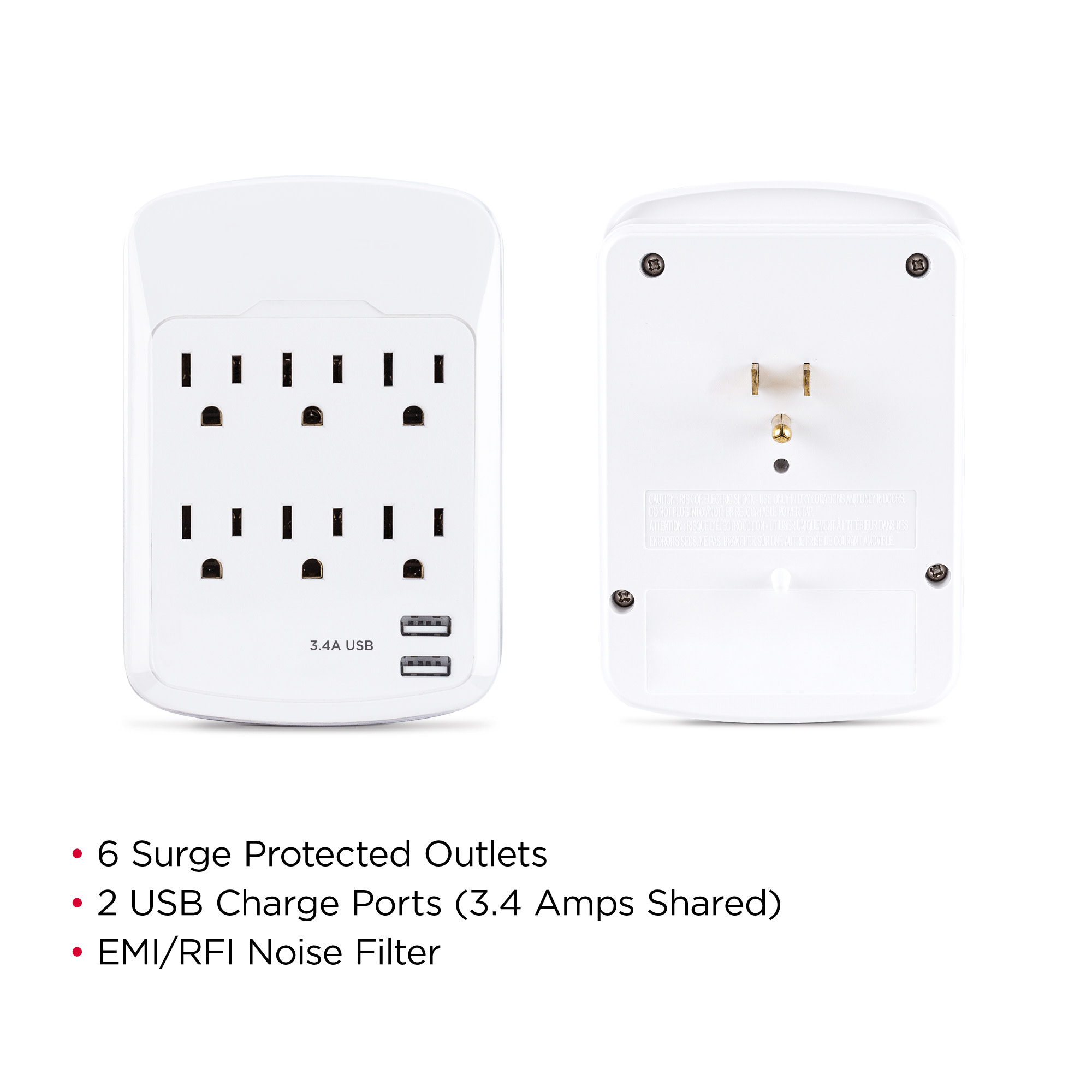

Surge Protector Wall Tap with USB

  • AC Outlets: 6
  • Outlet type: NEMA 5-15R
  • Surge suppression: 500 J
  • USB charge ports: 2
  • USB charge output: 3.4A (shared)
  • Plug type: NEMA 5-15P
  • Plug style: Wall Tap
  • Warranty: One Year Limited Warranty
  • Connected Equipment Guarantee: $15,000
Overview

Product Overview

The MP1075WS USB and Surge 2 Pack safeguards common home and office devices, such as computers and electronics, by absorbing spikes in energy caused by storms and electrical power surges. Both units in the 2 pack provide 500 joules of surge protection. The surge protector strip has 4 surge protected AC outlets, while the wall tap has 6 surge protected outlets. Both units also have two USB-A ports to give the ability to charge mobile, USB enabled devices, EMI/RFI noise filtering, impact-resistant casings, and an integrated device shelf on top of the wall tap which serves as a charging cradle.

These models feature metal oxide varistor (MOV) technology and come with One Year Limited Warranties and Connected Equipment Guarantees.

Product Features
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Shutdown
    Protects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal.
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Metal Oxide Varistor (MOV) Technology
    Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
  • USB Charge Ports
    Charge and power USB enabled mobile devices such as tablets, phones, portable speakers, and more.

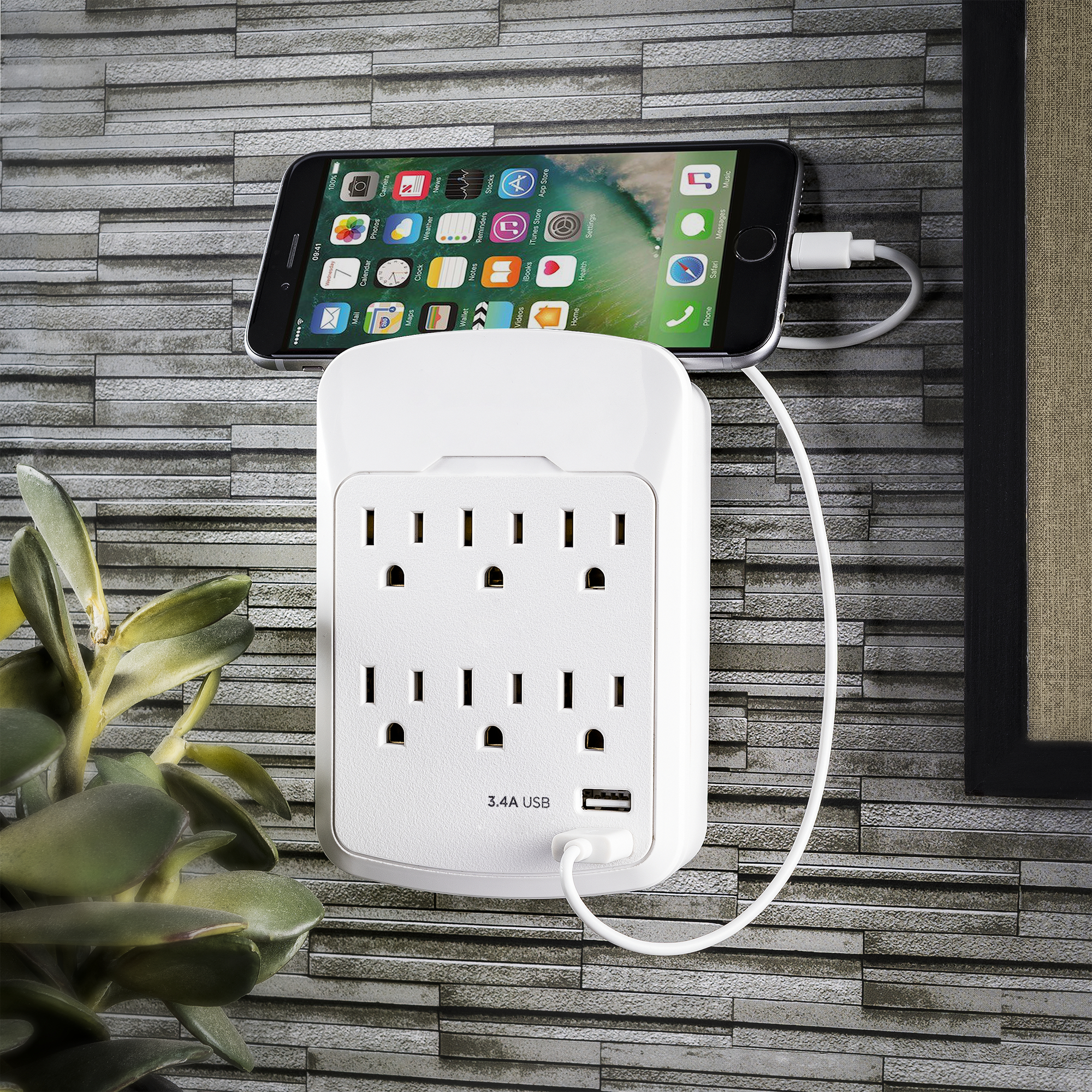

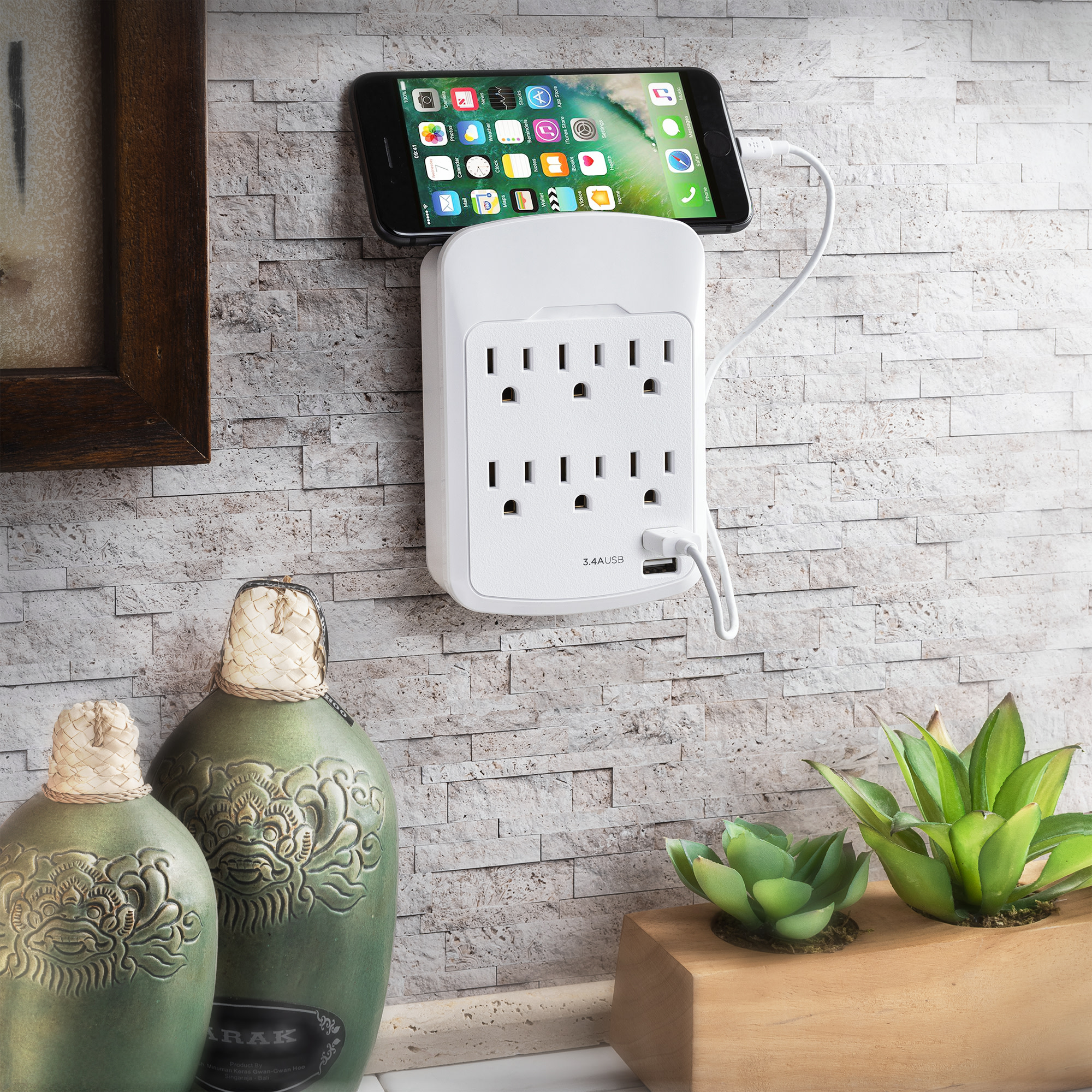

  • Integrated Device Shelf (wall tap only)
    Manages devices and cords while charging.
  • Impact-Resistant Casing
    Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • One Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
Compatible Products
Specifications
Expand All
Input
Cord Length 3 ft (0.9 m)
Plug Style Right Angle – 45° Offset
Wall Tap
Output
Outlet Type 6 – NEMA 5-15R
4 – NEMA 5-15R
Outlets – Total 6
USB Charge Port Yes
USB Charge Port Amperage 3.4 Amps (Shared)
USB Charge Port Quantity 2
USB Charge Port Standard Type A
USB Charge Port Type 2 Type A
USB Charge Port Voltage 5 VDC
Surge Protection & Filtering
Attenuation 32 dB
Coax Protection RG6 None
EMI/RFI Filtration 150 KHz
100 MHz
Maximum Surge Current H-N 800 A
Response Time <1 Nanosecond
Surge Suppression (Joules) 500 J
Physical
Color White
Form Factor Wall Tap
Material of Construction Plastic
Dimensions – Shipping
Shipping – Weight (kg) 10.53
Shipping – Weight (lb) 23.21
Shipping Dimensions – (WxHxD) (cm) 8.89 x 40.01 x 24.13 (cm)
Shipping Dimensions – (WxHxD) (in) 3.5 x 15.75 x 9.5 (in)
Shipping Dimensions – (WxHxD) (mm) 88.9 x 400.05 x 241.3 (mm)
Certifications
Environmental RoHS Compliant
Safety UL1449 3rd Edition
cUL
Warranty
CEG Amount $25000
Connected Equipment Guarantee Lifetime
Product Warranty 1 Year Limited Warranty
Feature Focus
Why Do I Need A Surge Protector?

Utility power supplied to electrical outlets is sometimes inconsistent. The short-duration voltage surges or spikes that occasionally happen can damage components in electronic devices such as computers and workstations. In addition to equipment damage, irretrievable data loss may occur. In the U.S., the nominal or standard voltage supplied to household and office wiring is 120 volts. A voltage surge or spike can cause electronic components to overheat, either immediately destroying them or causing permanent damage that can lead to premature failure.

A surge protector or surge suppressor provides protection against power surges. This device is located in the power circuit between the utility power outlet and the connected electronic equipment. Surge protectors work by diverting excess voltage to the ground, allowing only the nominal voltage to travel through the wiring to connected devices. This is accomplished using a variable resistance component in the surge protector called a metal oxide varistor (MOV). Under normal voltage conditions, the resistance of the MOV is such that it remains closed. As utility voltage increases beyond nominal, the MOV resistance decreases accordingly which forces the unwanted overvoltage to ground, maintaining a constant flow of nominal voltage to sensitive electronic equipment.

Downloads

MP1075WS

403 KB

MP1075WS

532 KB

MP1075WS

54 KB
Support
What devices should be plugged into a surge protector?

Computers, home entertainment equipment, cable DSL/modems, phone/fax/modem, cable and satellite boxes, and other electronics you wish to protect.

What is a Connected Equipment Guarantee?

CyberPower will repair or replace properly connected equipment, under certain terms and conditions, if it is damaged by a power surge.

Should I register the CyberPower product I purchased?

We recommend that you promptly register the product you purchased. You may register online by clicking the Registration button at the top of the page.

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
