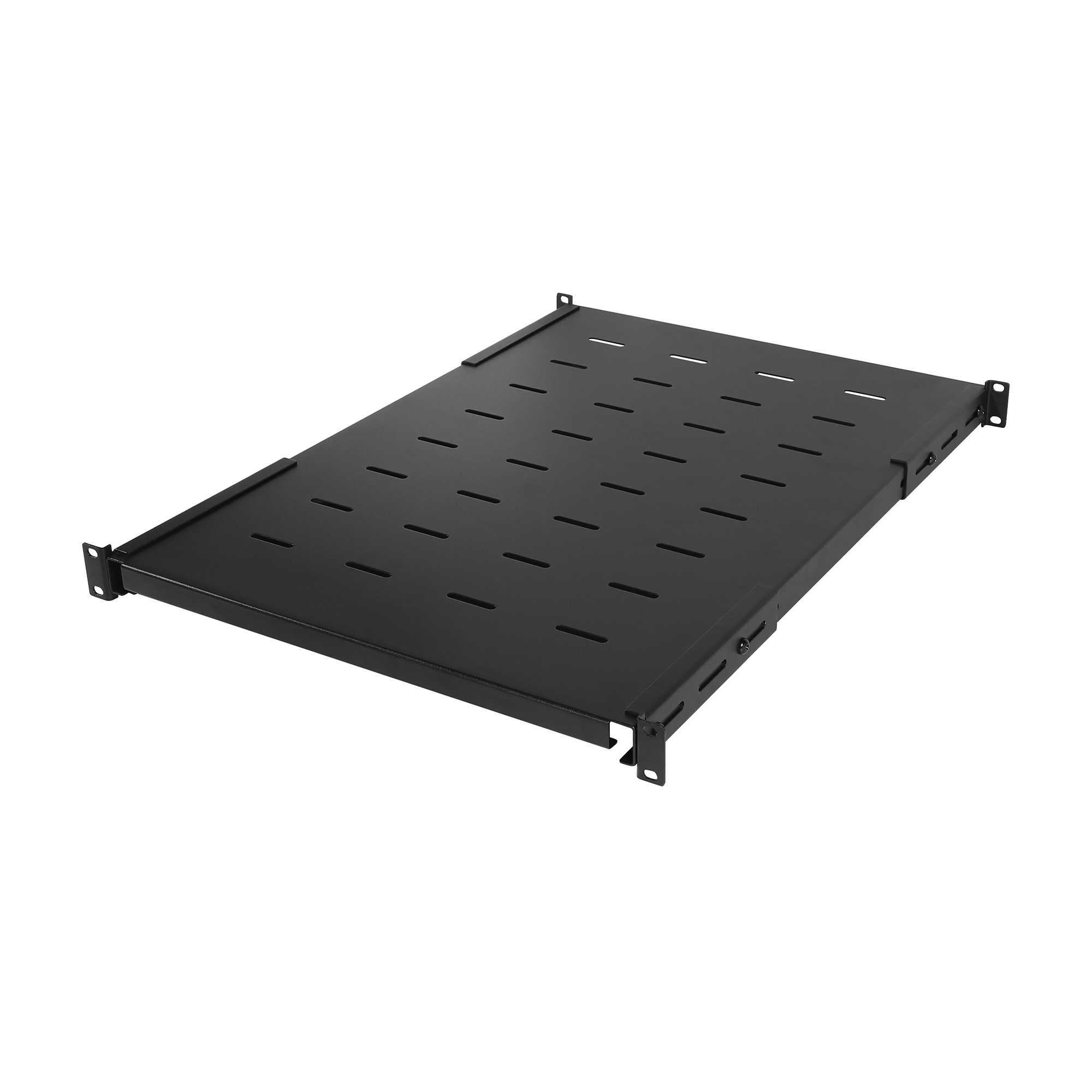

The CRA50005 is a heavy duty 1U shelf with an adjustable mounting depth from 25.6" to 32.7" that can support up to 175 lbs of equipment without rack mounts. Compatible with models CR42U11001 and CR24U11001. Required mounting hardware is included. The CRA50005 is covered by a 5-year limited warranty.
| General | |
|---|---|
| Load Capacity – Static | 175 lb (79.4 kg) |
| Output | |
| USB Charge Port | No |
| Physical | |
| Adjustable Mounting Depth (in) | 25.6 – 32.7 in |
| Adjustable Mounting Depth (mm) | 650 – 832 mm |
| Color | Black |
| Installation | Hardware Included |
| Material | Cold Rolled Steel |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 48.49 x 4.29 x 65.0 (cm) |
| Physical Dimensions – (WxHxD) (in) | 19.09 x 1.69 x 25.59 (in) |
| Physical Dimensions – (WxHxD) (mm) | 485 x 43 x 650 (mm) |
| Physical Weight (kg) | 5.49 |
| Physical Weight (lb) | 12.1 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 12.36 |
| Shipping – Weight (lb) | 27.25 |
| Shipping Dimensions – (WxHxD) (cm) | 52.71 x 6.35 x 66.68 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 20.75 x 2.5 x 26.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 527.05 x 63.5 x 666.75 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 5 Year Limited Warranty |
CRA50005 DS
Our Technical Support team will be happy help you with technical questions during business hours.
Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area
| Model | Description | Rack Height | Load Capacity | MSRP |
|---|---|---|---|---|
| CRA50003 | 19" 1U sliding shelf, 25" (650mm) deep, 132lbs (60kg) capacity, 5 year warranty | 1U | 132 lb | $851.00 |
| CRA50005 | 19" 1U heavy duty fixed shelf, 25" (650mm) deep, 175lbs (80kg) capacity, for rack enclosure, 5 year warranty | 1U | 175 lb | $330.00 |
| CRA50006 | 19" 1U heavy duty 22"-40" depth adjustable shelf for 4-post open-frame rack, 135lbs (60kg) capacity, 5 year warranty | 1U | 135 lb | $395.00 |
| CRA50002 | 19" 1U cantilever shelf, 13" (350mm) deep, 40lbs (18kg) capacity, 5 year warranty | 1U | 40 lb | $203.00 |
| CRA50004 | 19" 1U sliding keyboard shelf, 19.6" (500mm) deep, 45lbs (20kg) capacity, 5 year warranty | 1U | 45 lb | $621.00 |
| CRA50001 | 19" 2U cantilever shelf, 13" (350mm) deep, 60lbs (27kg) capacity, 5 year warranty | 2U | 60 lb | $227.00 |
