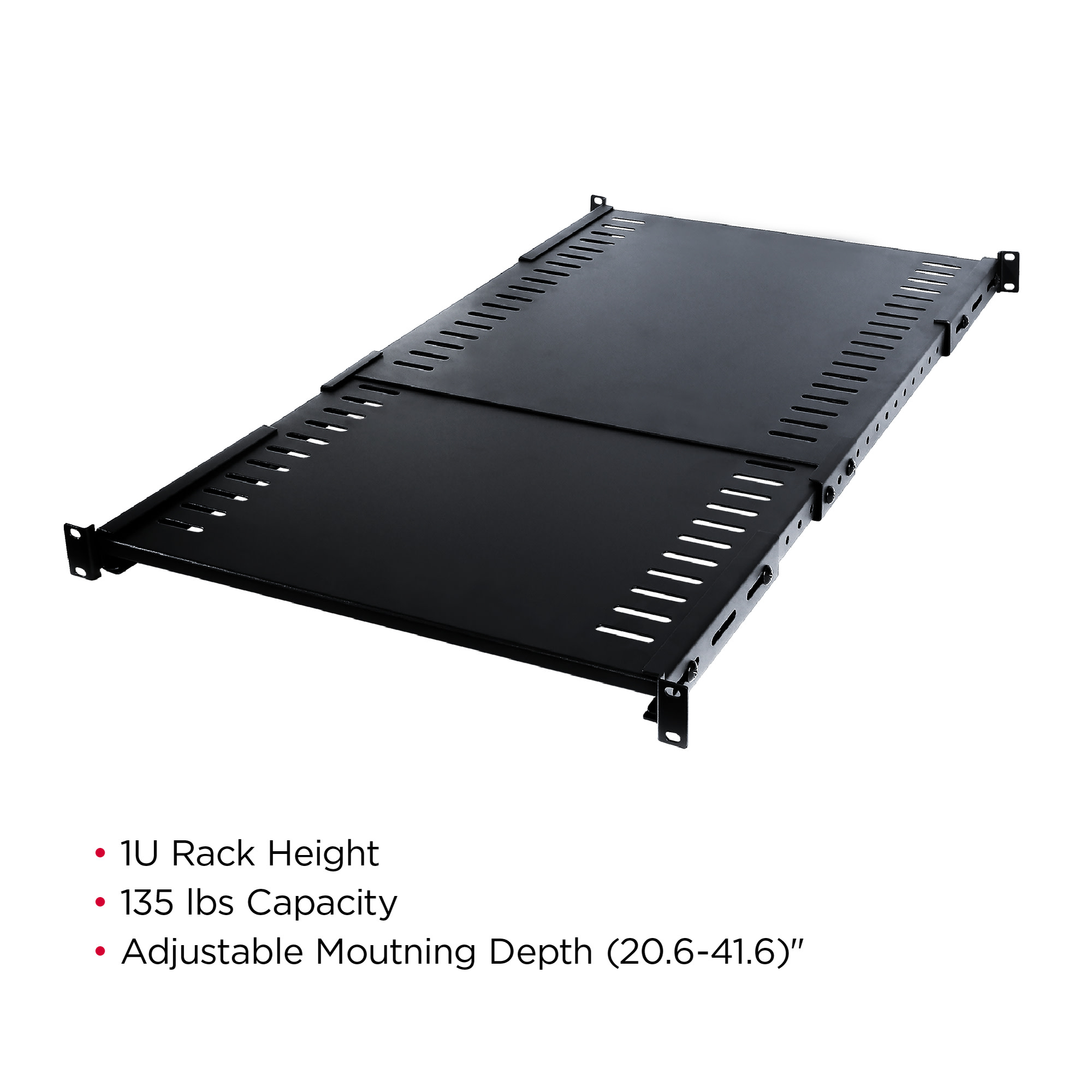

  • Type: Heavy Duty Shelf
  • Material: Cold rolled steel
  • Height: 1U
  • Depth: 20.6″ to 41.6″
  • Capacity: 135 lbs
  • Warranty: 5 years
Overview

Product Overview

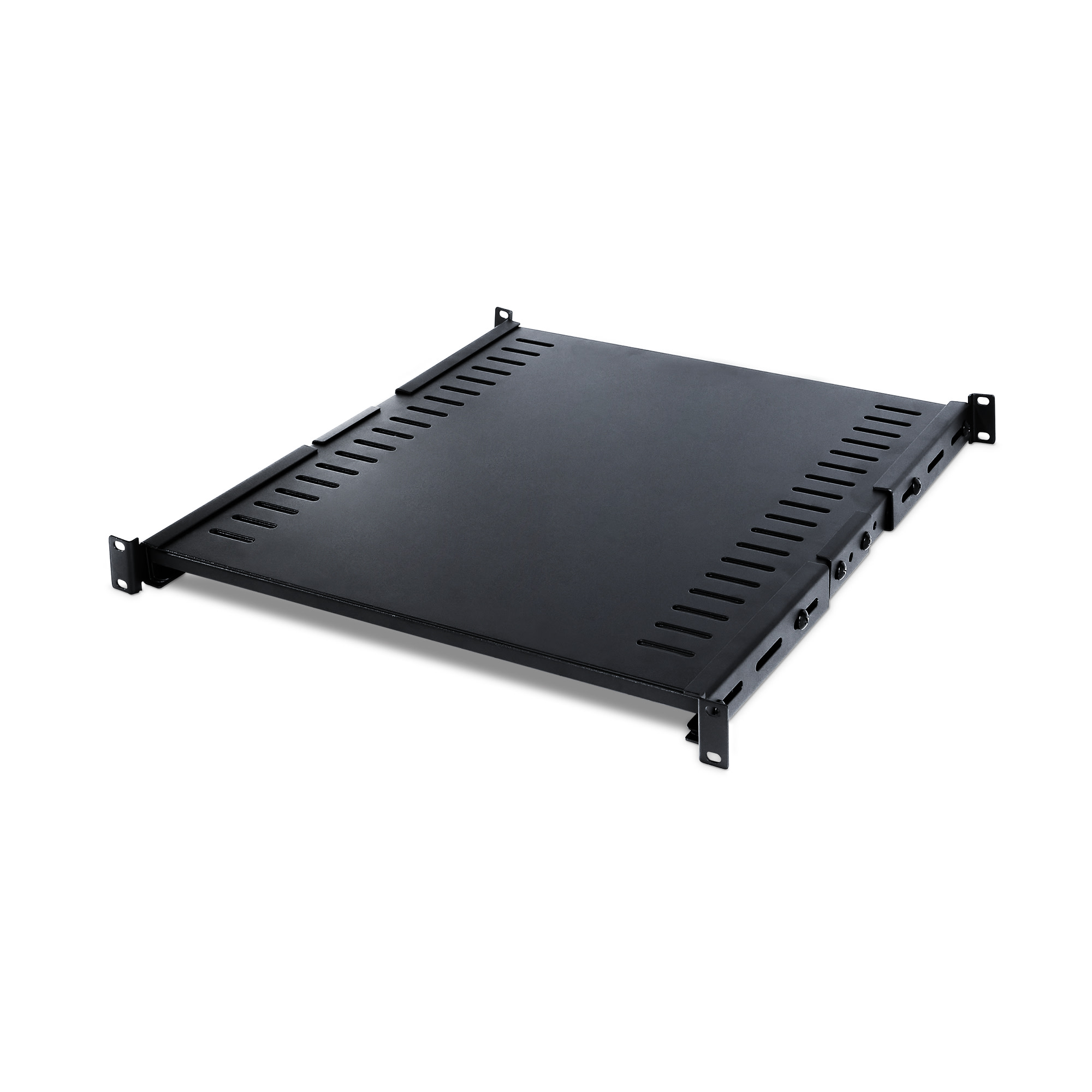

The CRA50006 is a heavy duty 1U shelf with an adjustable mounting depth from 20.6" to 41.6" that can support up to 135 lbs of equipment without rack mounts. Compatible with models CR45U40001 and CR25U40001. Required mounting hardware is included. The CRA50006 is covered by a 5-year limited warranty.

Product Features
Typical Applications
What's In The Box

Shelf, Mounting Hardware, Quick Start Guide

WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
General
Load Capacity – Static 135 lb (61.2 kg)
Output
USB Charge Port No
Physical
Adjustable Mounting Depth (in) 20.6 – 41.6 in
Adjustable Mounting Depth (mm) 522 – 1056 mm
Color Black
Installation Hardware Included
Material Cold Rolled Steel
Rack Height 1U
Dimensions

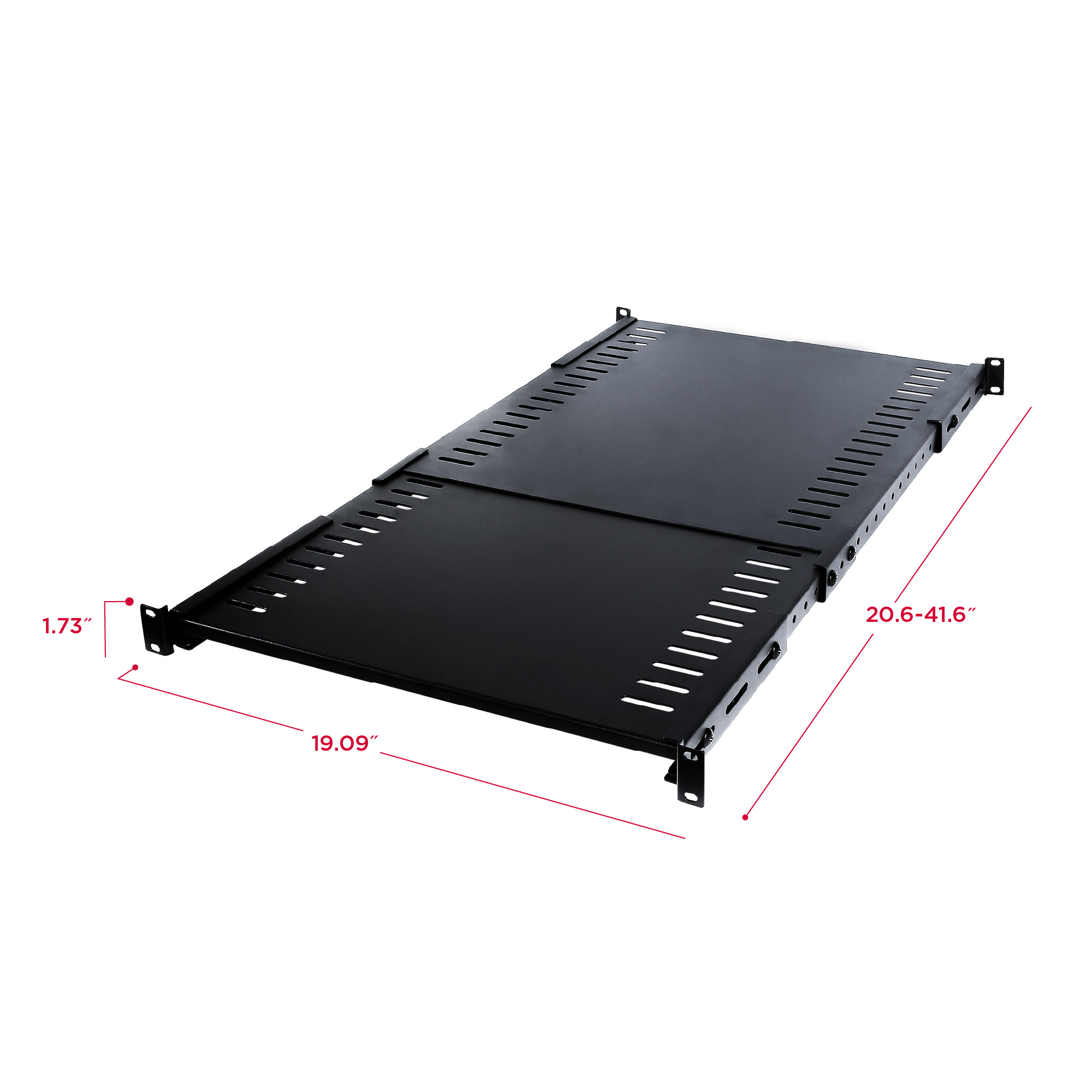

Physical Dimensions – (WxHxD) (cm) 48.49 x 4.39 x 52.32 (cm)
Physical Dimensions – (WxHxD) (in) 19.09 x 1.73 x 20.6 (in)
Physical Dimensions – (WxHxD) (mm) 485 x 44 x 523 (mm)
Physical Weight (kg) 6.85
Physical Weight (lb) 15.1
Dimensions – Shipping
Shipping – Weight (kg) 9.64
Shipping – Weight (lb) 21.25
Shipping Dimensions – (WxHxD) (cm) 52.07 x 5.72 x 52.71 (cm)
Shipping Dimensions – (WxHxD) (in) 20.5 x 2.25 x 20.75 (in)
Shipping Dimensions – (WxHxD) (mm) 520.7 x 57.15 x 527.05 (mm)
Certifications
Environmental RoHS Compliant
Warranty
Product Warranty 5 Year Limited Warranty
