Professional Surge Protectors

CPS500NBP

DISCONTINUED
  • Surge suppression: 500 J
  • Power tip: 1-prong
  • AC Adapters: 2-prong, 3-prong
  • Voltage: 100 – 240 VAC
  • Data line protection: Telephone, Network
  • EMI/RFI Filtration: Yes
  • Warranty: 5 year
  • Connected Equipment Guarantee: $75,000
Overview

Product Overview

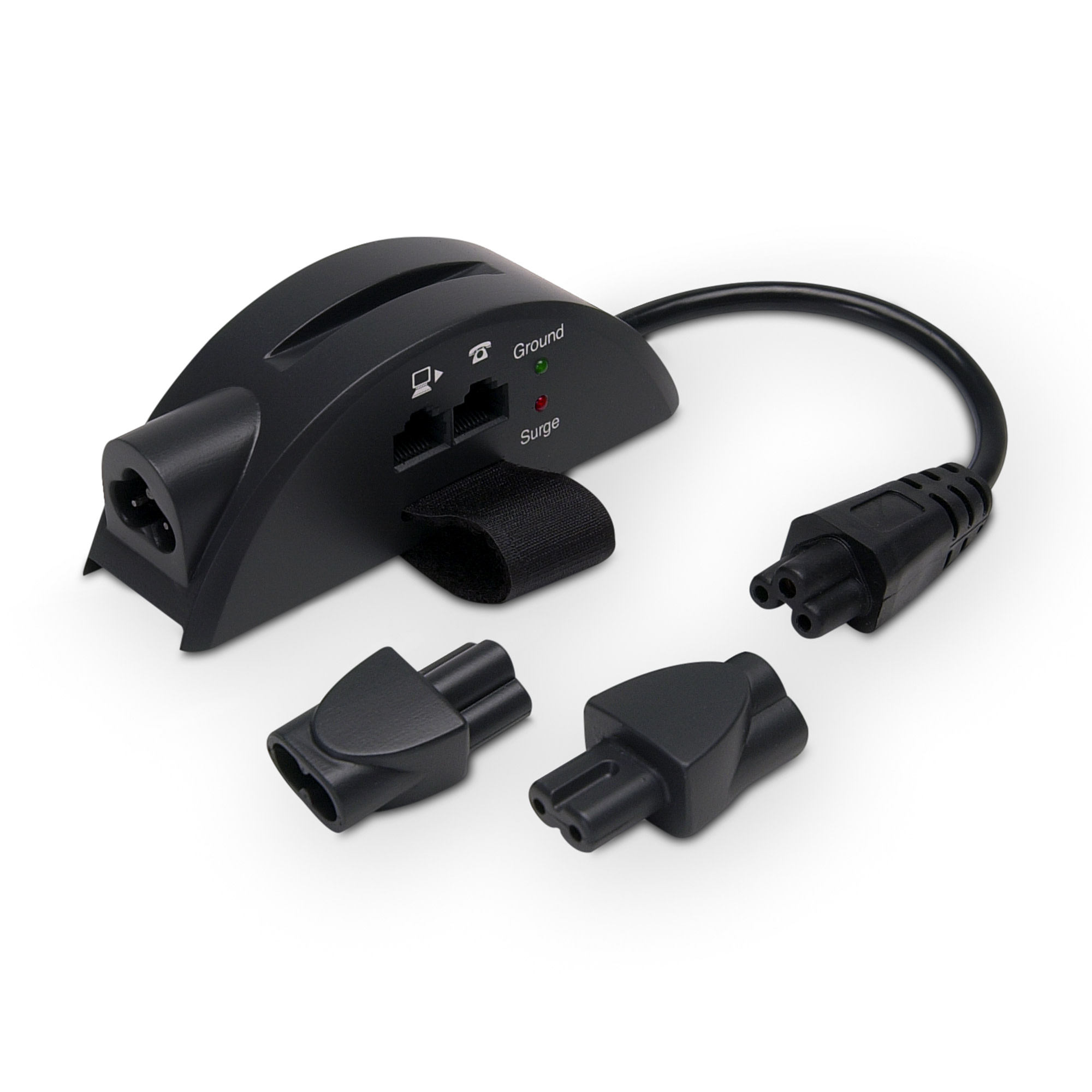

The Professional Surge Protector CPS500NBP from CyberPower offers vital surge suppression for notebooks and provides connectivity for modem, network, and broadband. It prevents spikes in energy caused by storms and electrical power surges. The CPS500NBP includes the main port, a one-prong tip, a two-prong AC adapter, and a three-prong AC adapter. It provides 500 joules of protection, RJ45 network protection (Ethernet 10/100), and RJ11 phone/modem protection. Features of the CPS500NBP include an EMI/RFI noise filter and LED indicators. The CPS500NBP comes with a five-year warranty and a Connected Equipment Guarantee.

  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Tip & Adapters
    A one-prong tip, two-prong adapter, and three-prong adapter ensure compatibility with all major notebook computers.
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • LED Indicators
    Light to indicate status conditions of the model: Protected and Grounded.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Five-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within five years of the purchase date.
Typical Applications
Specifications
Input
Voltage 100ac – 240ac V
Frequency 50/60 Hz
Surge Protection & Filtering
Surge Suppression 500 joules
EMI/RFI Filtration Yes
Phone RJ11 / Ethernet RJ45 1-In, 1-Out (Combo)
Certifications
Environmental RoHS Compliant
Warranty
Product Warranty 5 Years Limited
Feature Focus
Why Do I Need A Surge Protector?

Utility power supplied to electrical outlets is sometimes inconsistent. The short-duration voltage surges or spikes that occasionally happen can damage components in electronic devices such as computers and workstations. In addition to equipment damage, irretrievable data loss may occur. In the U.S., the nominal or standard voltage supplied to household and office wiring is 120 volts. A voltage surge or spike can cause electronic components to overheat, either immediately destroying them or causing permanent damage that can lead to premature failure.

A surge protector or surge suppressor provides protection against power surges. This device is located in the power circuit between the utility power outlet and the connected electronic equipment. Surge protectors work by diverting excess voltage to the ground, allowing only the nominal voltage to travel through the wiring to connected devices. This is accomplished using a variable resistance component in the surge protector called a metal oxide varistor (MOV). Under normal voltage conditions, the resistance of the MOV is such that it remains closed. As utility voltage increases beyond nominal, the MOV resistance decreases accordingly which forces the unwanted overvoltage to ground, maintaining a constant flow of nominal voltage to sensitive electronic equipment.
