BRG1000AVRLCD


Intelligent LCD UPS Series

MSRP $169.95

  • Capacity: 1000 VA / 600 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 10 × NEMA 5-15R
  • USB charge ports: 2 (2.1A shared)
  • Communication: USB, Serial
  • Data line protection: Telephone, Ethernet, Coaxial
  • Management software: PowerPanel® Personal Edition
  • ENERGY STAR® qualified: Yes
  • Warranty: 5 year
  • Connected Equipment Guarantee: $350,000
Where To Buy

Product Description

BRG1000AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals

Product Overview


A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD Series BRG1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Two USB charge ports (2.1 Amp shared) rapidly power portable devices such as mobile phones, MP3 players, and cameras. The BRG1000AVRLCD comes with a five-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR)
    Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ Bypass Design
    Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • USB Charge Ports
    Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.

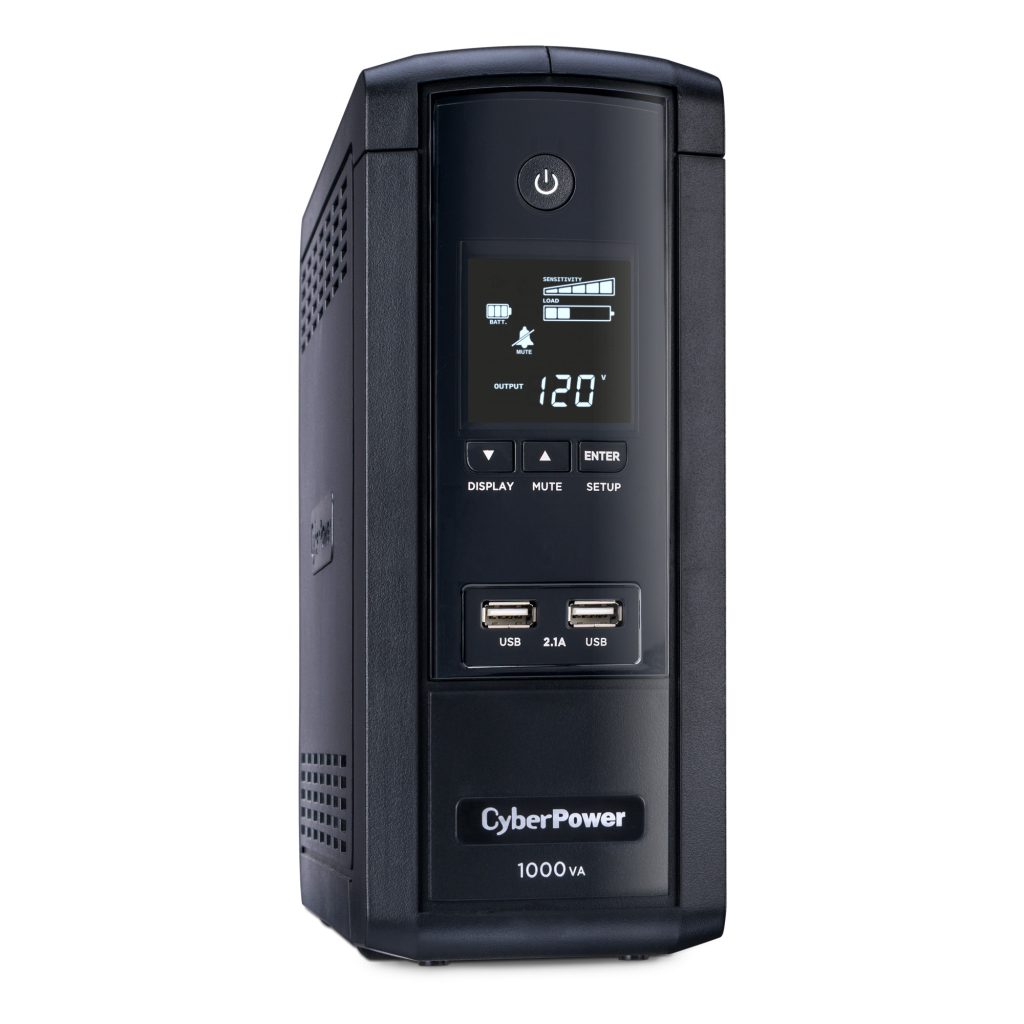

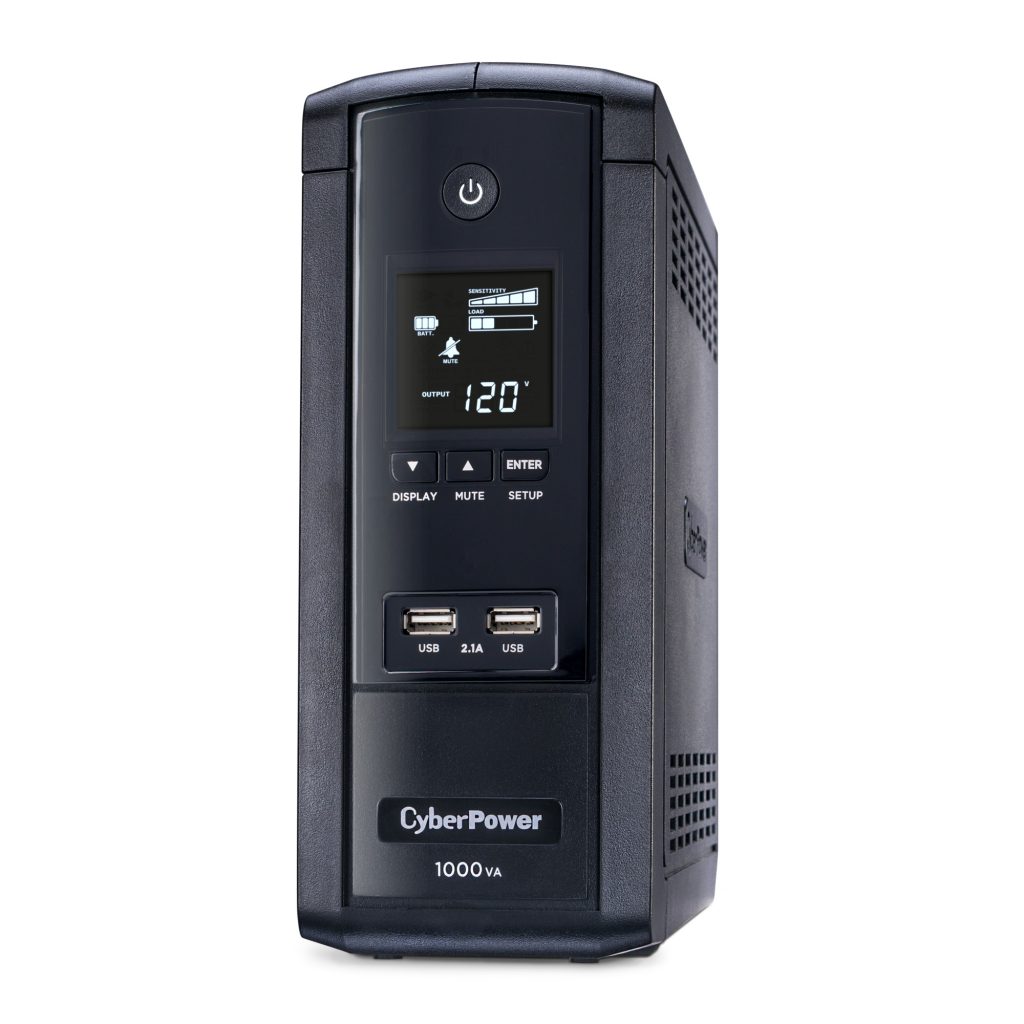

  • Multifunction LCD Panel
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • PowerPanel® Personal Edition Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Five-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within five years of the purchase date*. See warranty for details. *Units purchased prior to April 1st, 2016 have a 3 year warranty. Units purchased on or after April 1st, 2016 have a 5 year warranty.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual, USB A+B Type Cable

BRG1000AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
General
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass
ENERGY STAR® QualifiedYes
Input
VoltageNominal 120V
Frequency60Hz ± 3Hz
Input Voltage Range90Vac – 148Vac
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45° Offset Right
Cord Length6′
Output
VA1,000
Watts600
Automatic Voltage RegulationBoost +10% / Buck -10%
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSimulated Sine Wave

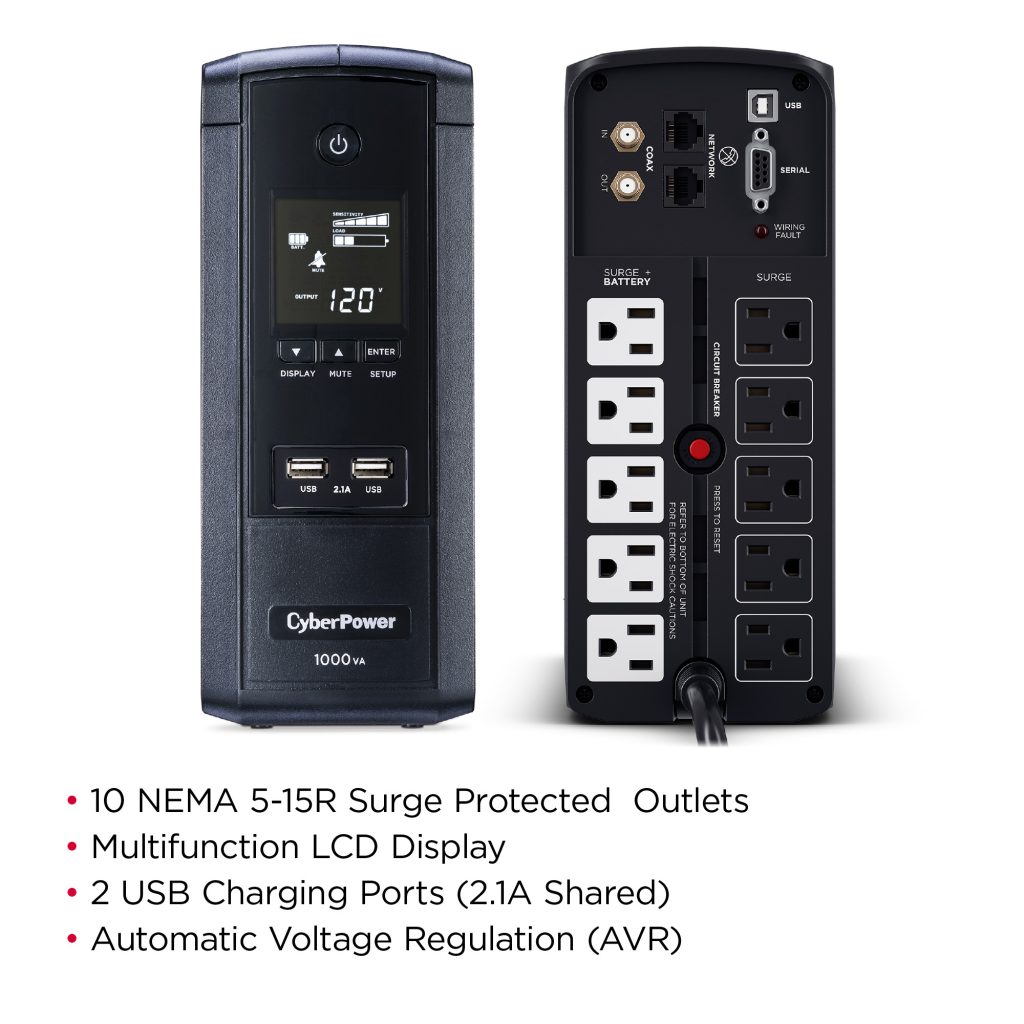

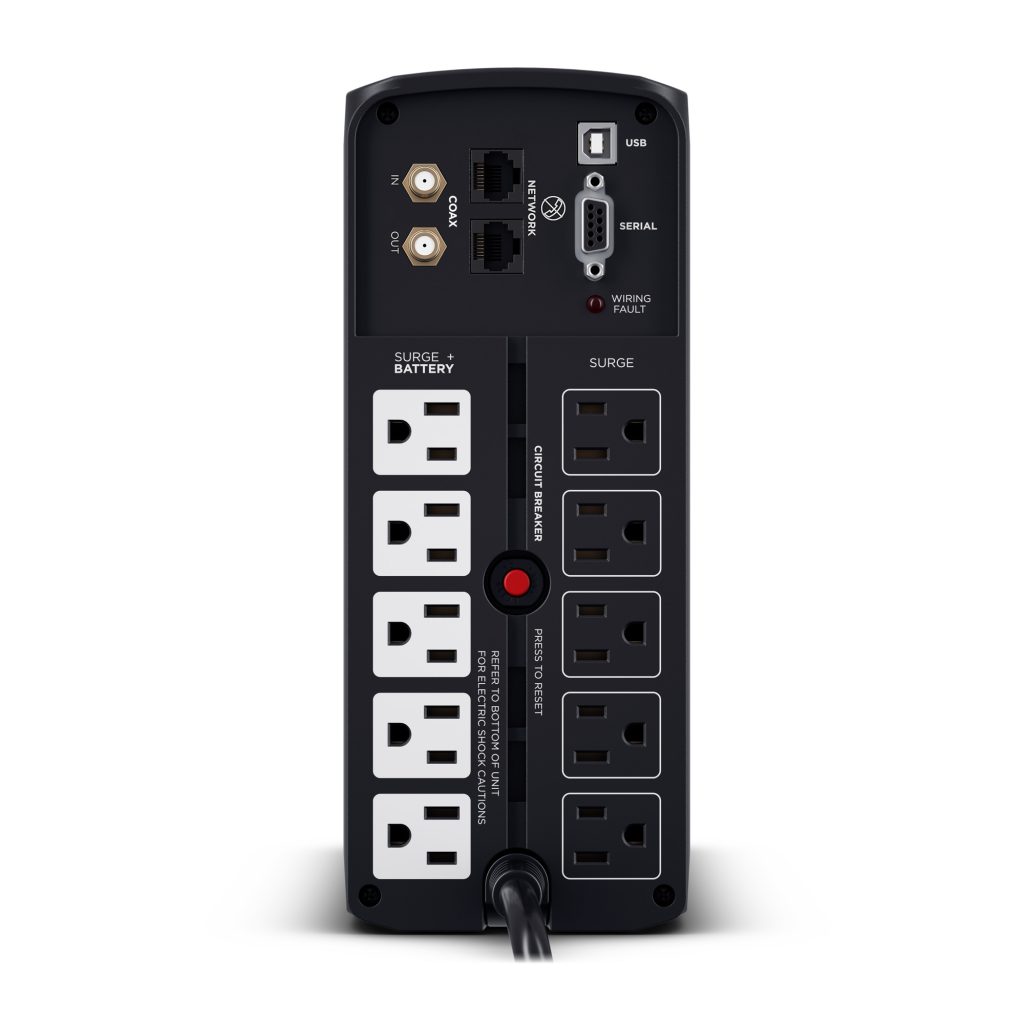

Outlets – Total10
Outlet TypeNEMA 5-15R
Outlets – Battery & Surge Protected5
Outlets – Surge-Only Protected5
USB Charge Port – Total2
USB Charging Amperage2.1A (shared)
Rated Power Factor0.6
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
Battery
Runtime at Half Load (min)9
Runtime at Full Load (min)1
Battery TypeSealed Lead-Acid
Battery Size12V/9AH
Battery Quantity1
Hot-SwappableNo
User ReplaceableYes
Replacement Battery CartridgeRB1290
Replacement Battery Cartridge Quantity1
Typical Recharge Time8 Hours
Surge Protection & Filtering
Surge Suppression1,080 Joules
Phone RJ11 / Ethernet RJ451-In, 1-Out (Combo)
Coax Protection RG61-In, 1-Out
EMI/RFI FiltrationYes
Management & Communications
Multifunction LCD PanelDisplays:

Current/Load Level

Runtime

Battery Level

AVR In Use

Battery In Use

Input Voltage

Output Voltage

Output Frequency

Overload

Wiring Fault

Silent Mode

HID Compliant USB PortYes
Serial PortYes
Management CableUSB Cable
LED IndicatorsPower On

Wiring Fault

Audible AlarmsOn Battery

Low Battery

Overload

Fault

SoftwarePowerPanel® Personal Edition
Physical
Form FactorMini-Tower

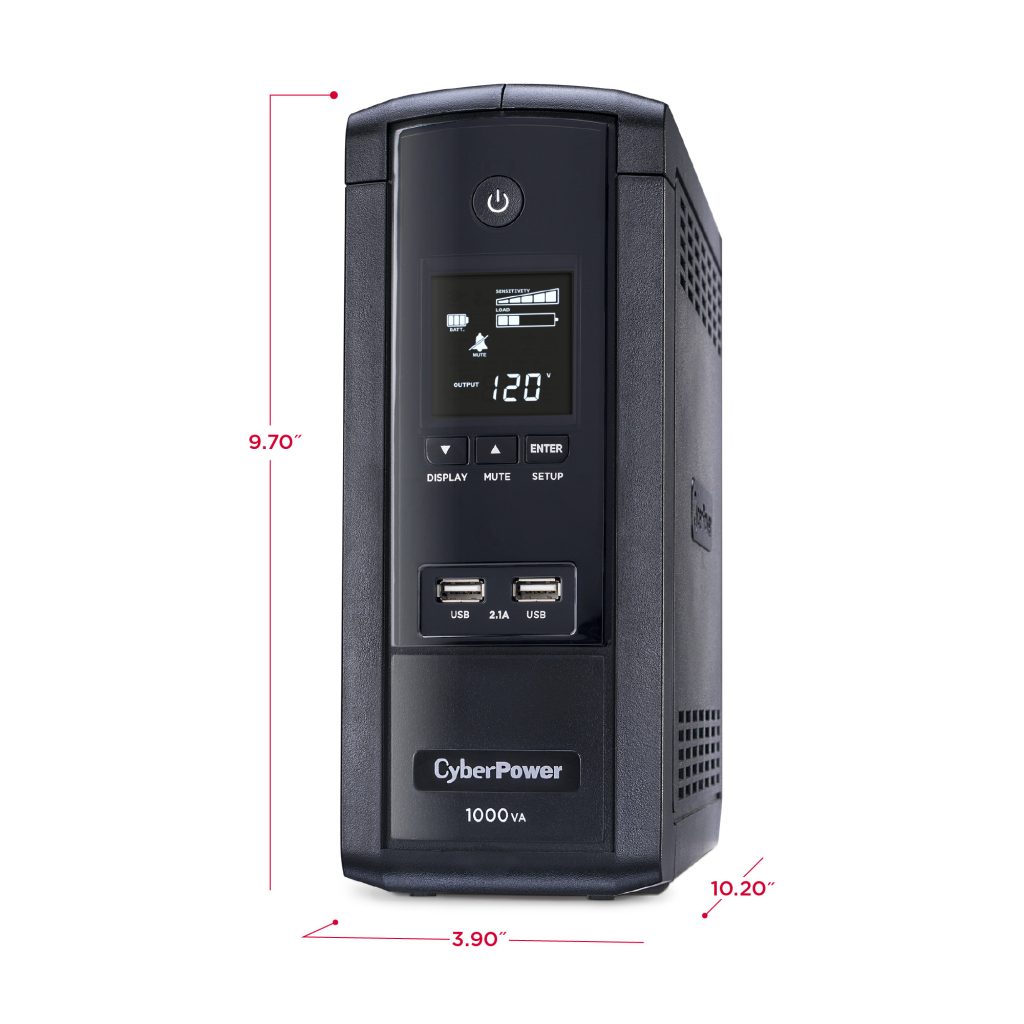

Dimensions (WxHxD) (in.)3.9 x 9.7 x 10.2
Weight (lbs.)15.0
Environmental
Operating Temperature32 °F to 104 °F / 0 °C to 40 °C
Operating Humidity0% – 90% non-condensing
Storage Temperature5°F to 113°F / -15°C to 45 °C
Maximum Operating Elevation10,000 ft / 3,000 m
Maximum Storage Elevation50,000 ft / 15,000 m
Certifications
SafetyUL1778, cUL 107, FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty5 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$350,000
BRG1000AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.


Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer—a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.


Transformers and Transformer Outlets

A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.

Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.


BRG1000AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals

Shutdown software supports most Window systems

View UPS via the USB connection to your Mac

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

BRG1000AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
Where is the serial number located on the unit?

The serial number is located on a white label adhered to the unit. The serial number is shown directly underneath the barcode.
