CP825AVRLCD


Intelligent LCD UPS Series
  • Capacity: 825 VA / 450 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, Serial
  • Management software: PowerPanel® Personal
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $200,000
MSRP  $105.95
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals

Product Overview


A compact UPS with line-interactive topology, the CyberPower Intelligent LCD CP825AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP825AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel to provide visibility into power conditions and UPS vitals. The CP825AVRLCD comes with a three-year warranty (including coverage of batteries) and a $200,000 Connected Equipment Guarantee.

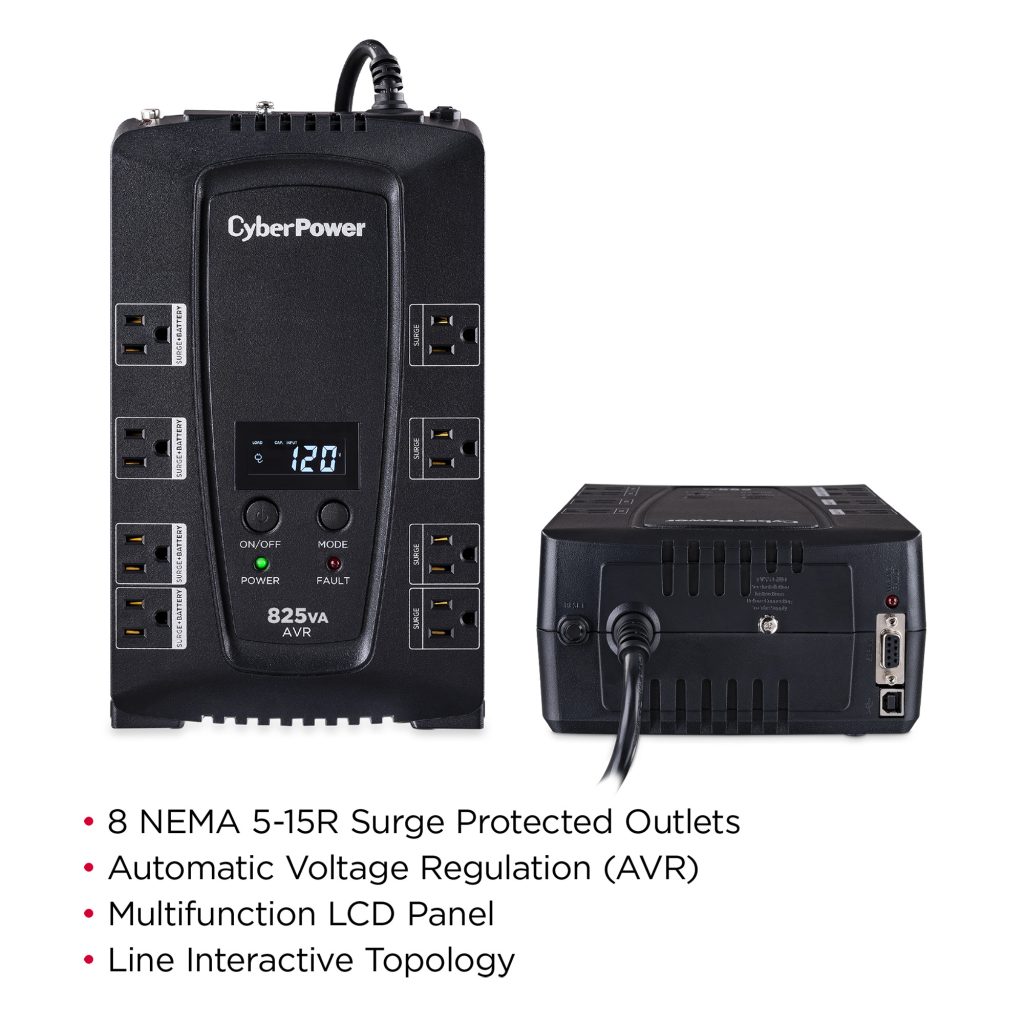

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR)
    Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ Bypass Design
    Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Multifunction LCD Panel
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • PowerPanel® Personal Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual, USB A+B Type Cable


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
General
UPS Topology Line Interactive
ENERGY STAR® Qualified Yes
Energy Saving GreenPower UPS™ Bypass
Input
Frequency Range 57 – 63 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length (ft) 6 ft
Output
VA 825 VA
Watts 450 W
Automatic Voltage Regulation Yes
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets – Total 8
Outlets – Battery & Surge Protected 4
Outlets – Surge-Only Protected 4
Outlets – Transformer-Spaced 4
Overload Protection Internal Circuitry Limiting
Circuit Breaker
Transfer Time 4 ms
Battery
Runtime at Half Load (min) 13.5
Runtime at Full Load (min) 1.2
Battery Type Sealed Lead-Acid
Battery Size 12V/9Ah
Battery Quantity 1
Hot Swappable Yes
User Replaceable Yes
Replacement Battery Cartridge RB1290
Replacement Battery Cartridge Quantity 1
Typical Recharge Time 8 hours
Surge Protection & Filtering
Surge Suppression 1,030 J
EMI/RFI Filtration Yes
Network Protection RJ45 None
Management & Communications
Multifunction LCD Panel Yes
HID Compliant USB Port Yes
Serial Port Yes
Audible Alarms On Battery
Low Battery
Overload
Fault
LED Indicators Power On
Wiring Fault
Communication Cable USB Cable
Serial Cable
Software PowerPanel® Personal
Physical
Form Factor Compact
Color Black
Keyhole Mounting Slots Yes

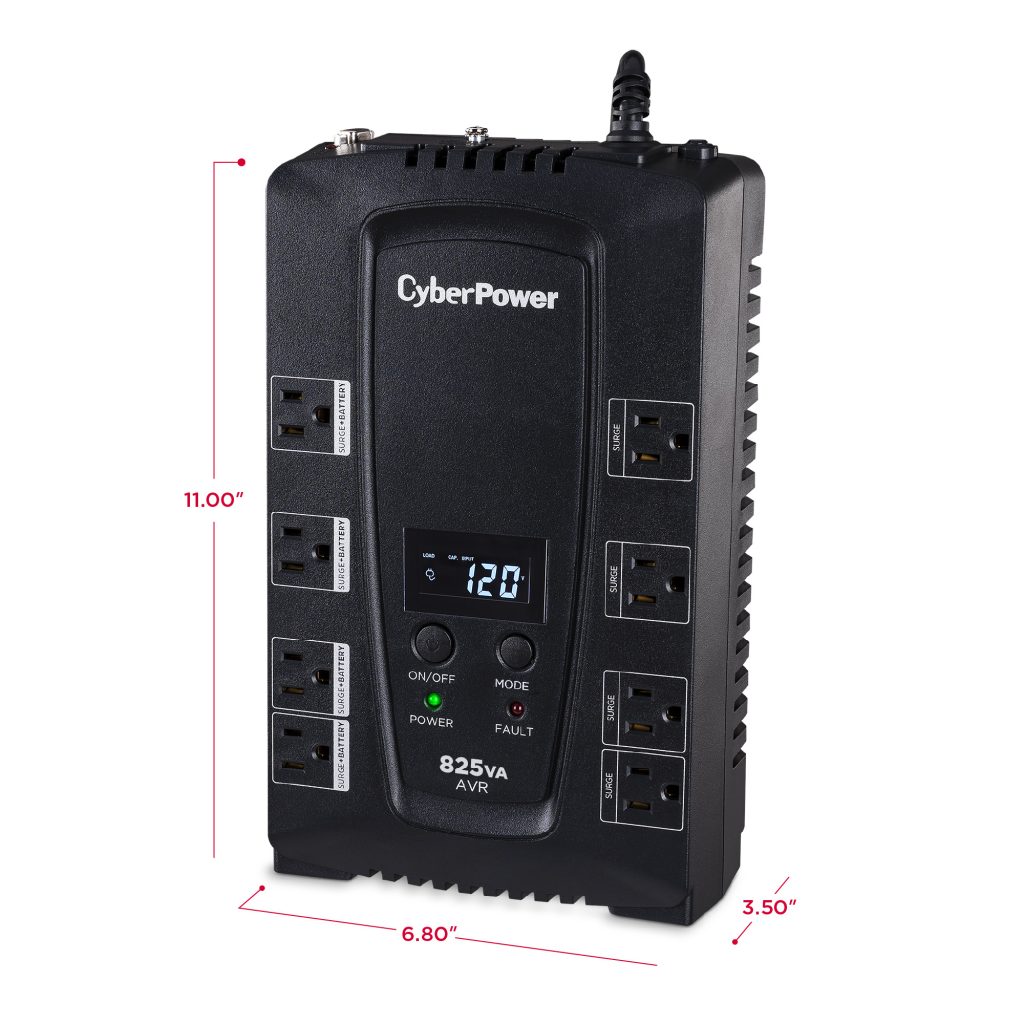

Dimensions – W×H×D (in) 11 x 6.8 x 3.5
Weight (lbs) 12.74
Environmental
Operating Temperature 32 °F to 95 °F / 0 °C to 35 °C
Operating Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 5 °F to 113 °F / -15 °C to 45 °C
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Certifications
Safety UL1778
cUL 107.3
FCC DOC Class B
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $200,000
CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.


Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.


Transformers and Transformer Outlets

A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.

Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.


CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals

Supports macOS 10.12.3 and above

Supports macOS 10.12.1 Sierra and 10.11 El Capitan

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
Where is the serial number located on the UPS?

Your CyberPower product serial number (S/N) is located on a small white rectangle label located on the bottom or back panel of your UPS system. The serial number will appear in various places depending on the product you are referencing.

SX650U Serial Number

The label will have a barcode with a 12-character code right below it–this is your serial number. It may include your product’s model number and the words Made in China.

Serial Close Up


TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Our Technical Support team will be happy help you with technical questions during business hours.

Email
Monday - Friday
7am — 6pm CST
Visit our support page

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

CP825AVRLCD | Intelligent LCD UPS Series
Protect SOHO networks, desktop computers, workstations, and peripherals
 Model Output VAOutput WattsForm FactorWaveformOutlets MSRP
 CP600LCD 600 VA340 WCompactSimulated Sine Wave8 x NEMA 5-15R $74.95
 CP750LCD 750 VA420 WCompactSimulated Sine Wave8 x NEMA 5-15R $87.95
 CP825LCD 825 VA450 WCompactSimulated Sine Wave8 x NEMA 5-15R $91.95
 CP685AVRLCD 685 VA390 WCompactSimulated Sine Wave8 x NEMA 5-15R $97.95
 AVRG750LCD 750 VA450 WCompactSimulated Sine Wave12 x NEMA 5-15R $99.95
 CP825AVRLCD 825 VA450 WCompactSimulated Sine Wave8 x NEMA 5-15R $105.95
 AVRG900LCD 900 VA480 WCompactSimulated Sine Wave12 x NEMA 5-15R $125.95
 CP850AVRLCD 850 VA510 WMini-TowerSimulated Sine Wave9 x NEMA 5-15R $119.95
 CP1000AVRLCD 1000 VA600 WMini-TowerSimulated Sine Wave9 x NEMA 5-15R $124.95
 CP1350AVRLCD 1350 VA815 WMini-TowerSimulated Sine Wave10 x NEMA 5-15R $155.95
 CP1500AVRLCD 1500 VA900 WMini-TowerSimulated Sine Wave12 x NEMA 5-15R $179.95
 BRG850AVRLCD 850 VA510 WMini-TowerSimulated Sine Wave10 x NEMA 5-15R $154.95
 BRG1000AVRLCD 1000 VA600 WMini-TowerSimulated Sine Wave10 x NEMA 5-15R $169.95
 BRG1350AVRLCD 1350 VA810 WMini-TowerSimulated Sine Wave12 x NEMA 5-15R $209.95
 BRG1500AVRLCD 1500 VA900 WMini-TowerSimulated Sine Wave12 x NEMA 5-15R $239.95
