Outdoor FTTx Series

CS24C12V2-E

DISCONTINUED
  • Universal input voltage: 100-240Vac (Universal Input)
  • On battery output voltage: 12 VDC
  • Outdoor use: Type 3R protection rating
  • Rated power: 24 W
  • Battery: 12V/7.2Ah
  • Intelligent control: Yes
  • Telemetry interface: Yes
Overview

Product Overview

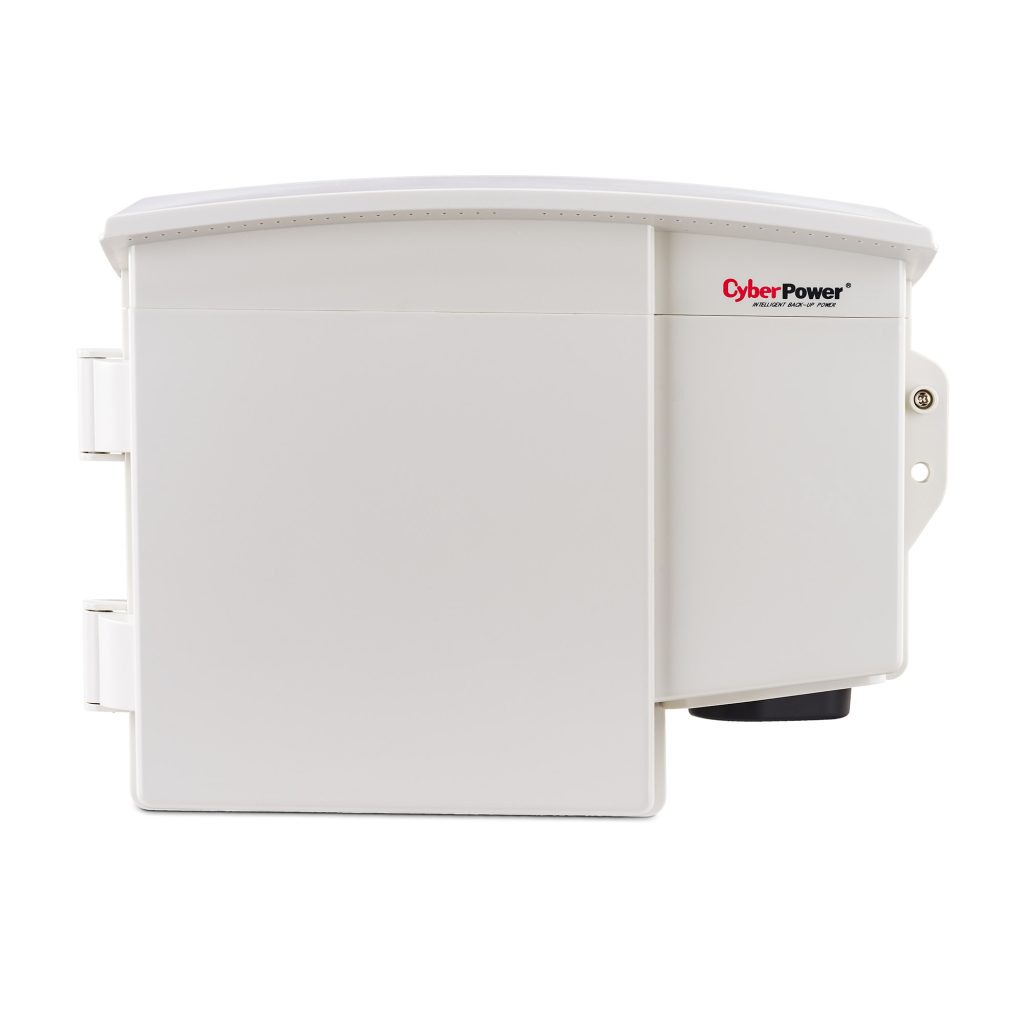

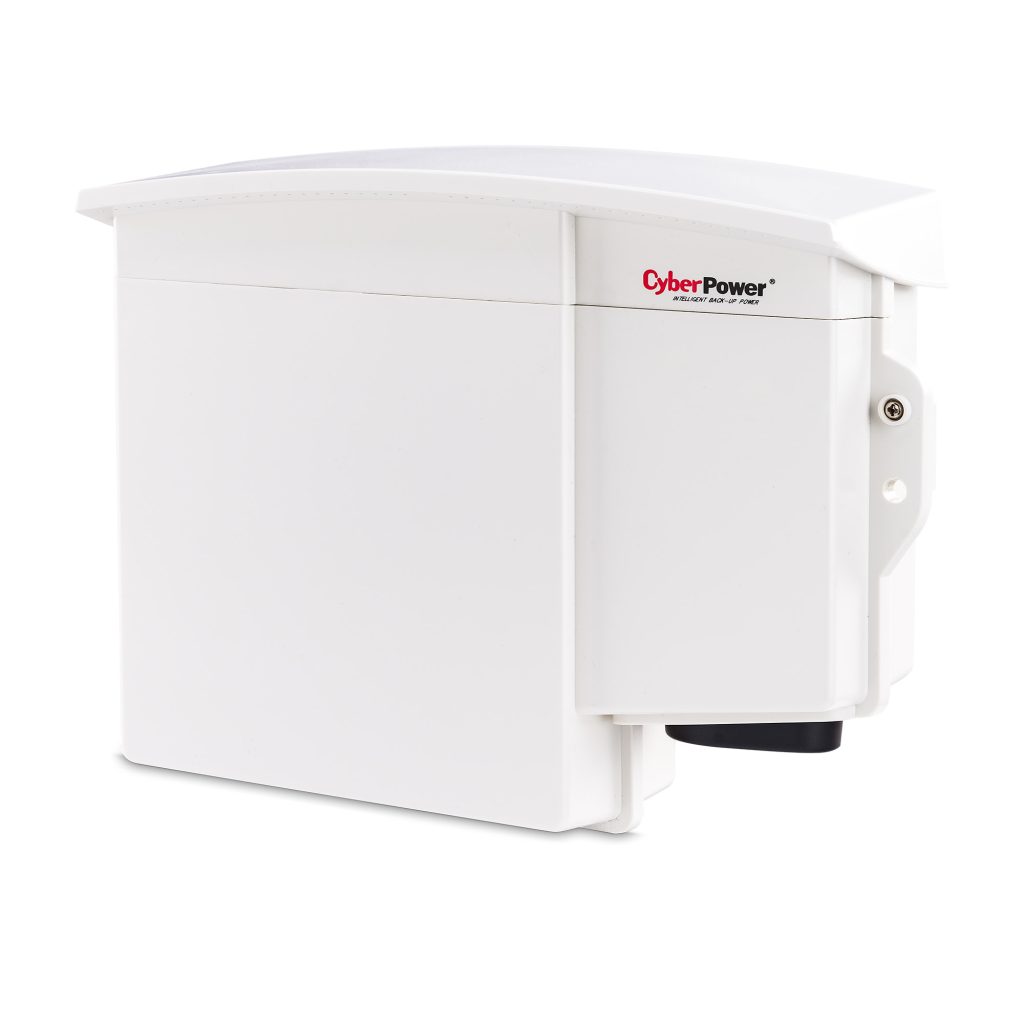

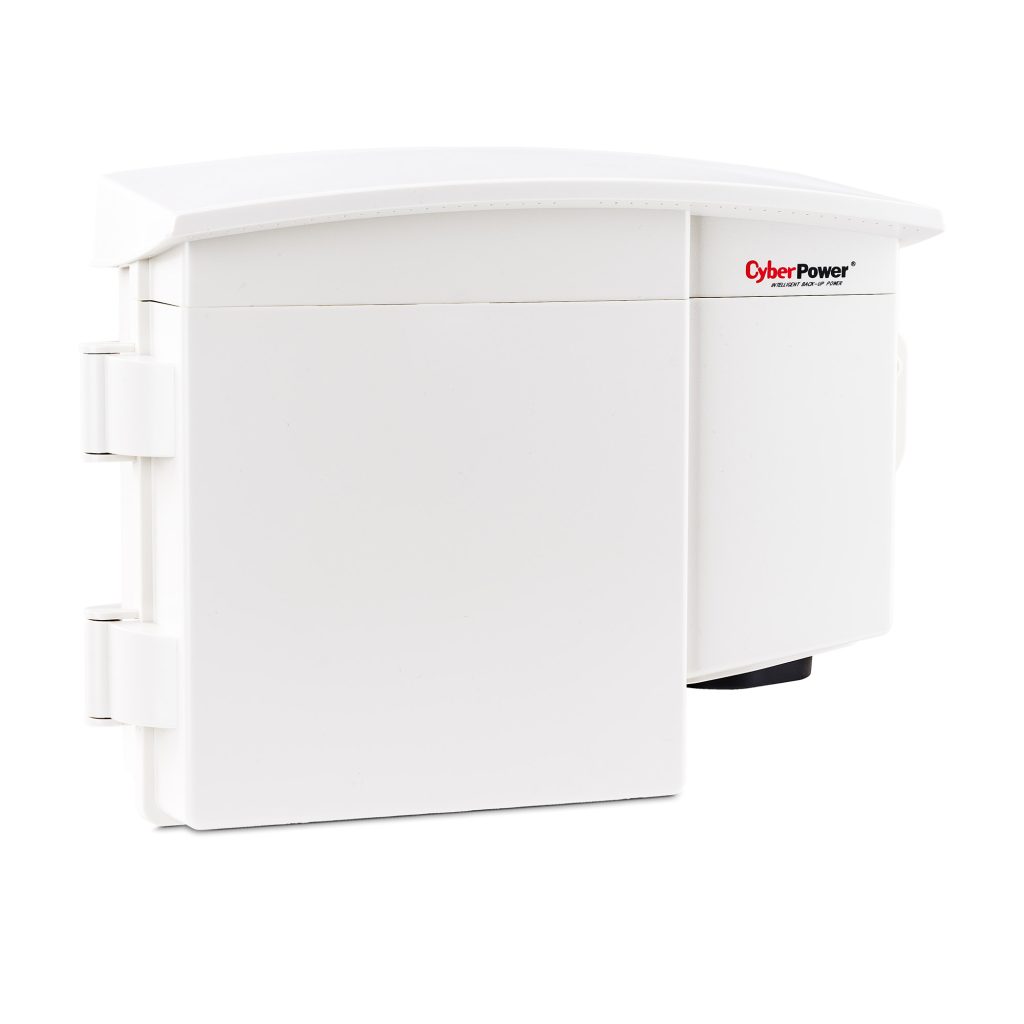

Designed for exterior installation, the CS24C12V2-E Outdoor CyberShield™ FTTx System allows service providers easy access to the power supply and battery. Outdoor mounting eliminates the need to schedule a service appointment with a subscriber to enter a residence or business location. The CS24C12V2-E supplies continuous 12 VDC to local power network interface devices (NID), cable telephone modems, wireless base stations, fiber to the home (FTTH), optical network terminals (ONT), and integrated access devices.

Features of the CS24C12V2-E include high-function design, cold start functionality, microprocessor intelligent control, a telemetry interface, optional extendable runtime, user-replaceable battery, and LED indicators. It also comes with a three-year warranty.

Product Features
  • Outdoor Design
    Provides durable, weather-proof casing to protect the model and features outdoor mounting for access to the power supply and battery.
  • Cold Start Functionality
    Restores emergency power to the load after the installation of a new battery.
  • Telemetry Interface

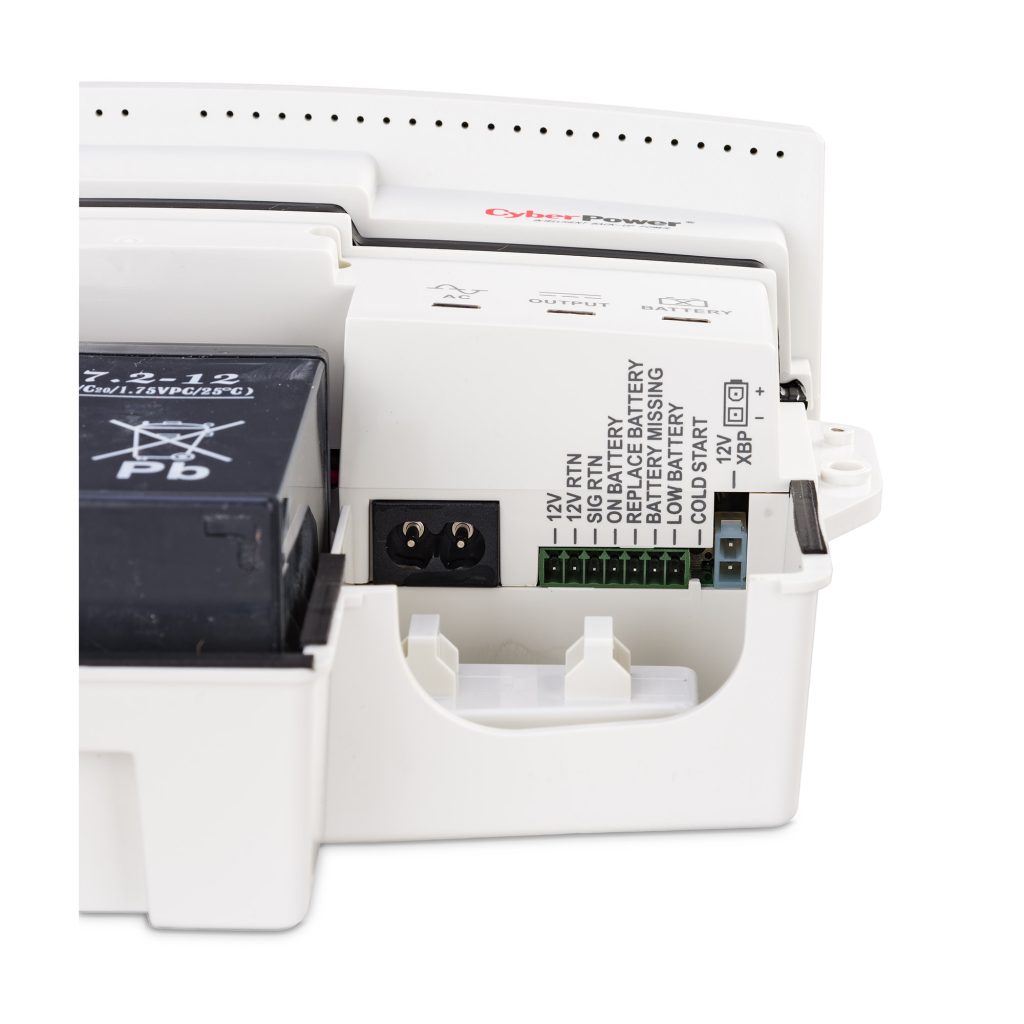

    Provides conditions to the ONT: On Battery, Replace Battery, Battery Missing, Low Battery.
  • LED Status Indicators
    Provide information about the control and operation of the model related to AC/DC mode, battery missing, and DC output.
  • User Replaceable Battery
    Can be changed by a technician when needed without replacing the entire model.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Specifications
Expand All
Input
Input Voltage Range 100-240Vac (Universal Input)
Input Frequency Range 50-60Hz
Output Ground Reference Floating Ground
Output
Output Voltage 12 VDC
Output Rated Power 24 W
Efficiency > 75%
Output Connection 7-Pin Communication Signal Connector (DECA ME030-350-07)
Battery
Battery Type Sealed Lead-Acid
Typical Recharge Time 14+ Hours (90% Charged)
User Replaceable Yes
Battery Quantity 1
Battery Size 12V/7.2Ah
Replacement Battery RB1270
Surge Protection
Mode Yes
Warning Diagnostics
LED Indicators AC
Output
Battery
Management
Auto-Charge Yes
Communication Interface On Battery
Replace Battery
Battery Missing
Low Battery
Physical
Dimensions – L×W×D 20.4 × 27.5 × 9.9 cm
Weight 3.5 kg
Environmental
Operating Temperature 5 – 122 °F (-15 – 50 °C)
Operating Humidity 0 – 95% (non-condensing)
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Storage Temperature 5 – 122 °F (-15 – 50 °C)
Certifications
Compliance UL60950-1/CSA CS22.2 NO.60950-1-07

IEC/EN 60950-1

FCC PART 15 CLASS B

CISPR 22 CLASS B

NEMA Type 3R

Warranty
Product Warranty 3 year
Downloads

CS24C12V2-E

173 KB

CS24C12V2-E

189 KB
Support
What does the Outdoor FTTx Series provide?

The CyberShield Outdoor design provides outdoor mounting and durable, weather-proof casing to protect an FTTx/Telecom unit.
