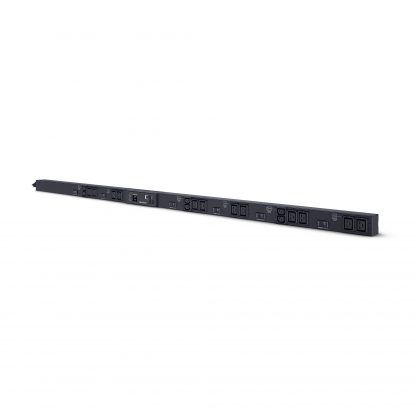

PDU33110

Monitored PDU Series
  • Phase: 3-Phase
  • Notifications: Email, SMS Text, and SNMP Trap
  • Amps: 60A (Derated to 48A)
  • Volts: 200V-240V
  • Frequency: 50/60Hz
  • Input plug type: IEC-309 60A Blue (3P+E)
  • Outlets: (6) IEC-320 C13 + (12) IEC-320 C19
  • Size: 0U Rackmount
  • Cord Length (ft): 10

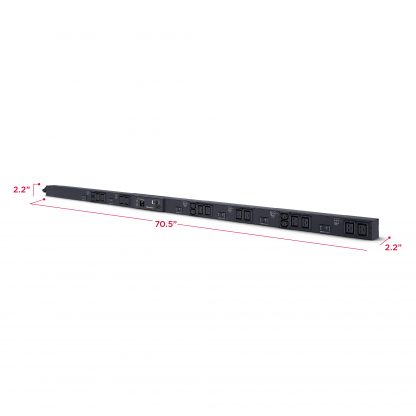

  • Dimensions (in): 2.2W x 70.5H x 2.2D
  • Warranty: 3 year
MSRP  $1,499.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices

Product Overview


Stay informed about your power with the CyberPower PDU33110 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD.

The PDU33110 supports inputs between 200-240V and includes 18 IEC-320 outlets. Other features include an interactive digital display with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU33110 is protected by a three-year limited warranty.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.

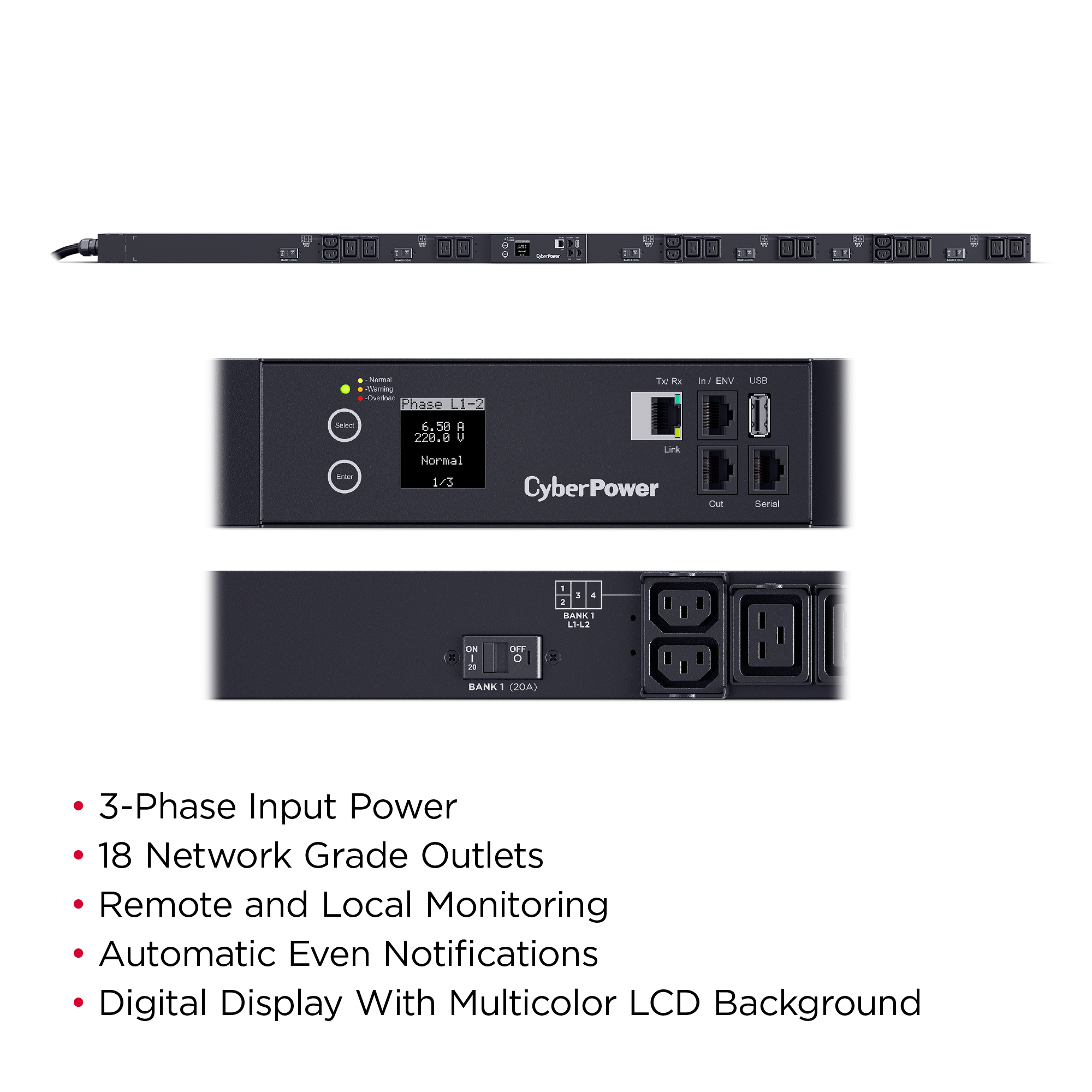

  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Multi-color LCD Background
    User selectable background color on digital display allows for easy classification of PDU based on application. The LCD turns red when there is an alert.
  • CyberPower Management Console
    A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
  • Switch-Free Design
    Safeguards against accidental power shut down.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Network-Grade Plugs and Outlets
    Highly-durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices
Input
Cord Length 10 ft (3.0 m)
Derated Input Current 48 A
Input Frequency Range 50 Hz – 60 Hz
Input Plug Type IEC-309 60A Blue (3P+E)
Maximum Input Current 60A
Nominal Input Voltage 200 – 240 VAC
Phase 3 Phase
Output
Nominal Output Voltage 200 – 240 VAC
Outlet Type 6 – IEC-320 C13
12 – IEC-320 C19
Outlets – # of Banks 6
Outlets – Total 18

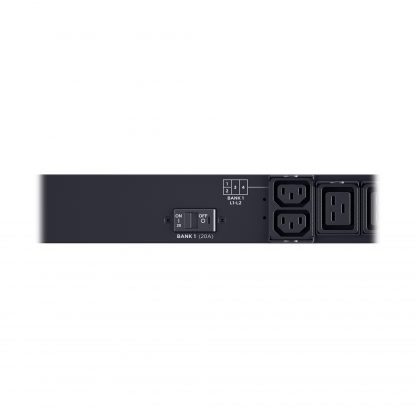

Overload Protection 20A X 6
Management & Communications
Environmental Sensor Optional, via RJ45
Hardware Connection Port Ethernet (RJ45)
Serial (RJ45)
LCD Multifunction LCD
LED Indicators Tx/Rx
LINK
Normal/Warning/Critical Status
Modular Expandability (Cascading) Yes, via RJ45
Monitoring Level Input
Per Circuit
Protocols IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Software (Free Download) PowerPanel® Business
Upgradeable firmware Yes
Physical
Adjustable Mounting Brackets 1 set
Color Black
Cord Retention Tray/Cord Organizers Yes
Material of Construction Metal
Rack Height 0U
Dimensions
Physical Dimensions – (WxHxD) (cm) 5.59 x 179.07 x 5.59 (cm)
Physical Dimensions – (WxHxD) (in) 2.2 x 70.5 x 2.2 (in)
Physical Dimensions – (WxHxD) (mm) 56 x 1791 x 56 (mm)
Physical Weight (kg) 8.71
Physical Weight (lb) 19.2
Dimensions – Shipping
Shipping – Weight (kg) 12.52
Shipping – Weight (lb) 27.6
Shipping Dimensions – (WxHxD) (cm) 21.59 x 203.45 x 16.0 (cm)
Shipping Dimensions – (WxHxD) (in) 8.5 x 80.1 x 6.3 (in)
Shipping Dimensions – (WxHxD) (mm) 215.9 x 2034.54 x 160.02 (mm)
Environmental
Operating Elevation 0 – 11480 ft (0 – 3499 m)
Operating Relative Humidity 0 – 95 % (non-condensing)
Operating Temperature 23 – 131 °F (-5 – 55 °C)
Certifications
Environmental RoHS Compliant
Safety UL60950-1
UL62368-1
FCC Class A
Warranty
Extended Warranty Option WEXT5YR-PDU1B
Product Warranty 3 Year Limited Warranty
PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices
Understanding PDUs

Power Distribution Units (PDUs) by CyberPower are engineered to distribute reliable network power to multiple devices. A PDU does not generate conditioned power, but delivers AC power from a UPS (uninterruptible power supply), a generator, or utility power source to servers, network/telecom equipment, and other devices. Selecting the best PDU for your needs depends on the output voltage required, the number of outlets needed for connected devices, plug and outlet types, and mounting options.

Versatile. CyberPower PDUs are designed with as many as 38 outlets. Offered in 0U, 1U, and 2U form factors, each PDU includes the necessary hardware to be mounted vertically or horizontally inside densely configured rack enclosures. The PDU can also be mounted on a wall or under a shelf.

Scalable. In smaller networks, conditioned power can be distributed through a single PDU from a UPS, while a complex data center might require the connection of multiple PDUs to a large-capacity UPS system.


Different PDU Series for Different Needs

CyberPower offers multiple offerings of power distribution units (PDUs): Basic, Metered, Metered ATS, Monitored, Switched, Switched ATS and Maintenance-Bypass. Each series serves a specialized purpose. Models within the same series have similar features and capabilities.

Basic: Reliable and unfiltered AC power distribution from a UPS system, generator, and/or utility source to multiple connected devices.

Metered: Network-grade power distribution plus load meters (amps) to prevent overloads and safely optimize load levels.

Monitored: Network-grade power distribution with remote monitoring through an SNMP network interface and local management via a digital meter display to prevent downtime due to overloads or other power events.

Switched: Intelligent, network-grade power distribution and the ability to control outlets individually or collectively to solve power issues such as shutdowns or to plan scheduled rebooting. A digital meter provides information on load and voltage, as well as local control of the outlets. An SNMP connection enables remote monitoring and control of the outlets to ensure complete control regardless of location.

Switched Metered-by-Outlet: Monitor the power consumption of individual outlets in real-time over the network, or locally using the PDU’s interactive digital display. Outlets can be switched on and off remotely for unscheduled reboots, automated load shedding, controlled power-cycling and more.

Metered ATS: Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Switched ATS: Individual management of switched outlet receptacles. Remote and local control of outlets. Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Maintenance-Bypass: Maintenance Bypass PDUs allow the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.


Power Device Network Utility

The Power Device Network Utility gives users an easy-to-use interface for establishing the IP addresses of CyberPower PDU devices, RM Cards, and PowerPanel Business Edition Agents and Clients. It scans network devices with MAC addresses that match CyberPower network hardware. Once found, the device(s) can then be configured with a specific IP address, subnet mask, and gateway address, allowing the device(s) to work properly on the network and to integrate with the CyberPower Management Console.


CyberPower Management Console

The CyberPower Management Console is a Network Management System (NMS) that provides real-time remote power monitoring and control of Power Distribution Units (PDUs). This useful hardware interface is built into CyberPower Switched and Monitored PDUs. For both Switched and Monitored PDUs, the Management Console enables administrators to perform operational tasks, such as load monitoring and event logging via email, text, or SNMP trap notifications. With a Switched PDU, it enables manual power cycling to restart unresponsive devices and allows for scheduled power cycling of outlets and/or load shedding for specific devices connected to the PDU..


PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices

Windows 32-bit - Find the PDU/RMCARD's IP Address and configure

Windows 64-bit - Find the PDU/RMCARD's IP Address and configure

Linux - Find the PDU/RMCARD's IP Address and configure

MacOS - Find the PDU/RMCARD's IP Address and configure

Windows - Find the PDU/RMCARD's IP Address

MacOS - Find the PDU/RMCARD's IP Address

Updated MIB File (Zipped)

Upgrade firmware and/or configure multiple devices at once.

PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices
How do I set a static IP address for my PDU?

Install and run the power device network utility software. Once open, click on the underlined IP address to login. Once logged in, click on the System tab and select Network Service. On the next screen double click your PDU’s MAC address. This will direct you to the Device Setup screen so you can set a static IP address.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

What is the default username/password for my PDU?

Username: cyber
Password: cyber

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Can a PDU also monitor temperature and humidity?

Yes, with the optional EnviroSensor installed and connected. The EnviroSensor will monitor ambient temperature and humidity and report that information to the PDU.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Do PDUs have surge protection built in?

No, PDUs do not have surge protection. If you are looking for a power distribution unit with surge protection, look at CyberPower’s line of Rackbars.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Our Technical Support team will be happy help you with technical questions during business hours.

Email
Live Monday - Friday
24 Hour Support
Closed Saturday and Sunday
Visit our support page

Call Toll Free
Live Monday - Friday
24 Hour Support
Closed Saturday and Sunday
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

PDU33110 | Monitored PDU Series
Deliver and manage reliable power to electronic equipment, servers, and network/telecom devices
 Model VoltageCord LengthRacksizeCurrentInput PlugOutlets MSRP
 PDU15MHVIEC8FNET 200 – 240 VAC10 ft1U15 A (derated to 12 A)IEC-320 C148 x IEC-320 C13 $290.00
 PDU20MHVIEC8FNET 200 - 240 VAC10 ft (3 m)1U20A (Derated to 16A)IEC-320 C20IEC-320 C13 $339.00
 PDU20MT8FNET 100 – 120 VAC12 ft1U20 A (derated to 16 A)NEMA L5-20P8 x NEMA 5-20R $379.00
 PDU30MVT24FNET 100 – 120 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P24 x NEMA 5-20R $449.95
 PDU31001 100 – 120 VAC12 ft1U15 A (derated to 12 A)NEMA 5-15P8 x NEMA 5-15R $499.00
 PDU31002 100 – 120 VAC12 ft1U20 A (derated to 16 A)NEMA L5-20P8 x NEMA 5-20R $519.00
 PDU31003 100 – 120 VAC12 ft2U30A (derated to 24 A)NEMA L5-30P16 x NEMA 5-20R $699.00
 PDU31008 200 – 240 VAC12 ft2U30A (derated to 24 A)NEMA L6-30P12 x IEC C13, 4 x IEC C19 $649.95
 PDU31101 100 – 120 VAC10 ft0U20A (derated to 16 A)NEMA (L)5-20P24 x NEMA 5-20R $419.00
 PDU31102 100 – 120 VAC10 ft0U30 A (derated to 24 A)2 x NEMA L5-30P24 x NEMA 5-20R $449.00
 PDU31106 200 – 240 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P36 x IEC-320 C13, 6 x IEC-320 C19 $629.00
 PDU33103 120 - 208 VAC10 ft (3.0 m)0U20A (Derated to 16A)NEMA L21-20P2 - NEMA 5-20R,36 - IEC-320 C13,6 - IEC-320 C19 $699.00
 PDU33105 120 - 208 VAC10 ft (3.0 m)0U30A (Derated to 24A)NEMA L21-30P2 - NEMA 5-20R,36 - IEC-320 C13,6 - IEC-320 C19 $999.00
 PDU33108 200 - 240 VAC10 ft (3.0 m)0U50A (Derated to 35A)IEC-309 60A Blue (3P+E)36 - IEC-320 C13,6 - IEC-320 C19 $1,199.00
 PDU33110 200 - 240 VAC10 ft (3.0 m)0U60A (Derated to 48A)Hubbell CS8365C6 - IEC-320 C13,12 - IEC-320 C19 $1,499.00
