CR12U51001


Carbon™ Wall Mount Enclosure

MSRP $349.00

  • Rack Type: Swing-out Wall Mount Enclosure
  • Height: 12U
  • Stationary Capacity: 132 lbs
  • Max. Mounting Depth: 18.2″
  • Mounting Hole Types: Square and Threaded
  • Warranty: 5 Years

Product Description

CR12U51001 | Carbon Wall Mount Enclosures
Versatile, space-efficient wall mount equipment protection maximizes floor space

Product Overview

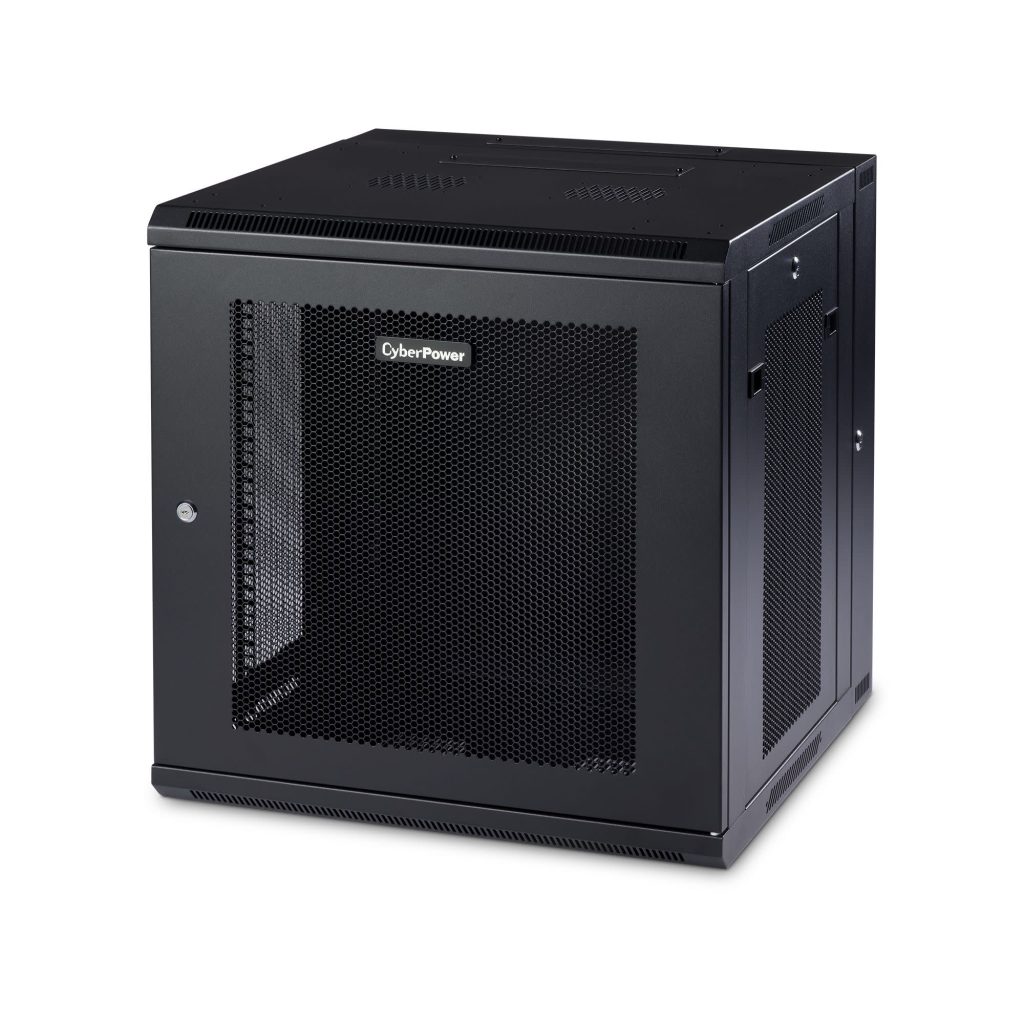

The CR12U51001 is designed for use in network closets, classrooms, and other locations. It houses network switches and patch panels up to 22 inches deep. This rack features convenient top panel cable access openings, perforated doors and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR12U51001 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.

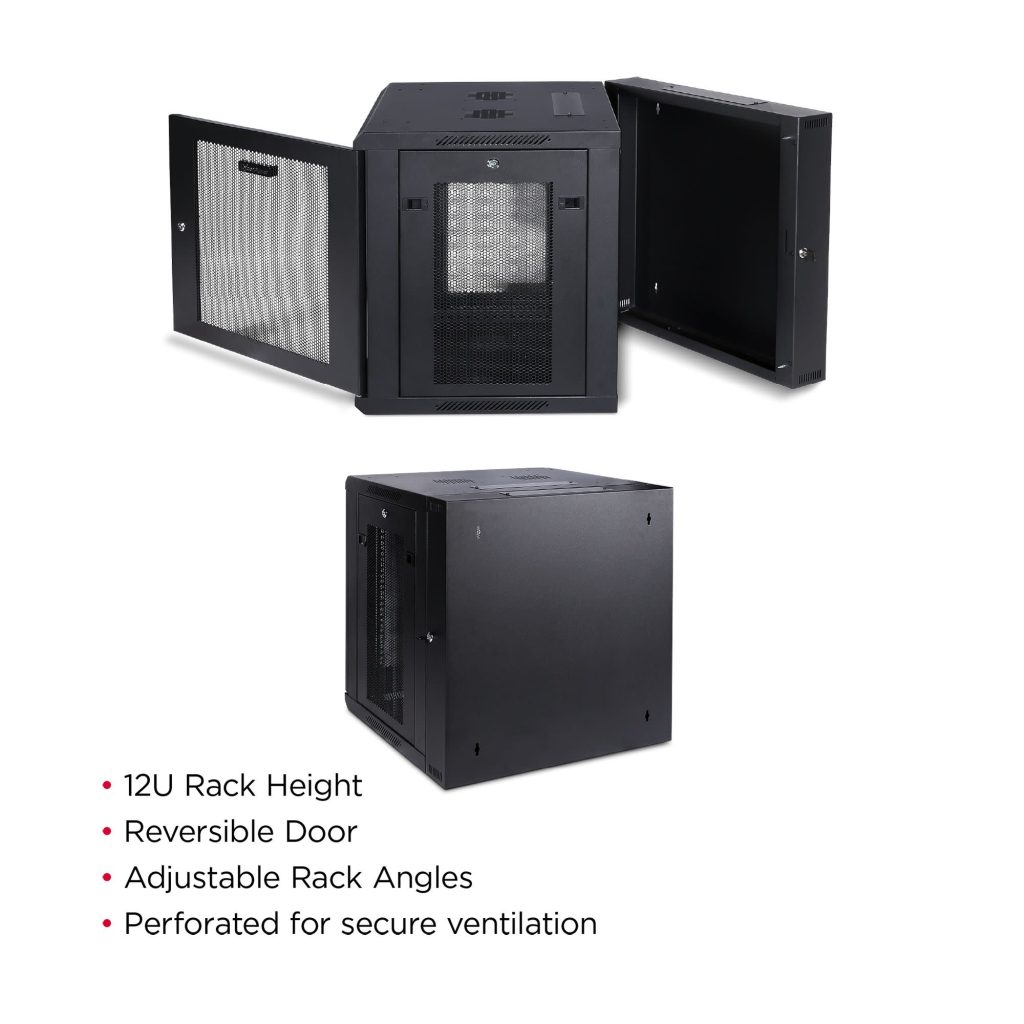

  • Perforated Front Door and Side Panels
    Provides ventilation for small servers and networking equipment.

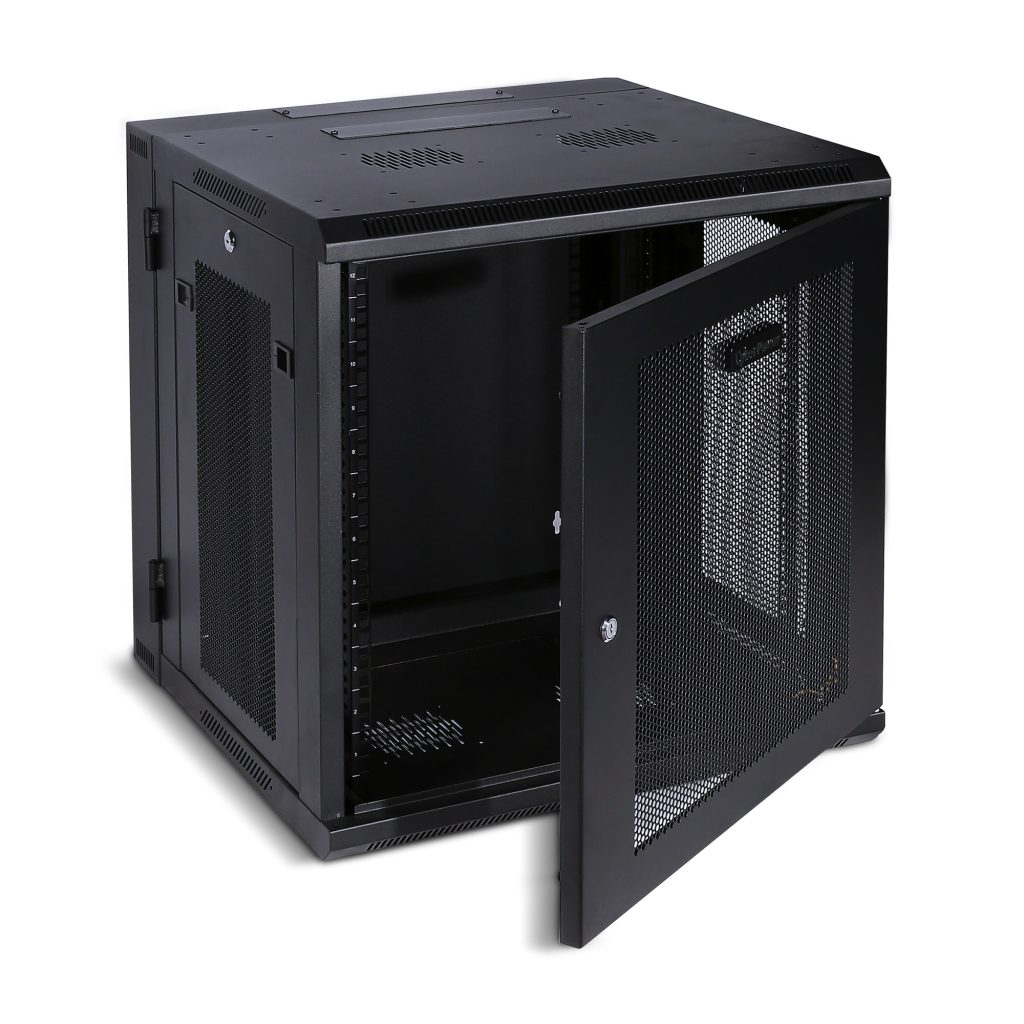

  • Reversible Door
    Front door has spring loaded hinges and can be easily moved to the opposite side.

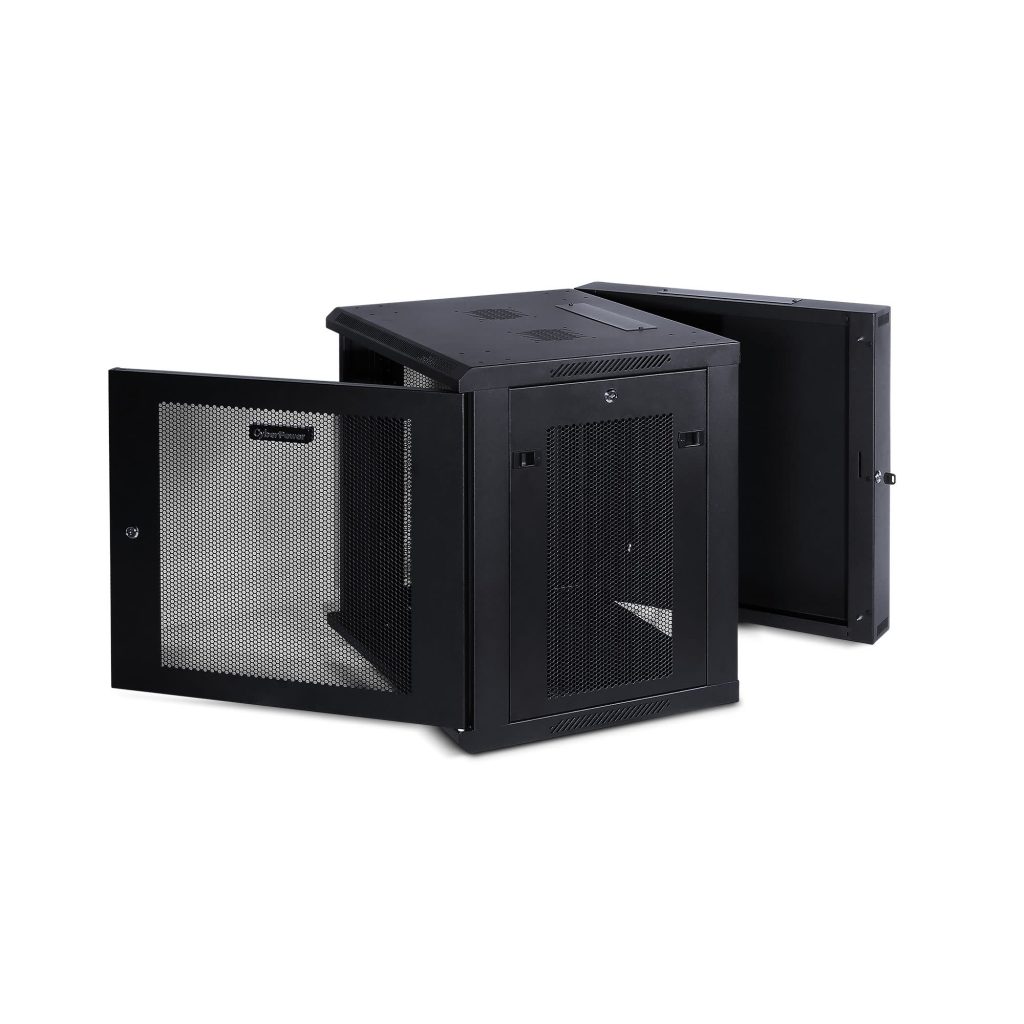

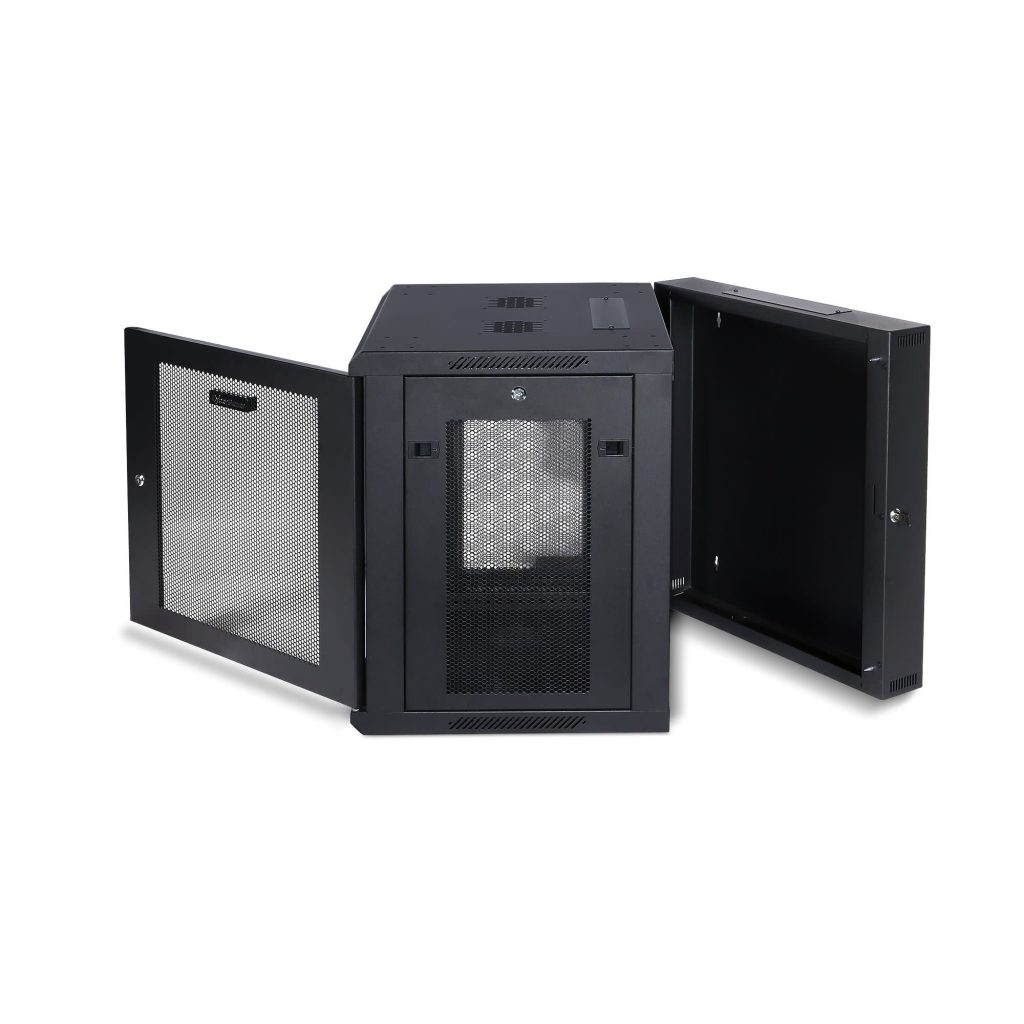

  • Quick Release Side Panels
    Lockable side panels can be removed easily for quick access to equipment and cabling.
  • Cable Access Openings
    Slots in the bottom and top provide convenient cable routing to and from the rack.
  • Rack Mounting Compatibility
    The CR12U51001 is compatible with all EIA-310 compliant 19″ equipment.
  • Adjustable Rack Angles
    Vertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 18.2″ with 22″ maximum equipment depth. U rack units are numbered front and back for easy equipment installation.
  • Designed for Stability
    A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
  • Integrated Electrical grounding
    Grounding connections are located on the frame for facility ground.
What’s In The Box

Wall Mount Enclosure, Keys, Mounting Hardware, User Manual

CR12U51001 | Carbon Wall Mount Enclosures
Versatile, space-efficient wall mount equipment protection maximizes floor space
Physical
Rack Height 12U
Color Black RAL 9005 powder coat paint
Door Type Hex Perforated Metal Door
Wall Mount Rear Frame Swing Out
Rack Angle Mounting Hole Type Square and #12-24 Mounting Hole
Weight Capacity – stationary load (lbs) 132.3
Weight Capacity – stationary load (kg) 60
Factory Default Mounting Depth (in) 13.2
Factory Default Mounting Depth (mm) 336
Cable Access Opening Dimensions (in) 9.8 x 2.2
Cable Access Opening Dimensions (mm) 250 x 56
Max. Mounting Depth (in) 18.2
Max. Mounting Depth (mm) 462
Min. Mounting Depth (in) 1.9
Min. Mounting Depth (mm) 47

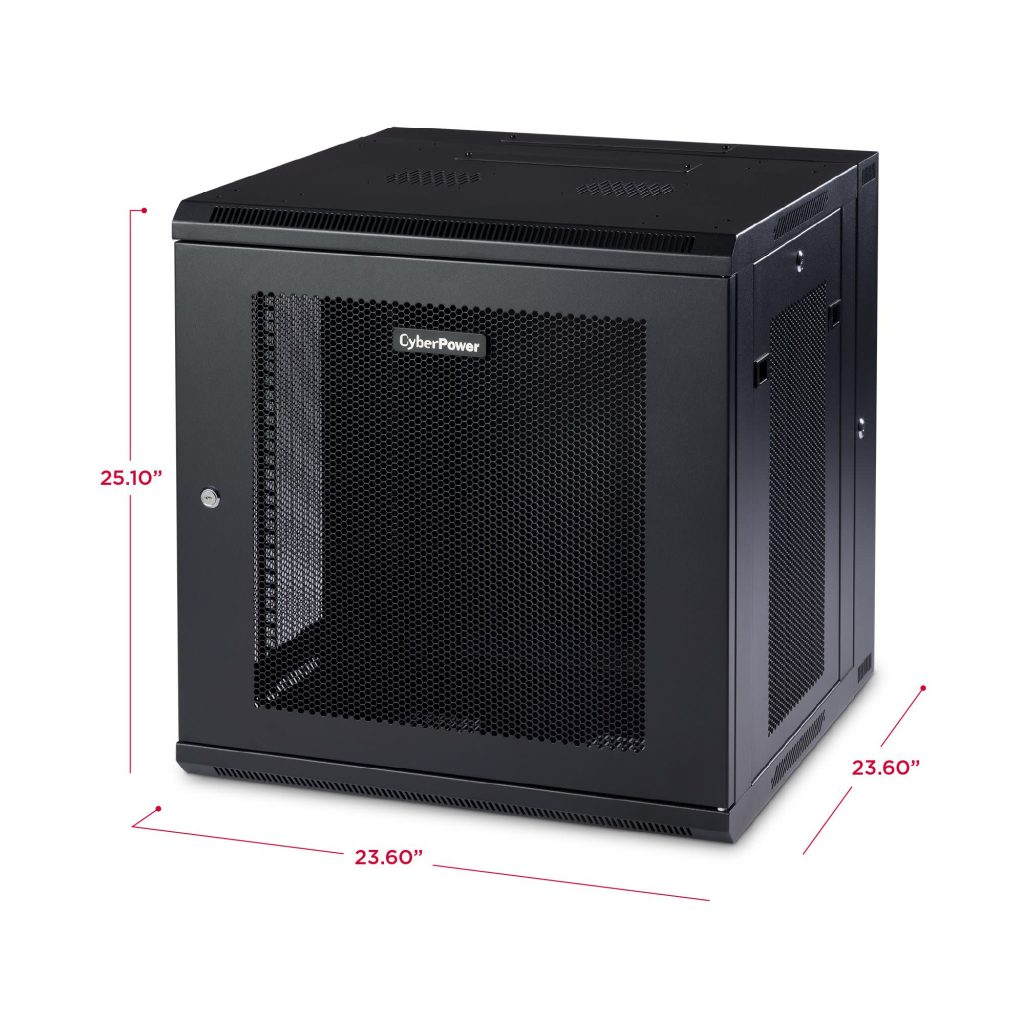

Dimensions (WxHxD in.) 23.6 x 25.1 x 23.6
Dimensions (WxHxD mm) 600 x 637 x 600
Net Weight (lbs) 60.2
Net Weight (kg) 27.3
Shipping Dimensions – WxHxD (in) 26.18 x 27.8 x 26.18
Shipping Dimensions – WxHxD (mm) 665 x 705 x 665
Shipping Weight (lbs) 67.7
Shipping Weight (kg) 30.7
Special Features
Numbered Rack Units Yes
Rolling Casters Optional
Removable Door and Side Panels Yes
Reversible Front Door Yes
Lockable Door and Side Panels Yes, keyed alike
Ventilation Perforated Door and Side Panels with Ventilated Top and Bottom
Cable Access Top and Bottom Openings
PE Grounding Point Yes
Environmental
Protection Class IP20
Certifications
Safety CE
Approvals DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty 5 Years Limited
