Racks - Cable Management

CRA30008

$678.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Type: Cable ladder
  • Installation: Toolless mounting
  • Warranty: 5 years
Overview

Product Overview

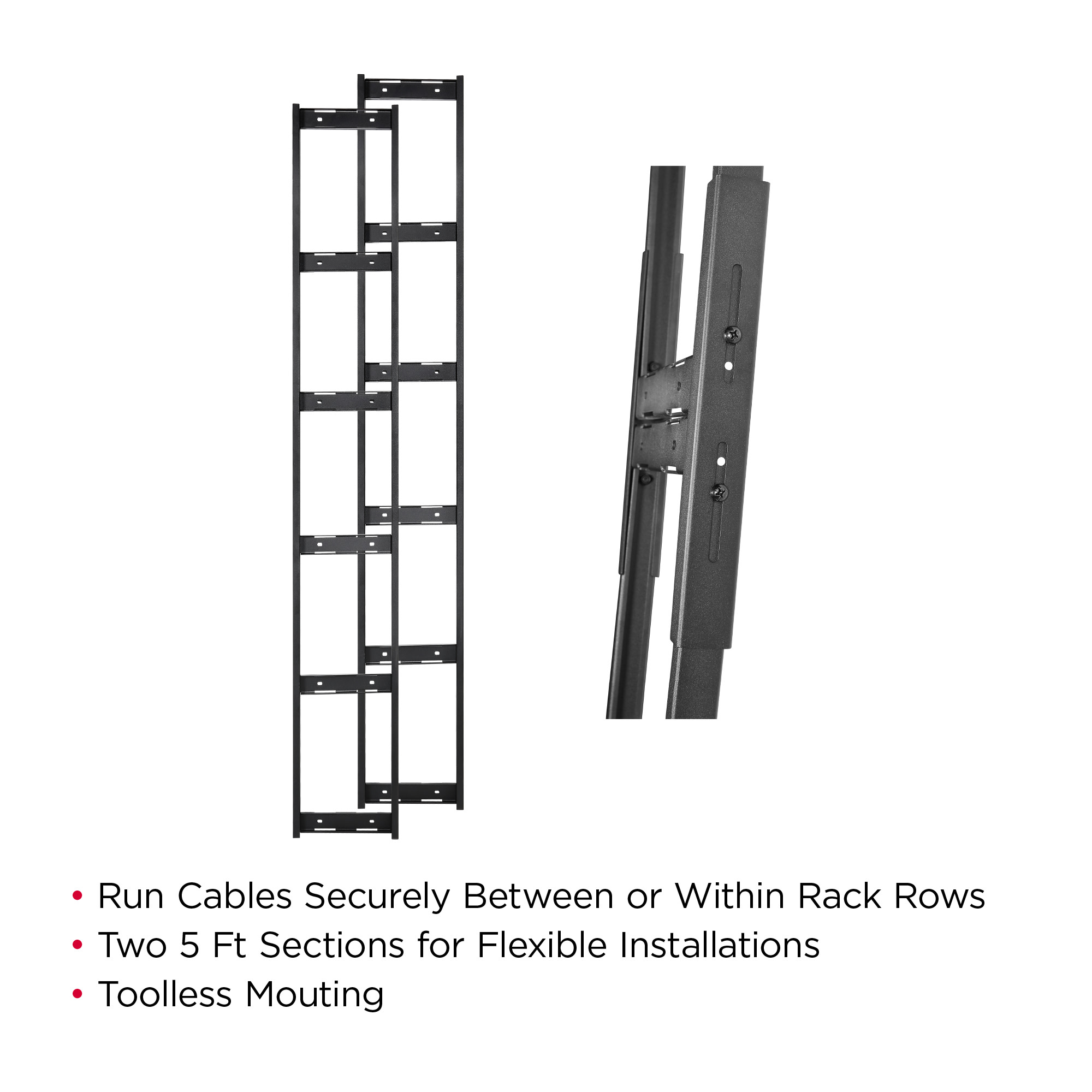

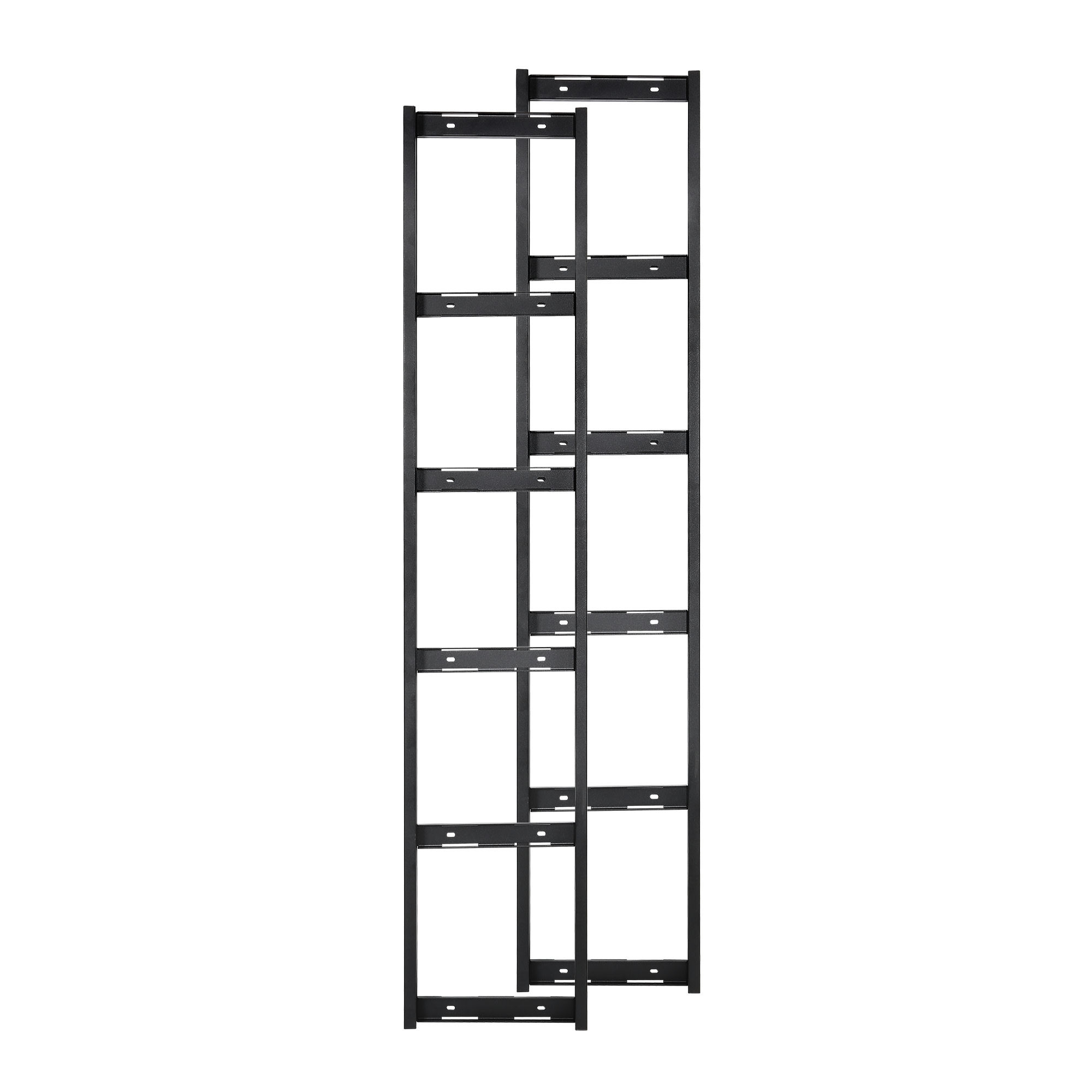

The CRA30008 helps reduce cable stress and run cables securely between or within rack rows. The cable ladder has (2) 5 ft sections for flexible installation options. A grounding stud is pre-installed to provide a tie-in point to the enclosure and facility ground. The CRA30008 is covered by a 5-year limited warranty.

Note: Installation in a CyberPower CR42U11001 or CR24U11001 rack enclosure requires CRA30009 or CRA30010. No additional hardware is required to install in CyberPower CR45U40001 or CR25U40001 4-post open frame rack.

Product Features
Typical Applications
What's In The Box

Cable ladder, Mounting Hardware, User Manual

WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
Output
USB Charge Port No
Physical
Color Black
Installation Hardware Included
Material Cold Rolled Steel

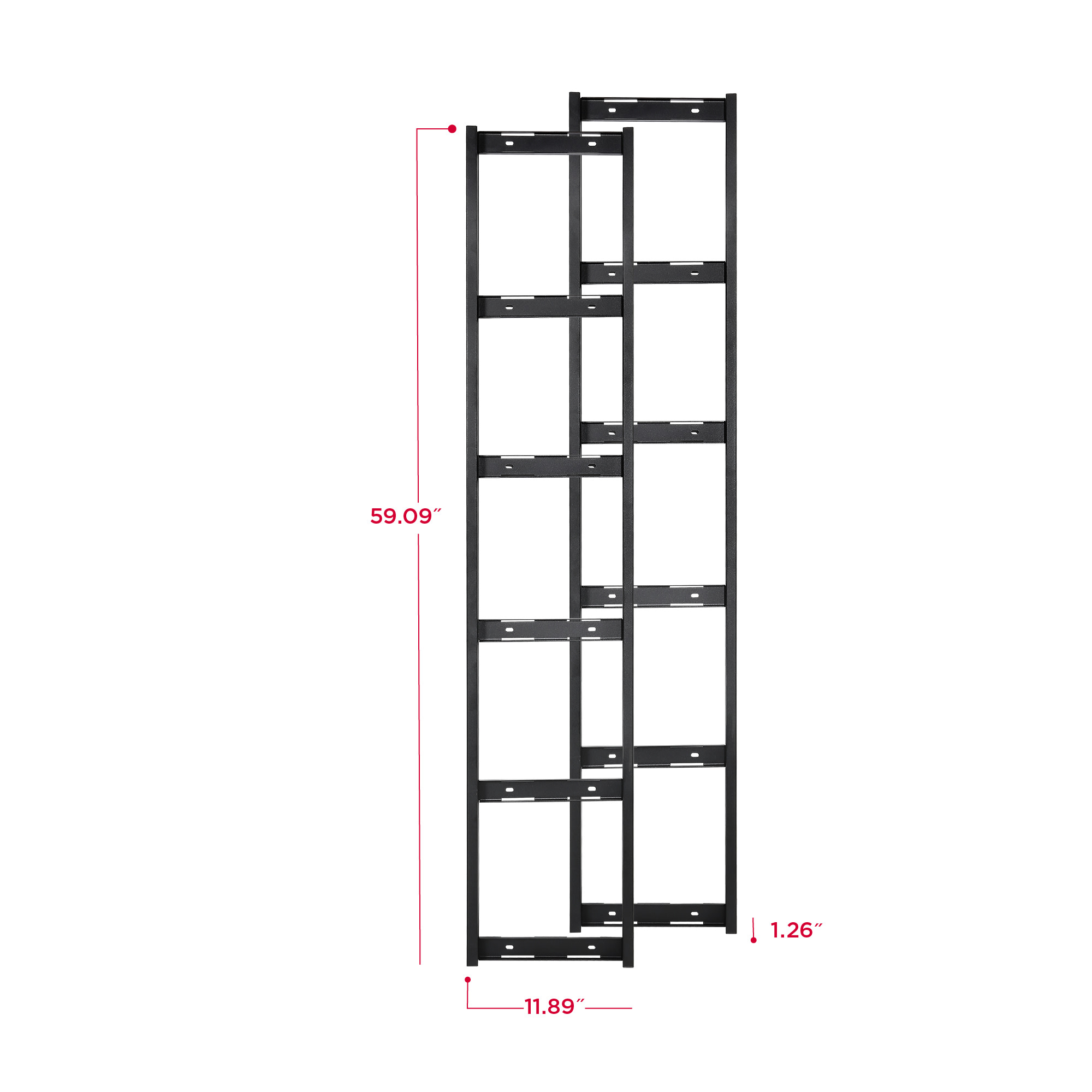

Dimensions
Physical Weight (kg) 7.57
Physical Weight (lb) 16.7
Dimensions – Shipping
Shipping – Weight (kg) 27.44
Shipping – Weight (lb) 60.5
Shipping Dimensions – (WxHxD) (cm) 34.93 x 8.89 x 152.4 (cm)
Shipping Dimensions – (WxHxD) (in) 13.75 x 3.5 x 60.0 (in)
Shipping Dimensions – (WxHxD) (mm) 349.25 x 88.9 x 1524.0 (mm)
Certifications
Environmental RoHS Compliant
Warranty
Product Warranty 5 Year Limited Warranty
Downloads

CRA30008 DS

505.4KB

CRA30008 UM

7.4MB
Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area

Series
 Model DescriptionRack HeightToolless Mount MSRP
 CRA30001 Vertical duct cable manager with cover, 6ft (1.8m), 2x 3ft (0.9m) sections, toolless mounting, 5 year warranty0UToolless Mounting $419.00
 CRA30007 Vertical flexible ring cable manager, 6ft (1.8m), 2x 3ft (0.9m) sections, toolless mounting, 5 year warranty0UToolless Mounting $303.00
 CRA30008 Cable ladder, 10ft (3m), 2x 5ft (1.5m) sections - CRA30009 or CRA30010 needed for mounting on rack enclosure, 5 year warrantyHardware Included $678.00
 CRA30002 19" 1U metal duct cable manager with cover, 5 year warranty1UHardware Included $152.00
 CRA30005 19" 1U brush panel cable manager, 5 year warranty1UHardware Included $103.00
 CRA30003 19" 1U plastic duct cable manager with cover, 5 year warranty1UHardware Included $187.00
 CRA30004 19" 1U flexible ring cable manager, 5 year warranty1UHardware Included $114.00
 CRA30006 19" 2U flexible ring cable manager, 5 year warranty2UHardware Included $119.00
 CRA30009 Roof-mounted power cable trough, for 600mm wide rack enclosures, 5 year warrantyToolless Mounting $257.00
 CRA30010 Roof-mounted data cable partitions, 2 partitions, for 600mm wide rack enclosures, 5 year warrantyToolless Mounting $203.00
