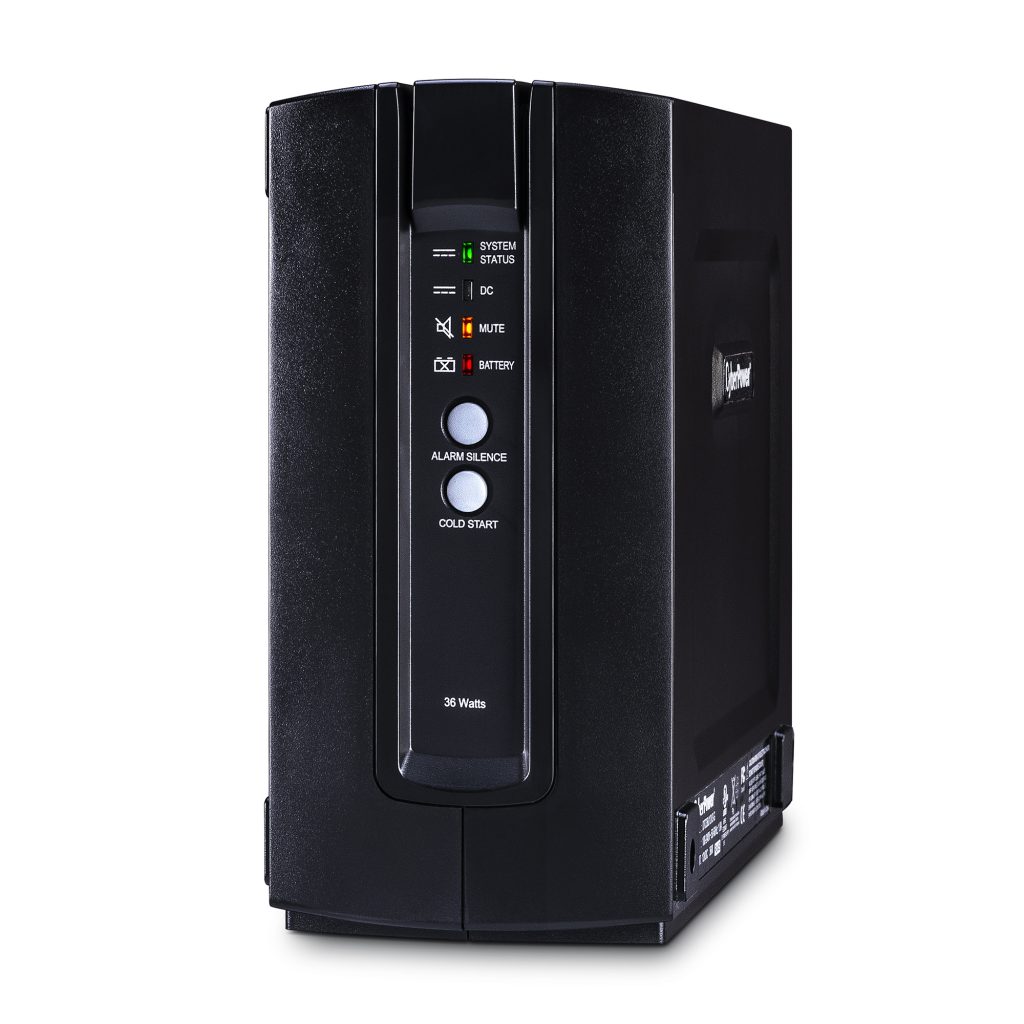

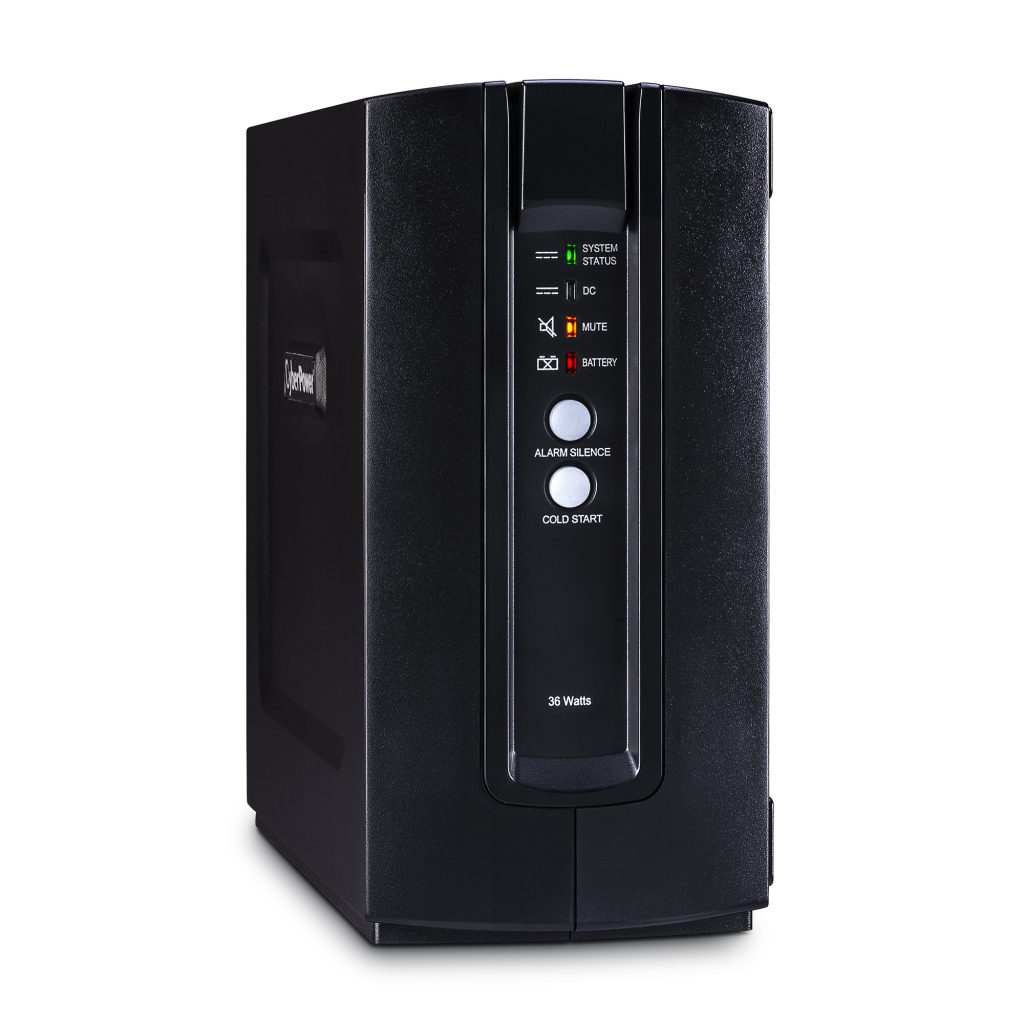

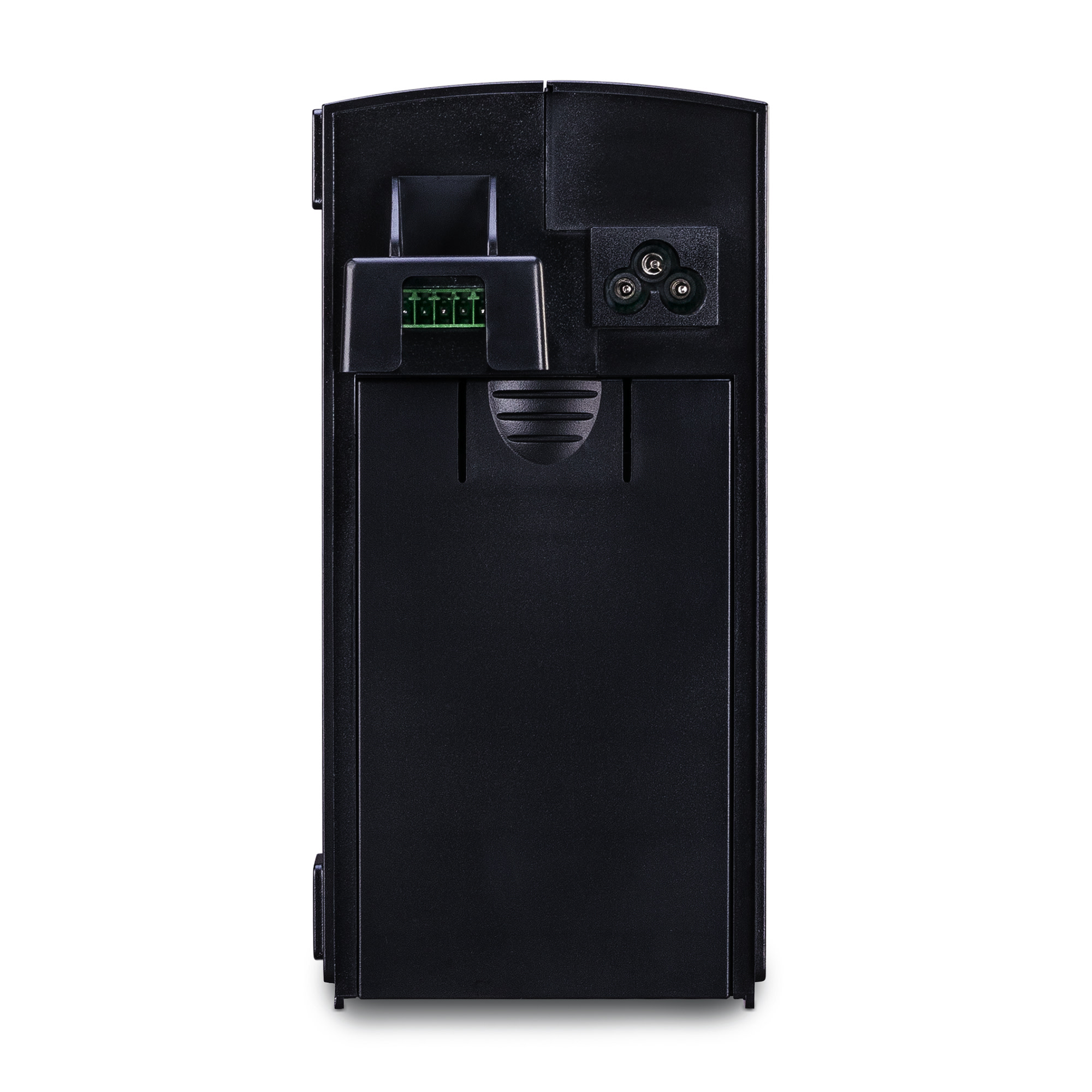

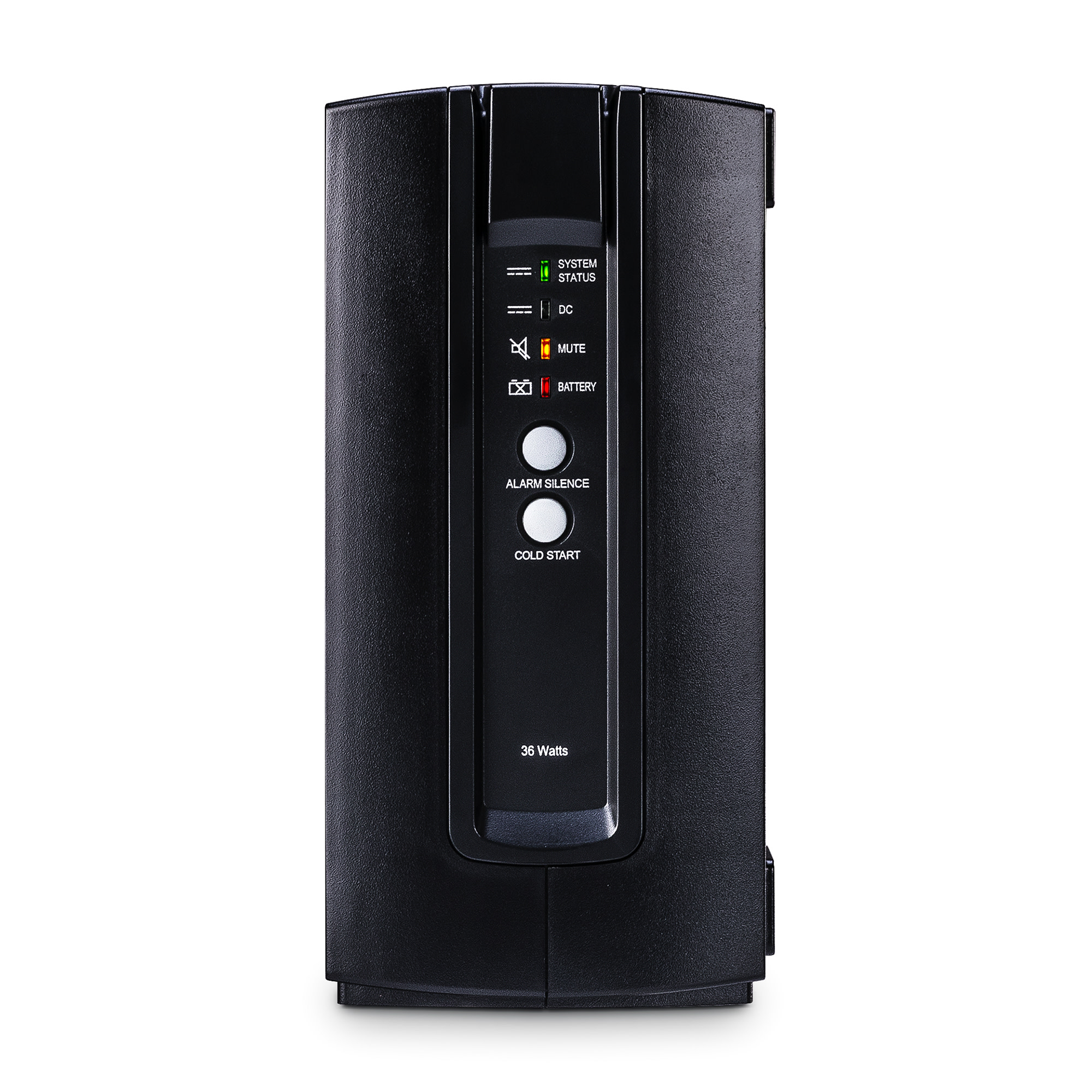

A Desktop or Wall Mount Battery Backup for home Telecom equipment
BBU, Power Cord, User Manual
This product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
| Battery | |
|---|---|
| Battery Quantity | 1 |
| Battery Size | 12 V / 7.2 Ah |
| Battery Type | VRLA |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1270B |
| Replacement Battery Cartridge Quantity | 1 |
| User Replaceable Battery | Yes |
| Cable Specifications | |
| Outdoor Rated | No |
| Input | |
| Input Power Cord | IEC320 C5 3-Prong Cord |
| Output | |
| On Battery Voltage | 12 VDC |
| Rated Power Output | 36 W |
| USB Charge Port | No |
| Physical | |
| Color | Black |
| Keyhole Mounting Slots | Yes |
| Dimensions | |
| Physical Dimensions - (WxHxD) (cm) | 20.07 x 14.99 x 25.91 (cm) |
| Physical Dimensions - (WxHxD) (in) | 7.9 x 5.9 x 10.2 (in) |
| Physical Dimensions - (WxHxD) (mm) | 201 x 150 x 259 (mm) |
| Physical Weight (kg) | 4.63 |
| Physical Weight (lb) | 10.2 |
| Dimensions - Shipping | |
| Shipping - Weight (kg) | 3.63 |
| Shipping - Weight (lb) | 8.0 |
| Shipping Dimensions - (WxHxD) (cm) | 22.61 x 14.99 x 25.91 (cm) |
| Shipping Dimensions - (WxHxD) (in) | 8.9 x 5.9 x 10.2 (in) |
| Shipping Dimensions - (WxHxD) (mm) | 226.06 x 149.86 x 259.08 (mm) |
| Certifications | |
| Safety | UL62368-1 IEC/EN 62368-1 FCC Part 15 Class B I CISPR 22 Class B |
| Warranty | |
| Product Warranty | 3 Year Limited Warranty |
Our Technical Support team will be happy help you with technical questions during business hours.
Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area
| Model | Output Voltage | Rated Power | Extended Runtime Option | Battery |
|---|---|---|---|---|
| DTC36U12V-NA3-G | 12 Vdc | 36 W | N/A | 12 V / 7.2 Ah |
| CBN50U48A-1 | 48 Vdc | 50 W | N/A | 12 V / 20 Ah |
| CSN75A12V3 | 12 Vdc | 75 W | CS20A-EBP | 12 V / 20 Ah |
| CSN30U12V-20 | 12 Vdc | 30 W | CS20A-EBP | 12 V / 20 Ah |
| CS20A-EBP | N/A | 12 V / 20 Ah | ||
| DTC50U12V | 12 Vdc | 50 W | CS20A-EBP | 12V/9Ah |
