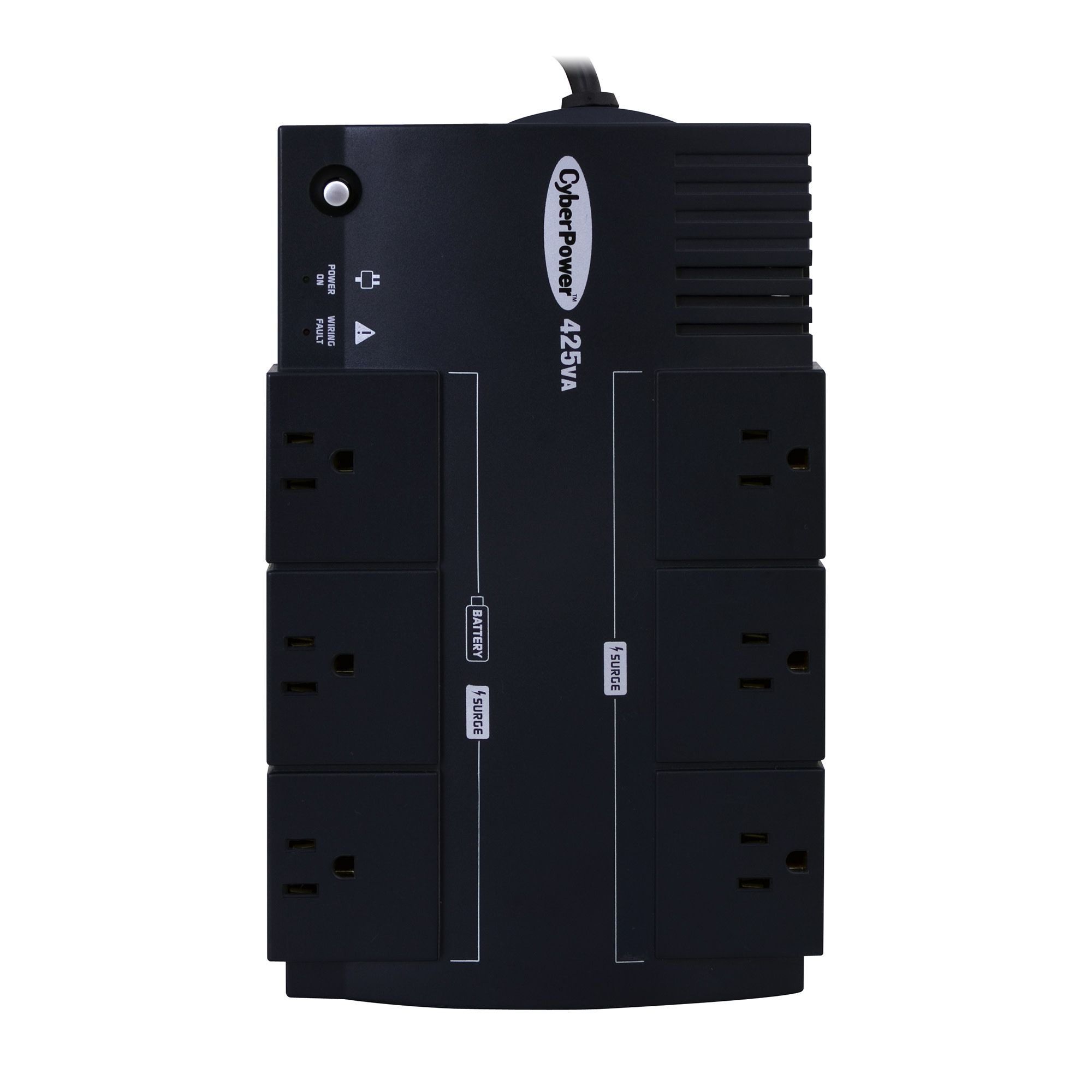

CPS425SL


Standby UPS Series

DISCONTINUED

  • Capacity: 425VA / 230W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication: Serial
  • Data line protection: Telephone
  • Management software: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $75,000

Product Description

CPS425SL | Standby Series
Protect desktop computers, networks, VoIP, and peripherals

Product Overview


The CyberPower CPS425SL is the ideal model for entry-level computer systems. The CPS425SL guards against surges, spikes, sags, brownouts and other power abnormalities. It also protects your computer system and valuable data during a power outage. PowerPanel Software is included with each model. In the event of a power outage, PowerPanel Software automatically saves and closes open files and then shuts down the computer system in an intelligent and orderly manner. The CPS425SL comes with a three-year warranty and a $75,000 Connected Equipment Guarantee.

  • EMI/RFI
    Provides shielding against electromagnetic interference and radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics.
  • Transformer-Spaced Outlets
    Accommodate large transformer-based plugs without compromising the access of other outlets.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone lines from causing damage to electronics.
  • Standby Topology
    Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual

CPS425SL | Standby Series
Protect desktop computers, networks, VoIP, and peripherals
General
UPS TopologyStandby
Input
Voltage100Vac – 140Vac
Frequency60Hz ± 3Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle
Cord Length6′
Output
VA425
Watts230
On Battery Voltage120Vac ± 5%
On Battery Frequency50/60Hz ± .5%
On Battery WaveformSimulated Sine Wave
Outlet TypeNEMA 5-15R
Outlets – Battery & Surge Protected3
Outlets – Surge-Only Protected3
Outlets – Widely Spaced6
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
Battery
Runtime at Half Load (min)9
Runtime at Full Load (min)2
Battery TypeSealed Lead-Acid
Battery Size12V/4AH
Replacement BatteryBB Battery – BP4-12
Battery Quantity1
Typical Recharge Time8 Hours
Surge Protection & Filtering
Surge Suppression585 Joules
Maximum Surge Current36,000 Amps
Phone Protection RJ111-In, 2-Out
EMI/RFI FiltrationYes
Management & Communications
Serial PortYes
Cable ManagementSerial Cable, (USB Adapter Optional)
LED IndicatorsAC, Output, Battery
Audible AlarmsOn Battery, Low Battery, Overload
SoftwarePowerPanel®
Physical
Keyhole Mounting SlotsNo
Dimensions – W×H×D (in)9.75 × 6.25 × 3.25 inches
Weight (lbs)8.0 lbs
Environmental
Operating Temperature32 °F to 95 °F / 0 °C to 35 °C
Operating Humidity0% – 95% non-condensing
Certifications
SafetyUL1778, cUL, FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$75,000
CPS425SL | Standby Series
Protect desktop computers, networks, VoIP, and peripherals
Transformers and Transformer Outlets

A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.

Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.
