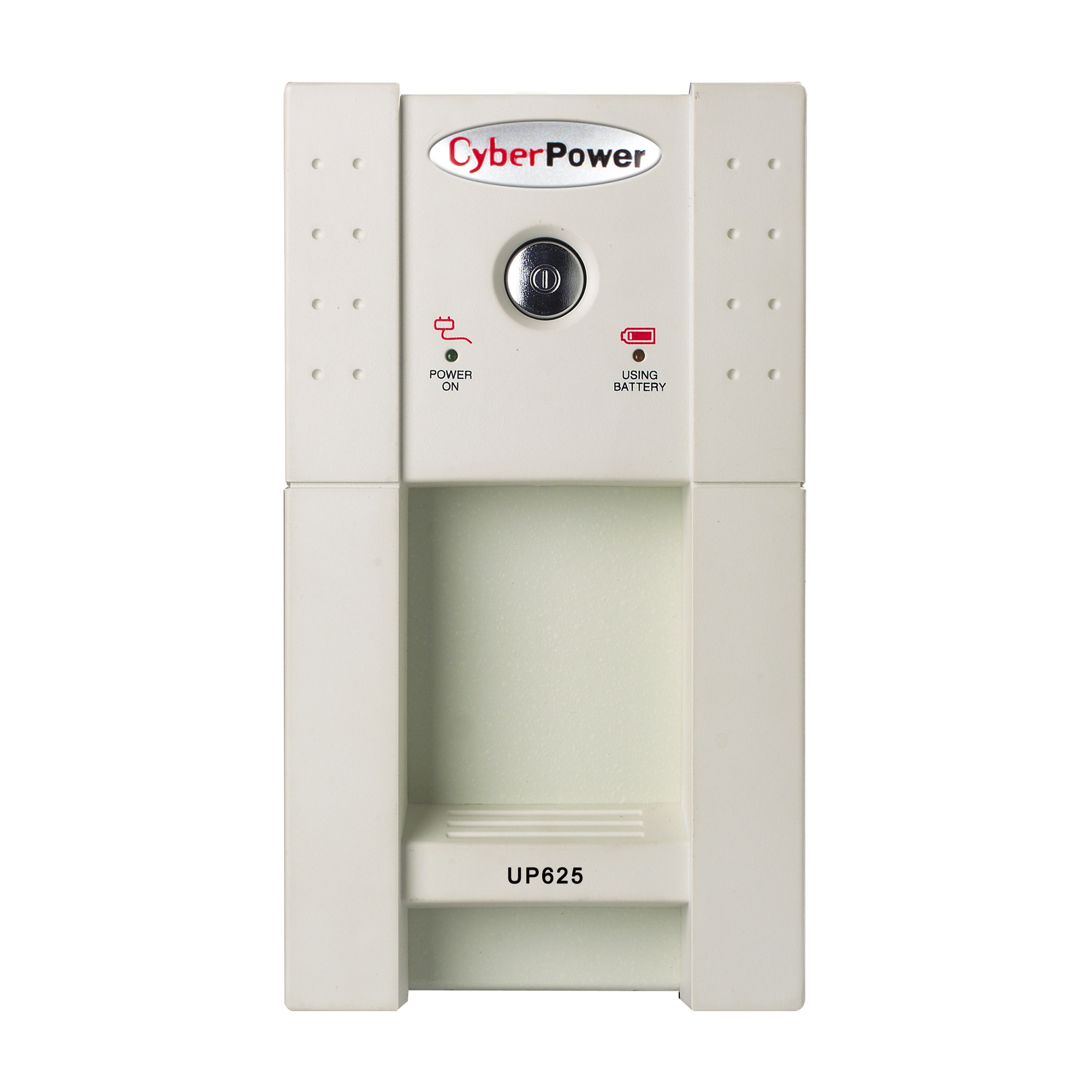

UP625


Standby UPS Series

DISCONTINUED

  • Capacity: 625 VA / 340 W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication ports: USB, Serial
  • Management software: PowerPanel® Personal Edition
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $50,000

Product Description

UP625 | Standby Series
Protect desktop computers, networks, VoIP, and peripherals

Product Overview


A tower UPS with standby topology, the CyberPower Standby UP625 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the UP625 offers reliable power protection and battery backup. The UP625 comes with a three-year warranty and a $50,000 Connected Equipment Guarantee.

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
  • Standby Topology
    Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • LED Indicators
    LED status lights indicate Power-On and wiring faults.
  • Audible Alarms
    Audible tones identify when the model is running off battery power, model overloads and low battery.
  • Resettable Circuit Breaker
    Interrupts an electric current in a circuit when the current becomes too high.
  • PowerPanel® Personal Edition Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

What’s In The Box

UPS System, User Manual

UP625 | Standby Series
Protect desktop computers, networks, VoIP, and peripherals
General
UPS TopologyStandby
Input
Voltage100Vac – 140Vac
Frequency60Hz ± 3Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle
Cord Length6′
Output
VA625
Watts340
On Battery Voltage110Vac / 120Vac
On Battery Frequency60Hz ± 1%
On Battery WaveformSimulated Sine Wave

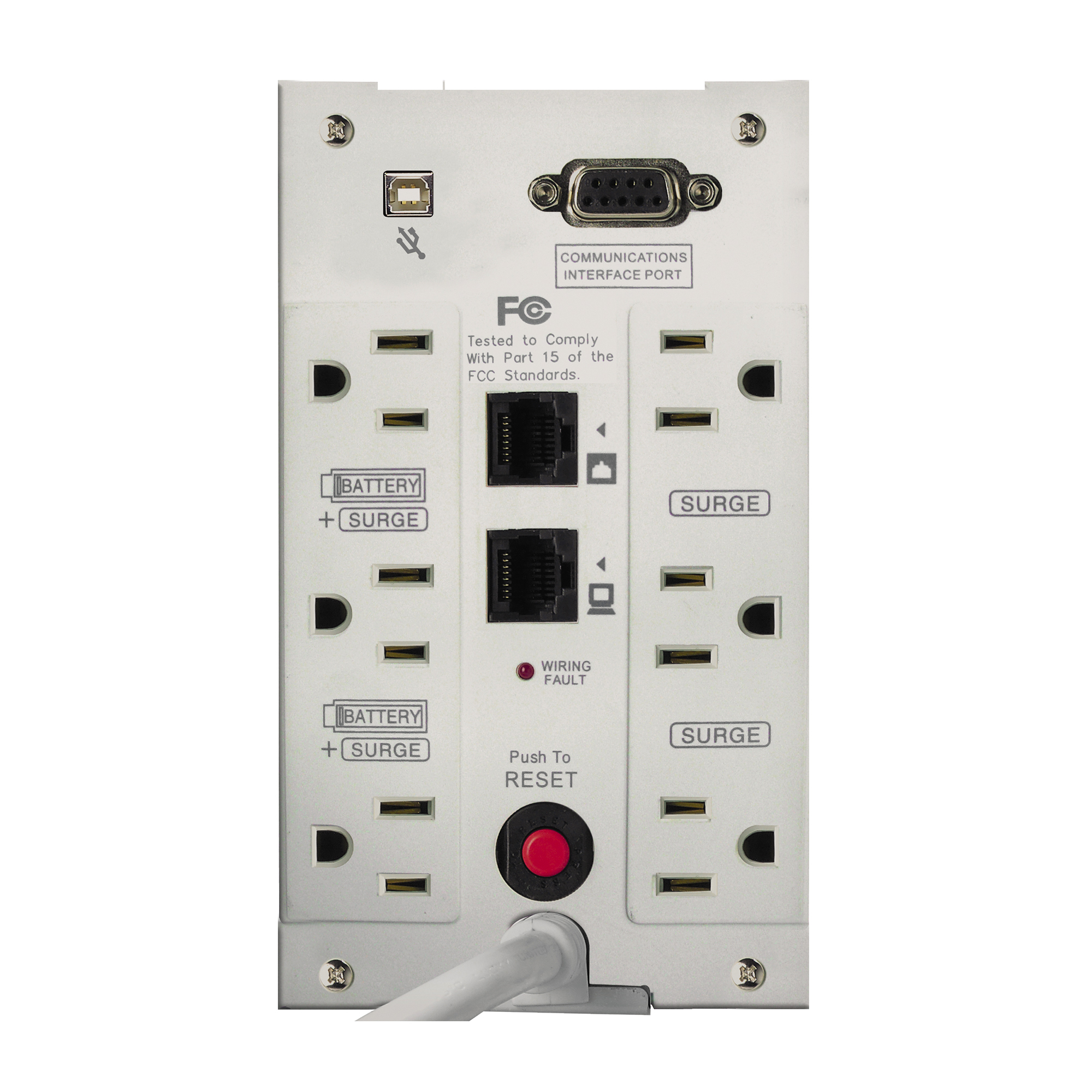

Outlets – Battery & Surge Protected3
Outlets – Surge-Only Protected3
Overload ProtectionInternal circuitry limiting / circuit breaker
Battery
Runtime at Half Load (min)10
Runtime at Full Load (min)2
Battery TypeSealed Lead-Acid
Battery Size12V/7.2AH
Replacement BatteryBB Battery – BP7.2-12
Battery Quantity1
User ReplaceableYes
Typical Recharge Time8 Hours
Surge Protection & Filtering
Surge Suppression1,780 Joules
Phone RJ11 / Ethernet RJ451-In, 1-Out (Combo)
Management & Communications
USB PortYes
HID Compliant USB PortYes
Serial PortYes
Cable ManagementUSB Cable, Serial Cable
LED IndicatorsPower On, Using Battery, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload
SoftwarePowerPanel® Personal Edition
Physical
Dimensions – W×H×D (in)3.5 × 6.5 × 11.5 inches
Weight (lbs)14.0 lbs
Environmental
Operating Temperature32 °F to 95 °F / 0 °C to 35 °C
Operating Humidity0% – 95% non-condensing
Certifications
SafetyUL1778, cUL, FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$50,000
