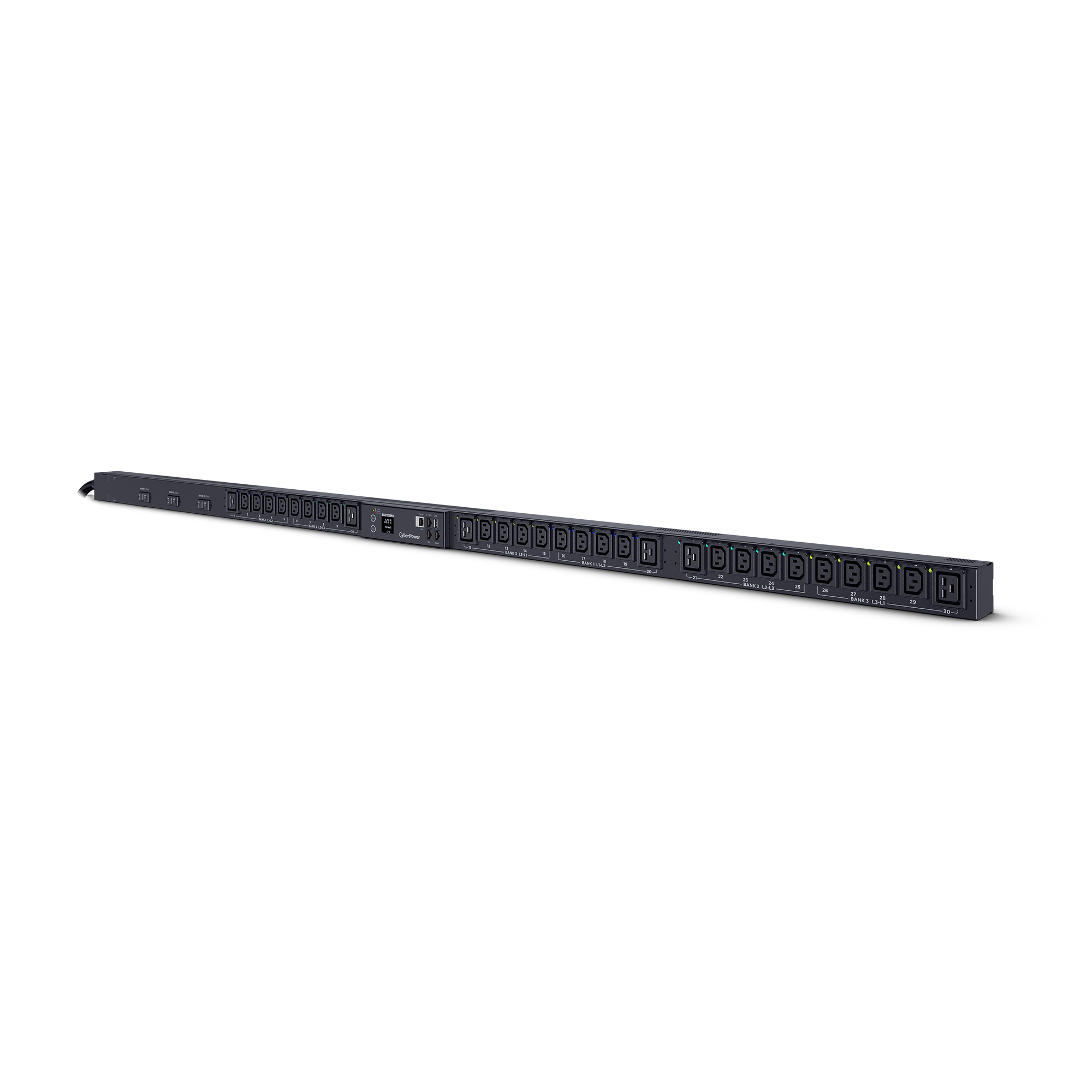

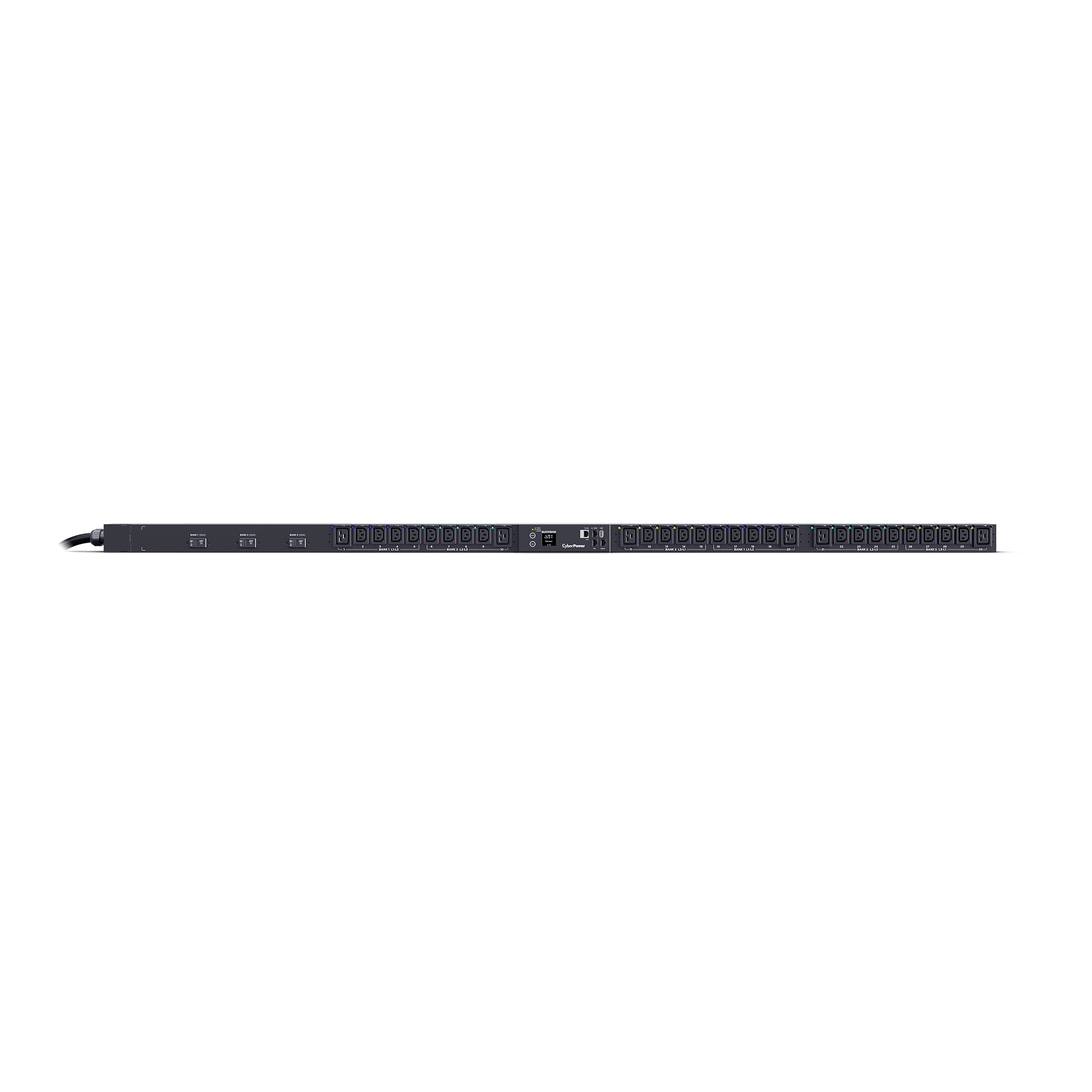

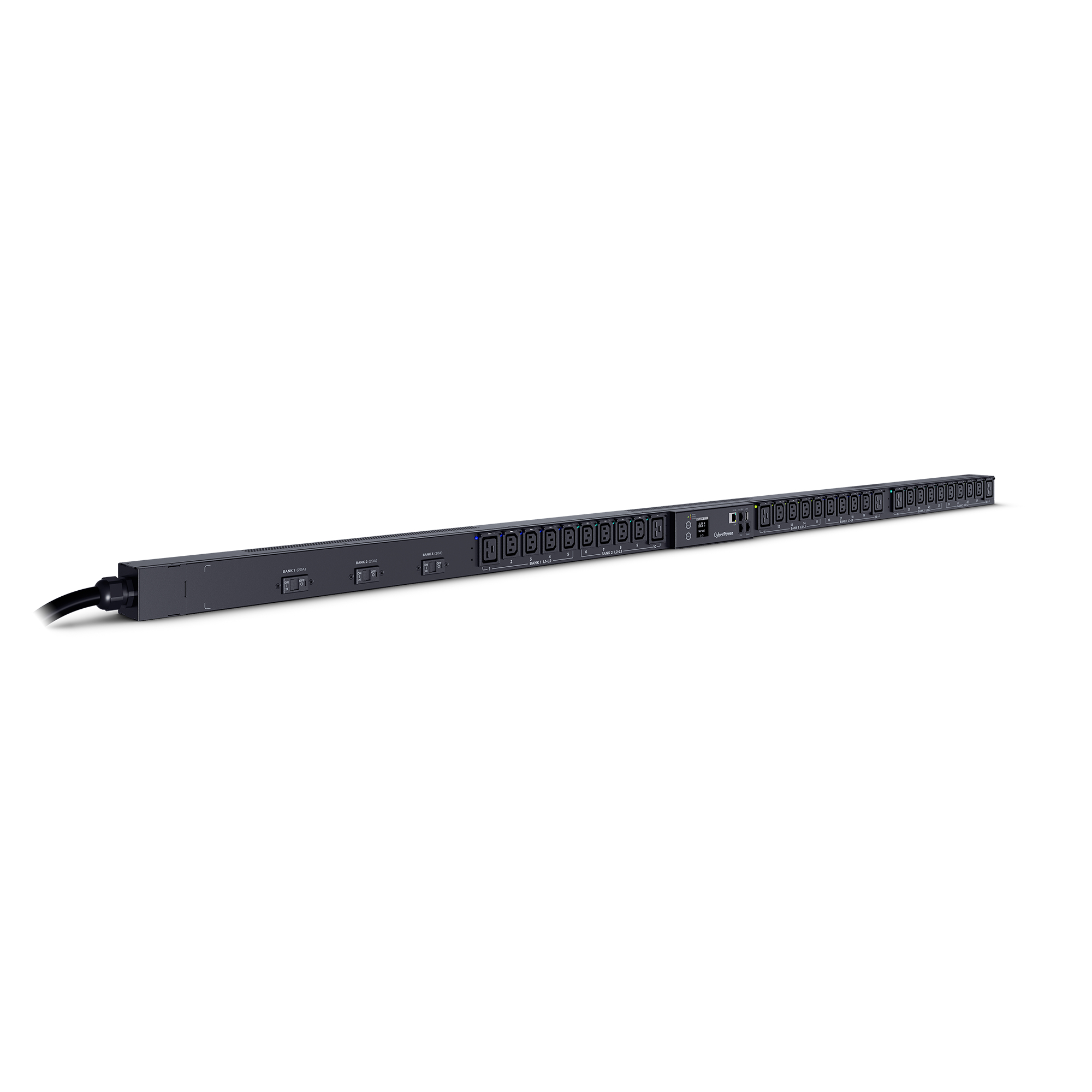

PDU83104


Switched Metered-by-Outlet PDU Series
  • Monitoring Level: Metered-by-Outlet
  • Phase: 3-Phase
  • Notifications: Email, SMS Text, and SNMP Trap
  • Amps: 30A (Derated to 24A)
  • Volts: 200-240V
  • Frequency: 50/60Hz
  • Input plug type: NEMA L21-30P
  • Outlets: (24) IEC-320 C13 + (6) IEC-320 C19
  • Size: 0U Rackmount
  • Cord Length (ft): 10
  • Dimensions (in): 2.2W x 70.5H x 2.6D
  • Warranty: 3 year
MSRP  $1,499.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.

Product Overview


Streamline capacity planning and power management with the CyberPower PDU83104 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more.

The PDU83104 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83104 is protected by a three-year limited warranty.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Ultra-low Power Consumption
    Consumes less than 5W, resulting in less heat generation and lower energy costs.
  • Multi-color Outlet LEDs
    Allows for easy identification of power phases, especially in a dimly lit rack environment. The individual outlet LED will turn red when there is an alert.
  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Multi-color LCD Background
    User selectable background color on digital display allows for easy classification of PDU based on application. The LCD turns red when there is an alert.
  • High Operating Temperature Range
    Operates in data center hot aisle up to 140˚F (60˚C).
  • Switchable Outlets
    Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
  • Per Outlet Power Metering
    Provides information on the amount of power being drawn from each outlet, each circuit, and the PDU as a whole.
  • CyberPower Management Console
    A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Switch-Free Design
    Safeguards against accidental power shut down.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Network-Grade Plugs and Outlets
    Highly-durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 2 Mounting Brackets, 6 M4x5 Bracket Mounting Screws, Cord Retention Tray, 50 Cable Ties, 6 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Rack Mounting Screws/Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.
Dimensions
Physical Dimensions – (WxHxD) (cm) 5.59 x 179.07 x 5.59 (cm)
Physical Dimensions – (WxHxD) (in) 2.2 x 70.5 x 2.2 (in)
Physical Dimensions – (WxHxD) (mm) 56 x 1791 x 56 (mm)
Weight (kg) 7.71
Weight (lb) 17
Dimensions – Shipping
Shipping – Weight (kg) 11.11
Shipping – Weight (lb) 24.5
Shipping Dimensions – (WxHxD) (cm) 17.15 x 15.24 x 205.74 (cm)
Shipping Dimensions – (WxHxD) (in) 6.75 x 6.0 x 81 (in)
Shipping Dimensions – (WxHxD) (mm) 171.45 x 152.4 x 2057.4 (mm)
Input
Derated Input Current 24A
Input Current 30A
Input Frequency 50/60Hz
Nominal Input Voltage 200-240V
Phase 3 Phase
Power Cord Length (ft) 10
Power Cord Type NEMA L21-30P
Output
Number of Outlets 30
Outlet Type (24) IEC-320 C13 + (6) IEC-320 C19

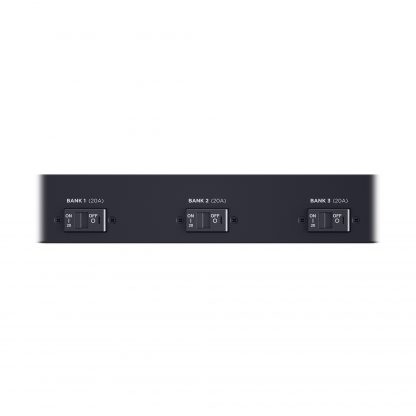

Overload Protection (3) 20A
Management & Communications
Environmental Sensor Optional, via RJ45
Monitoring Level Input, Per Outlet, Per circuit
Multifunction LCD Screen Voltage, Frequency, Load, Current, HW/FW Version, Network information
Network Connection RJ45 (Ethernet), RJ45 (COM Port)
Outlet switching Yes
Protocols IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Updateable firmware Yes, via USB or Ethernet
Physical
Color Black
Rack Space 0U
Environmental
Operating Elevation 11,480 ft (3,500 m)
Operating Relative Humidity 0%-95% (non-condensing)
Operating Temperature 23°F to 140°F (-5°C to 60°C)
Certifications
Safety UL60950-1, UL62368-1, FCC Class A
Warranty
Product Warranty 3 years
PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.
CyberPower Management Console

The CyberPower Management Console is a Network Management System (NMS) that provides real-time remote power monitoring and control of Power Distribution Units (PDUs). This useful hardware interface is built into CyberPower Switched and Monitored PDUs. For both Switched and Monitored PDUs, the Management Console enables administrators to perform operational tasks, such as load monitoring and event logging via email, text, or SNMP trap notifications. With a Switched PDU, it enables manual power cycling to restart unresponsive devices and allows for scheduled power cycling of outlets and/or load shedding for specific devices connected to the PDU..


Different PDU Series for Different Needs

CyberPower offers multiple offerings of power distribution units (PDUs): Basic, Metered, Metered ATS, Monitored, Switched, Switched ATS and Maintenance-Bypass. Each series serves a specialized purpose. Models within the same series have similar features and capabilities.

Basic: Reliable and unfiltered AC power distribution from a UPS system, generator, and/or utility source to multiple connected devices.

Metered: Network-grade power distribution plus load meters (amps) to prevent overloads and safely optimize load levels.

Monitored: Network-grade power distribution with remote monitoring through an SNMP network interface and local management via a digital meter display to prevent downtime due to overloads or other power events.

Switched: Intelligent, network-grade power distribution and the ability to control outlets individually or collectively to solve power issues such as shutdowns or to plan scheduled rebooting. A digital meter provides information on load and voltage, as well as local control of the outlets. An SNMP connection enables remote monitoring and control of the outlets to ensure complete control regardless of location.

Switched Metered-by-Outlet: Monitor the power consumption of individual outlets in real-time over the network, or locally using the PDU’s interactive digital display. Outlets can be switched on and off remotely for unscheduled reboots, automated load shedding, controlled power-cycling and more.

Metered ATS: Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Switched ATS: Individual management of switched outlet receptacles. Remote and local control of outlets. Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Maintenance-Bypass: Maintenance Bypass PDUs allow the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.


Power Device Network Utility

The Power Device Network Utility gives users an easy-to-use interface for establishing the IP addresses of CyberPower PDU devices, RM Cards, and PowerPanel Business Edition Agents and Clients. It scans network devices with MAC addresses that match CyberPower network hardware. Once found, the device(s) can then be configured with a specific IP address, subnet mask, and gateway address, allowing the device(s) to work properly on the network and to integrate with the CyberPower Management Console.


PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.

Windows 32-bit - Find the PDU/RMCARD's IP Address and configure

Windows 64-bit - Find the PDU/RMCARD's IP Address and configure

Linux - Find the PDU/RMCARD's IP Address and configure

MacOS - Find the PDU/RMCARD's IP Address and configure

Windows - Find the PDU/RMCARD's IP Address

MacOS - Find the PDU/RMCARD's IP Address

Upgrade firmware and/or configure multiple devices at once.

Updated MIB File

PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.
What is the default username/password for my PDU?

Username: cyber
Password: cyber

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

How do I determine the IP address of my switched metered-by-outlet PDU?

For PDUs with a display screen:

Press and hold the select button for a few seconds. Once “IP” appears on the display screen, release the button. Your unit will then display the IP address in a sequence of four groups. For example, the IP address 192.168.20.177 would begin by showing 192, then 168, the 20 and finally 177.

For PDU’s without a display screen:

Install and run the power device network utility software. Once open, the software will automatically scan the local subnet and display the network information for all devices that match the CyberPower network hardware.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Can the switched metered-by-outlet PDU be configured to shutdown individual outlets?

Yes, all switched metered-by-outlet PDU models can be configured via the web management interface.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

What readings does the switched metered-by-outlet PDU provide?

CyberPower switched metered-by-outlet PDUs provide device-level and circuit-level monitoring of input power (V), input frequency (Hz), load (A, kW, kVA), peak load (A) and energy usage (kWh); and outlet-level monitoring of load (A, kW), peak load (kW) and energy usage (kWh).

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

What is the benefit of monitoring at the outlet level?

Outlet-level monitoring provides IT professionals and data center managers with the data necessary to pinpoint inefficiencies and system-critical failures. This information can be used to make more precise decisions about load balancing as well as sizing IT environments to reduce the cost of ownership. Outlet-level monitoring can also be used to track power usage on a departmental level for billing.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Can a PDU also monitor temperature and humidity?

Yes, with the optional EnviroSensor installed and connected. The EnviroSensor will monitor ambient temperature and humidity and report that information to the PDU.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Do PDUs have surge protection built in?

No, PDUs do not have surge protection. If you are looking for a power distribution unit with surge protection, look at CyberPower’s line of Rackbars.

TECHNICAL SUPPORT
Please contact our Tech Support department with installation, troubleshooting, or general product questions.
Hours of operation: Monday – Friday 7:00am – 6:00pm CST
Contact Tech Support: Submit Ticket Now

Our Technical Support team will be happy help you with technical questions during business hours.

Email
Monday - Friday
7am — 6pm CST
Visit our support page

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

PDU83104 | Switched Metered-by-Outlet PDU Series
Provides outlet-level power monitoring and individual outlet control for connected equipment.
 Model VoltageCord LengthRacksizeCurrentInput PlugOutlets MSRP
 PDU83102 200 – 240 VAC10 ft0U20A (Derated to 16A)NEMA L21-20P24 x IEC-320 C13, 6 x IEC-320 C19 $1,399.00
 PDU83103 200 – 240 VAC10 ft0U20A (Derated to 16A)NEMA L15-20P24 x IEC-320 C13, 6 x IEC-320 C19 $1,299.00
 PDU83104 200 – 240 VAC10 ft0U30A (Derated to 24A)NEMA L21-30P24 x IEC-320 C13, 6 x IEC-320 C19 $1,499.00
 PDU83105 200 – 240 VAC10 ft0U30A (Derated to 24A)NEMA L15-30P24 x IEC-320 C13, 6 x IEC-320 C19 $1,499.00
 PDU83106 200 – 240 VAC10 ft0U30A (Derated to 24A)IEC-309 30A Blue (3P+E)24 x IEC-320 C13, 6 x IEC-320 C19 $1,599.00
 PDU83107 200 – 240 VAC10 ft0U50A (Derated to 35A)Hubbell CS8365C24 x IEC-320 C13, 6 x IEC-320 C19 $1,699.00
 PDU83108 200 – 240 VAC10 ft0U60A (Derated to 35A)IEC-309 60A Blue (3P+E)24 x IEC-320 C13, 6 x IEC-320 C19 $1,999.00
 PDU83111 346 - 415 VAC10 ft0U20A (Derated to 16A)IEC-309 16A Red (3P+N+E)24 x IEC-320 C13, 6 x IEC-320 C19 $1,599.00
 PDU81001 100 – 120 VAC12 ft1U15 A (derated to 12 A)NEMA 5-15P8 x NEMA 5-20R $719.00
 PDU81002 100 – 120 VAC12 ft1U20 A (derated to 16 A)NEMA L5-20P8 x NEMA 5-20R $779.00
 PDU81003 100 – 120 VAC12 ft2U30 A (derated to 24 A)NEMA L5-30P16 x NEMA 5-20R $999.00
 PDU81004 100 – 240 VAC10 ft1U15 A (derated to 12 A UL/10 A CE)IEC-320 C148 x IEC-320 C13 $679.00
 PDU81005 100 – 240 VAC10 ft1U20 A (derated to 16 A)IEC-320 C208 x IEC-320 C13 $749.00
 PDU81006 200 – 240 VAC12 ft1U20 A (derated to 16 A)NEMA L6-20P8 x IEC-320 C13 $799.00
 PDU81007 200 – 240 VAC12 ft2U30 A (derated to 24 A)NEMA L6-30P16 x IEC-320 C13 $1,229.00
 PDU81008 200 – 240 VAC12 ft2U30 A (derated to 24 A)NEMA L6-30P12 x IEC C13, 4 x IEC C19 $1,229.00
 PDU81009 200 – 240 VAC12 ft2U30 A (derated to 24 A)NEMA L6-30P10 x IEC-320 C19 $1,199.00
 PDU81101 100 – 120 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P24 x NEMA 5-20R $850.00
 PDU81102 100 – 120 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P24 x NEMA 5-20R $950.00
 PDU81104 200 – 240 VAC10 ft0U20 A (derated to 16 A)NEMA L6-20P21 x IEC-320 C13, 3 x IEC-320 C19 $1,000.00
 PDU81105 200 – 240 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P21 x IEC-320 C13, 3 x IEC-320 C19 $1,050.00
