Essential Surge Protectors

B6010MGY

DISCONTINUED
  • Surge suppression: 900 J
  • Volts: 125 V
  • Circuit breaker: 15 A
  • Plug type: NEMA 5-15P
  • Plug style: Straight
  • Outlet type: 8 NEMA 5-15R
  • Power cord: 10 ft
Overview

Product Overview

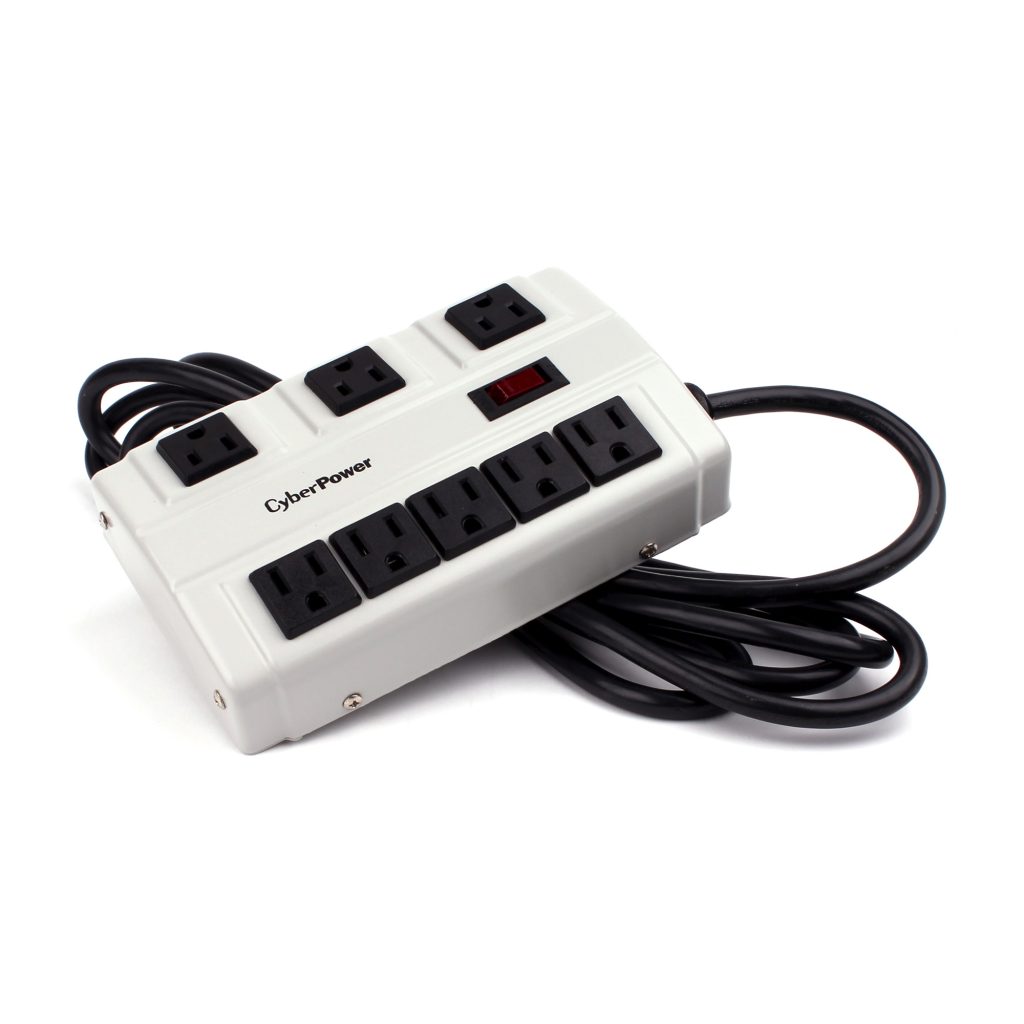

Designed for job sites and high traffic areas, the B6010MGY Heavy-Duty Surge Protector from CyberPower provides eight surge-protected outlets (three widely spaced to accommodate large AC plugs) and a 10-foot power cord. This metal-housed surge suppressor, rated at 900 joules, absorbs excess voltages from electrical surges and spikes that can damage electronic devices and sensitive equipment. Multiple electrical devices can be connected to a single AC wall socket.

The B6010MGY Heavy-Duty Surge Protector is ideal for use with rechargeable tools, small electronics, and power tools. Features include an LED indicator, an integrated 15-Amp circuit breaker with on/off switch, and keyhole mounting slots. The B6010MGY Heavy-Duty Surge Protector comes with a user manual and is backed by a Lifetime Limited Warranty and a $50,000 Connected Equipment Guarantee.

Product Features
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Transformer-Spaced Outlets
    Accommodate transformer-based plugs without compromising the access of other outlets.
  • Automatic Shutdown
    Protects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal.
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Metal Oxide Varistor (MOV) Technology
    Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
  • Keyhole Slots
    Enable the model to be placed on a wall, under a desk, and in other configurations to optimize space and keep power cords out of the way.
  • Metal Casing
    Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Limited Lifetime Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
Compatible Products
Specifications
Expand All
Input
Voltage 125 V
Switch Non Lighted On/Off – Reset
Circuit Breaker 15 Amp
Plug Type NEMA 5-15P
Plug Style Straight
Cord Length 10 ft
Output
Outlets – Total 8
Outlets – Wide Sapced 3
Outlet Type NEMA 5-15R
Surge Protection & Filtering
Surge Suppression 900 joules
Response Time < 1 nanosecond
EMI/RFI Filtration 150 KHz – 100 MHz
Attenuation Up to 43 dB
Physical
Keyhole Mounting Slots Yes
Indicators Protected LED
Certifications
Safety ETL
Environmental RoHS Compliant
Warranty
Product Warranty Limited Lifetime
Connected Equipment Guarantee Lifetime
CEG Amount $50,000
Feature Focus
Why Do I Need A Surge Protector?

Utility power supplied to electrical outlets is sometimes inconsistent. The short-duration voltage surges or spikes that occasionally happen can damage components in electronic devices such as computers and workstations. In addition to equipment damage, irretrievable data loss may occur. In the U.S., the nominal or standard voltage supplied to household and office wiring is 120 volts. A voltage surge or spike can cause electronic components to overheat, either immediately destroying them or causing permanent damage that can lead to premature failure.

A surge protector or surge suppressor provides protection against power surges. This device is located in the power circuit between the utility power outlet and the connected electronic equipment. Surge protectors work by diverting excess voltage to the ground, allowing only the nominal voltage to travel through the wiring to connected devices. This is accomplished using a variable resistance component in the surge protector called a metal oxide varistor (MOV). Under normal voltage conditions, the resistance of the MOV is such that it remains closed. As utility voltage increases beyond nominal, the MOV resistance decreases accordingly which forces the unwanted overvoltage to ground, maintaining a constant flow of nominal voltage to sensitive electronic equipment.
