Professional Surge Protectors

CSP606U42A

$25.95 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Surge suppression: 900 J
  • Volts: 125 V
  • Circuit breaker: 15 A
  • Plug type: NEMA 5-15P (45° off-set)
  • Outlet type: 6 x NEMA 5-15R
  • USB charge ports: 2
  • Power cord: 6 ft
  • Warranty: 1 Year Limited
  • Connected Equipment Guarantee: $75,000
Overview

Product Overview

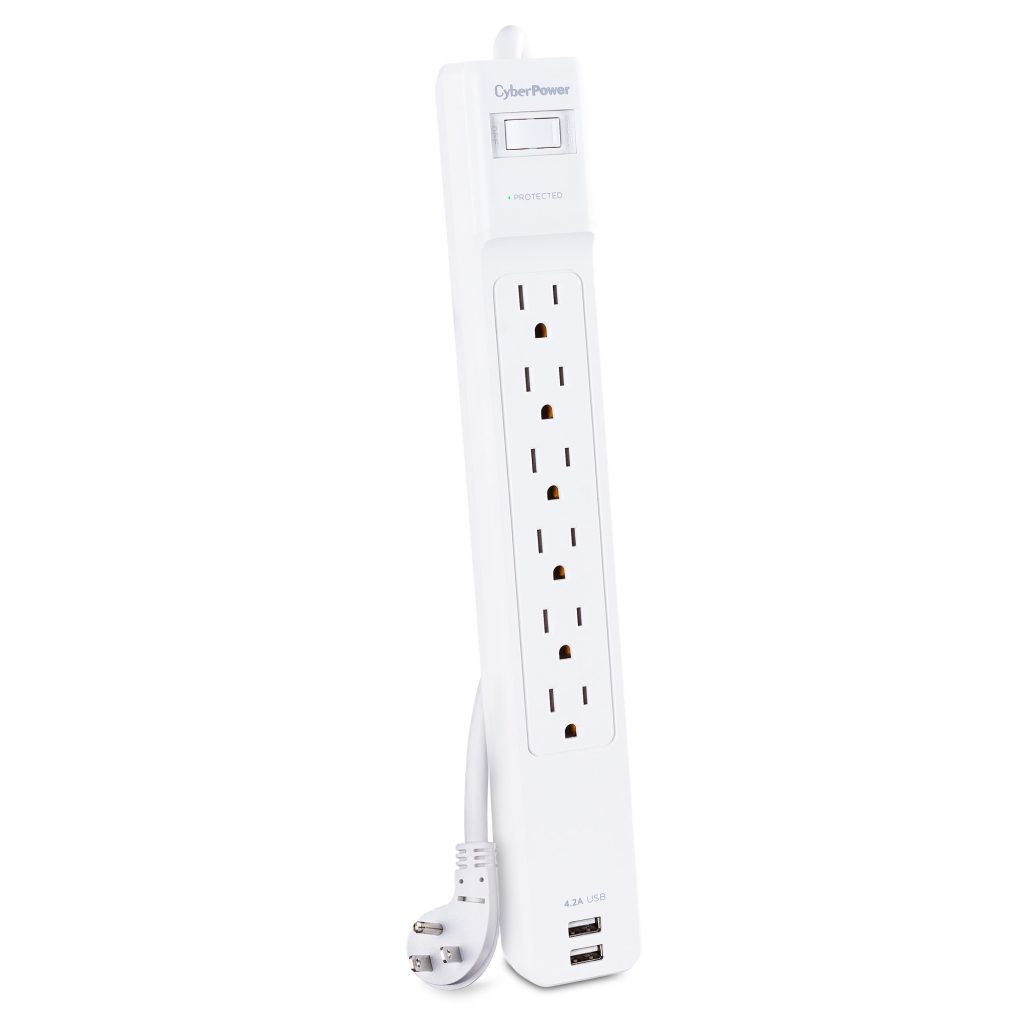

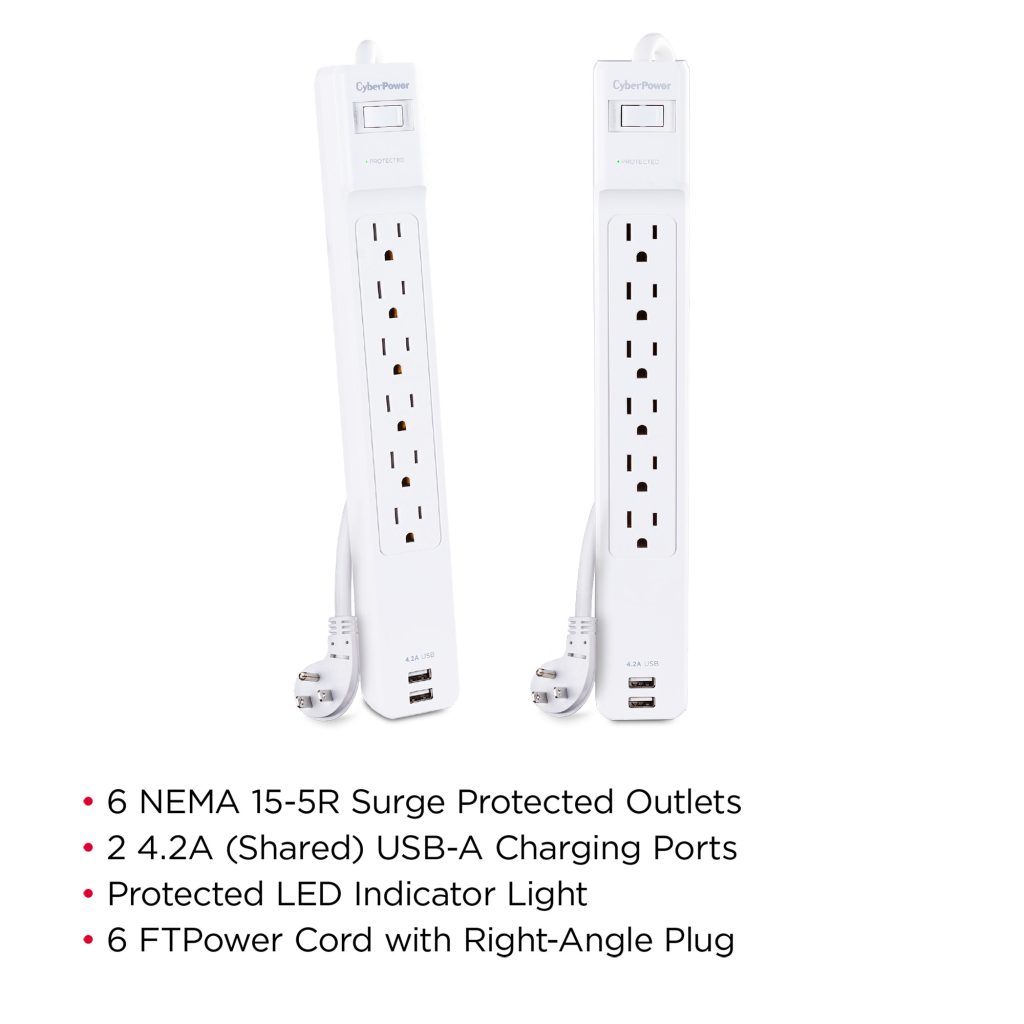

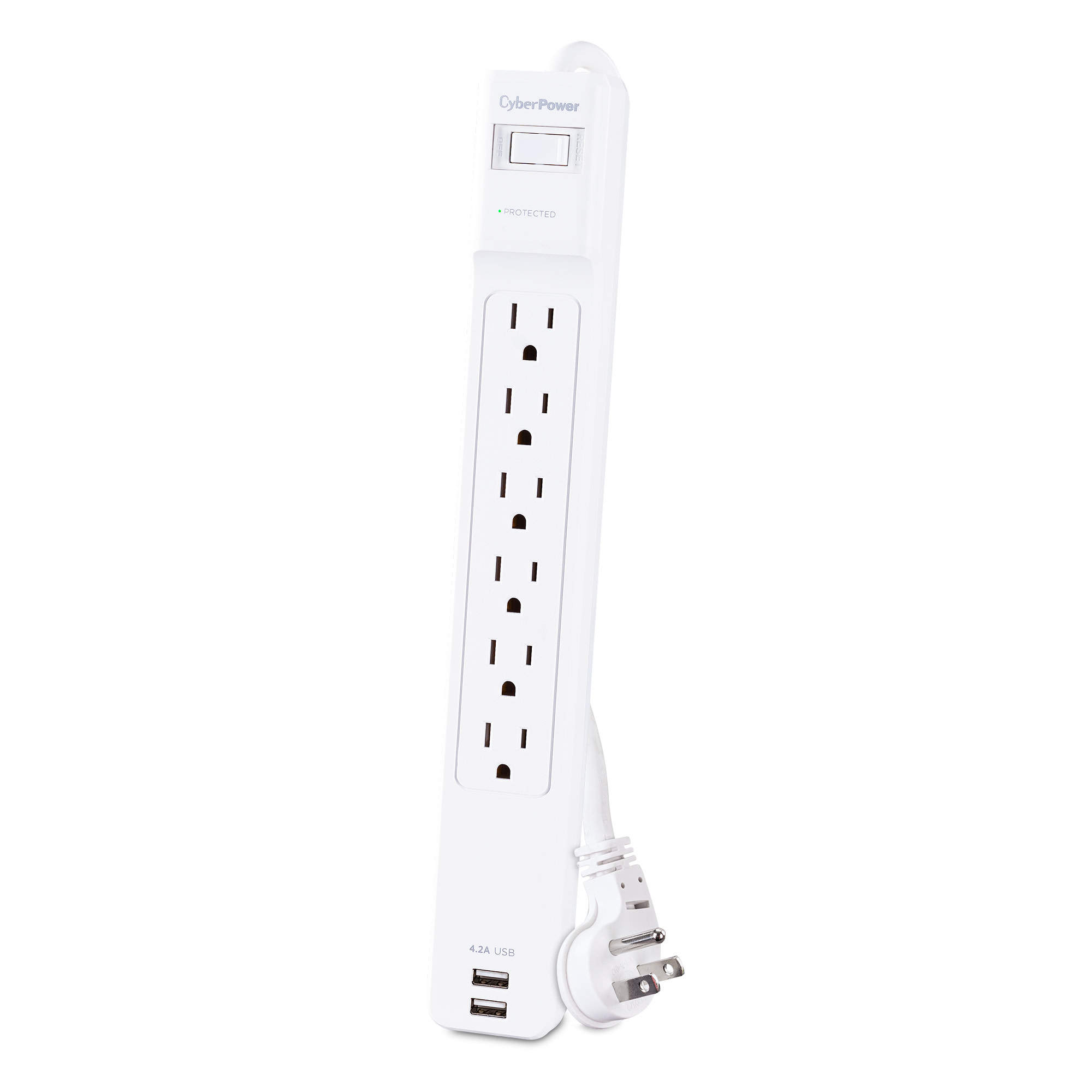

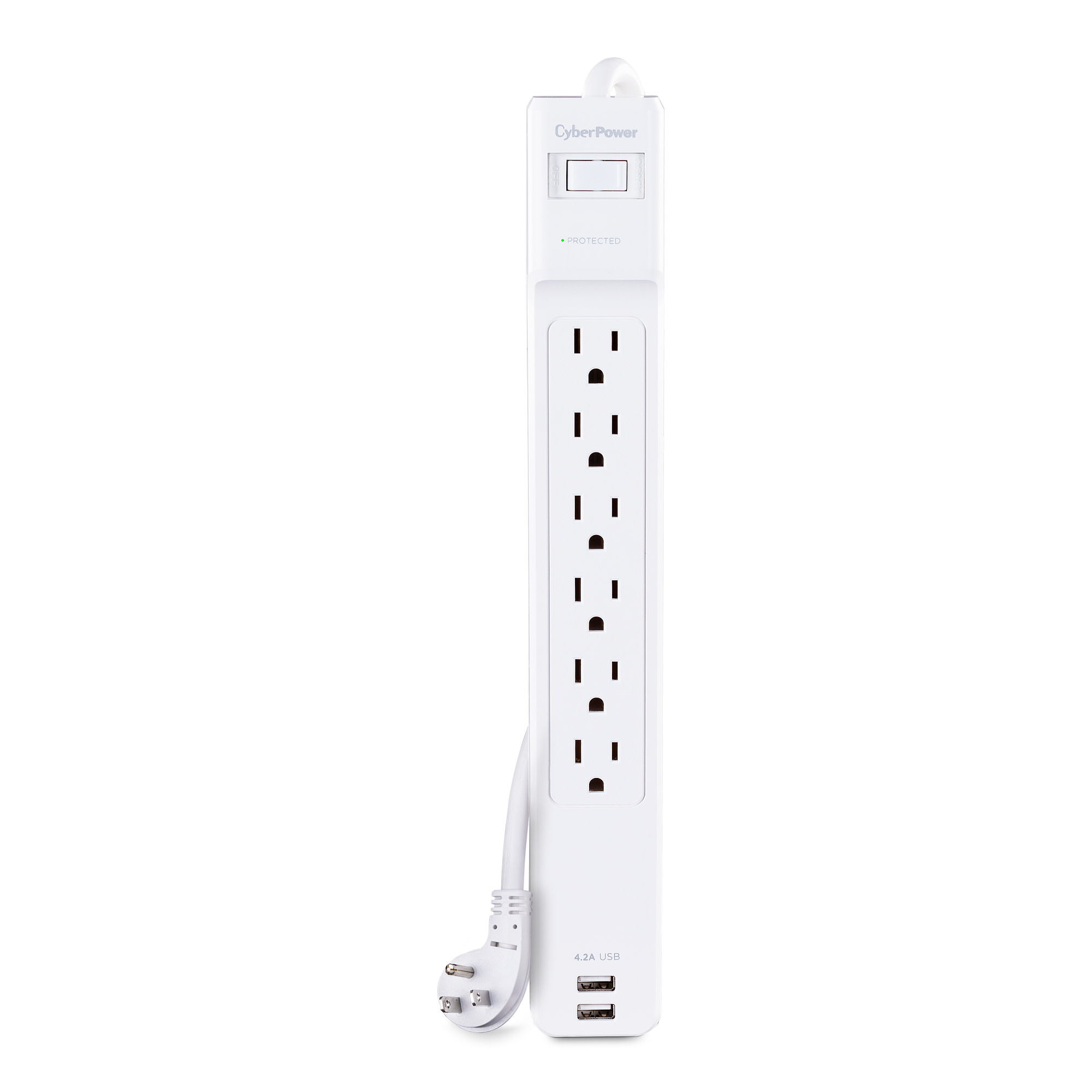

The CSP606U42A Professional Surge Protector from CyberPower offers vital surge suppression for common home and office devices such as computers and electronics. It is designed to provide maximum protection and convenience to a number of devices where wall receptacles are out of reach. The CSP606U42A prevents damaging spikes in energy caused by storms and electrical power from reaching your electronc equipment. It provides 3480 joules of protection, 6 outlets (1 widely spaced for a transformer plug), 2 USB charging ports, and a low profile right-angle, 6-foot braided power cord. Features of the CSP606U42A include safe-fail notification, Microdot LED protected indicator light, and a 15A Power Breaker Switch. The two USB charging ports with 4.2-amp total output are located at the end of the Professional Surge Protector, offering the best possible reach.

Product Features
  • Safe-Fail Protection Power is cut to connected equipment when the unit can no longer provide surge protection.
  • Microdot LED Protected Green Indicator Alerts you when surge protection is active.
  • Wide-Spaced AC Outlets Accommodates wide-spaced plugs without compromising the access of other outlets.
  • USB Ports Two 4.2-amp total output to quickly charge mobile devices.
  • Right-Angle Plug Flat, wall-hugging angled plug for tight outlet locations.
  • Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • 1 Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details
Compatible Products
Specifications
Expand All
Input
Circuit Breaker 15 A
Cord Length 6 ft (1.8 m)
Input Plug Type NEMA 5-15P
Input Voltage 125 VAC
Maximum Input Current 15A
Plug Style Right Angle – 45° Offset
Output
Outlet Type 6 – NEMA 5-15R
Outlets – Total 6
USB Charge Port Yes
USB Charge Port Amperage 4.2 Amps (Shared)
USB Charge Port Quantity 2
USB Charge Port Standard Type A
USB Charge Port Type 2 Type A
USB Charge Port Voltage 5 VDC
Surge Protection & Filtering
Clamping Voltage 500V (H-N, H-G, N-G)
Coax Protection RG6 None
EMI/RFI Filtration No
Maximum Surge Current 45000 A
Maximum Surge Current H-G 15000 A
Maximum Surge Current H-N 15000 A
Maximum Surge Current N-G 15000 A
Maximum Surge Voltage 6000 V
Response Time <1 Nanosecond
Surge Suppression (Joules) 900 J
Physical
Color White
Form Factors Supported Horizontal Mount in Variety of Other Applications
Keyhole Mounting Slots Yes
Material of Construction Plastic

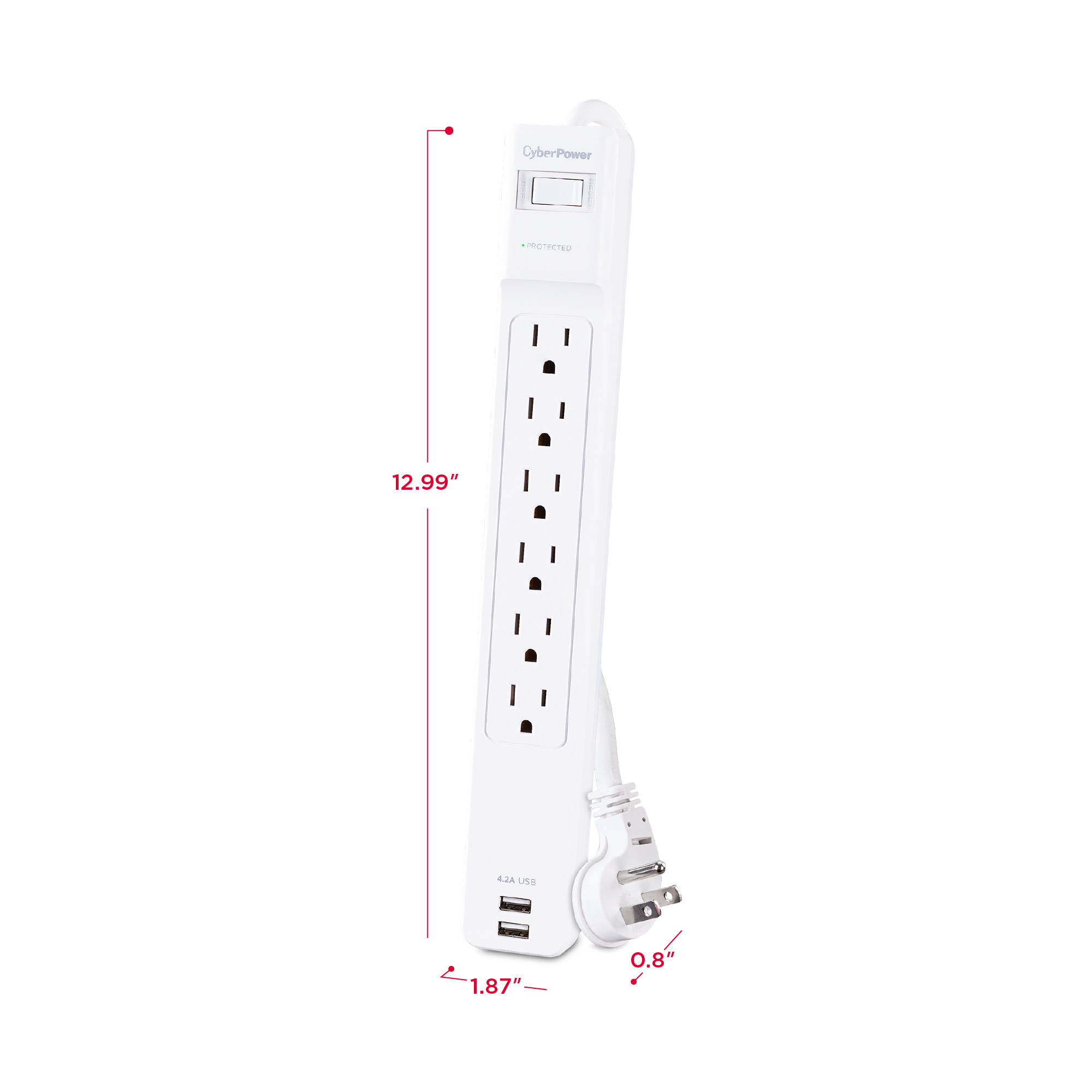

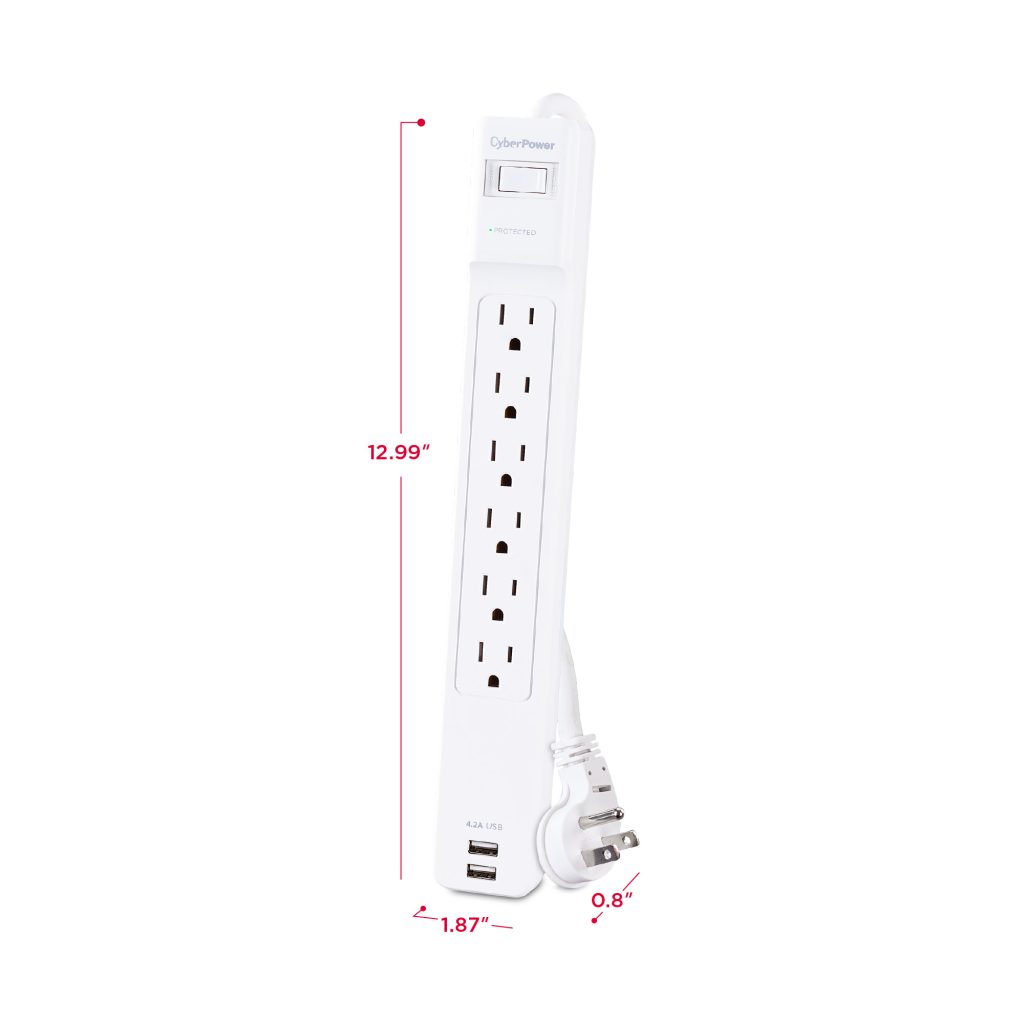

Dimensions
Physical Dimensions – (WxHxD) (cm) 4.57 x 4.75 x 32.99 (cm)
Physical Dimensions – (WxHxD) (in) 1.8 x 1.87 x 12.99 (in)
Physical Dimensions – (WxHxD) (mm) 46 x 47 x 330 (mm)
Physical Weight (kg) 0.56
Physical Weight (lb) 1.23
Dimensions – Shipping
Shipping – Weight (kg) 4.54
Shipping – Weight (lb) 10.0
Shipping Dimensions – (WxHxD) (cm) 36.83 x 5.08 x 12.07 (cm)
Shipping Dimensions – (WxHxD) (in) 14.5 x 2.0 x 4.75 (in)
Shipping Dimensions – (WxHxD) (mm) 368.3 x 50.8 x 120.65 (mm)
Certifications
Environmental RoHS Compliant
Safety UL1363
UL1310
UL1449
FCC
DOE VI
Warranty
CEG Amount $75000
Connected Equipment Guarantee Lifetime
Product Warranty 1 Year Limited Warranty
Feature Focus
Why Do I Need A Surge Protector?

Utility power supplied to electrical outlets is sometimes inconsistent. The short-duration voltage surges or spikes that occasionally happen can damage components in electronic devices such as computers and workstations. In addition to equipment damage, irretrievable data loss may occur. In the U.S., the nominal or standard voltage supplied to household and office wiring is 120 volts. A voltage surge or spike can cause electronic components to overheat, either immediately destroying them or causing permanent damage that can lead to premature failure.

A surge protector or surge suppressor provides protection against power surges. This device is located in the power circuit between the utility power outlet and the connected electronic equipment. Surge protectors work by diverting excess voltage to the ground, allowing only the nominal voltage to travel through the wiring to connected devices. This is accomplished using a variable resistance component in the surge protector called a metal oxide varistor (MOV). Under normal voltage conditions, the resistance of the MOV is such that it remains closed. As utility voltage increases beyond nominal, the MOV resistance decreases accordingly which forces the unwanted overvoltage to ground, maintaining a constant flow of nominal voltage to sensitive electronic equipment.

Downloads

CSP606U42A

163 KB

CSP606U42A

800 KB
Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available to 24-hours a day, seven days a week.
Live Monday - Friday
Available 24/7
Visit our Support Area

Submit a Support Ticket
Series
 Model AmpsJoulesCord LengthOutletsUSBData Protection MSRP
 CSP600WSU 0 A1200 JWalltap6 - NEMA 5-15R2.4 Amps (Shared)None $29.95
 CSP604U 15 A1200 J4 ft (1.2 m)6 - NEMA 5-15R2.4 Amps (Shared)None $29.95
 CSP600WSURC2 0 A1200 JWalltap6 - NEMA 5-15R2.4 Amps (Shared)None $29.95
 CSP806U 15 A3000 J6 ft (1.8 m)8 - NEMA 5-15R2.4 Amps (Shared)None $34.95
 CSP604T 15 A1350 J4 ft (1.2 m)6 - NEMA 5-15RNoneRJ11 Phone $14.95
 P6WUCL 15A900 JWalltap6 - NEMA 5-15R2.4 Amps (Shared)None $34.95
 CSP100R 15 A900 JWalltap1 - NEMA 5-15RNoneNone $16.95
 P600WU 15 A1200 JWalltap6 - NEMA 5-15R3.1 Amps (Shared)None $24.95
 CSP300WUR1 0 A600 JWalltap3 - NEMA 5-15R2.4 Amps (Shared)None $24.95
 CSP606U42A 15 A900 J6 ft (1.8 m)6 x NEMA 5-15R4.2 Amps (Shared)None $25.95
 CSP1008T 15 A2850 J8 ft10 x NEMA 5-15RNoneRJ11 Phone $35.95
 CSP100TW 0 A900 JWalltap1 - NEMA 5-15RNoneRJ11 Phone $9.95
 CSP604TMP6 15 A1350 J4 ft (1.2 m)6 - NEMA 5-15RNoneNone $59.99
 P2WU 0 A500 JWalltap2 - NEMA 5-15R4.2 Amps (Shared)None $19.95
 CSP300WU 15 A918 JWalltap3 - NEMA 5-15R2.1 Amps (Shared)None $20.95
 CSP600WSURC5 15 A900 JWalltap6 - NEMA 5-15R3.6 Amps (Shared)None $32.95
 P6WUC 0 A900 JWalltap6 - NEMA 5-15R2.4 Amps (Shared)None $24.99
