CP1500AVRT


AVR UPS Series

MSRP $199.95

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120Vac ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlets: 8 (4 surge, 4 surge + battery backup)
  • Data line protection: Telephone, Ethernet, Coaxial
  • Management software: PowerPanel® Personal Edition
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
  • ENERGY STAR® qualified: Yes
Categories: ,

Product Description

CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals

Product Overview


A mini-tower UPS with line interactive topology, the CyberPower CP1500AVRT provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRT uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRT comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR)
    Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ Bypass Design
    Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • LED Status Lights
    Indicate Power On and Wiring Fault.
  • PowerPanel® Personal Edition Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
  • ENERGY STAR
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual, USB A+B Type Cable, Telephone Cable, Coaxial Cable, Warranty Registration Card, PowerPanel Personal Edition Software CD

CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals
General
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass
ENERGY STAR® QualifiedYes
Input
Voltage120 VAC
Frequency Range57 – 63 Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle
Cord Length6 ft
Output
VA1,500 VA
Watts900 W
Automatic Voltage RegulationYes
On Battery Voltage120 VAC ± 5%
On Battery Frequency60 Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlets – Total8
Outlets – Battery & Surge Protected4
Outlets – Surge-Only Protected4
Outlets – Widely Spaced1
Transfer Time4 ms
Outlet TypeNEMA 5-15R
Overload ProtectionInternal Circuitry Limiting
Circuit Breaker
Battery
Runtime at Half Load11 minutes
Runtime at Full Load3 minutes
Battery TypeSealed Lead-Acid
Battery Size12V/8.5Ah
Battery Quantity2
User ReplaceableYes
Replacement Battery CartridgeRB1280X2A
Replacement Battery Cartridge Quantity1
Typical Recharge Time8 hours
Surge Protection & Filtering
Surge Suppression1,500 J
Phone RJ11 / Ethernet RJ451-in, 1-Out (Combo, 10/100)
Coax Protection RG61-In, 1-Out
Management & Communications
USB PortYes
HID Compliant USB PortYes
Serial PortYes
Cable ManagementUSB Cable

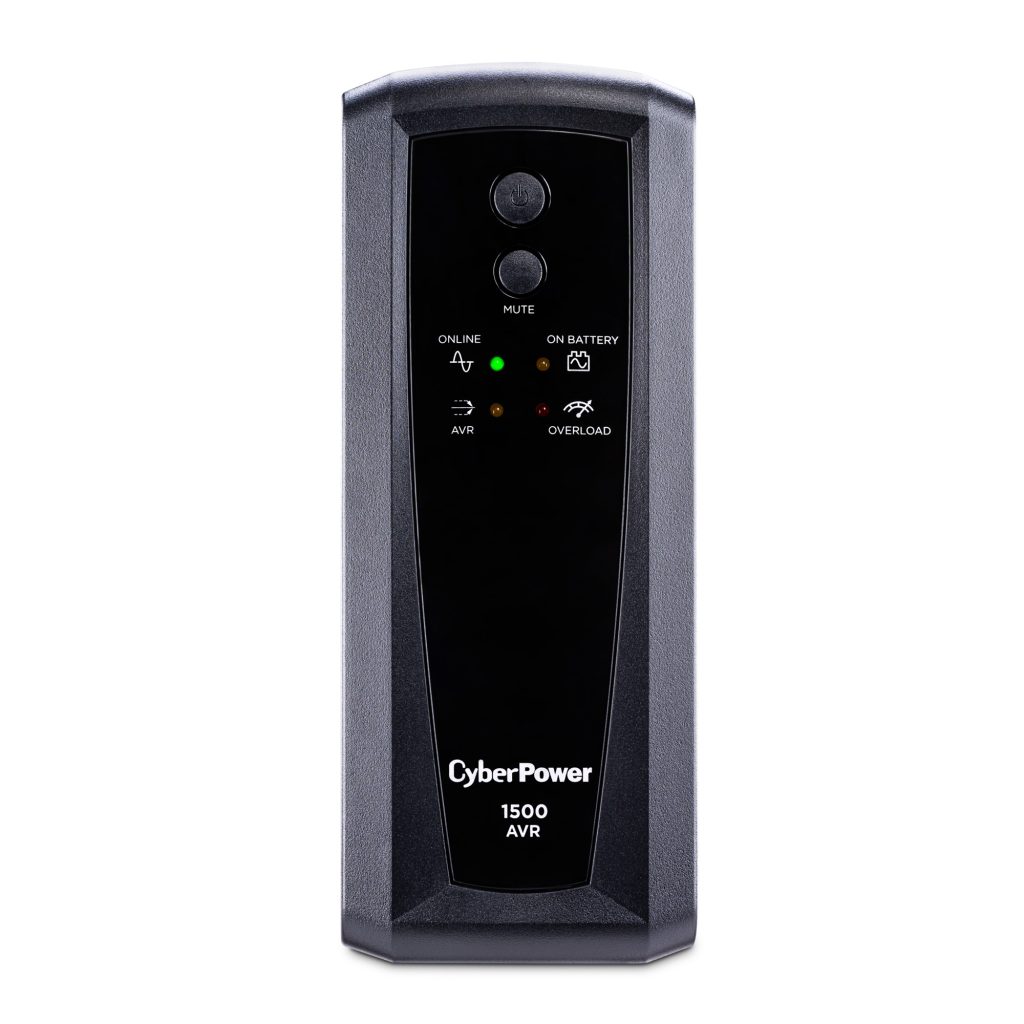

LED IndicatorsPower On
Wiring Fault
Using Battery
AVR
Overload
Audible AlarmsOn Battery
Low Battery
Overload
SoftwarePowerPanel® Personal Edition
Physical
Form FactorMini-Tower

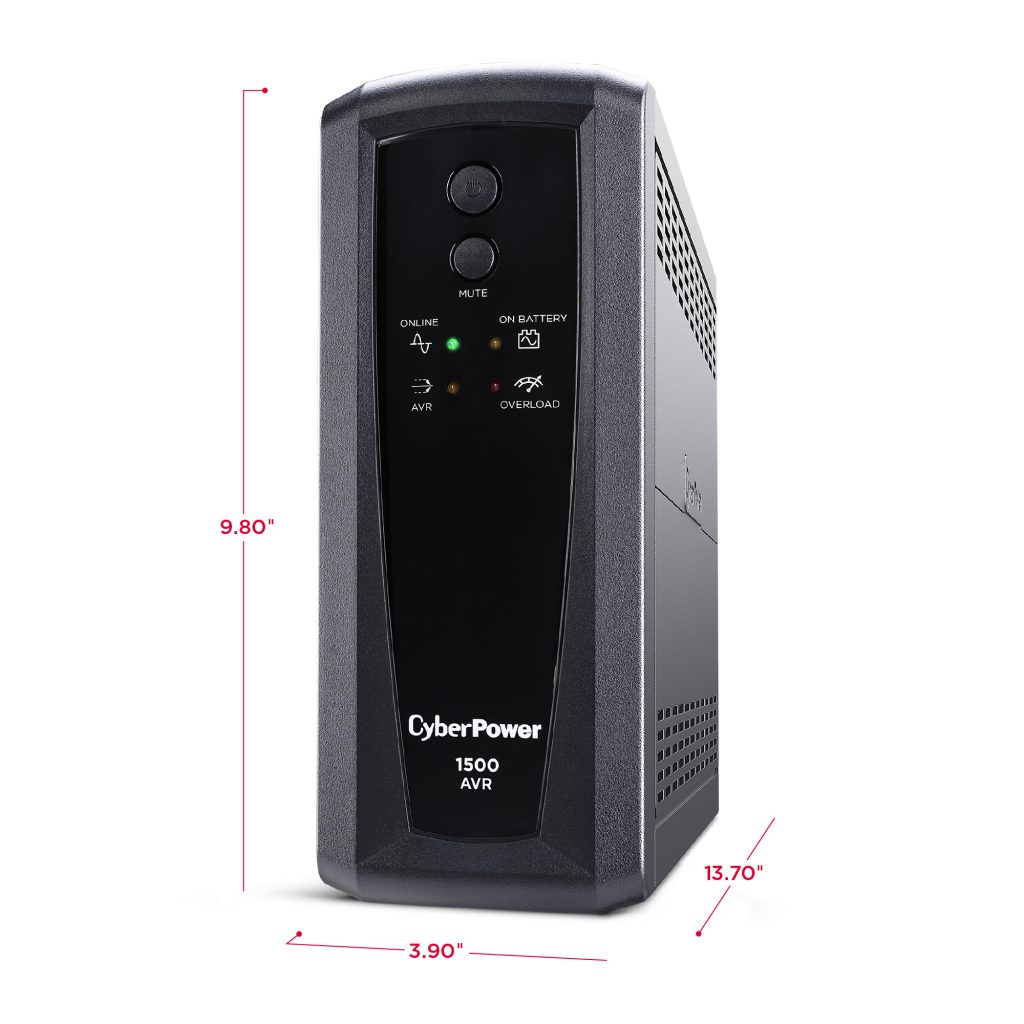

Dimensions – W×H×D (in)4 × 9.75 × 13.25 inches
Weight (lbs)25.6 lbs
Environmental
Operating Temperature32 °F – 95 °F (0 °C – 35 °C)
Operating Humidity0 – 95% (non-condensing)
Certifications
SafetyUL1778
cUL 107.1
FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$500,000
CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals
GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.


Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer—a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.


Transformers and Transformer Outlets

A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.

Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.


CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals

Shutdown software supports most Window systems

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

Shutdown software for Linux. Requires Linux kernel >2.6.12

View UPS via the USB connection to your Mac

CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals
Where is the serial number located on the unit?

The serial number is located on a white label adhered to the unit. The serial number is shown directly underneath the barcode.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
tech@cpsww.com

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

CP1500AVRT | AVR UPS Series
Protect SOHO networks, computers, and peripherals
     ModelOutput VAOutput WattsForm FactorWaveformOutlets MSRP
     CP685AVR 685 VA390 WCompactSimulated Sine Wave8 x NEMA 5-15R $79.95
     AVRG750U 750 VA450 WCompactSimulated Sine Wave12 x NEMA 5-15R $89.95
     CP800AVR 800 VA450 WCompactSimulated Sine Wave8 x NEMA 5-15R $99.95
     AVRG900U 900 VA480 WCompactSimulated Sine Wave12 x NEMA 5-15R $109.95
     CP900AVR 900 VA560 WMini-TowerSimulated Sine Wave8 x NEMA 5-15R $119.95
     CP1200AVR 1200 VA720 WMini-TowerSimulated Sine Wave8 x NEMA 5-15R $149.95
     CP1500AVRT 1500 VA900 WMini-TowerSimulated Sine Wave8 x NEMA 5-15R $199.95
