BP48VP2U02TAA


TAA Extended Battery Modules
  • Output: 48V/70A
  • Recharge time: 6 hours
  • Battery type & quantity: 12V/9AH (8)
  • Weight: 66.2 lbs.
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Warranty: 3 year
MSRP  $569.95
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

BP48VP2U02TAA | TAA Extended Battery Modules
Federal Trade Agreements Act (TAA) compliant power protection

Product Overview

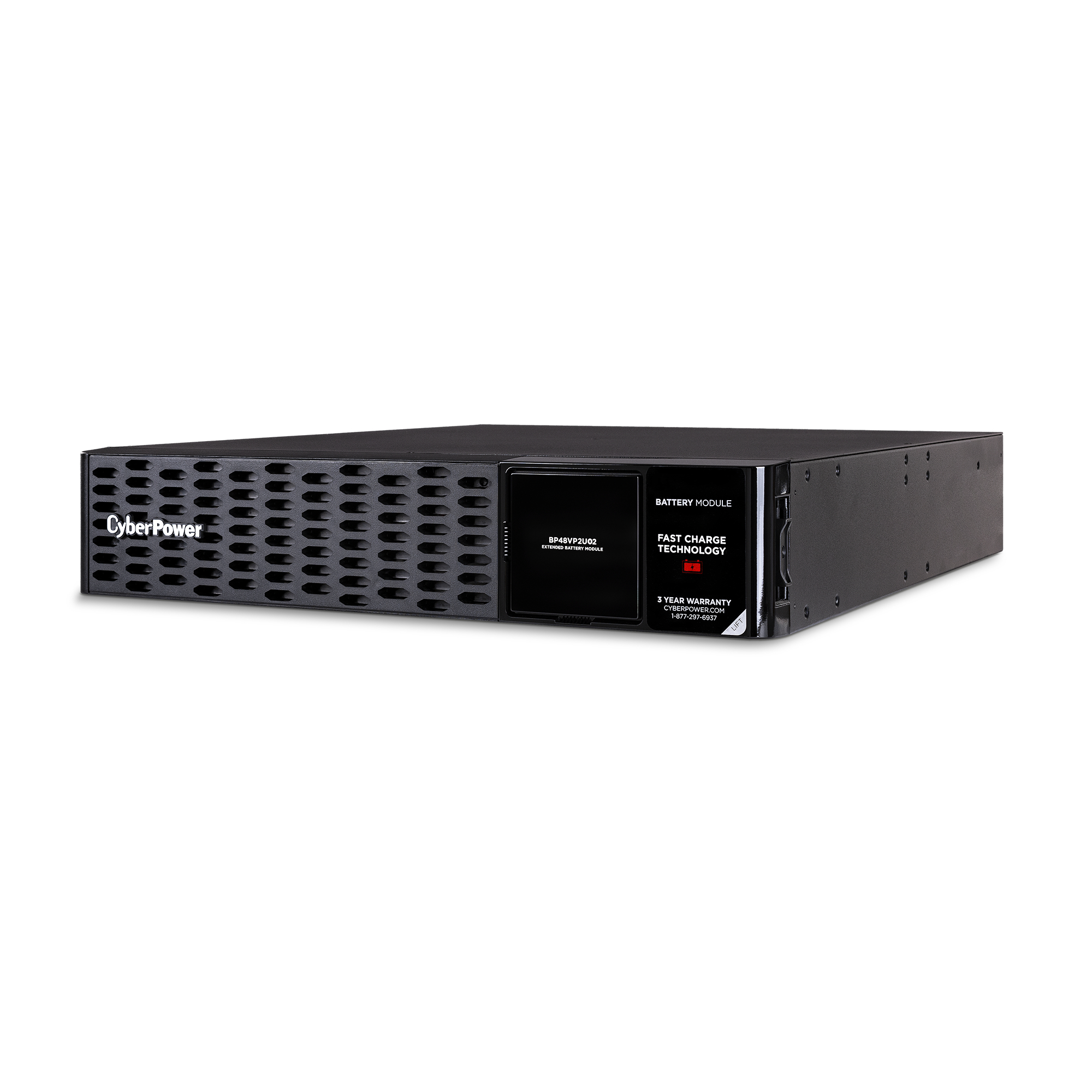

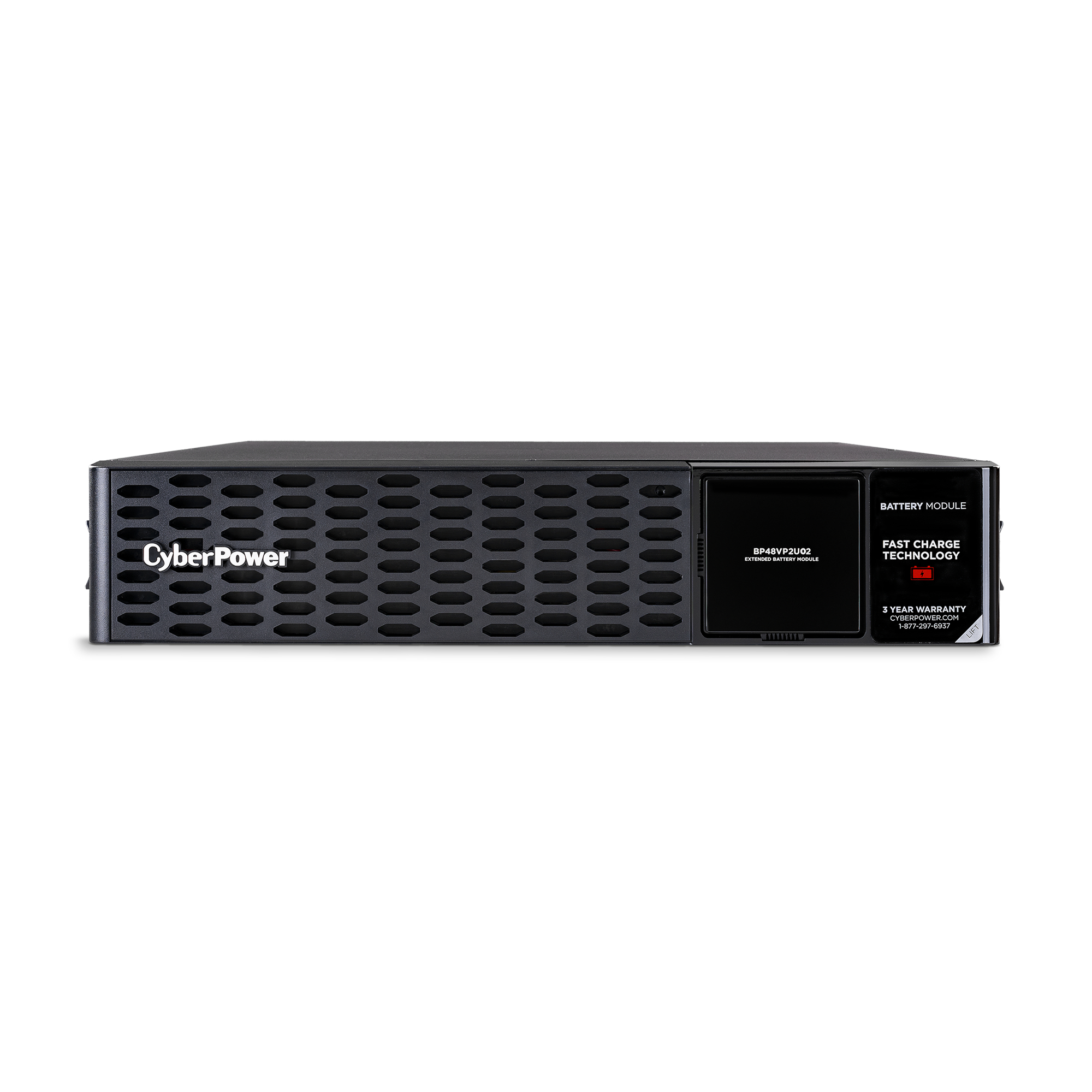

The CyberPower BP48VP2U02TAA is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR1500RTXL2UTAA, PR2000RTXL2UTAA, PR3000RTXL2UTAA.

This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.

With a three-year lifetime limited warranty, you can trust CyberPower’s commitment to the quality of the BP48VP2U02TAA.

  • Extended Battery Module
    Expands runtime and quickly restores full backup power with Fast Charge Technology.
  • Battery Equalization Technology
    Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
  • Fast Charge Technology
    Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
  • Toolless Battery Panel Access
    Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
  • Hot-Swappable Batteries
    Eliminates power-related downtime and ensures maximum power availability. All potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment.
  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
  • What’s in the box

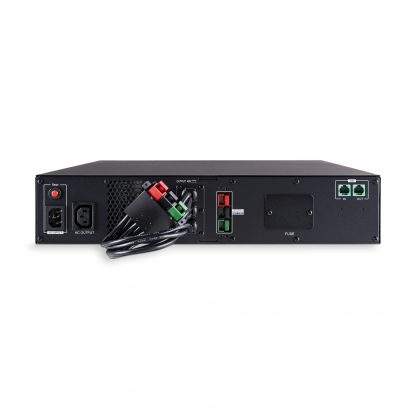

    Extended Battery Module, Faceplate, User Manual, Rack Mounting Kit, Tower Mounting Kit, BM Cable, and (2) IEC C13-C14 Cables

WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

BP48VP2U02TAA | TAA Extended Battery Modules
Federal Trade Agreements Act (TAA) compliant power protection
General
Amperage70A
DC Voltage48V
Battery
Battery Equalization TechnologyYes
Battery Quantity8
Battery Size12V/9Ah
Battery TypeSealed Lead-Acid
Built-in ChargerYes
Hot SwappableYes
Replacement BatteryRB1290X4J
Replacement Battery Cartridge Quantity2
Typical Recharge Time6 hours
User ReplaceableYes
Dimensions
Physical Dimensions – (WxHxD) (cm)43.43 x 8.64 x 50.04 (cm)
Physical Dimensions – (WxHxD) (in)17.1 x 3.4 x 19.7 (in)
Physical Dimensions – (WxHxD) (mm)434 x 86 x 500 (mm)
Weight (kg)30.03
Weight (lb)66.2
Dimensions – Shipping
Shipping – Weight (kg)36.6
Shipping – Weight (lb)80.7
Shipping Dimensions – (WxHxD) (cm)56.13 x 27.43 x 61.98 (cm)
Shipping Dimensions – (WxHxD) (in)22.1 x 10.8 x 24.4 (in)
Shipping Dimensions – (WxHxD) (mm)561.34 x 274.32 x 619.76 (mm)
Input
Input Frequency50/60 Hz
Input Voltage Range100 – 240 Vac
Plug TypeIEC-320 C14
Physical
ColorBlack
Rack Size2U
Environmental
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Operating Relative Humidity0 – 95% (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyCE, RCM, UL1778, cUL, FCC Class B, VCCI
Warranty
Product Warranty3 Years Limited
BP48VP2U02TAA | TAA Extended Battery Modules
Federal Trade Agreements Act (TAA) compliant power protection
Higher Capacity UPS for Longer Runtimes

To determine the size of the UPS that you need, identify the total power load (measure in VA/Watts) of the connected equipment, along with the amount of runtime required (in minutes). Also, think about any equipment that might be connected to the UPS in the future, which could affect the calculations for load and runtime.

Estimating expected UPS runtimes can be challenging, particularly when the consistency of the utility power is not well known. Selecting a UPS with a load capacity 30-35% above the required power load offers the advantage of longer runtimes. This can lower the risk of overloading the UPS and causing an unnecessary UPS shutdown.

Although the initial outlay of a UPS increases with its size because of the higher capacity required for components, long-term operating costs typically decrease. When a UPS operates below maximum capacity, it reduces the stress on components. Sizing a UPS to run loads significantly lower than its capacity also increases spare capacity for future growth, along with extending runtimes.


Battery Equalization Technology

A chain is only as strong as its weakest link. This proverb holds true for a multi-battery string; the weakest battery reduces the performance and life of the entire battery string. Battery Equalization Technology is an advanced charging process that improves the performance and extends the life of a multi-battery string by charging each battery to a similar voltage.

By charging each battery to a similar voltage, the multi-battery string will charge and discharge at the same level. This improves runtime and extends the time between each battery replacement resulting in lower overall battery costs.

Battery Equalization Technology is a component of a Battery Management System and has been used at the datacenter level for many years. However, this technology has not been available at the individual UPS level until now.
