PDU20BHVIEC12R


Basic PDU Series

MSRP $136.95

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 200 – 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20

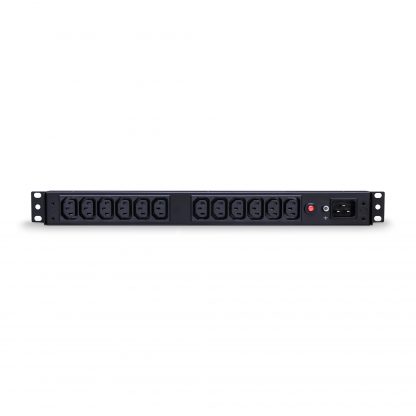

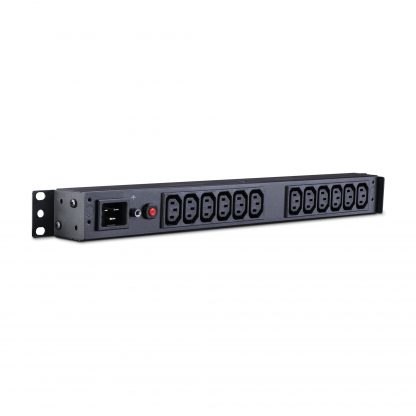

  • Outlets: 12 IEC-320 C13
  • Size: 1U Rackmount

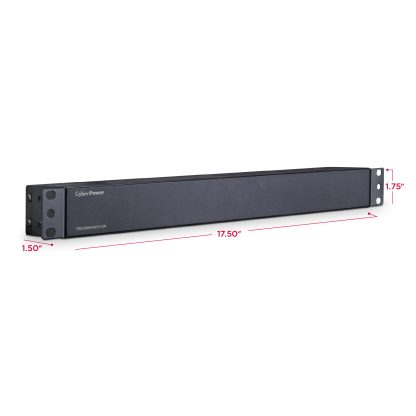

  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime
Where To Buy
Categories: ,

Product Description

PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices

Product Overview


The CyberPower PDU20BHVIEC12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVIEC12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design
    Safeguards against accidental power shutdown.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Configurable Mounting Brackets
    Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Limited Lifetime Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What’s In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices
Input
Voltage200 – 230 V
Maximum Current20A (derated to 16A)
Frequency50/60 Hz
Plug TypeIEC-320 C20
Plug StyleStraight
Cord Length10 ft
Output
Nominal Output Voltage200 – 230 V
Outlet TypeIEC-320 C13
Outlets – Front0
Outlets – Rear12
Outlets – Total12
Overload Protection16A
Physical
Rack Size1U
Form Factors Supported1U rackmount
0U vertical rackmount
undercounter installation supported
StyleRackmount
Vertical Rackmount
Under-Counter
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Adjustable Mounting Brackets2 sets (L-short, L-long)
Dimensions – W×H×D (in)17.5 × 1.75 × 1.5 inches
Weight (lbs)2.0 lbs
Environmental
Operating Temperature32 – 95 °F (0 – 35 °C)
Operating Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Certifications
SafetyUL60950_1 certified by ETL
CSA C22.2
EnvironmentalRoHS Compliant
Warranty
Product WarrantyLimited lifetime
PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices
Understanding PDUs

Power Distribution Units (PDUs) by CyberPower are engineered to distribute reliable network power to multiple devices. A PDU does not generate conditioned power, but delivers AC power from a UPS (uninterruptible power supply), a generator, or utility power source to servers, network/telecom equipment, and other devices. Selecting the best PDU for your needs depends on the output voltage required, the number of outlets needed for connected devices, plug and outlet types, and mounting options.

Versatile. CyberPower PDUs are designed with as many as 38 outlets. Offered in 0U, 1U, and 2U form factors, each PDU includes the necessary hardware to be mounted vertically or horizontally inside densely configured rack enclosures. The PDU can also be mounted on a wall or under a shelf.

Scalable. In smaller networks, conditioned power can be distributed through a single PDU from a UPS, while a complex data center might require the connection of multiple PDUs to a large-capacity UPS system.


Different PDU Series for Different Needs

CyberPower offers multiple offerings of power distribution units (PDUs): Basic, Metered, Metered ATS, Monitored, Switched, Switched ATS and Maintenance-Bypass. Each series serves a specialized purpose. Models within the same series have similar features and capabilities.

Basic: Reliable and unfiltered AC power distribution from a UPS system, generator, and/or utility source to multiple connected devices.

Metered: Network-grade power distribution plus load meters (amps) to prevent overloads and safely optimize load levels.

Monitored: Network-grade power distribution with remote monitoring through an SNMP network interface and local management via a digital meter display to prevent downtime due to overloads or other power events.

Switched: Intelligent, network-grade power distribution and the ability to control outlets individually or collectively to solve power issues such as shutdowns or to plan scheduled rebooting. A digital meter provides information on load and voltage, as well as local control of the outlets. An SNMP connection enables remote monitoring and control of the outlets to ensure complete control regardless of location.

Switched Metered-by-Outlet: Monitor the power consumption of individual outlets in real-time over the network, or locally using the PDU’s interactive digital display. Outlets can be switched on and off remotely for unscheduled reboots, automated load shedding, controlled power-cycling and more.

Metered ATS: Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Switched ATS: Individual management of switched outlet receptacles. Remote and local control of outlets. Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Maintenance-Bypass: Maintenance Bypass PDUs allow the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.


PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices
PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices
The circuit breaker on the PDU is tripping but it is not overloaded. What could be the problem?

High operating temperatures can also cause the circuit breaker to trip. Check that the ambient temperature where the PDU is installed is within the specified range.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
tech@cpsww.com

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

PDU20BHVIEC12R | Basic PDU Series
Deliver reliable power to electronic equipment, servers, and network/telecom devices
     ModelVoltageCord LengthRacksizeCurrentInput PlugOutlets MSRP
     PDU15B2F8R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P10 x NEMA 5-15R $85.95
     PDU15B2F10R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P12 x NEMA 5-15R $97.95
     PDU15B2F12R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P14 x NEMA 5-15R $104.95
     PDU15B4F8R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P12 x NEMA 5-15R $99.95
     PDU15B4F10R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P14 x NEMA 5-15R $106.95
     PDU15B4F12R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P16 x NEMA 5-15R $115.95
     PDU15B6F8R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P14 x NEMA 5-15R $109.95
     PDU15B6F10R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P16 x NEMA 5-15R $119.95
     PDU15B6F12R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P18 x NEMA 5-15R $129.95
     PDU15B8R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P8 x NEMA 5-15R $69.95
     PDU15B10R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P10 x NEMA 5-15R $79.95
     PDU15B12R100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P12 x NEMA 5-15R $95.95
     PDU15BV14F100 – 125 VAC10 ft0U15 A (derated to 12 A)NEMA 5-15P14 x NEMA 5-15R $149.95
     PDU15BV16F100 – 125 VAC10 ft0U15 A (derated to 12 A)NEMA 5-15P16 x NEMA 5-15R $178.95
     PDU15BV20F100 – 125 VAC10 ft0U15 A (derated to 12 A)NEMA 5-15P20 x NEMA 5-15R $198.95
     PDU15BV28F100 – 125 VAC10 ft0U15 A (derated to 12 A)NEMA 5-15P28 x NEMA 5-15R $229.95
     PDU15BV32F100 – 125 VAC10 ft0U15 A (derated to 12 A)NEMA 5-15P32 x NEMA 5-15R $259.95
     PDU20B2F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P10 x NEMA 5-20R $123.95
     PDU20B2F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P14 x NEMA 5-20R $169.95
     PDU20B4F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P12 x NEMA 5-20R $159.95
     PDU20B4F10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P14 x NEMA 5-20R $169.95
     PDU20B4F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P16 x NEMA 5-20R $185.95
     PDU20B6F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P14 x NEMA 5-20R $169.95
     PDU20B6F10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P16 x NEMA 5-20R $185.95
     PDU20B6F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P18 x NEMA 5-20R $199.95
     PDU20B8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P8 x NEMA 5-20R $95.95
     PDU20B10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P10 x NEMA 5-20R $119.95
     PDU20B12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P12 x NEMA 5-20R $159.95
     PDU20BHVIEC8R200 – 230 VAC10 ft1U20 A (derated to 16 A)IEC-320 C208 x IEC-320 C13 $129.35
     PDU20BHVIEC10R200 – 230 VAC10 ft1U20 A (derated to 16 A)IEC-320 C2010 x IEC-320 C13 $133.95
     PDU20BHVIEC12R200 – 230 VAC10 ft1U20 A (derated to 16 A)IEC-320 C2012 x IEC-320 C13 $136.95
     PDU20BHVIEC12Ra200 – 230 VAC10 ft1U20 A (derated to 16 A)IEC-320 C20IEC-320 C13, IEC-320 C19 $189.95
     PDU20BHVT8R200 – 230 VAC10 ft1U20 A (derated to 16 A)NEMA L6-20P2 x IEC-320 C19, 6 x IEC-320 C13 $124.95
     PDU20BHVT10R200 – 230 VAC10 ft1U20 A (derated to 16 A)NEMA L6-20P2 x IEC-320 C19, 8 x IEC-320 C13 $129.95
     PDU20BHVT12R200 – 230 VAC10 ft1U20 A (derated to 16 A)NEMA L6-20P12 x IEC-320 C13 $135.95
     PDU20BT2F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P10 x NEMA 5-20R $129.95
     PDU20BT2F10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P12 x NEMA 5-20R $165.95
     PDU20BT2F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P14 x NEMA 5-20R $174.95
     PDU20BT4F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P12 x NEMA 5-20R $165.95
     PDU20BT4F10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P14 x NEMA 5-20R $174.95
     PDU20BT4F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P16 x NEMA 5-20R $189.95
     PDU20BT6F8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P14 x NEMA 5-20R $174.95
     PDU20BT6F10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P16 x NEMA 5-20R $191.95
     PDU20BT6F12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P18 x NEMA 5-20R $205.99
     PDU20BT8R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P8 x NEMA 5-20R $99.95
     PDU20BT10R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P10 x NEMA 5-20R $129.95
     PDU20BT12R100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA L5-20P12 x NEMA 5-20R $165.95
     PDU20BV14F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA 5-20P14 x NEMA 5-20R $149.95
     PDU20BV16F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA 5-20P16 x NEMA 5-20R $219.95
     PDU20BV20F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA 5-20P20 x NEMA 5-20R $229.95
     PDU20BV32F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA 5-20P32 x NEMA 5-20R $295.95
     PDU20BVT14F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P14 x NEMA 5-20R $155.95
     PDU20BVT16F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P16 x NEMA 5-20R $224.95
     PDU20BVT20F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P20 x NEMA 5-20R $234.95
     PDU20BVT28F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P28 x NEMA 5-20R $244.95
     PDU20BVT32F100 – 125 VAC10 ft0U20 A (derated to 16 A)NEMA L5-20P32 x NEMA 5-20R $299.95
     PDU30BHVT8R200 – 230 VAC10 ft1U30 A (derated to 24 A)NEMA L6-30P2 x IEC-320 C19, 6 x IEC-320 C13 $189.95
     PDU30BHVT10R200 – 230 VAC10 ft1U30 A (derated to 24 A)NEMA L6-30P2 x IEC-320 C19, 8 x IEC-320 C13 $209.95
     PDU30BHVT12R200 – 230 VAC10 ft1U30 A (derated to 24 A)NEMA L6-30P12 x IEC-320 C13 $259.95
     PDU30BT8F8R100 – 125 VAC12 ft1U30 A (derated to 24 A)NEMA L5-30P16 x NEMA 5-20R $219.95
     PDU30BT10F10R100 – 125 VAC12 ft1U30 A (derated to 24 A)NEMA L5-30P20 x NEMA 5-20R $269.95
     PDU10BVHVIEC16F200 – 230 VAC10 ft0U10 AIEC-320 C1416 x IEC-320 C13 $154.95
     PDU10BVHVIEC20F200 – 230 VAC10 ft0U10 AIEC-320 C1416 x IEC-320 C13, 4 x IEC-320 C19 $179.95
     PDU20BVHVT20F200 – 230 VAC10 ft0U20 A (derated to 16 A)NEMA L6-20P16 x IEC-320 C13, 4 x IEC-320 C19 $234.95
     PDU20BVHVT24F200 – 230 VAC10 ft0U20 A (derated to 16 A)NEMA L6-20P20 x IEC-320 C13, 4 x IEC-320 C19 $239.95
     PDU20BVHVT32F200 – 230 VAC10 ft0U20 A (derated to 16 A)NEMA L6-20P24 x IEC-320 C13, 8 x IEC-320 C19 $269.95
     PDU20BVHVT38F200 – 230 VAC10 ft0U20 A (derated to 16 A)NEMA L6-20P30 x IEC-320 C13, 8 x IEC-320 C19 $275.95
     PDU20BVHVIEC16F200 – 230 VAC10 ft0U20 A (derated to 16 A)IEC-320 C2016 x IEC-320 C13 $194.95
     PDU20BVHVIEC20F200 – 230 VAC10 ft0U20 A (derated to 16 A)IEC-320 C2016 x IEC-320 C13, 4 x IEC-320 C19 $235.95
     PDU20BVHVIEC24F200 – 230 VAC10 ft0U20 A (derated to 16 A)IEC-320 C2020 x IEC-320 C13, 4 x IEC-320 C19 $245.95
     PDU20BVHVIEC32F200 – 230 VAC10 ft0U20 A (derated to 16 A)IEC-320 C2024 x IEC-320 C13, 8 x IEC-320 C19 $299.95
     PDU20BVHVIEC38F200 – 230 VAC10 ft0U20 A (derated to 16 A)IEC-320 C2030 x IEC-320 C13, 8 x IEC-320 C19 $329.95
     PDU30BVHVT16F200 – 230 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P16 x IEC-320 C13 $279.95
     PDU30BVHVT20F200 – 230 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P16 x IEC-320 C13, 4 x IEC-320 C19 $284.95
     PDU30BVHVT32F200 – 230 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P24 x IEC-320 C13, 8 x IEC-320 C19 $289.95
     PDU30BVHVT38F200 – 230 VAC10 ft0U30 A (derated to 24 A)NEMA L6-30P30 x IEC-320 C13, 8 x IEC-320 C19 $379.95
     PDU30BVT14F100 – 125 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P14 x NEMA 5-20R $289.95
     PDU30BVT20F100 – 125 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P20 x NEMA 5-20R $299.95
     PDU30BVT16F100 – 125 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P16 x NEMA 5-20R $294.95
     PDU30BVT28F100 – 125 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P28 x NEMA 5-20R $304.95
     PDU30BVT32F100 – 125 VAC10 ft0U30 A (derated to 24 A)NEMA L5-30P32 x NEMA 5-20R $326.95
     CPS1215RM100 – 125 VAC15 ft1U15 A (derated to 12 A)NEMA 5-15P10 x NEMA 5-15R $73.95
     CPS1220RM100 – 125 VAC15 ft1U20 A (derated to 16 A)NEMA 5-20P12 x NEMA 5-20R $145.95
