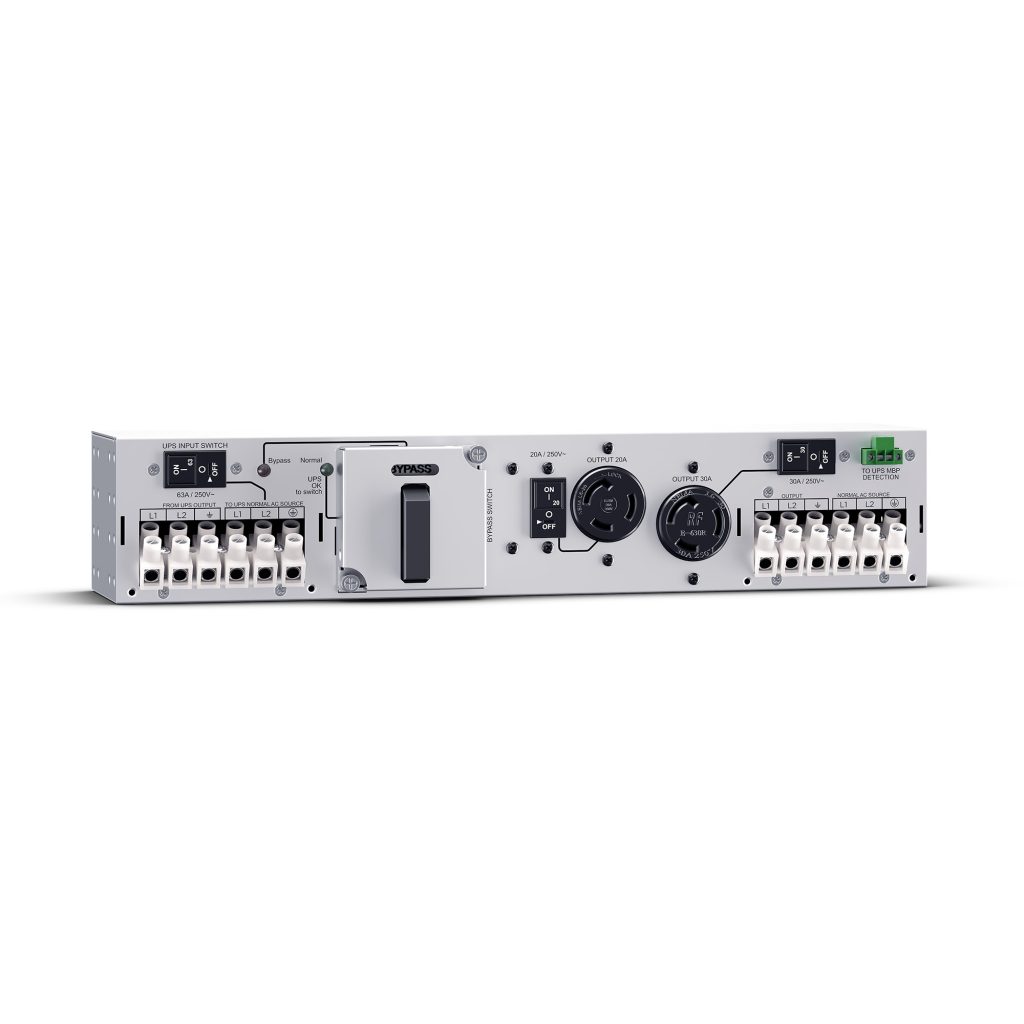

MBP63A2


Maintenance Bypass PDU Series
  • Maintenance Bypass PDU: Normal mode, Bypass mode
  • Amps: 63A
  • Volts: 200 – 240 VAC
  • Input plugs: Terminal Blocks (utility, UPS output)
  • Total outlets: 1 NEMA L6-20R, 1 NEMA L6-30R, Terminal Block
  • Power cords: L6-30P power cord 3.3ft to UPS output and L6-30R power cord 3.3ft to UPS input, Conduits with internal wires for MBP63A2 to UPS input / output 3ft
  • LED indicators: Normal (Green), Bypass (Red)
  • Size: 2U Rack, Tower, Wall
  • Dimensions (in.): 17.0W x 3.4H x 4.9D
  • UPS mounting hardware: Yes
  • Warranty: 3 year
MSRP  $975.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

MBP63A2 | Maintenance Bypass PDU Series
Allows seamless transfer of an electrical load from UPS power to utility power for connected equipment

Product Overview


Designed for datacenters and other electrically demanding applications, the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU), allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R, (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle.

Depending on UPS model, either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged, industrial-grade metal housing protects the MBP63A2. With a 2U form factor, this PDU can be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Maintenance Bypass
    Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods, battery replacement, or UPS installation.
  • Manual Bypass Switch
    When the Manual Bypass Switch is turned to Normal, connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass, connected equipment is supplied by utility power.
  • MBP Detection Cable
    Communicates directly between the UPS and Maintenance Bypass PDU to safely coordinate the bypass switch operation. When the PDU bypass switch operation is initiated by removing the cover, the MBP Detection Cable sends a signal to the UPS to internally transfer to bypass mode to prevent UPS damage.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

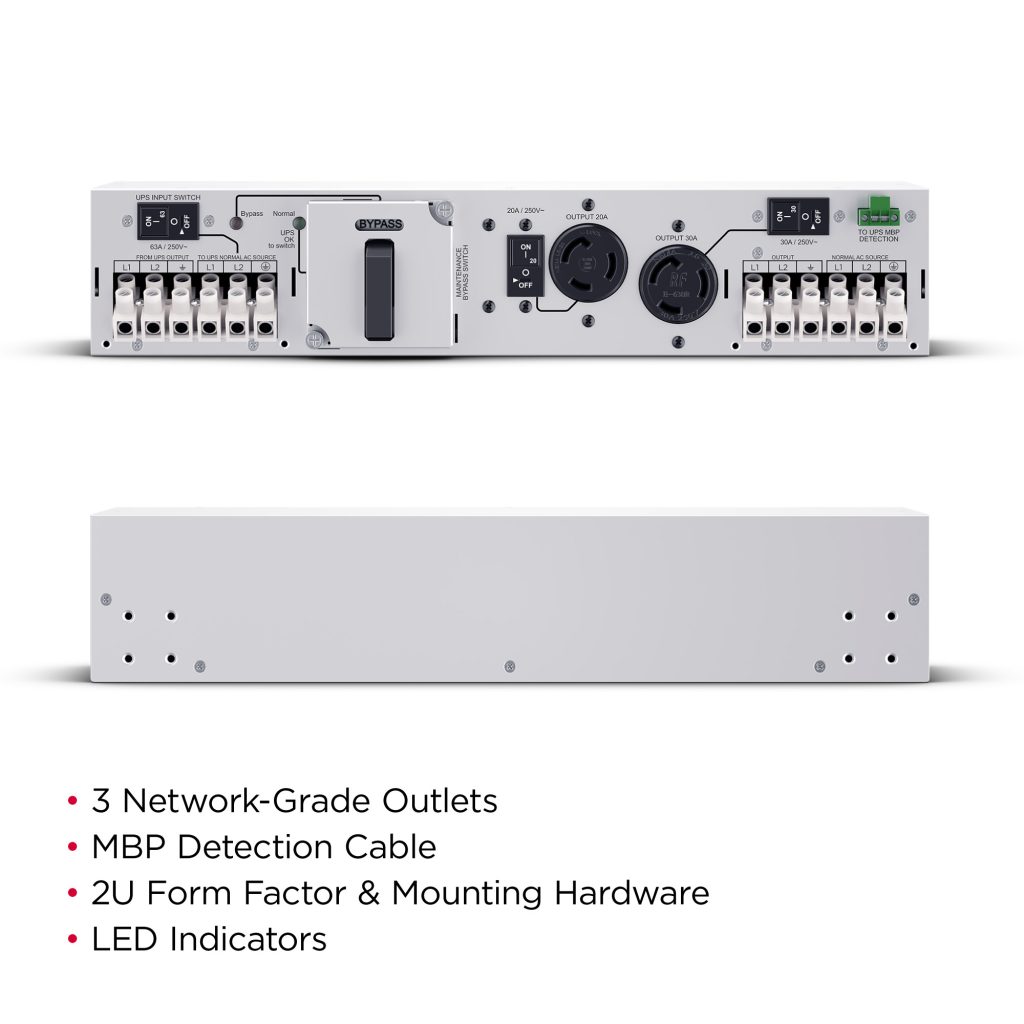

  • 2U Form Factor & Mounting Hardware
    The 2U form factor is made to be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What’s In The Box

PDU, MBP detection cable 3.3ft, L6-30P power cord 3.3ft with cable gland for MBP63A2 to 6K UPS output connection and L6-30R power cord 3.3ft with cable gland for MBP63A2 to 6K UPS input connection, Conduits with internal wires for MBP63A2 to 6K/8K/10K UPS input / output 3ft, 2 Rackmount Brackets, Input/output terminal block cover, 4 Cage nuts, 4 Flat Head Screws M4X6L, 4 Pan Head Screws M5X8L, User Manual, Registration Card


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

MBP63A2 | Maintenance Bypass PDU Series
Allows seamless transfer of an electrical load from UPS power to utility power for connected equipment
Input
Inlet To UPS Input (1) Terminal Block
Inlet To UPS Output (1) Terminal Block
Inlet To Utility Power (1) Terminal Block
Input Voltage Range 200 VAC – 240 VAC
Maximum Input Current 63A
Power Cord Length 3.3 ft (1 m)
Output
Nominal Output Voltage 208 VAC
Number of Outlets 3
Outlet Type 1 – NEMA L6-20R
1 – NEMA L6-30R
1 – Hardwire Terminal Block
Management & Communications
Management Cable MBP Detection Cable 3.3 ft.
Physical

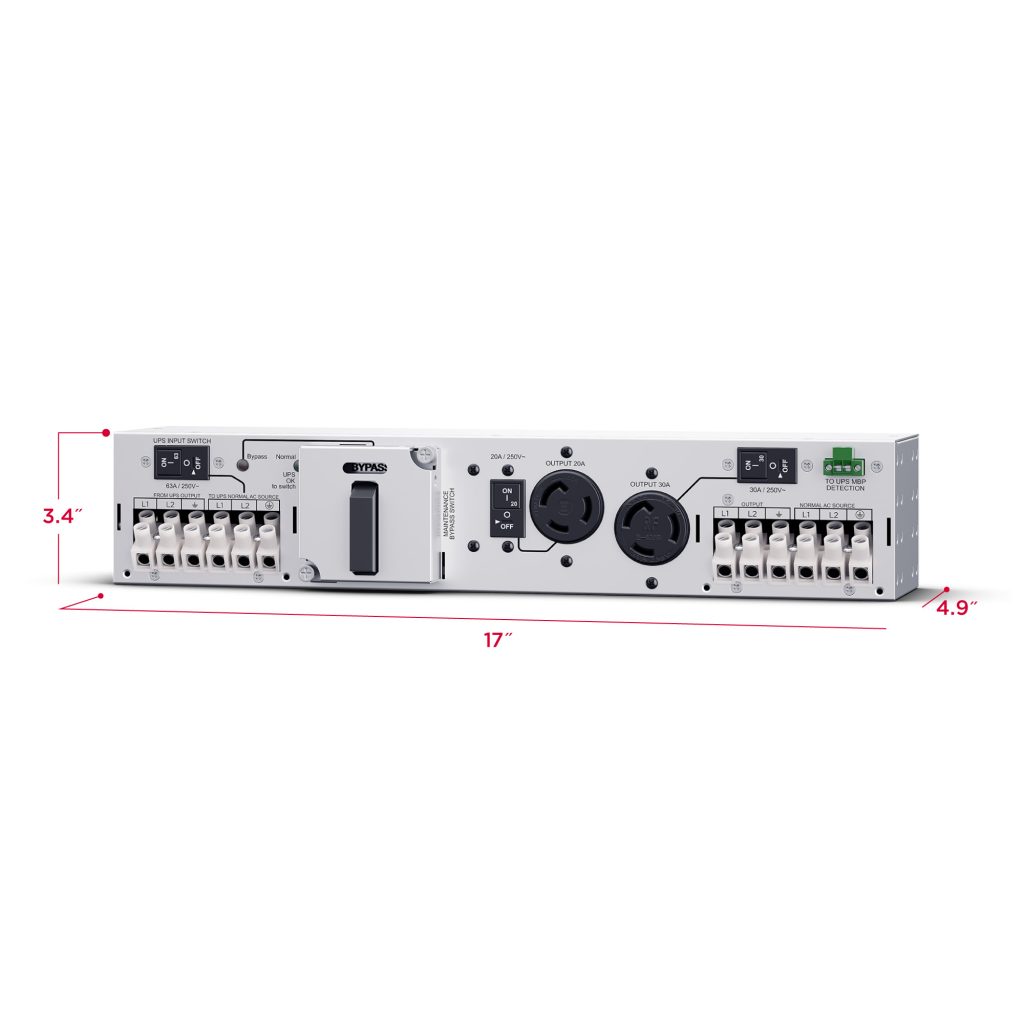

Dimensions – HxWxD (in) 3.4 x 17.0 x 4.9 in
Dimensions – HxWxD (mm) 86.5 x 433.0 x 125.0 mm
Dimensions – WxHxD (in) 17.0 x 3.4 x 4.9 in
Enclosure Construction Steel
Form Factor Rack / Tower
Rack Height 2U
Weight (kg.) 4
Weight (lbs) 8.8
Environmental
Operating Relative Humidity 0 – 90 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Compatibility
UPS Models OL5KRTHD, OL6KRTHD
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
Warranty
Extended Warranty Option WEXT5YR-ACC2C
Product Warranty 3 Years Limited Warranty
MBP63A2 | Maintenance Bypass PDU Series
Allows seamless transfer of an electrical load from UPS power to utility power for connected equipment
Communications Between the UPS and Maintenance Bypass PDU

CyberPower Maintenance Bypass PDUs with an MBP Detection Cable can communicate directly with the UPS to safely coordinate the bypass switch operation. When the PDU bypass switch operation is initiated by removing the cover, the MBP Detection Cable sends a signal to the UPS to internally transfer to bypass mode to prevent damage.


Understanding PDUs

Power Distribution Units (PDUs) by CyberPower are engineered to distribute reliable network power to multiple devices. A PDU does not generate conditioned power, but delivers AC power from a UPS (uninterruptible power supply), a generator, or utility power source to servers, network/telecom equipment, and other devices. Selecting the best PDU for your needs depends on the output voltage required, the number of outlets needed for connected devices, plug and outlet types, and mounting options.

Versatile. CyberPower PDUs are designed with as many as 38 outlets. Offered in 0U, 1U, and 2U form factors, each PDU includes the necessary hardware to be mounted vertically or horizontally inside densely configured rack enclosures. The PDU can also be mounted on a wall or under a shelf.

Scalable. In smaller networks, conditioned power can be distributed through a single PDU from a UPS, while a complex data center might require the connection of multiple PDUs to a large-capacity UPS system.


Different PDU Series for Different Needs

CyberPower offers multiple offerings of power distribution units (PDUs): Basic, Metered, Metered ATS, Monitored, Switched, Switched ATS and Maintenance-Bypass. Each series serves a specialized purpose. Models within the same series have similar features and capabilities.

Basic: Reliable and unfiltered AC power distribution from a UPS system, generator, and/or utility source to multiple connected devices.

Metered: Network-grade power distribution plus load meters (amps) to prevent overloads and safely optimize load levels.

Monitored: Network-grade power distribution with remote monitoring through an SNMP network interface and local management via a digital meter display to prevent downtime due to overloads or other power events.

Switched: Intelligent, network-grade power distribution and the ability to control outlets individually or collectively to solve power issues such as shutdowns or to plan scheduled rebooting. A digital meter provides information on load and voltage, as well as local control of the outlets. An SNMP connection enables remote monitoring and control of the outlets to ensure complete control regardless of location.

Switched Metered-by-Outlet: Monitor the power consumption of individual outlets in real-time over the network, or locally using the PDU’s interactive digital display. Outlets can be switched on and off remotely for unscheduled reboots, automated load shedding, controlled power-cycling and more.

Metered ATS: Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Switched ATS: Individual management of switched outlet receptacles. Remote and local control of outlets. Redundant NEMA plugs. Dual power cords can be plugged into separate power sources. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

Maintenance-Bypass: Maintenance Bypass PDUs allow the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.
