Hardware

CP2RAIL02

$75.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Equipment support: 2U and 3U
  • Adjustable range: From 20.1″ to 35.8″
  • Weight capacity: Supports up to 500 lbs.
  • Attachment hardware included: Yes
Overview

Product Overview

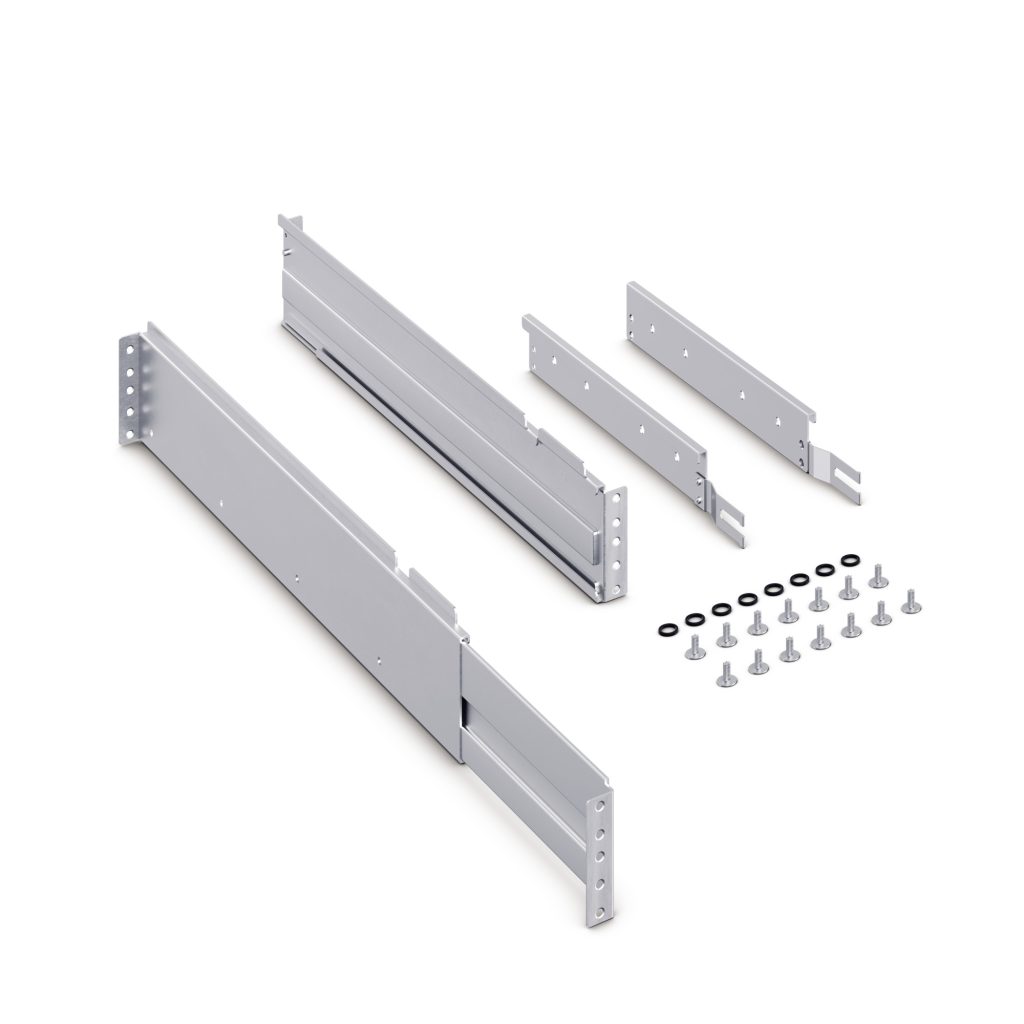

The CyberPower CP2RAIL02 4-post rackmount rail kit provides a mounting solution for select 2U and 3U UPS systems weighing up to 500 pounds. The two adjustable rails (right and left) can be expanded from 20.1" to 35.8" for various sizing requirements and installed by a single person.

A Five-Year Limited Warranty covers defects in materials and workmanship in the product under normal use and conditions.

UPS Compatibility
PR750RT2U
PR750RTXL2U
PR1000RT2U
PR1000RTXL2U
PR1500RT2U
PR2000RT2U

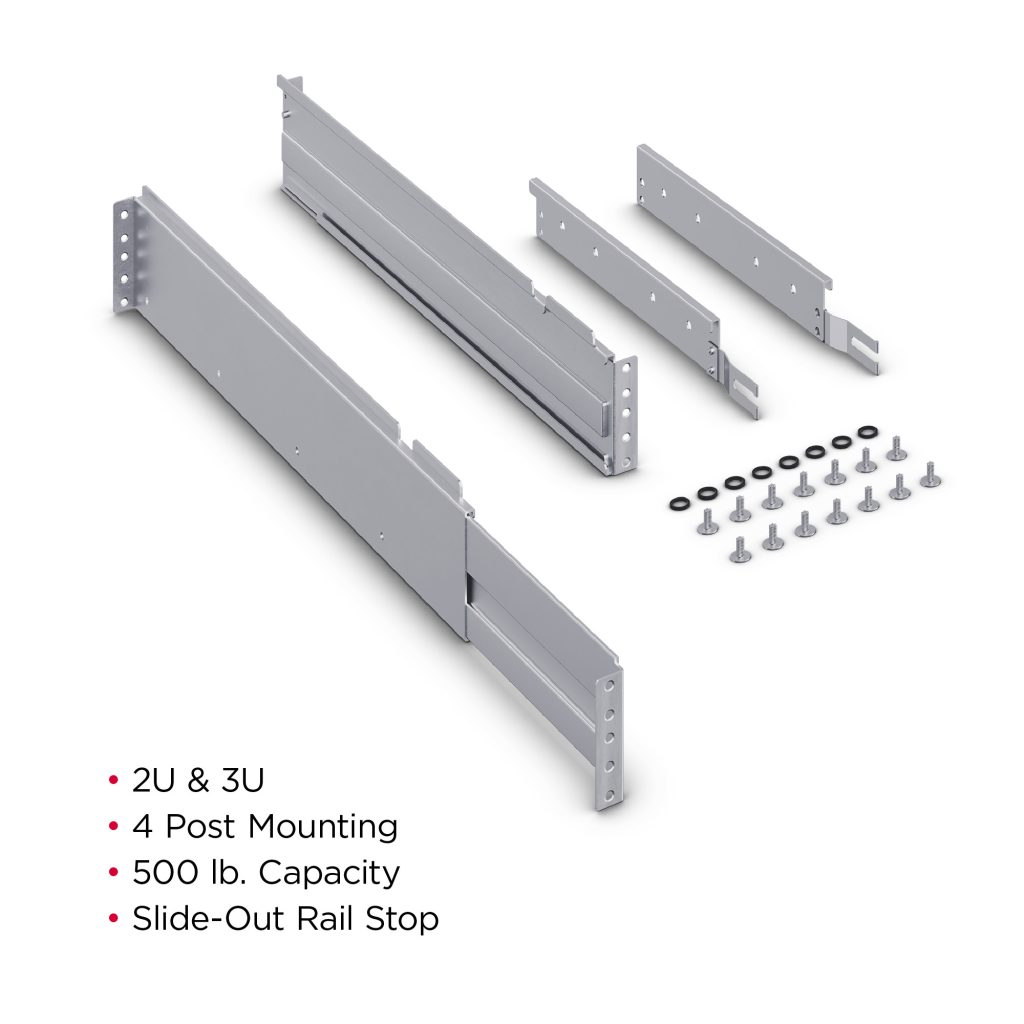

Product Features
  • 4-Post Mounting
    Secures equipment at both the front and back of the rack.
  • Single-Person Installation
    Supports single-person installation by inserting half-thread screws into square holes on rear side for temporary support of rails.

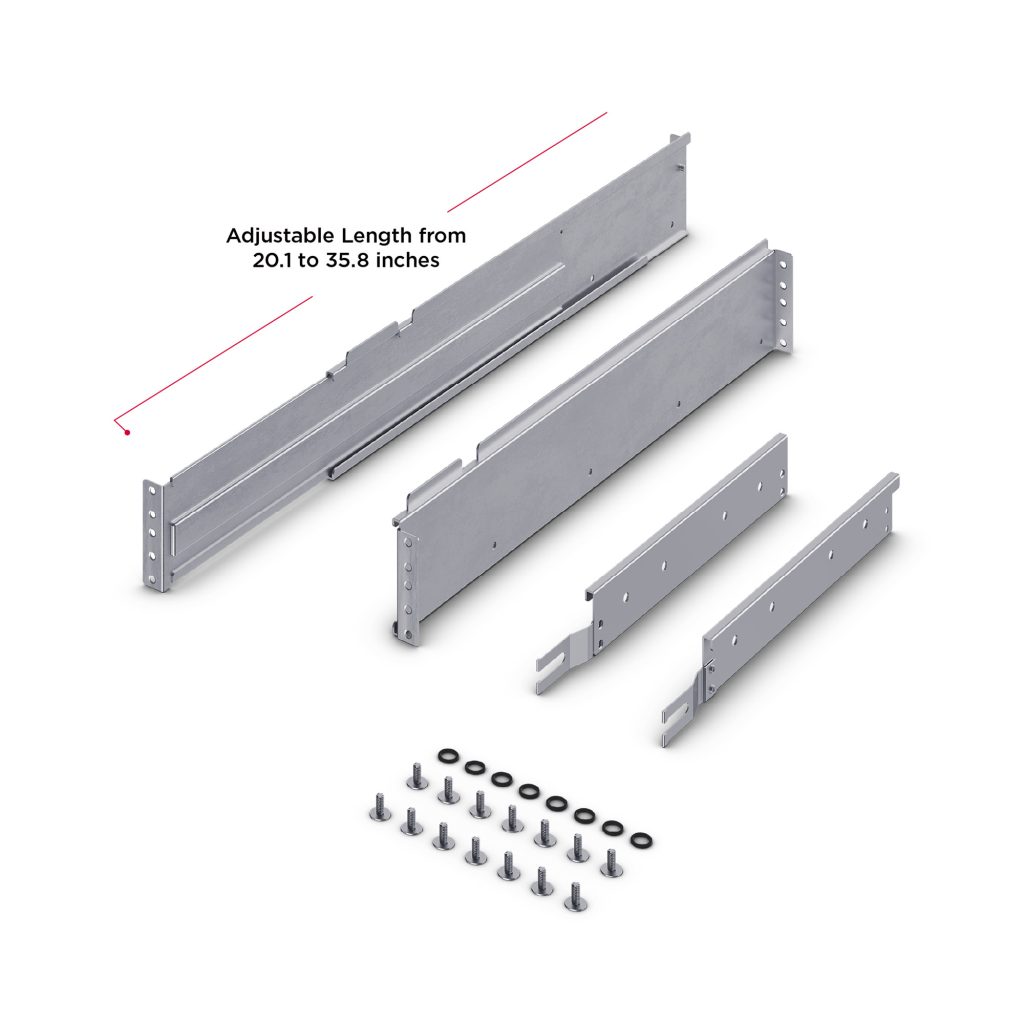

  • Adjustable Rails
    Extends from 20.1” to 35.8” for proper fit with various sizing requirements.
  • Slide-Out Rail Stop
    Allows equipment to slide out a safe distance from the rack before locking in place.
  • Limited 5-Year Warranty
    Stringent manufacturing processes and innovative product design allows CyberPower to offer one of the strongest warranties in our industry.
Compatible Products
Specifications
Expand All
Output
USB Charge Port No
Physical
Adjustable Length (in.) 20.1 – 35.8 in
Capacity (lbs) 500 lbs
Color Silver
Material of Construction Metal
Mounting Hardware Yes
Rack Height Compatibility 2U and 3U
Dimensions
Physical Dimensions – (WxHxD) (cm) 2.03 x 8.64 x 51.05 (cm)
Physical Dimensions – (WxHxD) (in) 0.8 x 3.4 x 20.1 (in)
Physical Dimensions – (WxHxD) (mm) 20 x 86 x 511 (mm)
Physical Weight (kg) 2.72
Physical Weight (lb) 6.0
Dimensions – Shipping
Shipping – Weight (kg) 11.11
Shipping – Weight (lb) 24.5
Shipping Dimensions – (WxHxD) (cm) 13.72 x 7.37 x 60.2 (cm)
Shipping Dimensions – (WxHxD) (in) 5.4 x 2.9 x 23.7 (in)
Shipping Dimensions – (WxHxD) (mm) 137.16 x 73.66 x 601.98 (mm)
Compatibility
UPS Models PR750RT2U, PR750RTXL2U, PR1000RT2U, PR1000RTXL2U, PR1500RT2U, PR2000RT2U
Warranty
Product Warranty 5 Year Limited Warranty
Downloads

CP2RAIL02

800 KB

CP2RAIL02

800 KB
Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area

Submit a Support Ticket
