Hardware

OL5KSTF

$1,089.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Step-down transformer: 5,000 VA / 5,000 W
  • Output: 120 V, 50/60 Hz
  • Power conversion: 208 V from utility, UPS, or generator to 120 V output
  • Plug type & cord: 3 ft NEMA L6-30P power cord

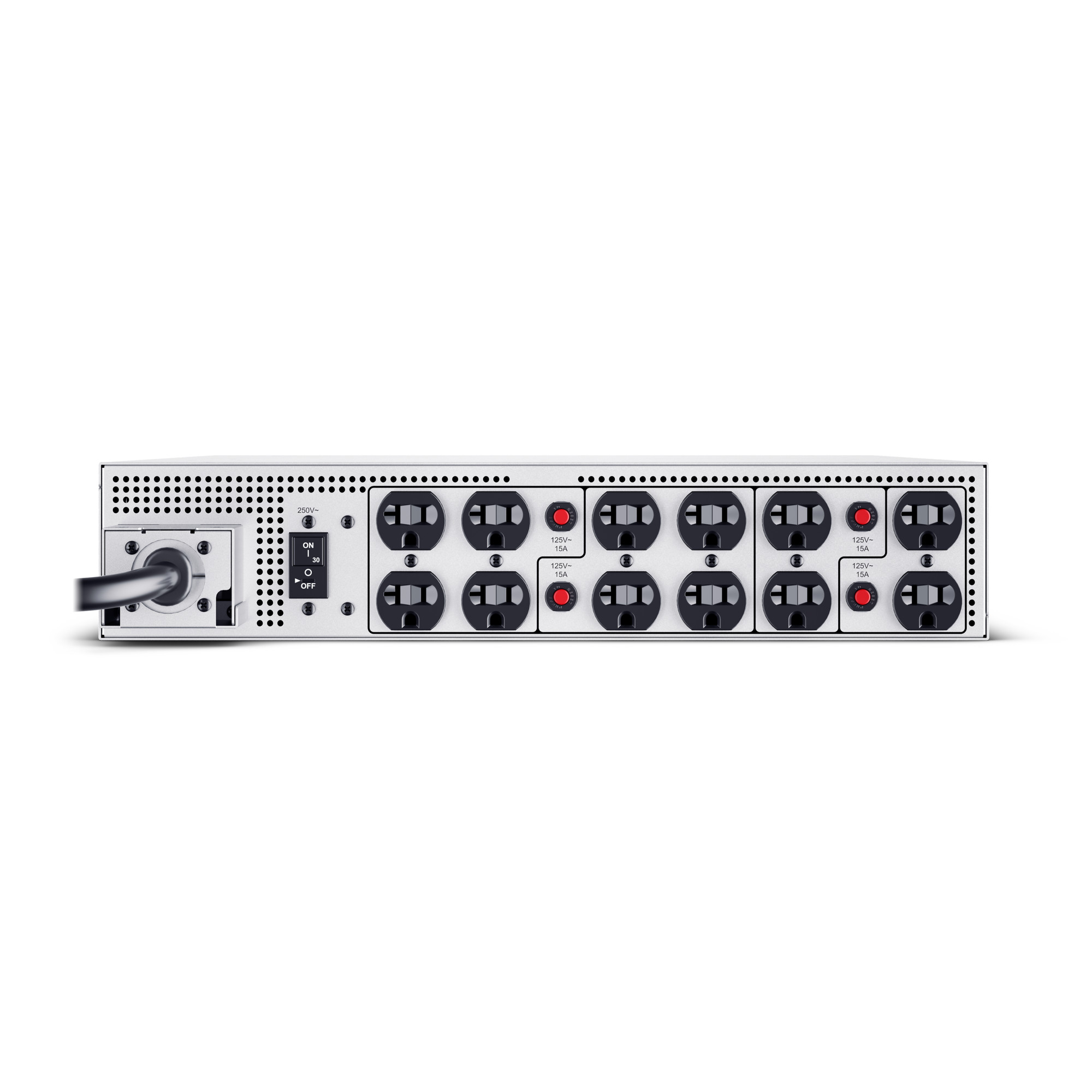

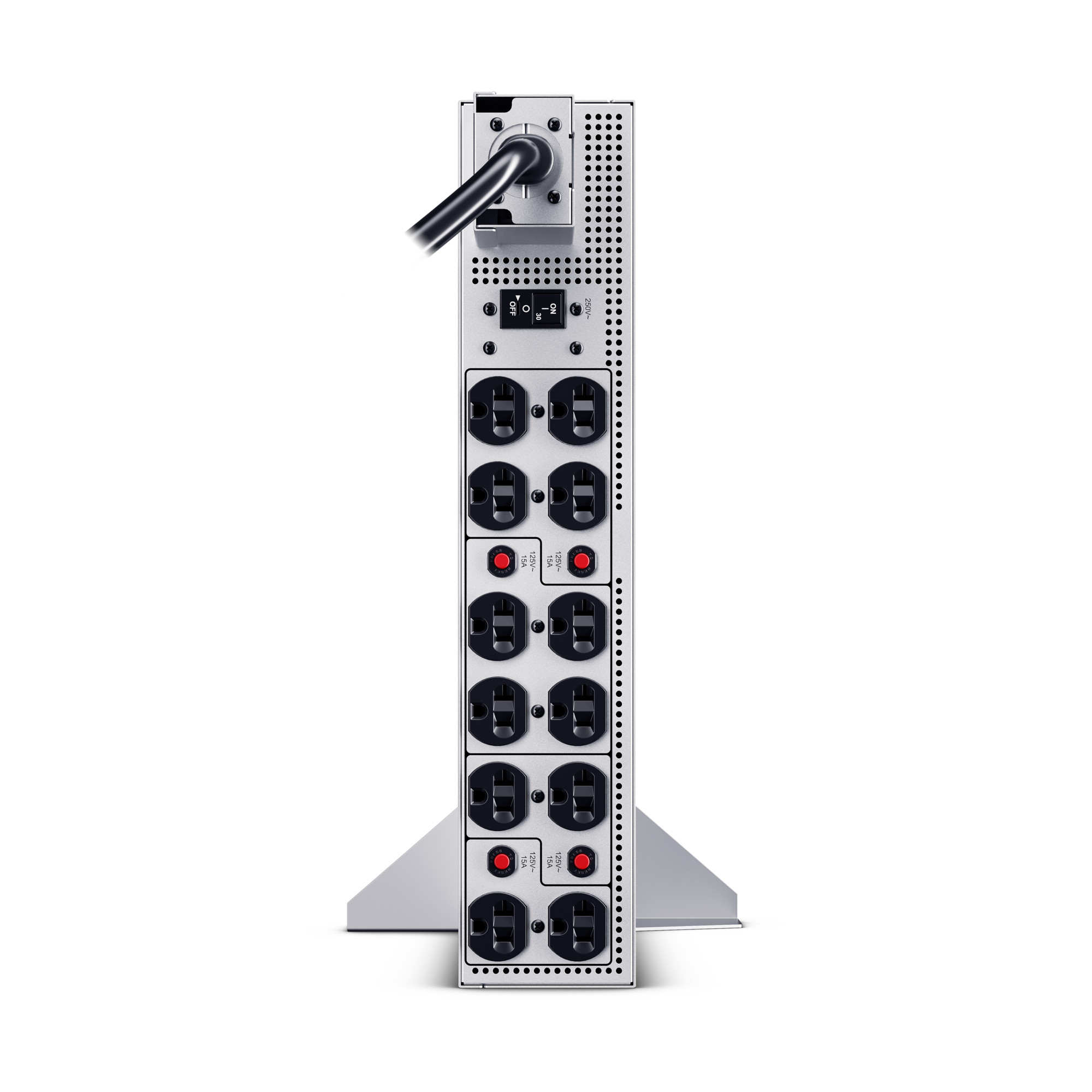

  • Outlets: (12) NEMA 5-20R
  • Form factor: 2U Rack/Tower convertible
  • Overload protection: Output circuit breakers
  • Over temperature protection: Yes
  • Warranty: Three year
Overview

Product Overview

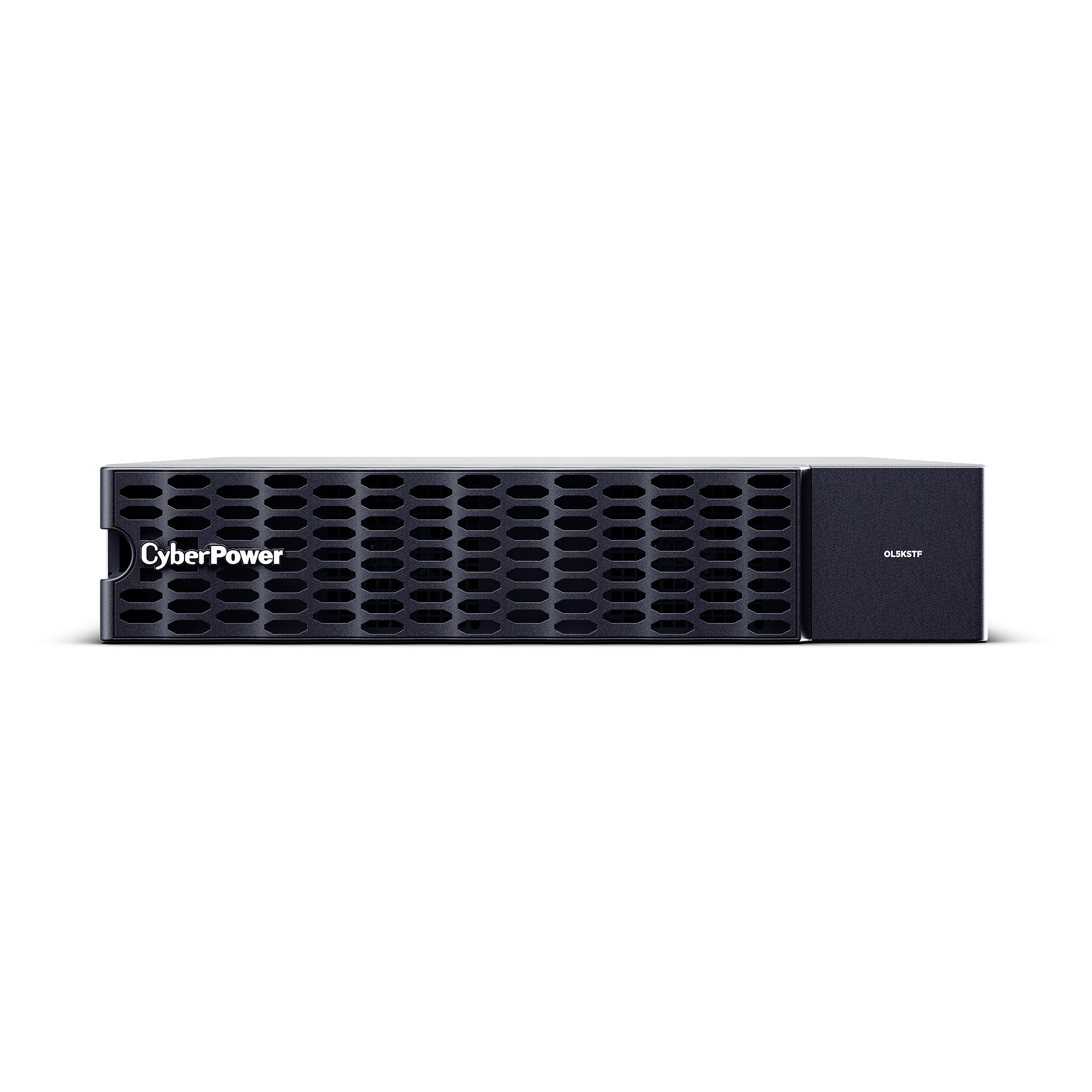

The CyberPower Smart App Online OL5KSTF rack/tower step-down isolation transformer converts 208 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

The OL5KSTF has a capacity of 5,000 VA / 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords.

Over temperature protection safeguards your OL5KSTF from damage if the internal heat exceeds safe operating parameters.

A Three-Year Warranty ensures that this extended battery module has passed our highest quality standards in design, assembly, material or workmanship.

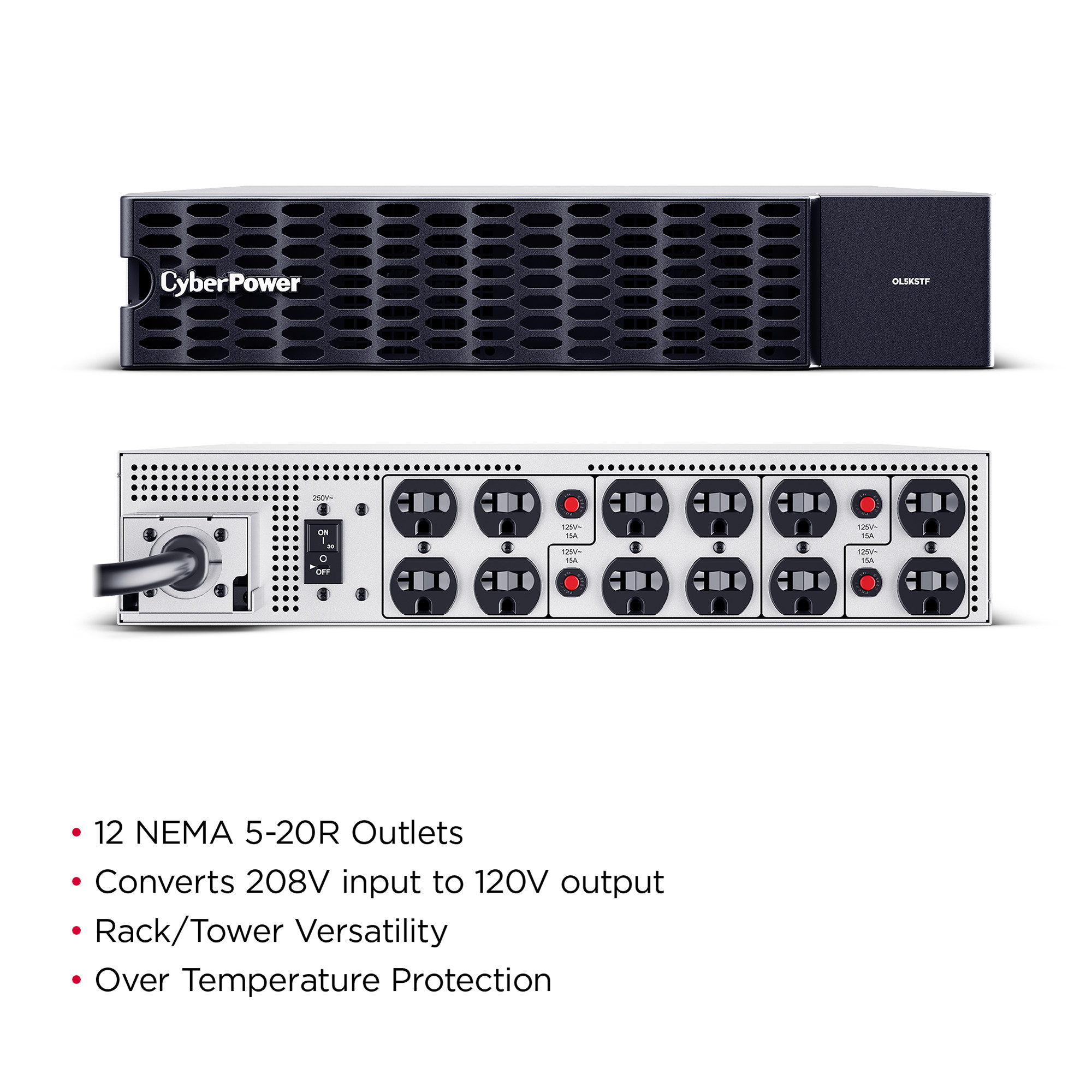

  • Step-Down Transformer
    The step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With twelve (12) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs.

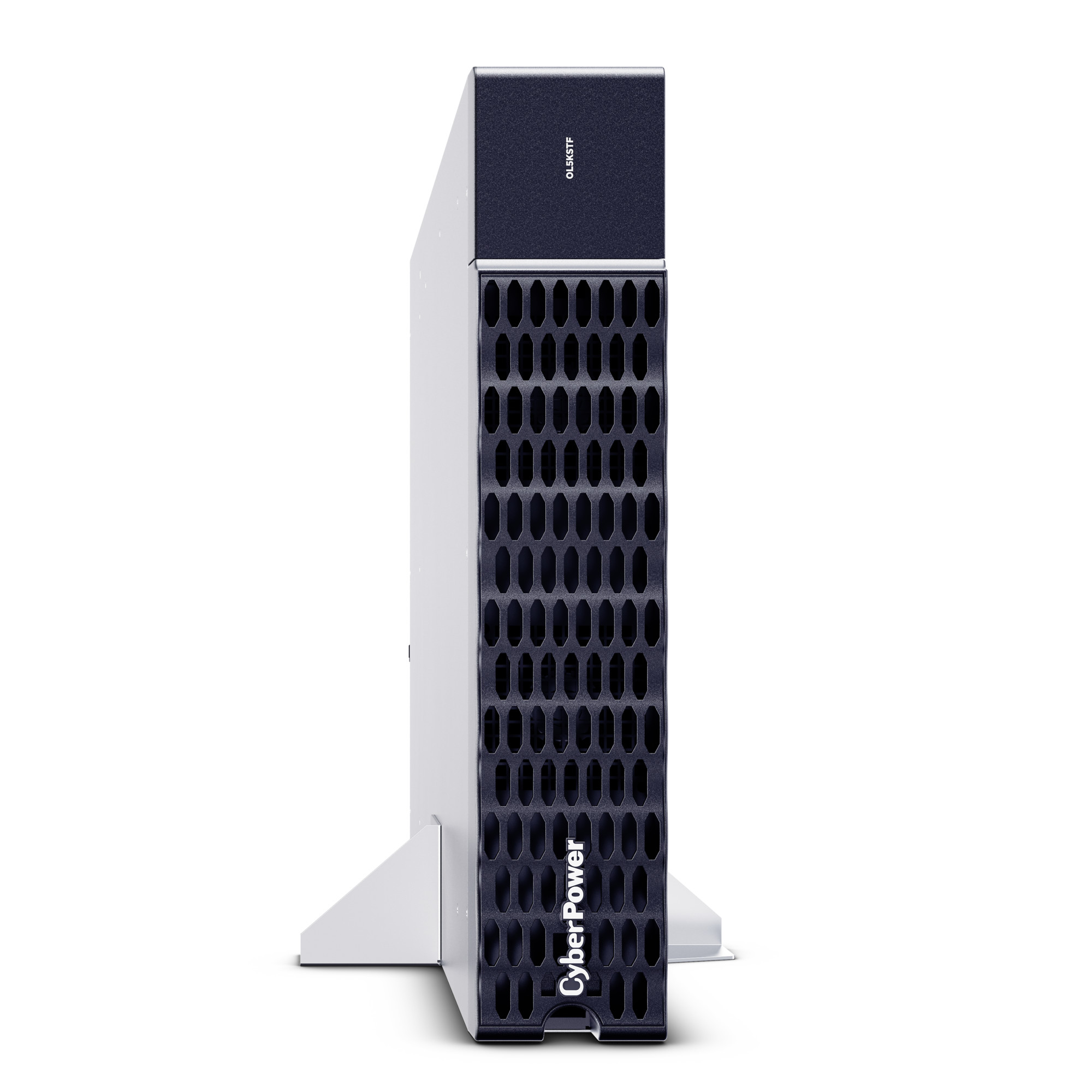

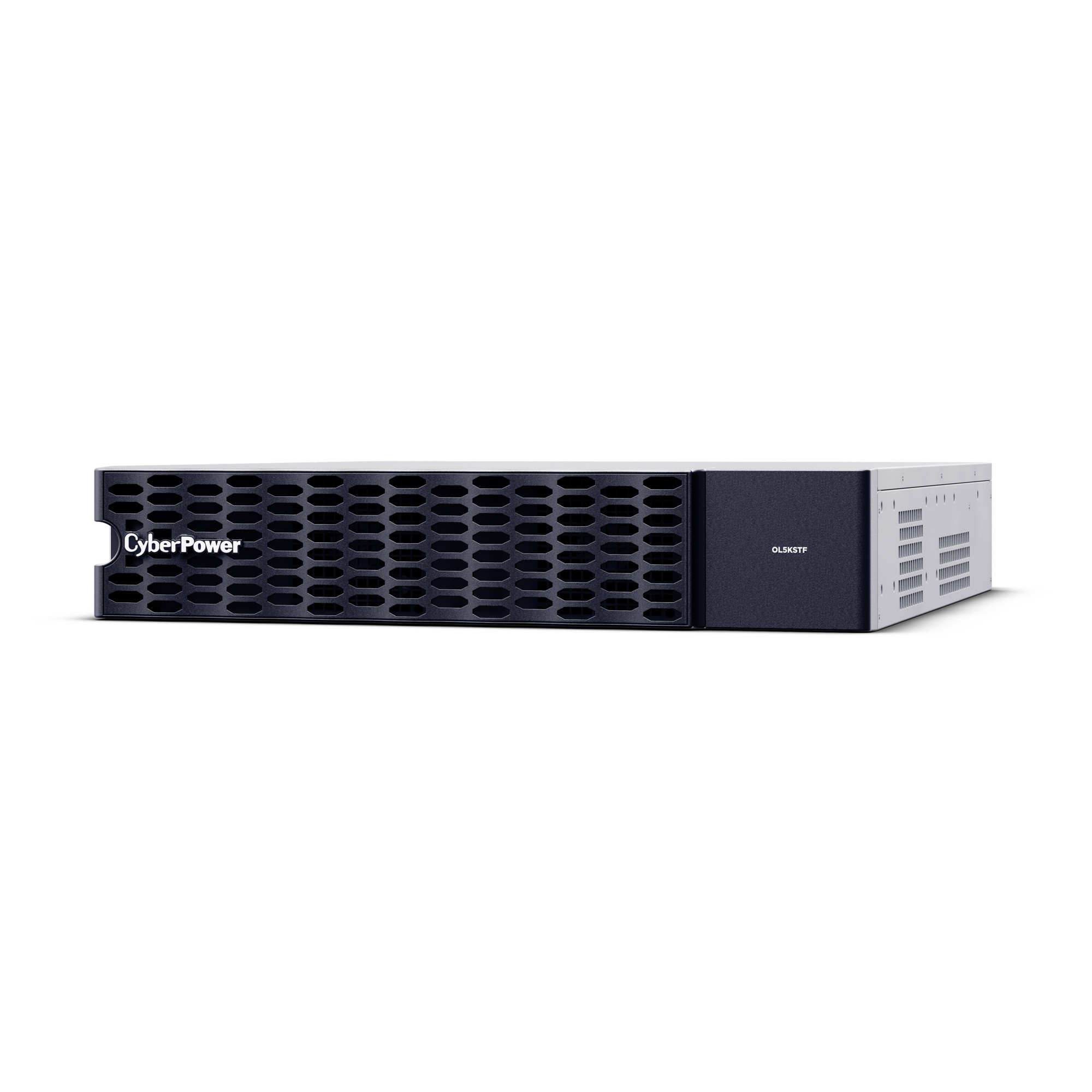

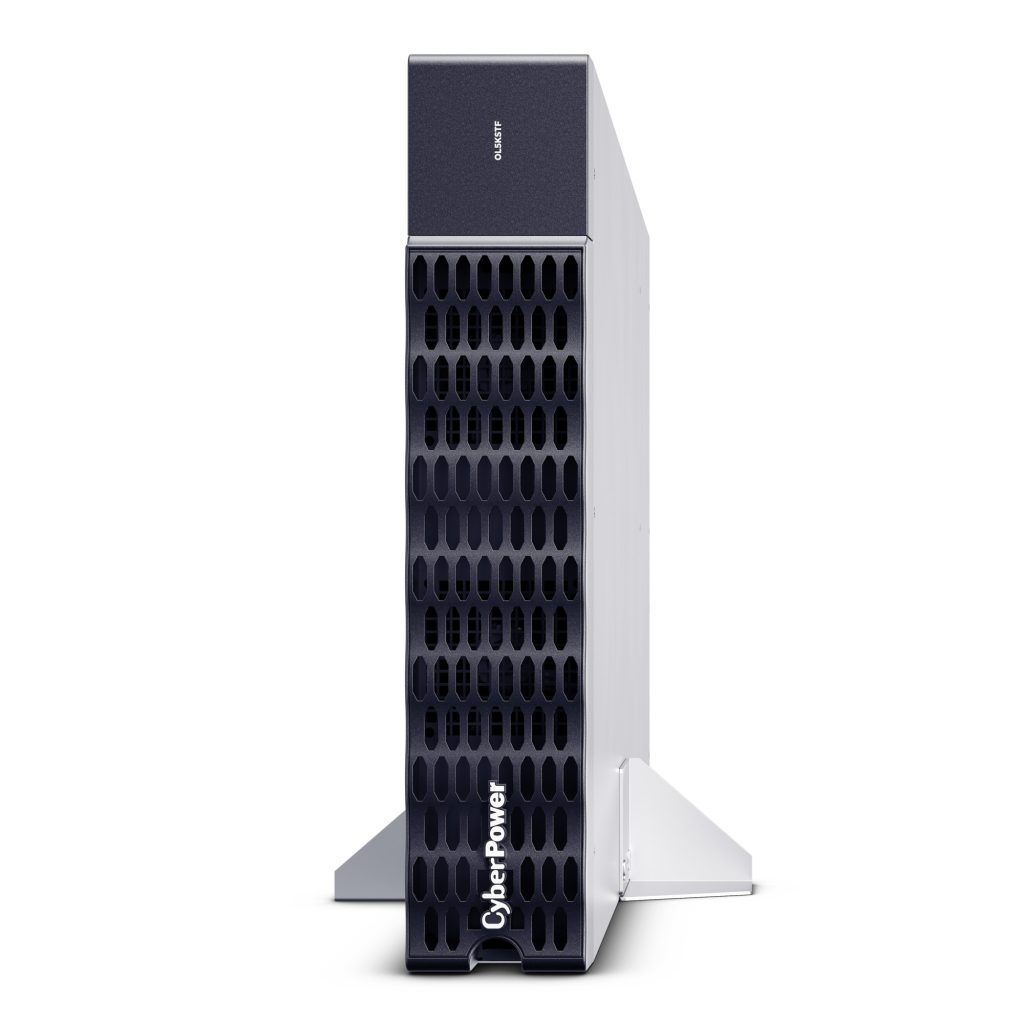

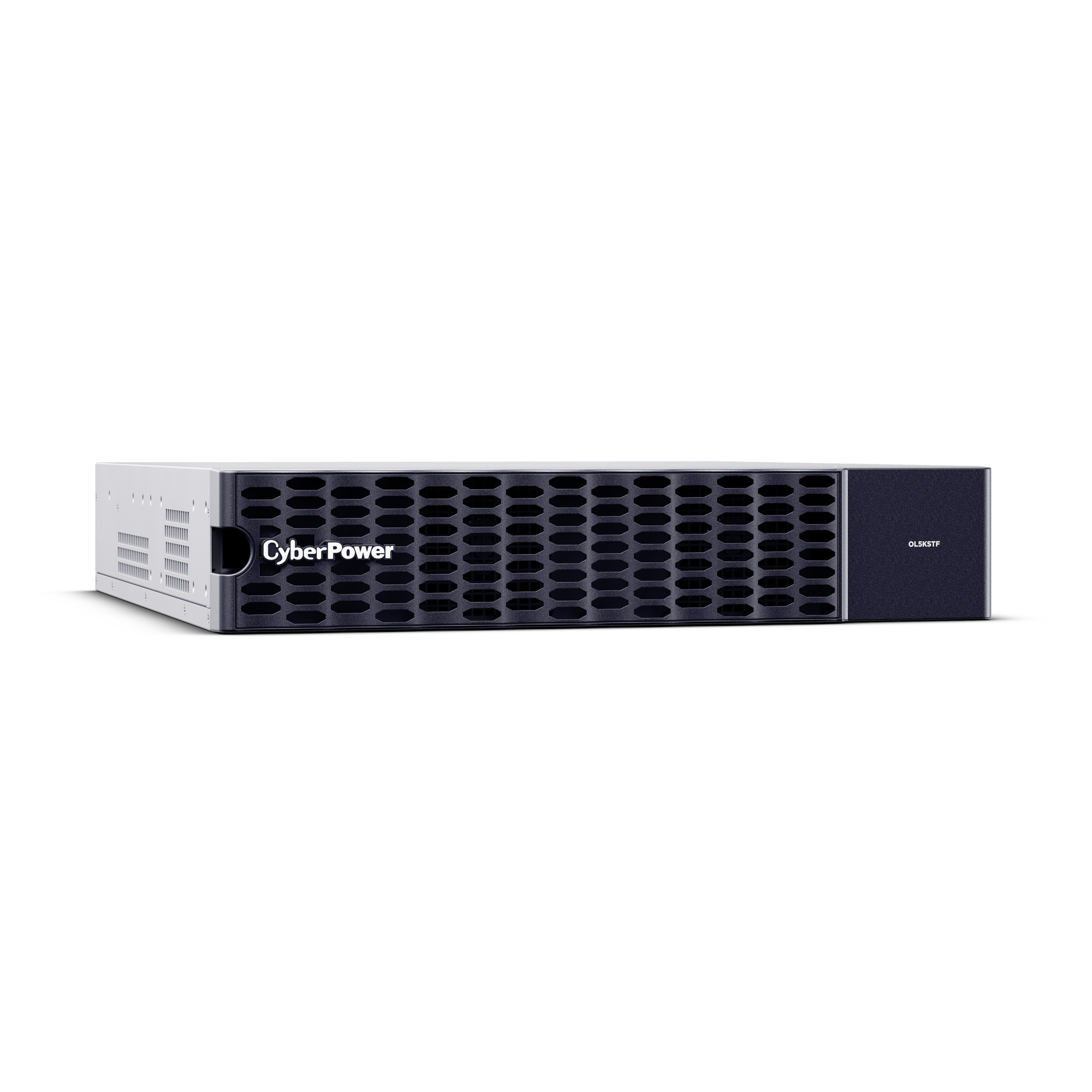

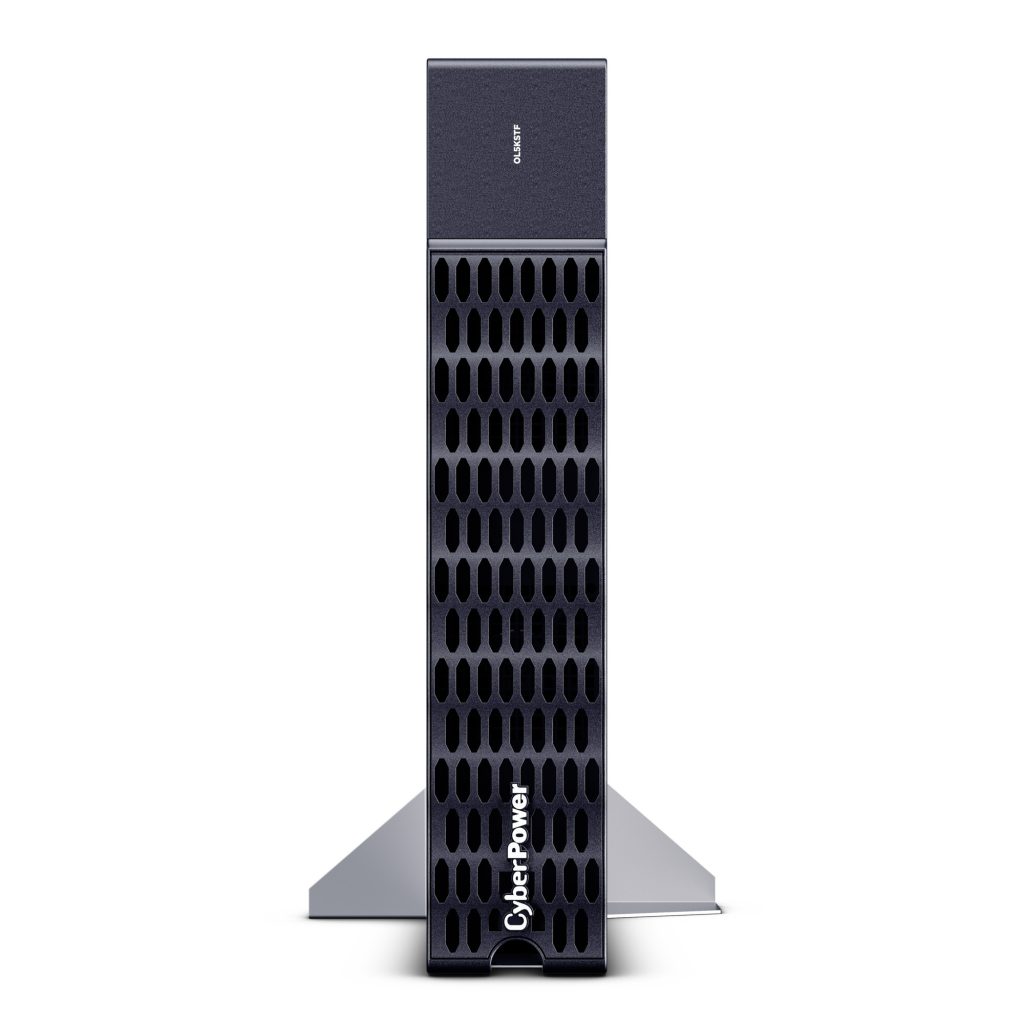

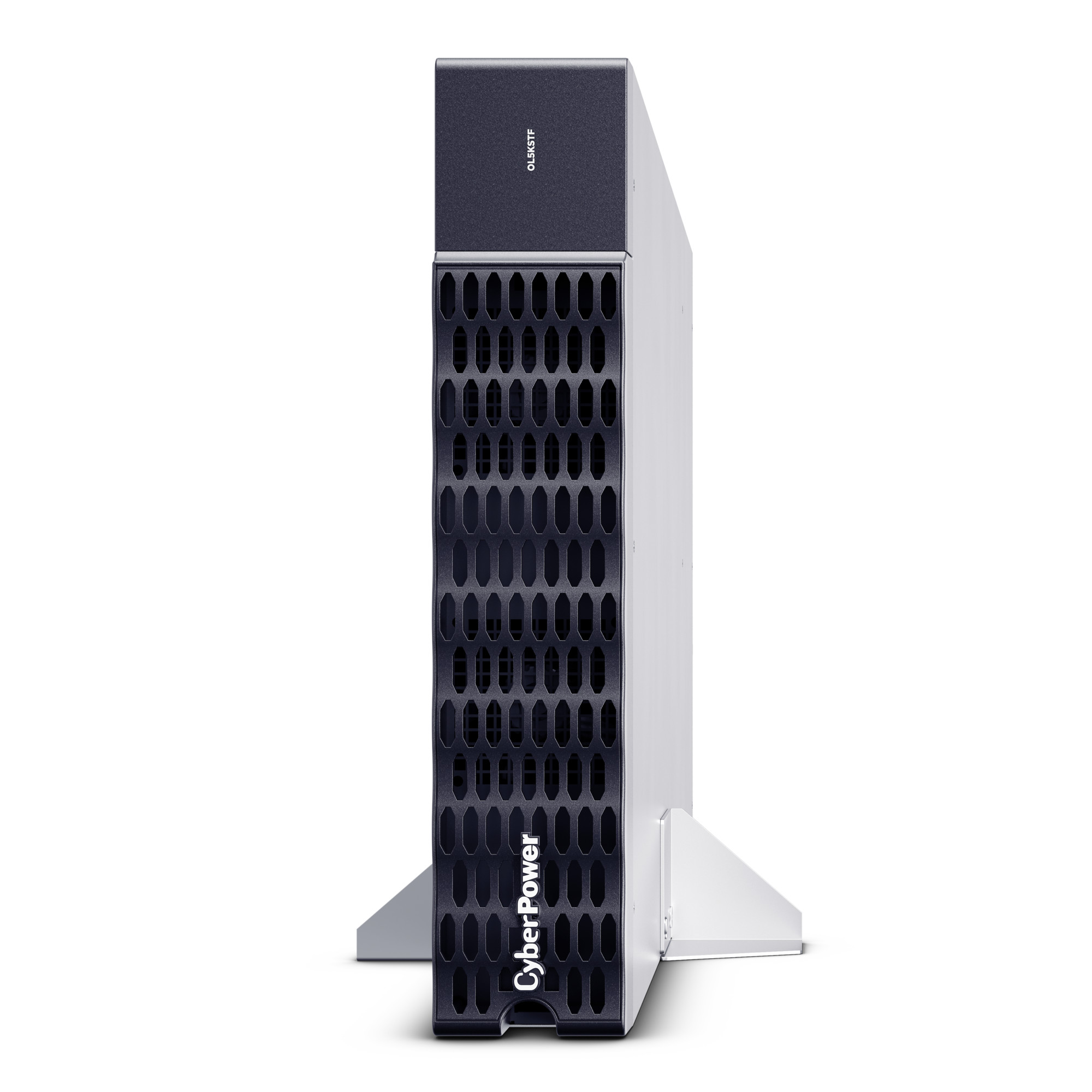

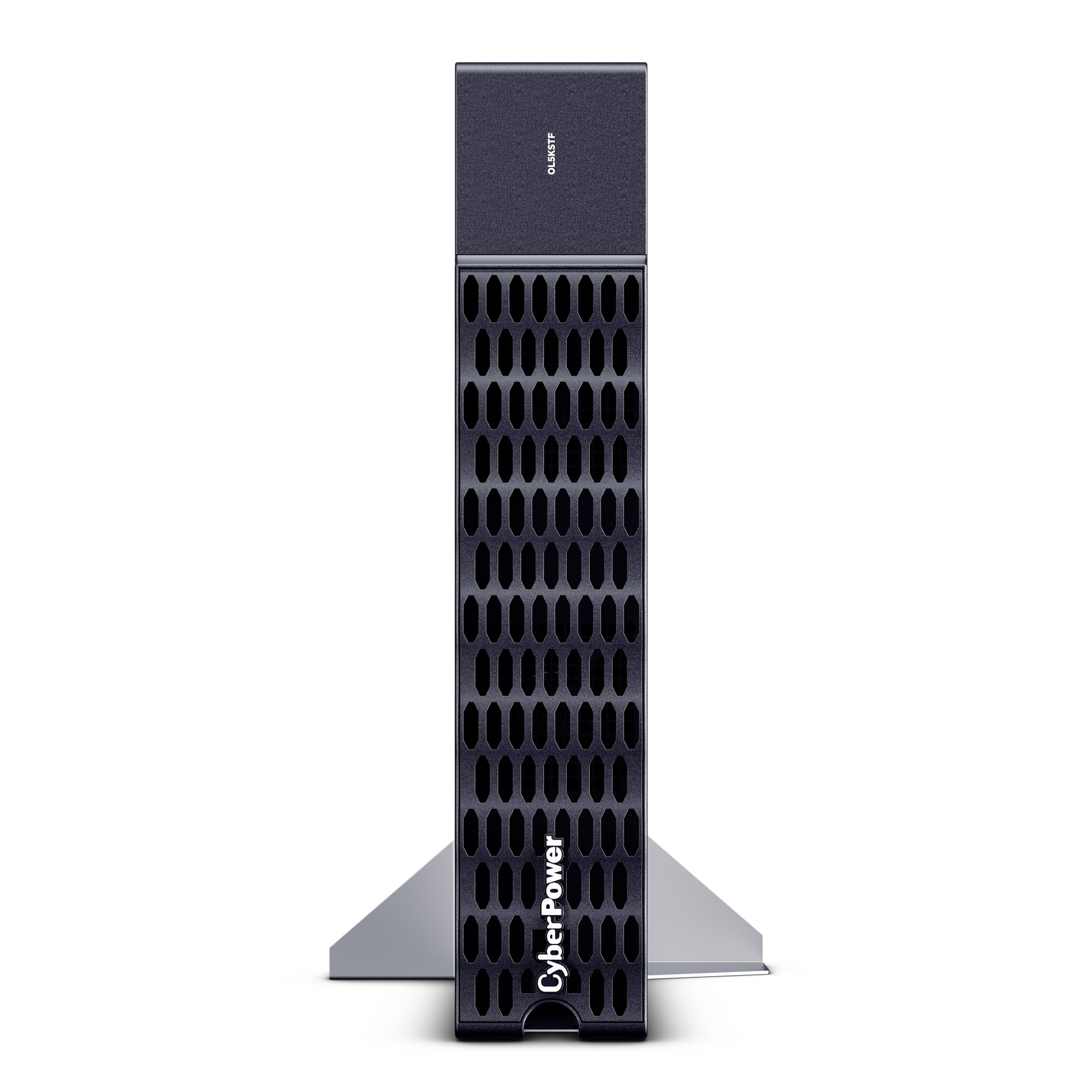

  • Rack/Tower Versatility
    Allows for horizontal rack or vertical tower installation.
  • Frequency Supported
    The OL5KSTF has the flexibility to support both 50 Hz and 60 Hz output.
  • Over Temperature Protection
    Protects the OL5KSTF from damage if the internal heat exceeds safe operating parameters.
  • Resettable Input and Output Circuit Breakers
    Convenient, resettable switches that provide protection from an input or output overload and faults.
  • Three Year Warranty
    CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.
Specifications
Expand All
General
Current Rating 30 A
Over Temperature Protection Yes
UPS Topology Step-Down Transformer
Input
Cord Length 3 ft (0.9 m)
Input Frequency Range 50 Hz – 60 Hz
Input Plug Type Hardwire Terminal (NEMA L6-30P power cord included)
Maximum Input Current 30A
Nominal Input Voltage 208 VAC
Output
Nominal Output Voltage 120 VAC
208 VAC
Outlet Type 12 – NEMA 5-20R
Outlets – Total 12
Output Frequency 50/60 Hz (auto-sensing/configurable)
Overload Protection Circuit Breaker Protected
USB Charge Port No
VA 5000 VA
Watts 5000 W
Physical
Color Silver
Form Factor Rackmount
Material of Construction Metal
Mounting Hardware Yes
Rack Height 2U

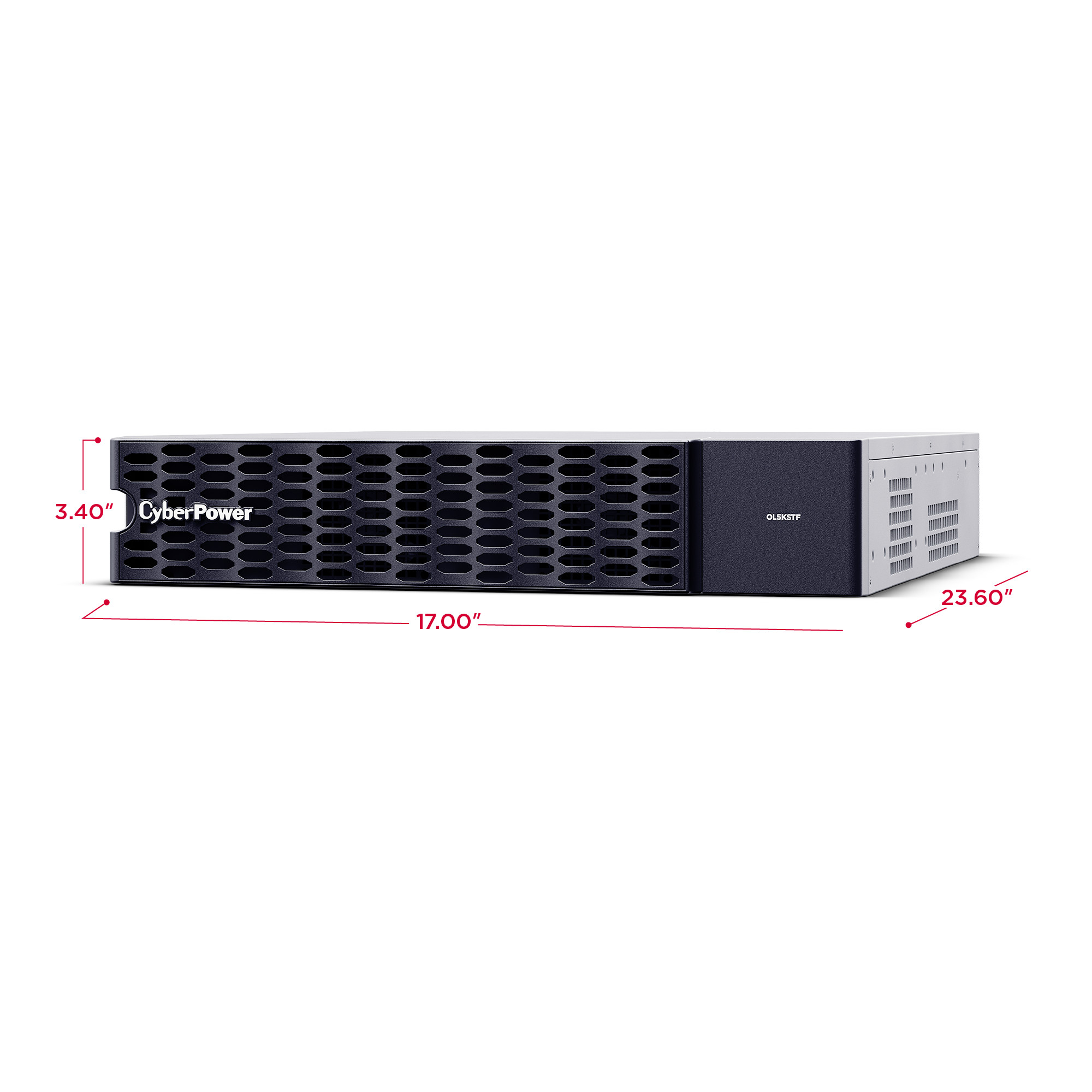

Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.64 x 59.94 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.4 x 23.6 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 86 x 599 (mm)
Physical Weight (kg) 38.01
Physical Weight (lb) 83.8
Dimensions – Shipping
Shipping – Weight (kg) 52.48
Shipping – Weight (lb) 115.7
Shipping Dimensions – (WxHxD) (cm) 59.94 x 33.02 x 89.92 (cm)
Shipping Dimensions – (WxHxD) (in) 23.6 x 13.0 x 35.4 (in)
Shipping Dimensions – (WxHxD) (mm) 599.44 x 330.2 x 899.16 (mm)
Environmental
Audible noise at 1m from surface of unit 58 dBA
Operating Elevation 0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity 0 – 90 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature -4 – 113 °F (-20 – 45 °C)
Compatibility
UPS Models OL3000RTXL2UHV, OL5KRTHD, OL6KRT, OL6000RT3UPDU, OL6KRT3UHW, OL6KRTHD, OL6KRTHW, OL6KRTMB, OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRTHW, OL10KRTMB
Certifications
Environmental RoHS Compliant
Safety UL1778 5th Ed.
CSA C22.2 No.107.3-05
Warranty
Extended Warranty Option WEXT5YR-ACC2C
Product Warranty 3 Year Limited Warranty
