Hardware

OL8K10KRT3UTF

$1,759.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Step-down transformer: 5000VA / 5000W
  • Output: 120V 50/60Hz
  • Power conversion: 208V from utility, UPS, and generator to 120V Output
  • Plug type & cord: NEMA L6-30P plug; 10 ft. cord
  • Outlets: 12 NEMA 5-20R (supports 5-15P and 5-20P input)
  • Form factor: 2U Rack/Tower convertible
  • Over temperature protection: Yes
  • Warranty: 3 year
Overview

Product Overview

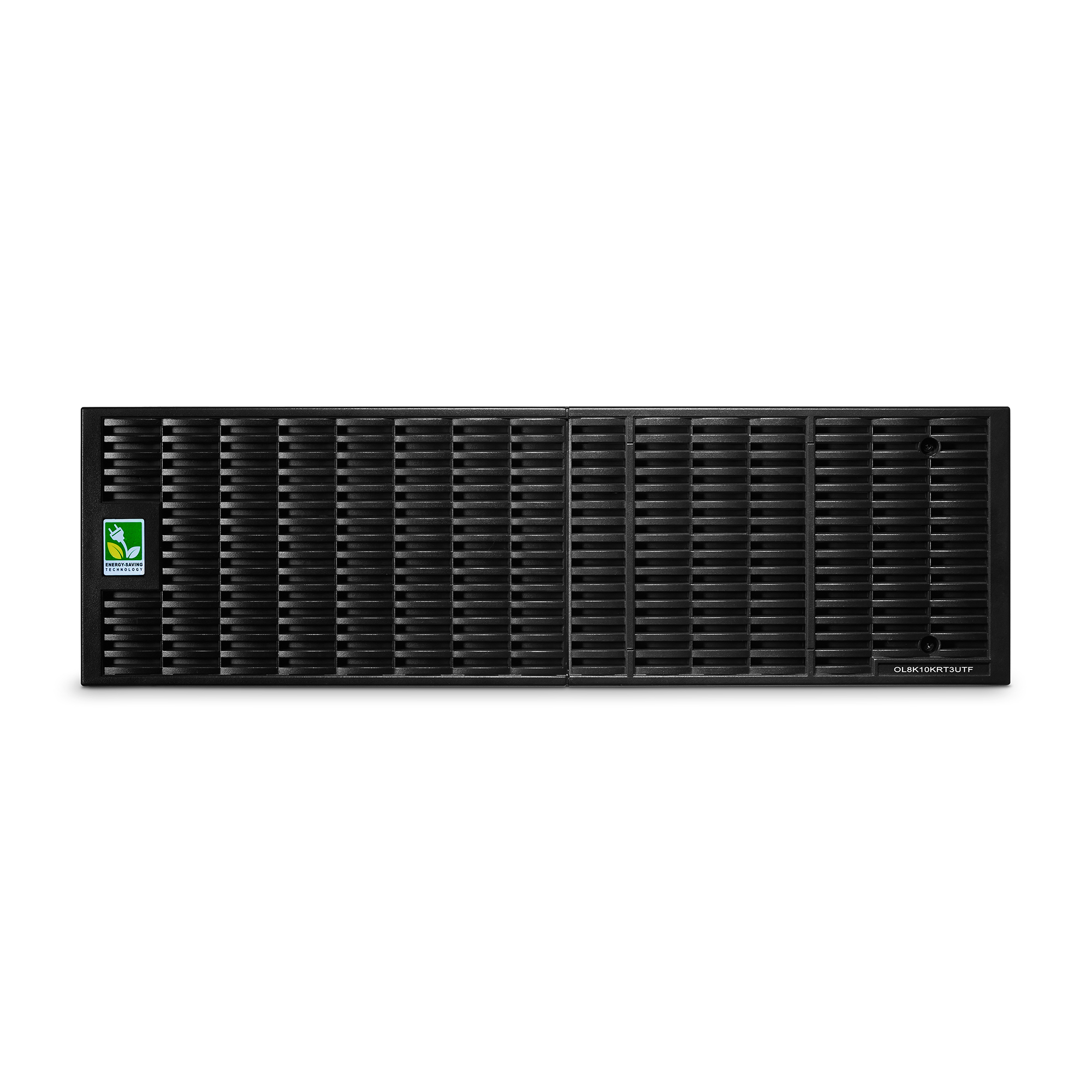

The CyberPower OL8K10KRT3UTF rack/tower step-down isolation transformer converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output. A 10-foot cord (NEMA L6-30P plug) connects the OL8K10KRT3UTF to input power. Over temperature protection safeguards the transformer from damage if the internal heat exceeds safe operating parameters.

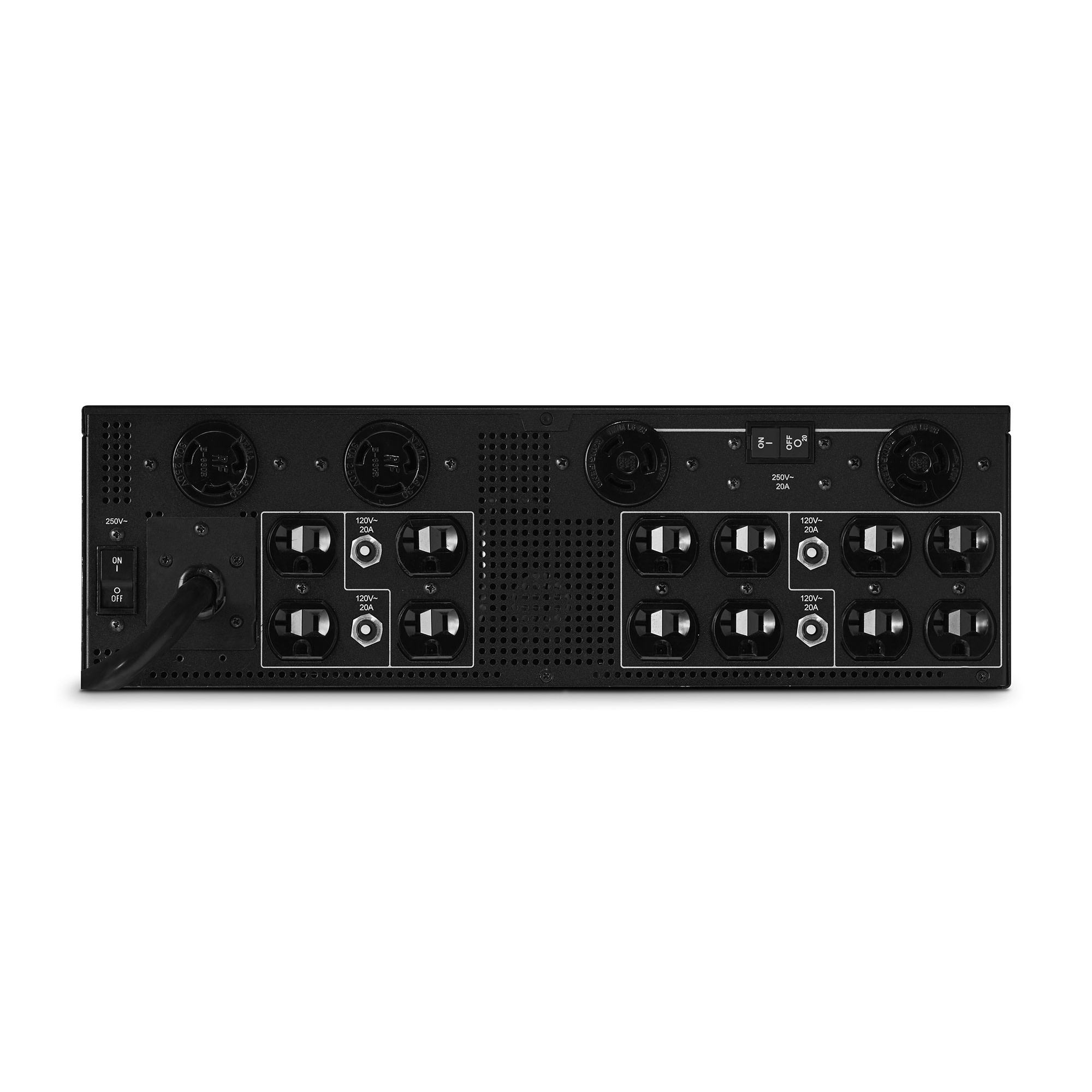

The OL8K10KRT3UTF has a capacity of 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. In addition it also has two (2) NEMA L6-20R and two (2) NEMA L6-30R outlets to power additional 208V equipment.

A Three-Year Warranty ensures that this device has passed our highest quality standards in design, assembly, material and workmanship.

  • Step-Down Transformer

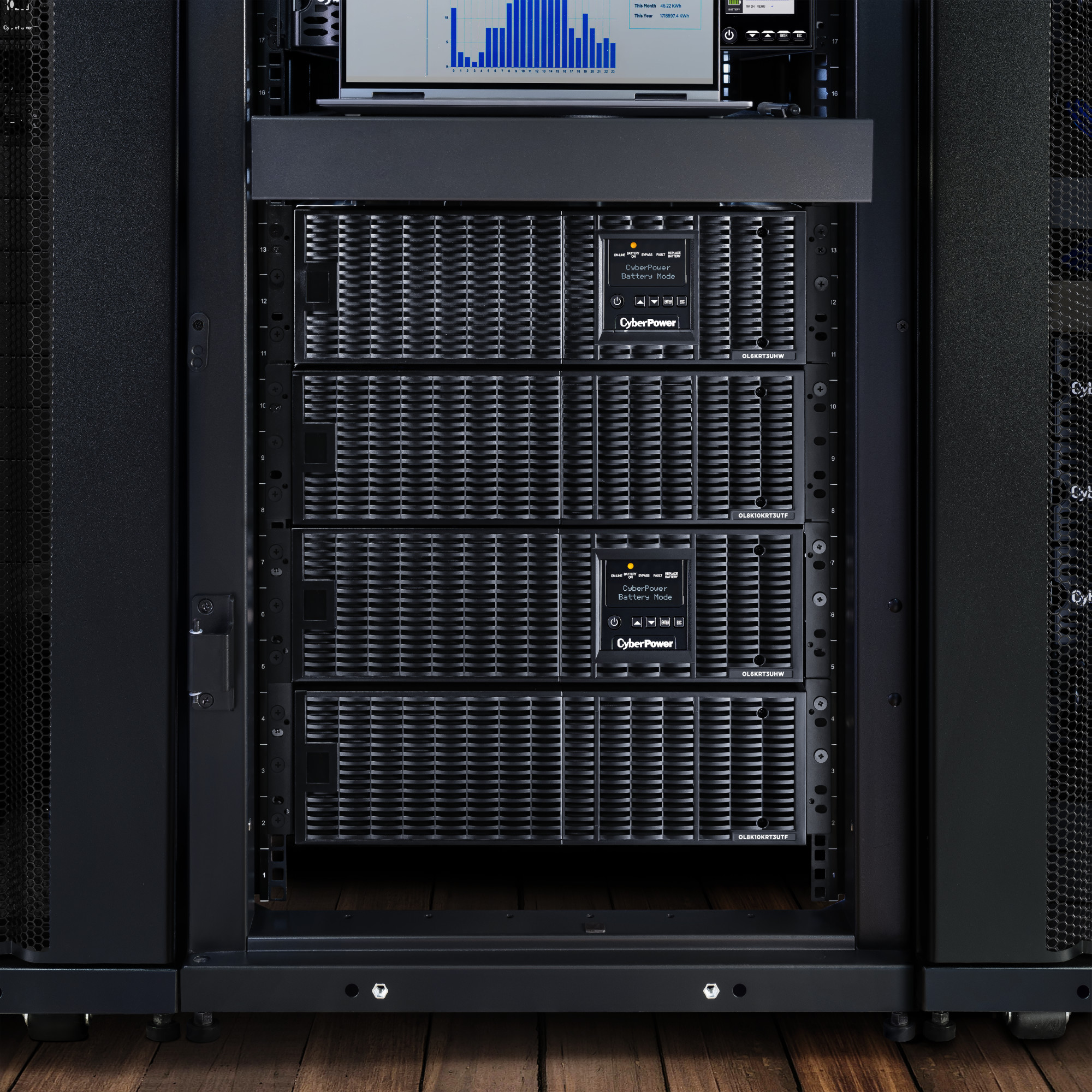

    The step-down transformer provides IT managers the ability to support both 120V and 208V output requirements with a single UPS solution.
  • NEMA L6-30P Plug
    The step-down transformer comes with a 10 foot power cord with a NEMA L6-30P plug.
  • Frequency Supported
    Has the flexibility to support both 50Hz and 60Hz output.
  • Over Temperature Protection
    Protected from damage if the internal heat exceeds safe operating parameters.
  • Resettable Input and Output Circuit Breakers
    Convenient switches that provide protection from an input or output overload and faults.
  • ISO and Safety Certifications
    CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the CE, UL, and cUL.
  • Technical Support
    CyberPower will assist customers with any product, installation, or warranty concerns.
  • Three-Year Warranty
    CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.

Specifications
Expand All

General
Type Step-Down Transformer
Over Temperature Protection Yes
Input
Nominal Input Voltage 208Vac
Input Voltage Range 200Vac – 240Vac
Input Frequency Range 50/60Hz
Input Amperage 30A (Derated 24A)
Plug Type NEMA L6-30P
Cord Length 10 ft
Output
VA 5,000 (5.0 kVA)
Watts 5,000 (5.0 kW)
Nominal Output Voltage 120Vac and 208Vac
Frequency 50/60Hz
Outlets – Total 16
Outlet Type (12) NEMA 5-20R

(2) NEMA L6-20R

(2) NEMA L6-30R

Overload Protection Output Circuit Breakers
Physical
Form Factor Rack/Tower
Installed Rack Height 3U
Mounting Hardware Included
Enclosure Contruction Steel
Dimensions (WxHxD) (in.) 17 x 5.25 x 26
Dimensions (WxHxD) (mm.) 433 x 132 x 660
Weight (lbs.) 159.7
Weight (kg.) 72.6
Shipping Dimensions (WxHxD) (in.) 23.6 x 14.9 x 35.4
Shipping Dimensions (WxHxD) (mm.) 600 x 378 x 900
Shipping Weight (lbs.) 195.8
Shipping Weight (kg.) 89
Environmental
Operating Temperature 32 °F to 104 °F / 0 °C to 40 °C
Operating Humidity 0% – 90% non-condensing
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature -4°F to 113°F / -20°C to 45°C
Storage Relative Humidity 0% – 95% non-condensing
Storage Elevation 0-50000 feet (0-15000 meters)
Online Thermal Dissipation 898 BTU/hr
Audible noise at 1.5M from surface of unit 55 dBA
Compatibility
UPS Models OL3000RTXL2UHV

OL6000RT3U

OL6000RT3UPDU

OL6KRT3UHW

OL8000RT3U

OL8000RT3UPDU

OL8KRT3UHW

OL10000RT3U

OL10000RT3UPDU

OL10KRT3UHW

PR5000LCDRTXL5U

PR6000LCDRTXL5U

Certifications
Safety UL, cUL, CE
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited

Downloads

OL8K10KRT3UTF Step-Down Transformer

359 KB

OL8K10KRT3UTF Step-Down Transformer

1.62 MB
