Hardware

4POSTRAIL

$69.95 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Equipment support: 1U, 2U, and 3U equipment
  • Adjustable range: From 18.5″ to 29″
  • Weight capacity: Supports up to 231 lbs.
  • Attachment hardware included: Yes
Overview

Product Overview

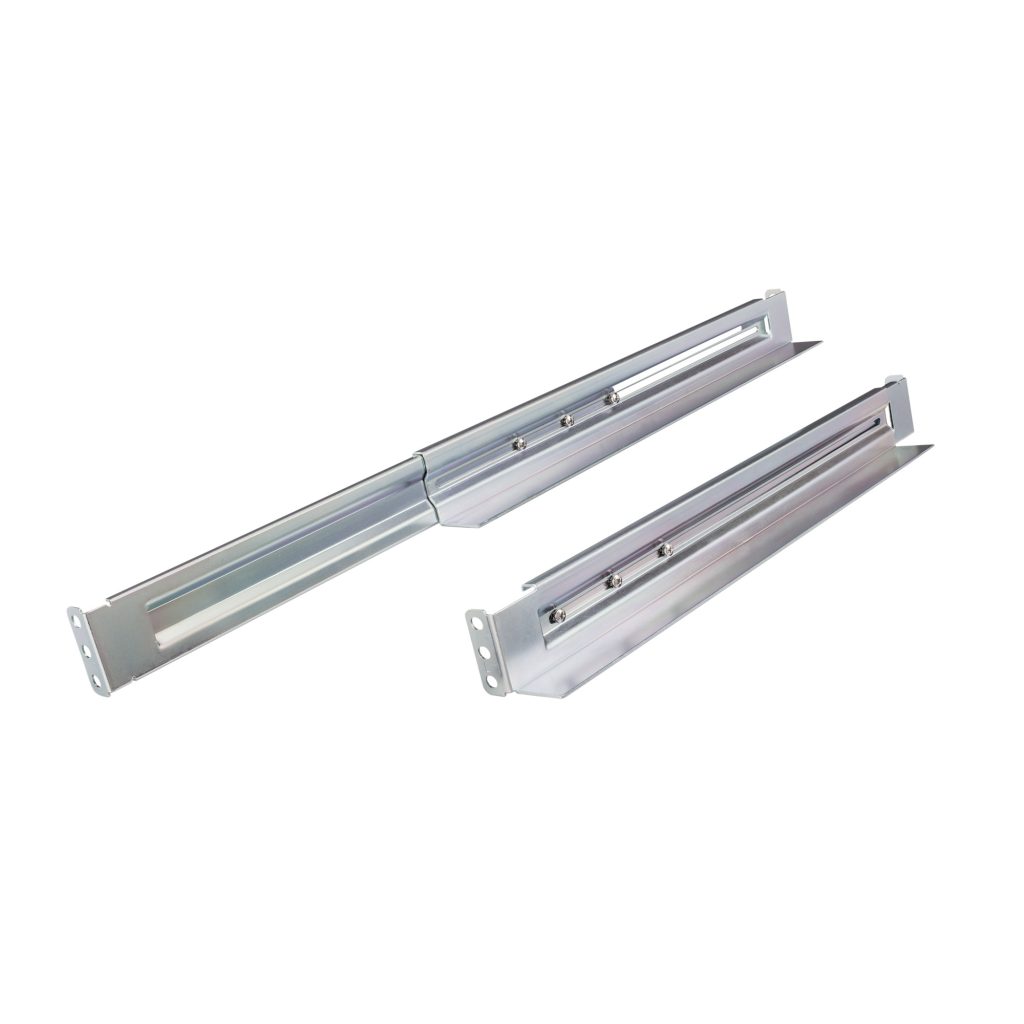

The CyberPower 4POSTRAIL 4-post rackmount rail kit provides a universal mounting solution for 1U, 2U, and 3U equipment weighing up to 231 pounds. The two adjustable rails (right and left) can be expanded from 18.5" to 29" for various sizing requirements. Along with the rails, the 4POSTRAIL kit includes the necessary screws for attachment.

A Five-Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions.

A Five-Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions.

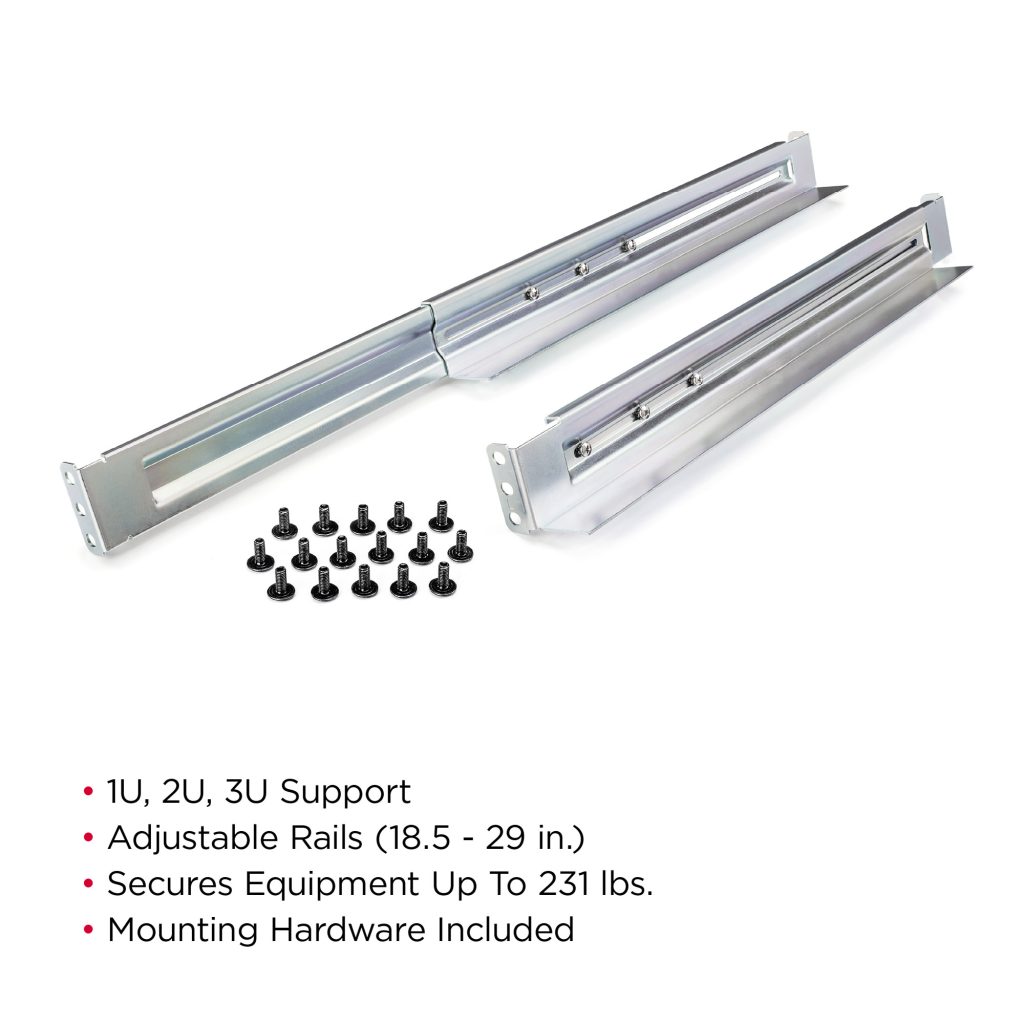

Product Features
  • 1U, 2U, 3U Support
    The universal 4POSTRAIL kit can be used with 1U, 2U, 3U equipment up to 231 pounds.
  • Adjustable Rails
    Extend from 18.5” to 29” for proper fit with various sizing requirements.
  • 4-Post Mounting
    Secures equipment at both the front and back of the rack.
  • Mounting Hardware

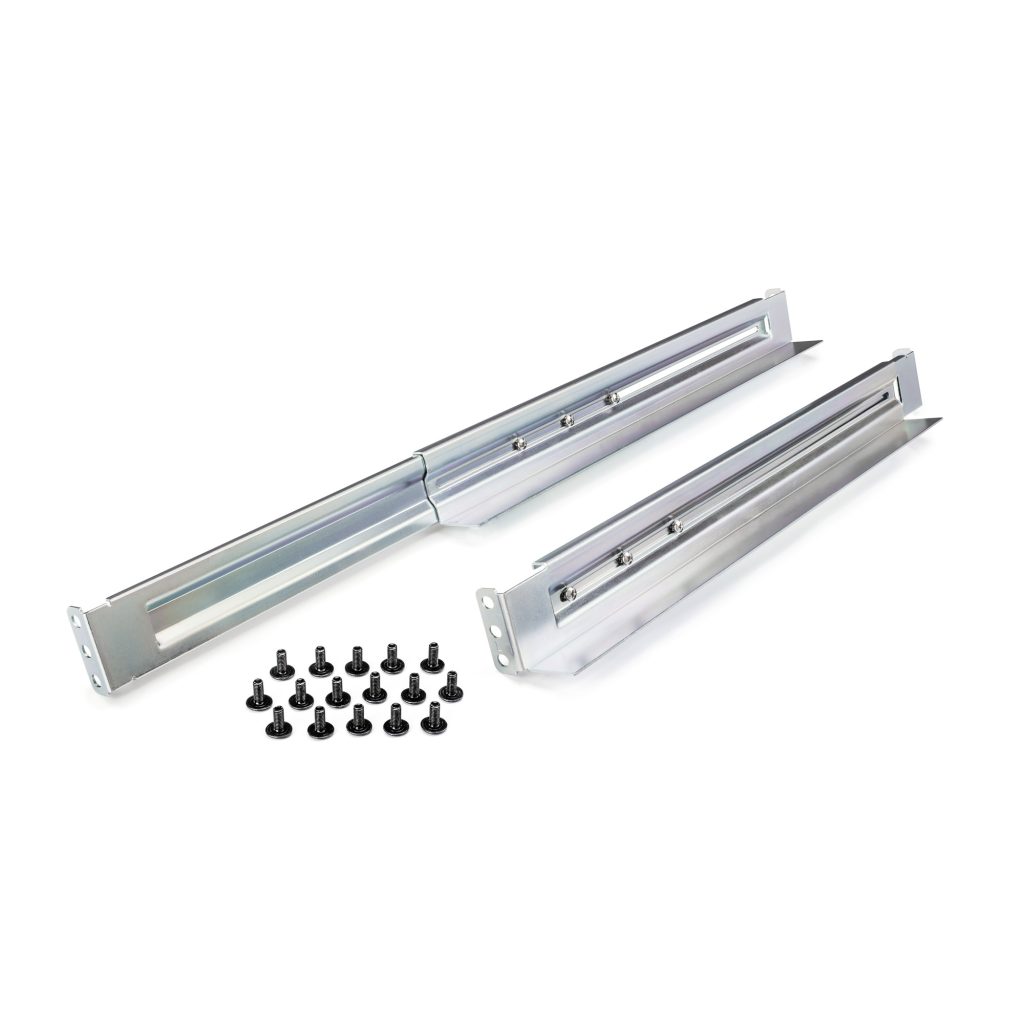

    Sixteen (16) M5 x 12 screws are included to secure the rails to each post.
  • Limited 5-Year Warranty
    Stringent manufacturing processes and innovative product design allows CyberPower to offer one of the strongest warranties in our industry.
Compatible Products
Specifications
Expand All
Physical
Installed Rack Height 1.75 inches (1U)
Rack Height Compatibility 1U, 2U, 3U, and up (weight cannot exceed 231 lbs.)
Capacity (lbs./kg.) 231 lbs / 105 kg
Adjustable Length (in.) 18.5 to 29 inches
Mounting Hardware Included
Enclosure Construction Steel

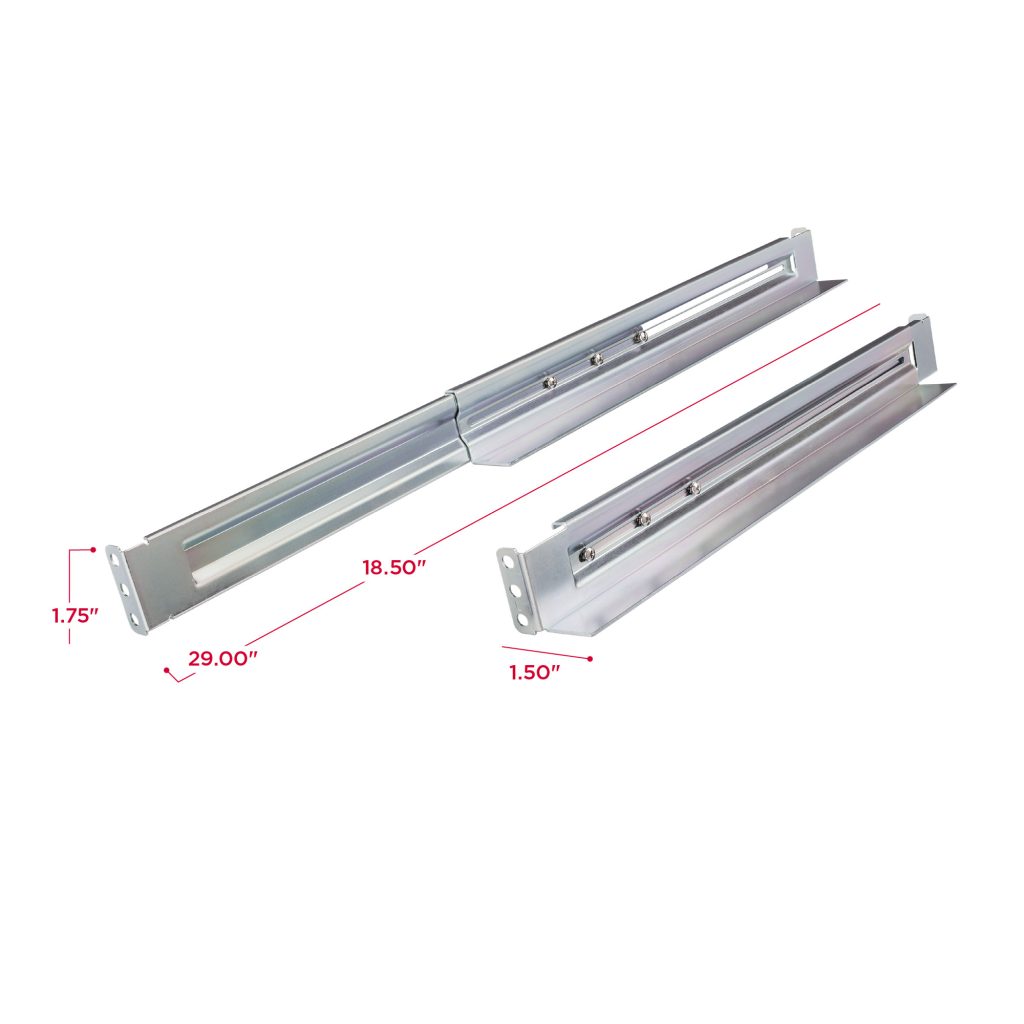

Dimensions (WxHxD) (in.) 1.5 x 1.75 x 18.5 to 29 inches
Dimensions (WxHxD) (mm.) 38.1 x 44.45 x 469.9 to 736.6 millimeters
Weight (lbs.) 3.6 lbs
Weight (kg.) 1.63 kg
Warranty
Product Warranty 5 Years Limited
