BP144VL2U01


Extended Battery Modules
  • Typical recharge time (0-90%): 4 hours
  • Battery type & quantity: 12V/9AH (12)
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Battery Equalization Technology: Yes
  • Smart Battery Management: Yes
  • Fast Charge Technology: Yes
  • Warranty: 3 year
MSRP  $1,129.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

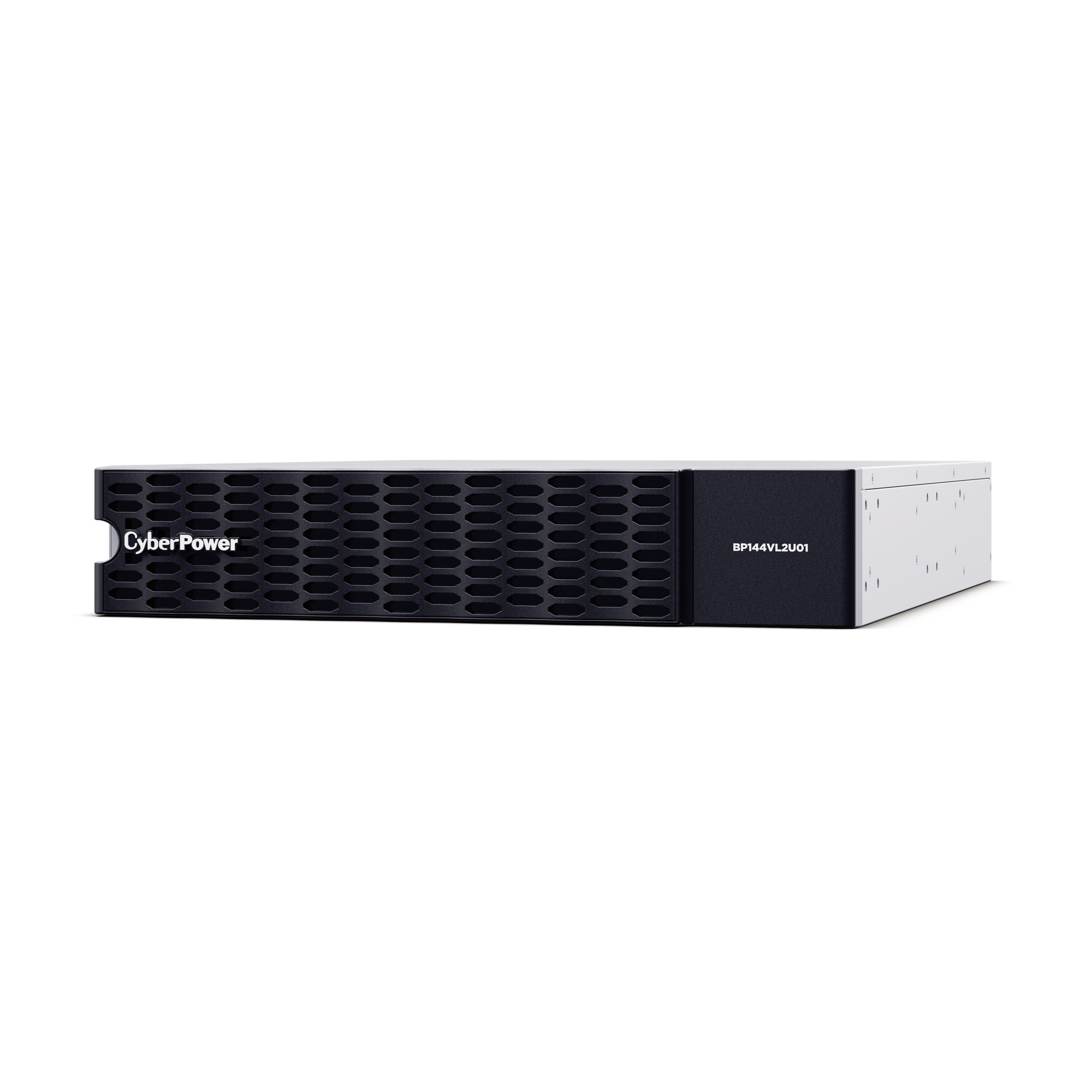

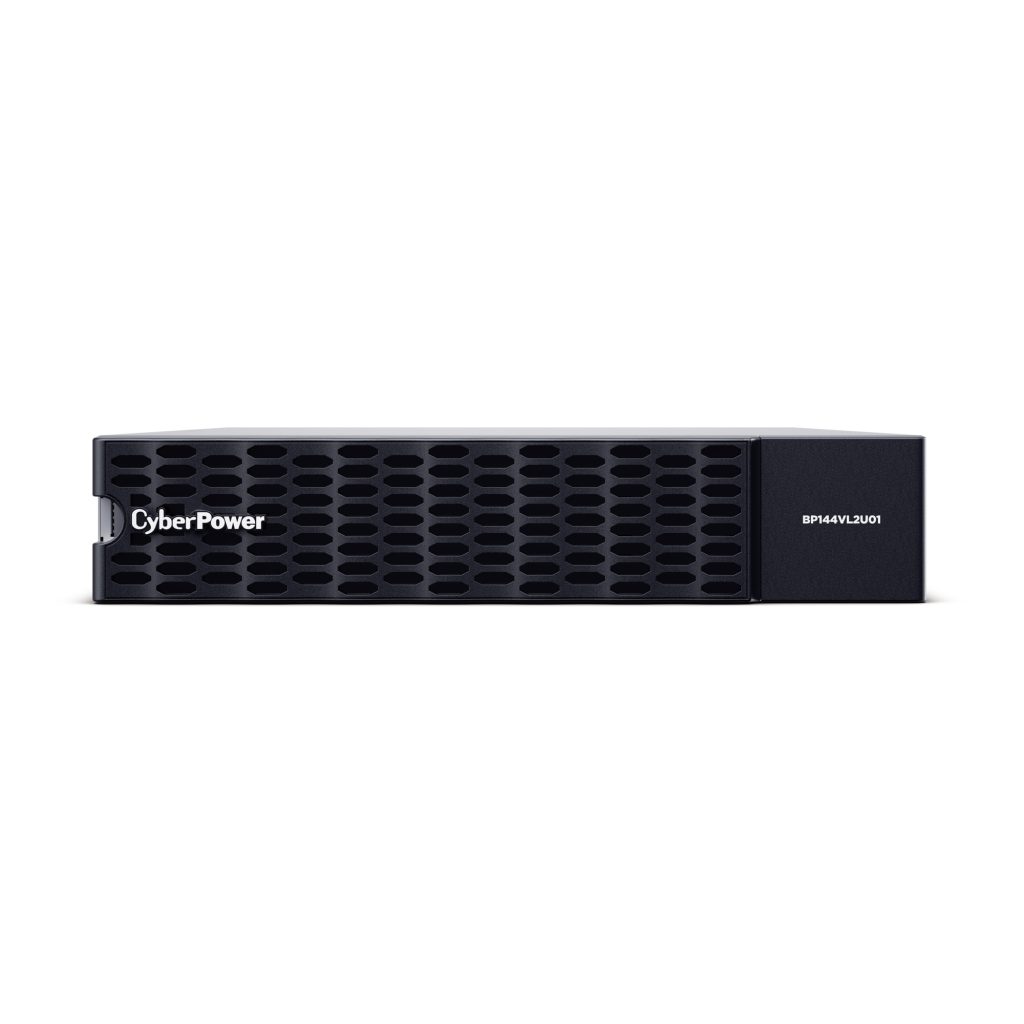

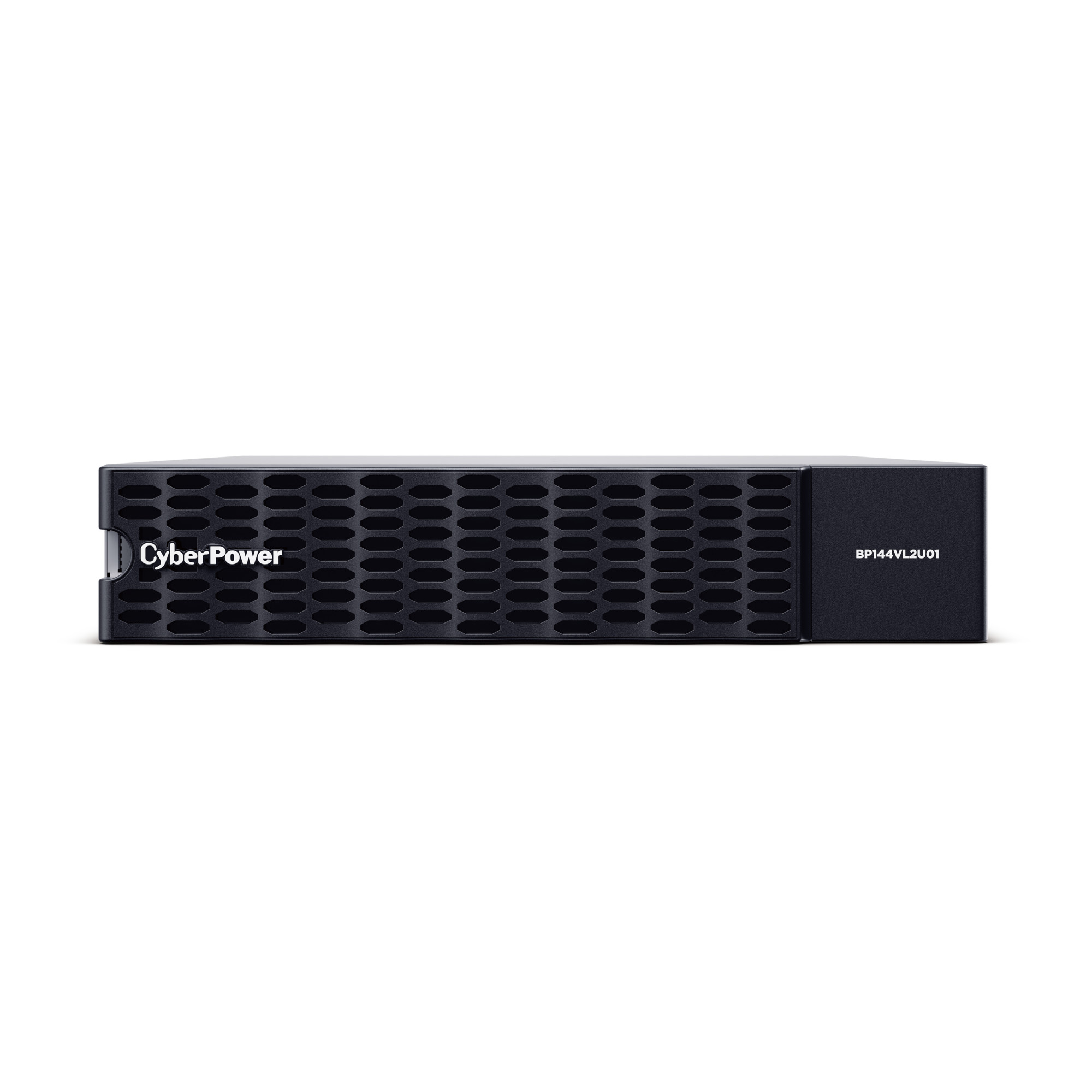

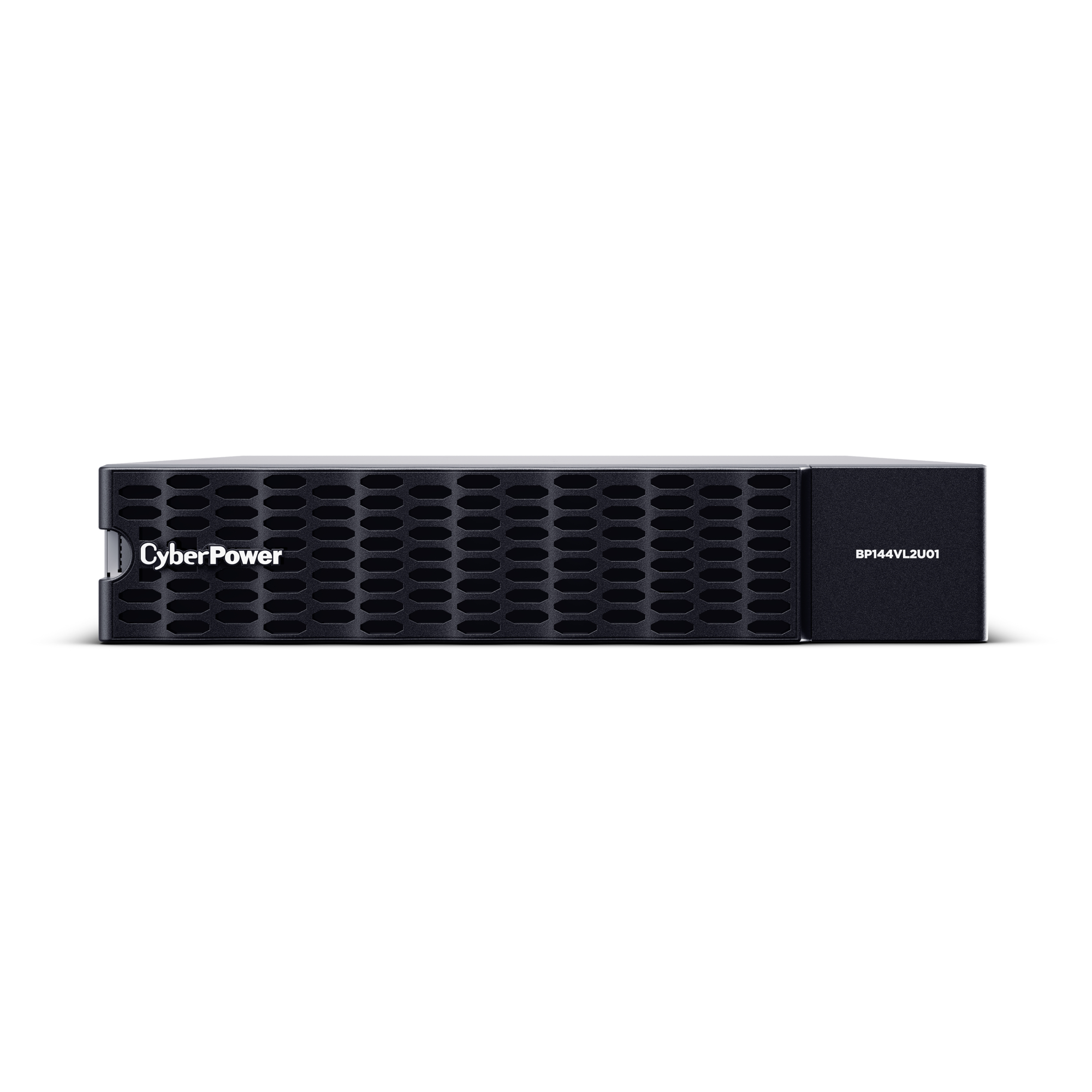

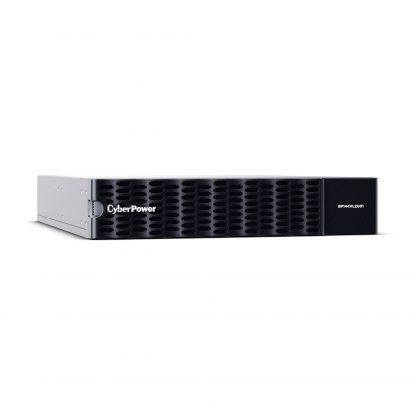

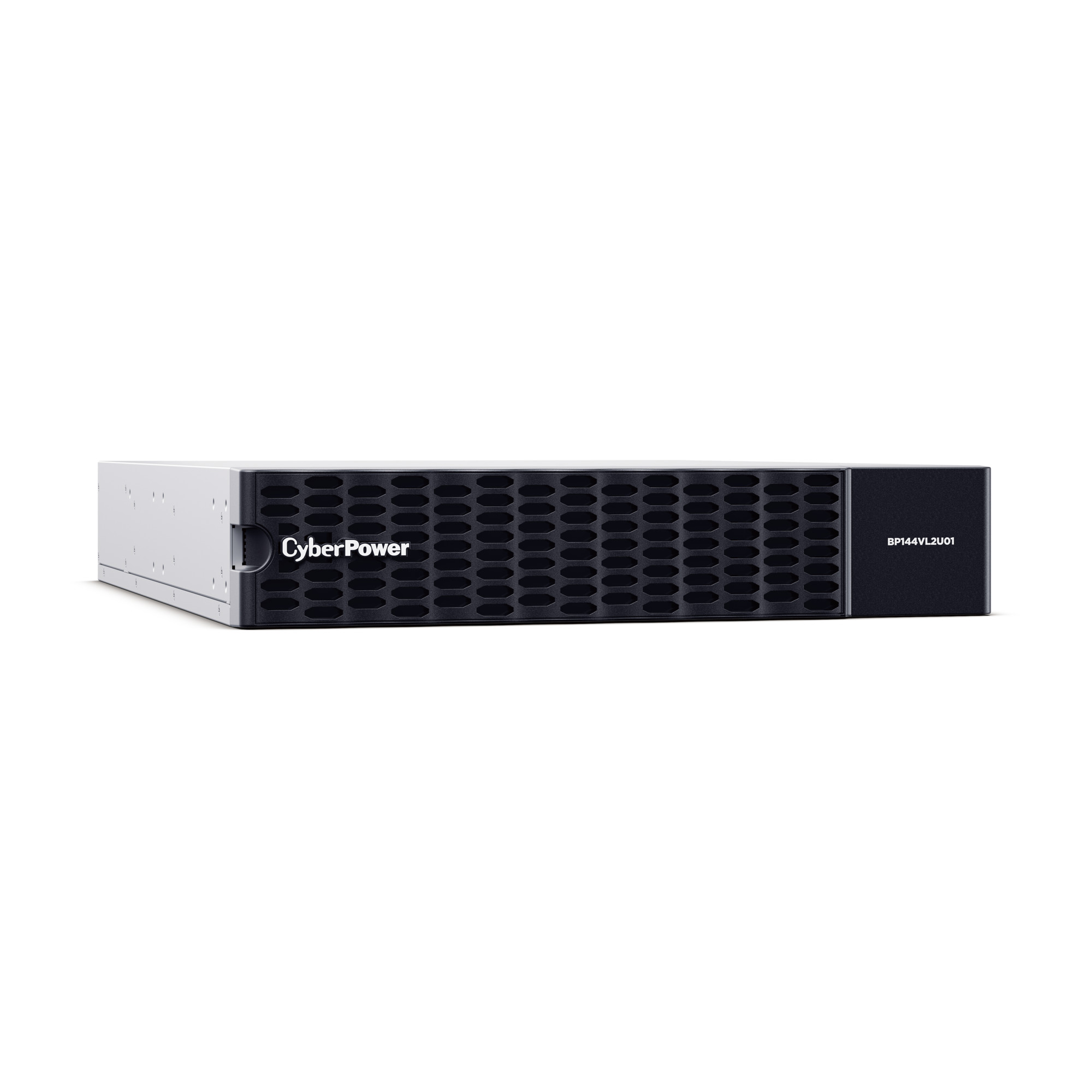

BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages

Product Overview


The CyberPower BP144VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL5KRTHD and OL6KRTHD.

The BP144VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.

  • Extended Battery Module (EBM)
    Extends runtime by adding up to 10 EBMs.
  • Battery Equalization Technology
    Battery Equalization is an advanced charging process that maintains the
    voltages of the batteries at the same level to increase battery life.

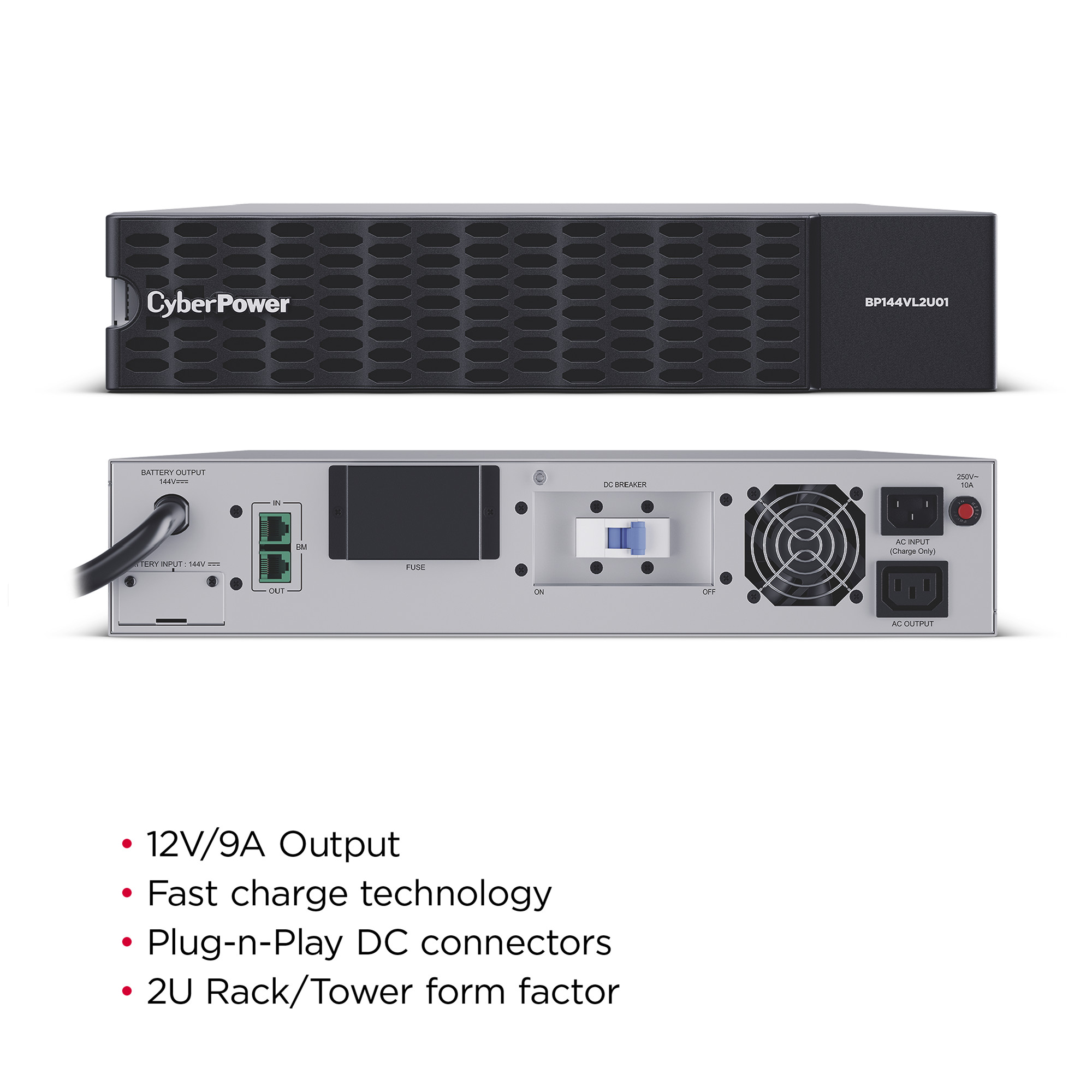

  • Fast Charge Technology
    Allows UPS batteries to return to full capacity more rapidly by
    utilizing a built-in charger. Restores charge from 0-90% within four
    hours regardless of the number of EBMs.
  • Smart Battery Management
    Improves and extends the functional life of a UPS battery and reduces
    excessive heat during work cycles by using a three-cycle charging
    process.
  • Hot-Swappable Batteries
    Keeps equipment running by eliminating downtime during UPS power
    maintenance.

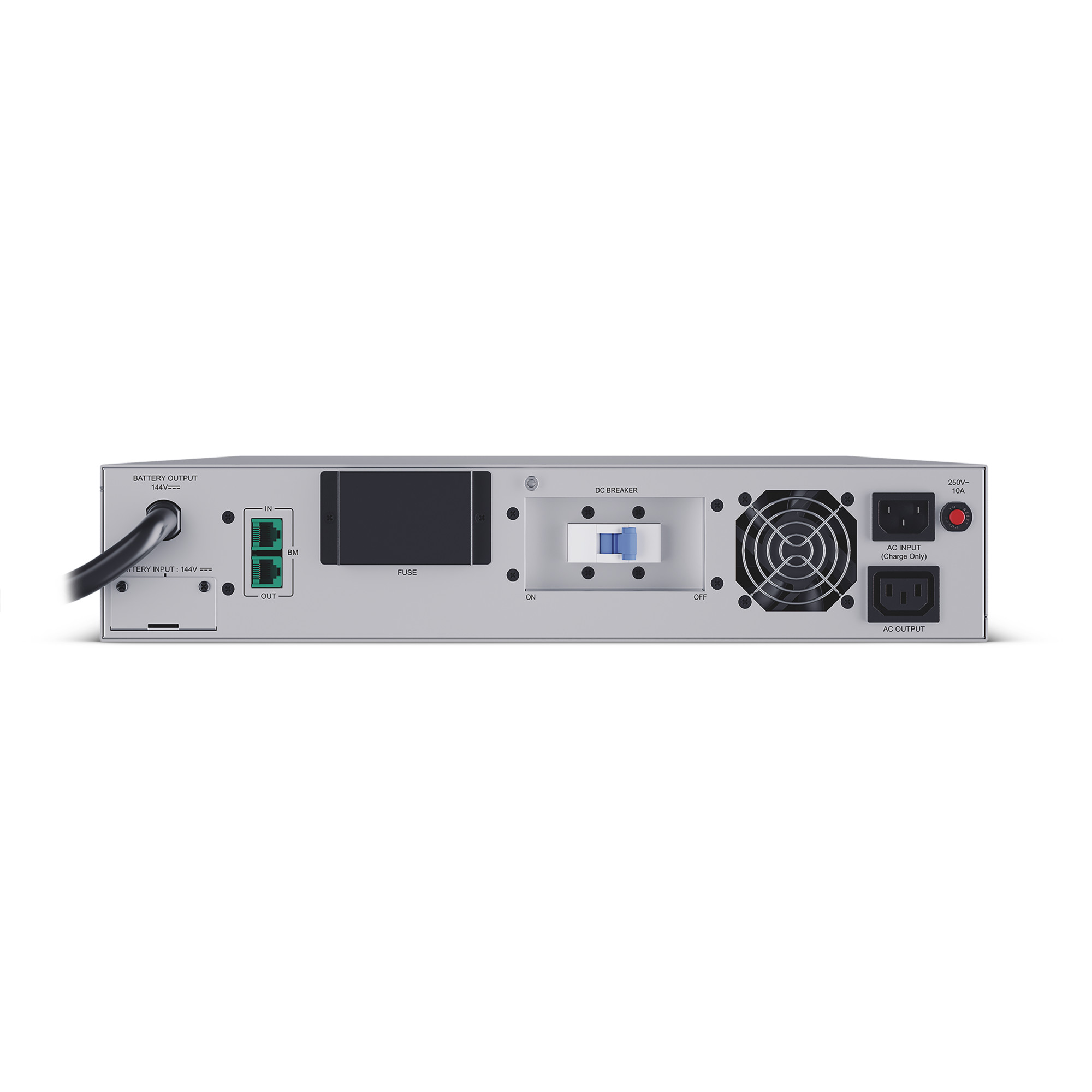

  • Plug-and-Play DC Connectors
    Allow for daisy-chaining additional EBMs to a UPS system.
  • Replaceable DC Fuses
    Are located behind an easy-access panel.
  • Resettable AC Circuit Breaker
    Resets the UPS swiftly in case of an overload.

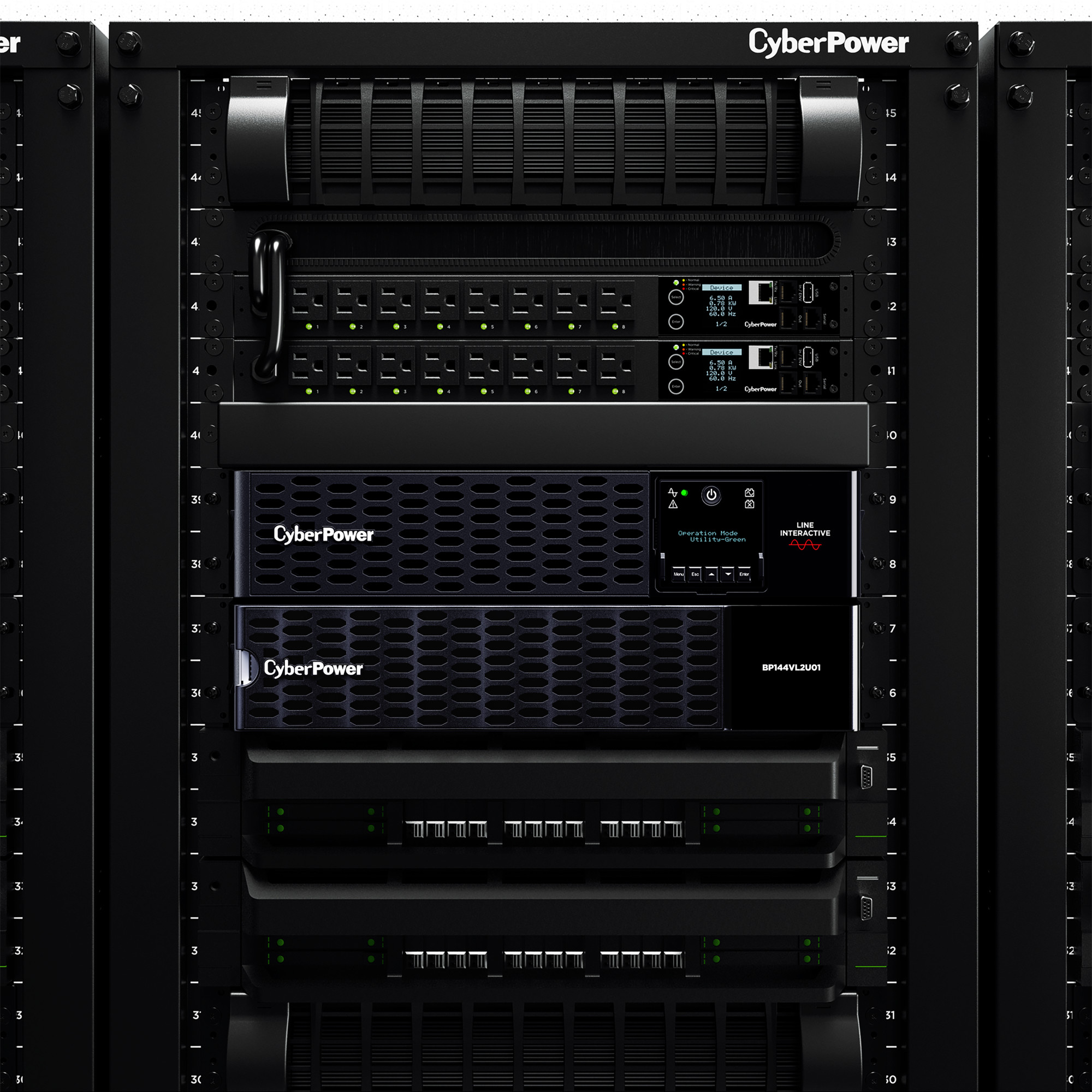

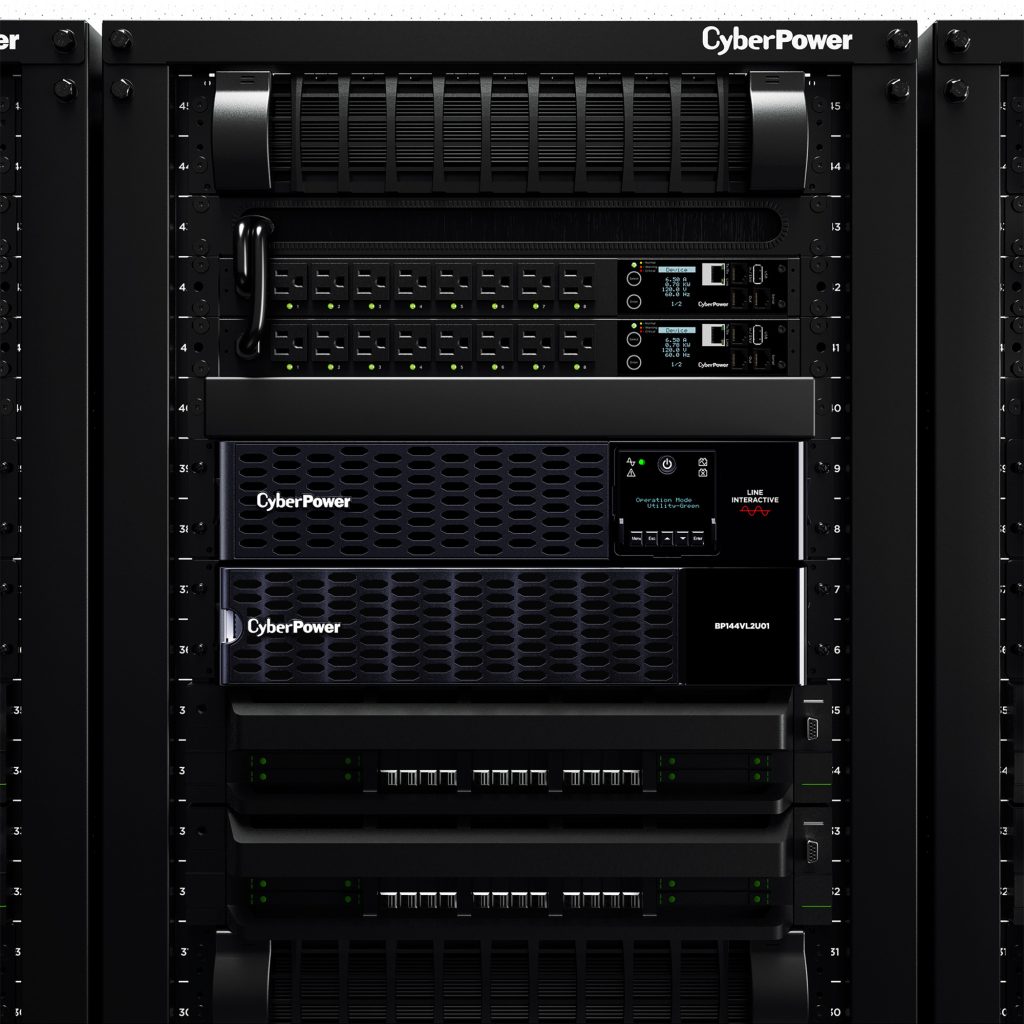

  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Gives you peace of mind knowing we will repair or replace a defective
    UPS system (including batteries) within three years of the purchase
    date. See warranty for details.
What’s In The Box

Extended Battery Module, Installation and Operation Manual, Registration Warranty Card, IEC320 C14 to IEC320 C14 Power Cord, NEMA L6-30P to
IEC-320-C13 Power Cord, BM Cable, Rackmount left rail, Rackmount right
rail, Left hanging bracket, Right hanging bracket, 2 x Rackmount ears, 8 x
Flat head screws M5X7L, 12 x Pan head screws M5X12L, 6 x Pan head screws
M5X6L, 8 x Plastic washers, 18 x Screw hole dust covers, 12 x Rubber pads,
2 x Stand, 1 x Tie plate


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages
General
Amperage 55A
DC Voltage 144V
Battery
Battery Quantity 12
Battery Size 12V/9AH
Battery Type Sealed lead acid
Built-in Charger Yes
Expansion Ready (Daisy-Chain) Yes
Hot Swappable Yes
Replacement Battery (2) RB1290X6D
Typical Recharge Time 4 Hours (0-90%)
User Replaceable Yes – Qualified Personnel Only

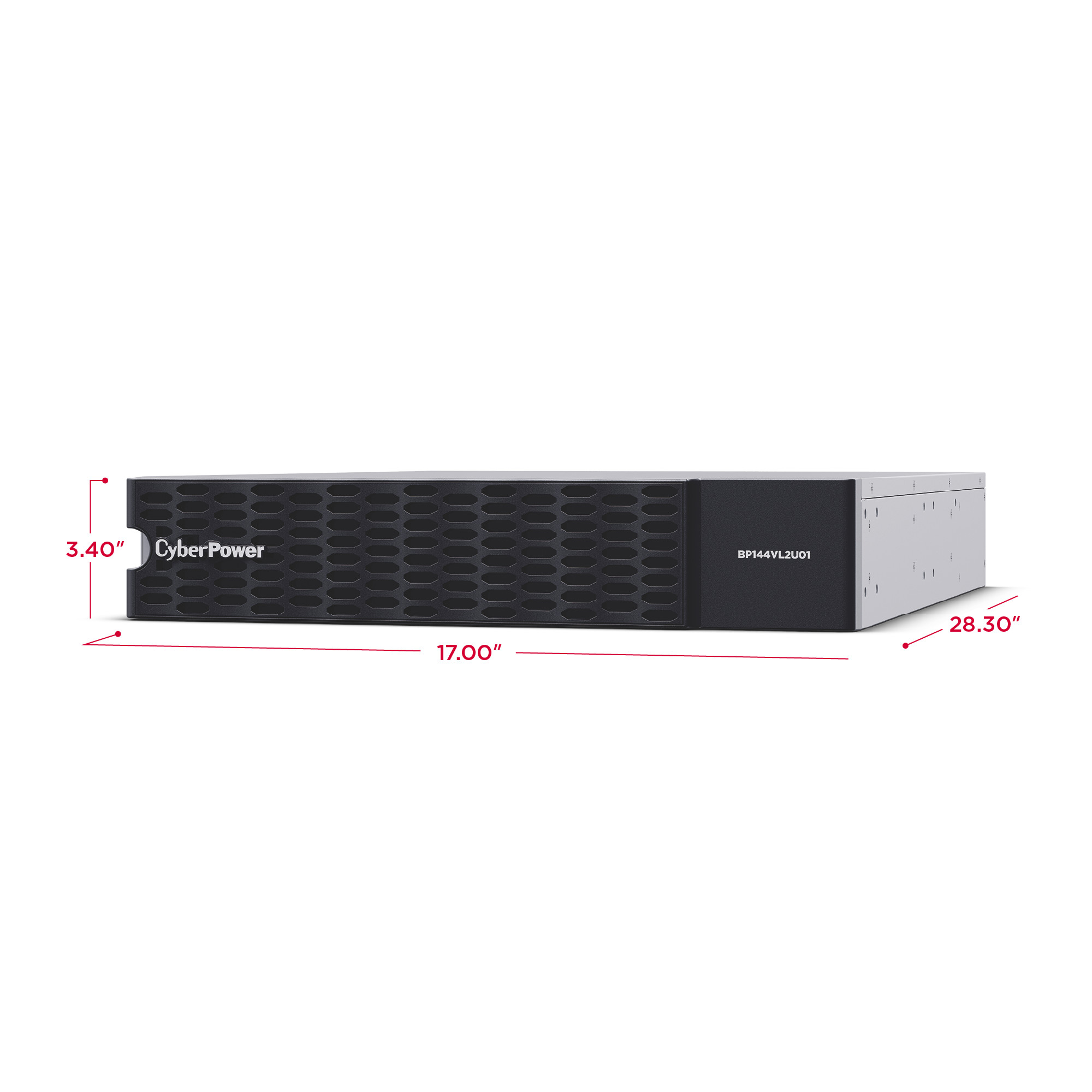

Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.64 x 71.88 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.4 x 28.3 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 86 x 719 (mm)
Weight (kg) 43.91
Weight (lb) 96.8
Dimensions – Shipping
Shipping – Weight (kg) 52.98
Shipping – Weight (lb) 116.8
Shipping Dimensions – (WxHxD) (cm) 59.94 x 21.59 x 109.98 (cm)
Shipping Dimensions – (WxHxD) (in) 23.6 x 8.5 x 43.3 (in)
Shipping Dimensions – (WxHxD) (mm) 599.44 x 215.9 x 1099.82 (mm)
Physical
Enclosure Construction Steel
Form Factor Rack / Tower Convertible
Mounting Hardware Included Yes
Environmental
Operating Elevation 0-10000 feet (0-3000 meters)
Operating Relative Humidity 0% – 90% non condensing
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Elevation 0-50000 feet (0-15000 meters)
Storage Relative Humidity 0% – 95% non condensing
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Warranty
Extended 2-Year Warranty Optional WEXT5YR-BP5
Product Warranty 3 Years Limited
BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages
BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages
BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages

Our Technical Support team will be happy help you with technical questions during business hours.

Email
Monday - Friday
7am — 6pm CST
Visit our support page

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

BP144VL2U01 Extended Battery Modules
Extend battery runtime for UPS systems during power outages
 Model Battery VoltageUPS Models MSRP
 BP48VP2U03 48 VPR2200RTXL2UAN, PR2200RTXL2UHVAN, PR3000RTXL2UAN, PR3000RTXL2UHVAN $629.00
 BP36V60ART2U 36 VOL1000RTXL2U, OL1500RTXL2U $565.00
 BP48V45ART2U 48 VPR1000LCDRTXL2U, PR1500LCDRTXL2Ua, PR750LCDRTXL2U $429.00
 BP48VP2U01 48 VPR1000RTXL2U, PR750RTXL2U $489.00
 BP48VP2U02 48 VPR1500RTXL2U, PR2000RTXL2U, PR2200RTXL2U, PR3000RTXL2U $519.00
 BP48V75ART2U 48 VOR1500LCDRTXL2U, OR2200LCDRTXL2U, PR1000LCDRTXL2Ua, PR1500LCDRTXL2U, PR2200LCDRTXL2U, PR3000LCDRT2U, PR3000LCDRTXL2U $439.00
 BPL48V75ART2U 48 VPR3000LCDRTXL2U, PR5000LCDRTXL5U, PR6000LCDRTXL5U $599.00
 BP72V60ART2U 72 VOL2200RTXL2U, OL3000RTXL2U, OL3000RTXL2UHV $810.00
 BP144VL2U01 144 VOL5KRTHD, OL6KRTHD $1,129.00
 BP240VL3U01 240 VOL10KRT, OL10KRTF, OL10KRTHW, OL6KRT, OL6KRTF, OL8KRT, OL8KRTF $1,179.00
