Extended Battery Modules

BP240VL3U01

$1,689.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Typical recharge time (0-90%): 4 hours
  • Battery type & quantity: 12V/7AH (20)
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Fast Charge Technology: Yes
  • Warranty: Three-year
Overview

Product Overview

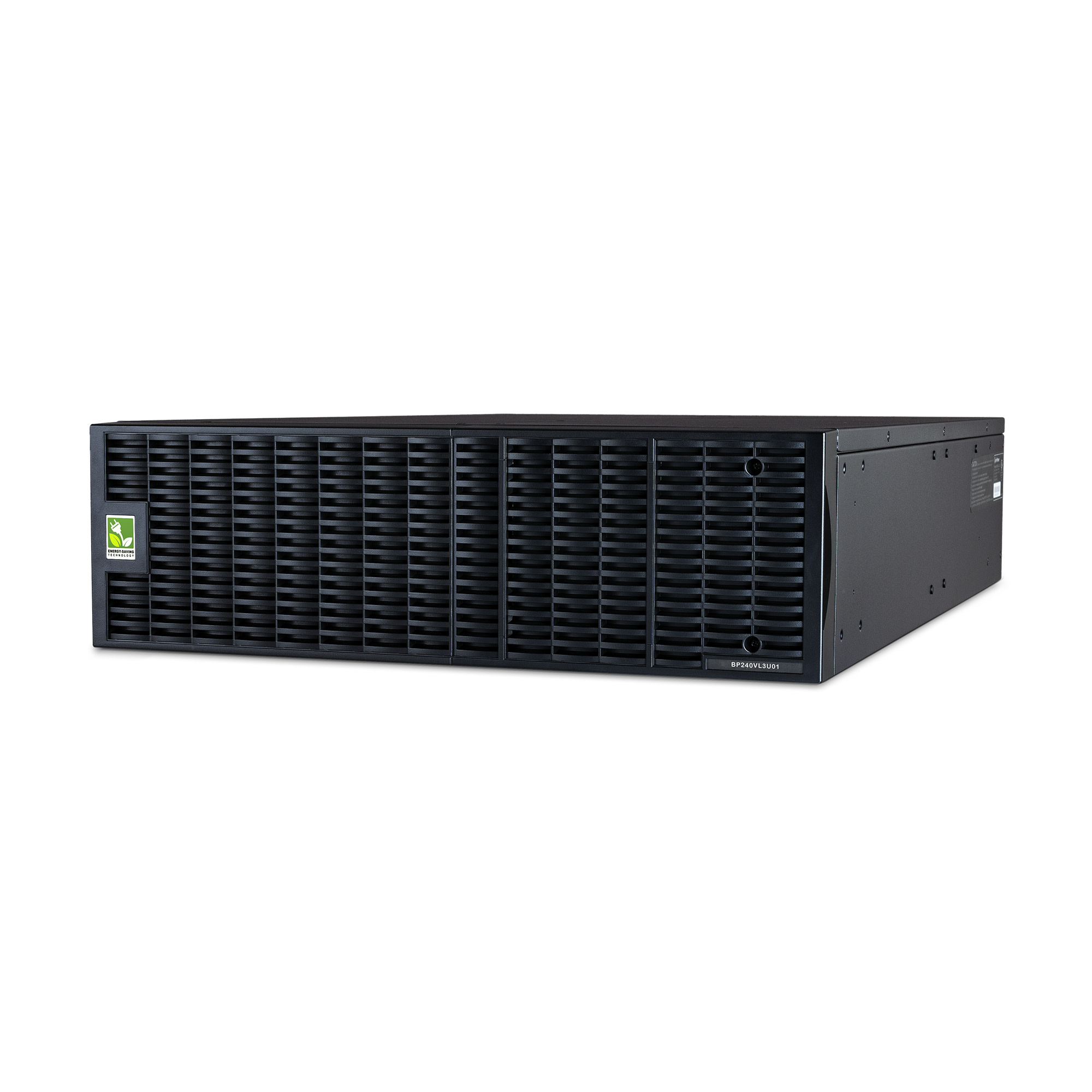

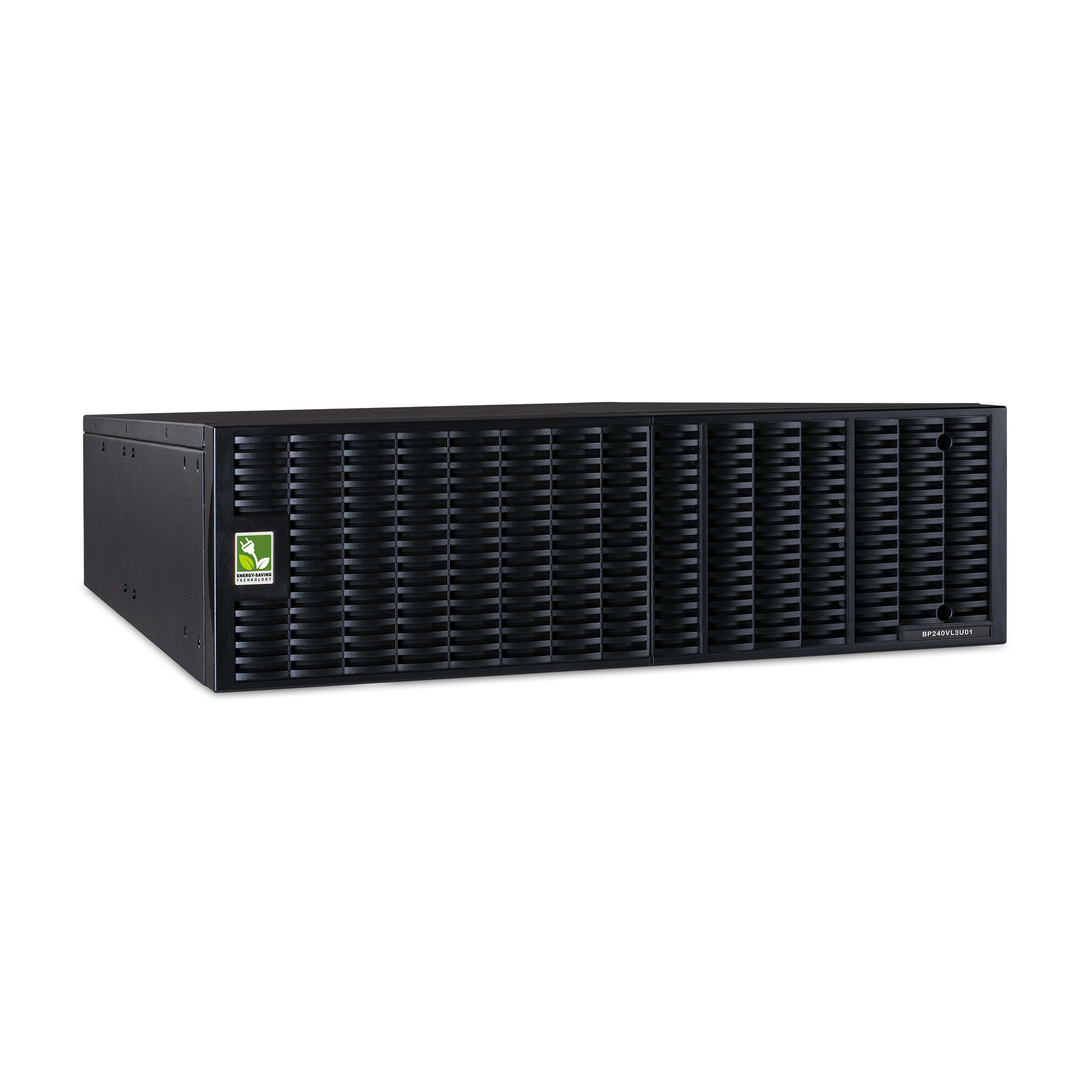

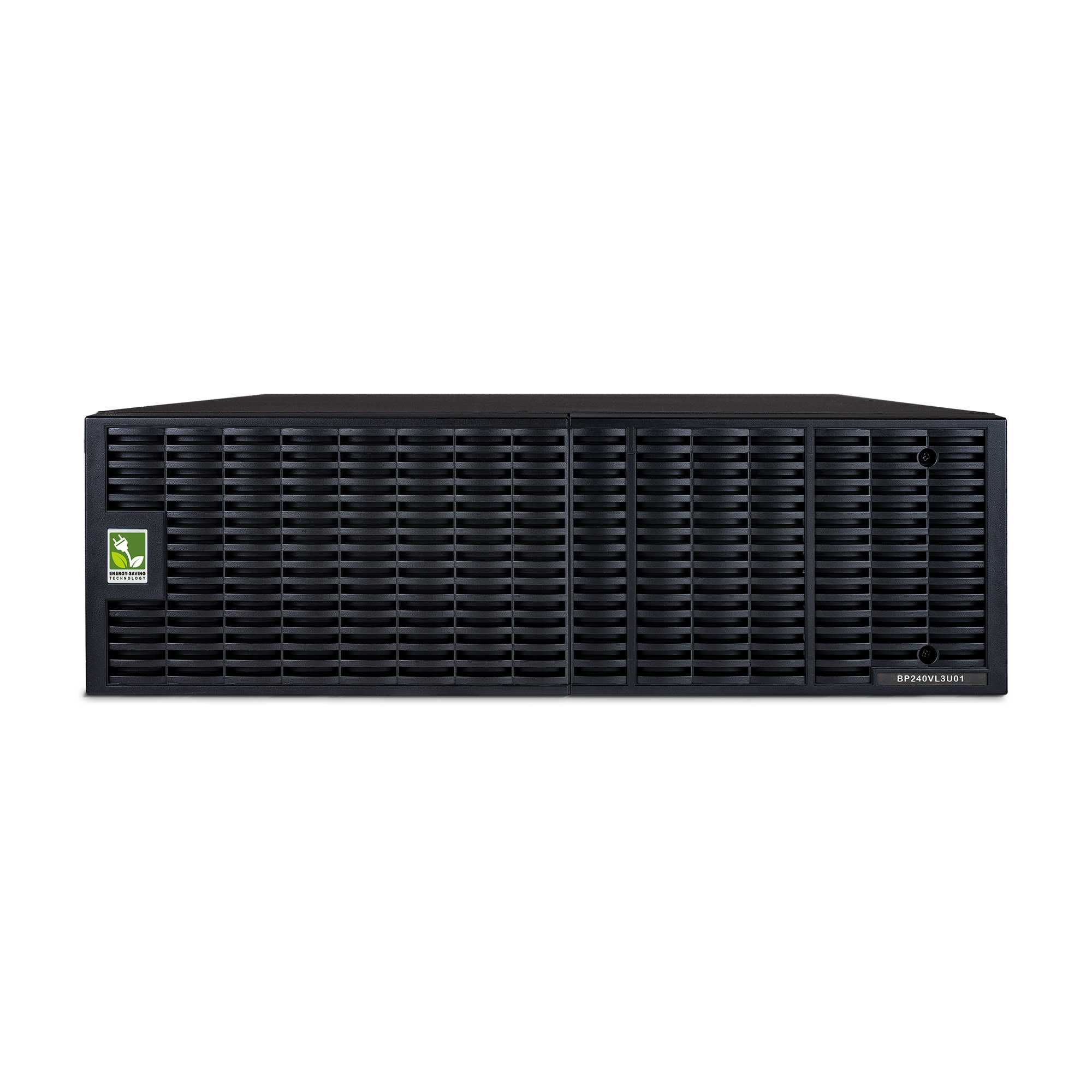

The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. The BP240VL3U01 is compatible with OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, and OL10KRTHW. With a three-year warranty, you can trust CyberPower’s commitment to the quality of the BP240VL3U01.

Product Features
  • Extended Battery Module
    Extends runtime and restores full backup power quickly with Fast Charge Technology.
  • Hot-Swappable Batteries
    Can be replaced without powering down vital equipment.
  • Fast Charge Technology
    Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
  • Smart Battery Management
    Uses the UPS three-cycle charging mode that improves battery life and reduces generated heat.

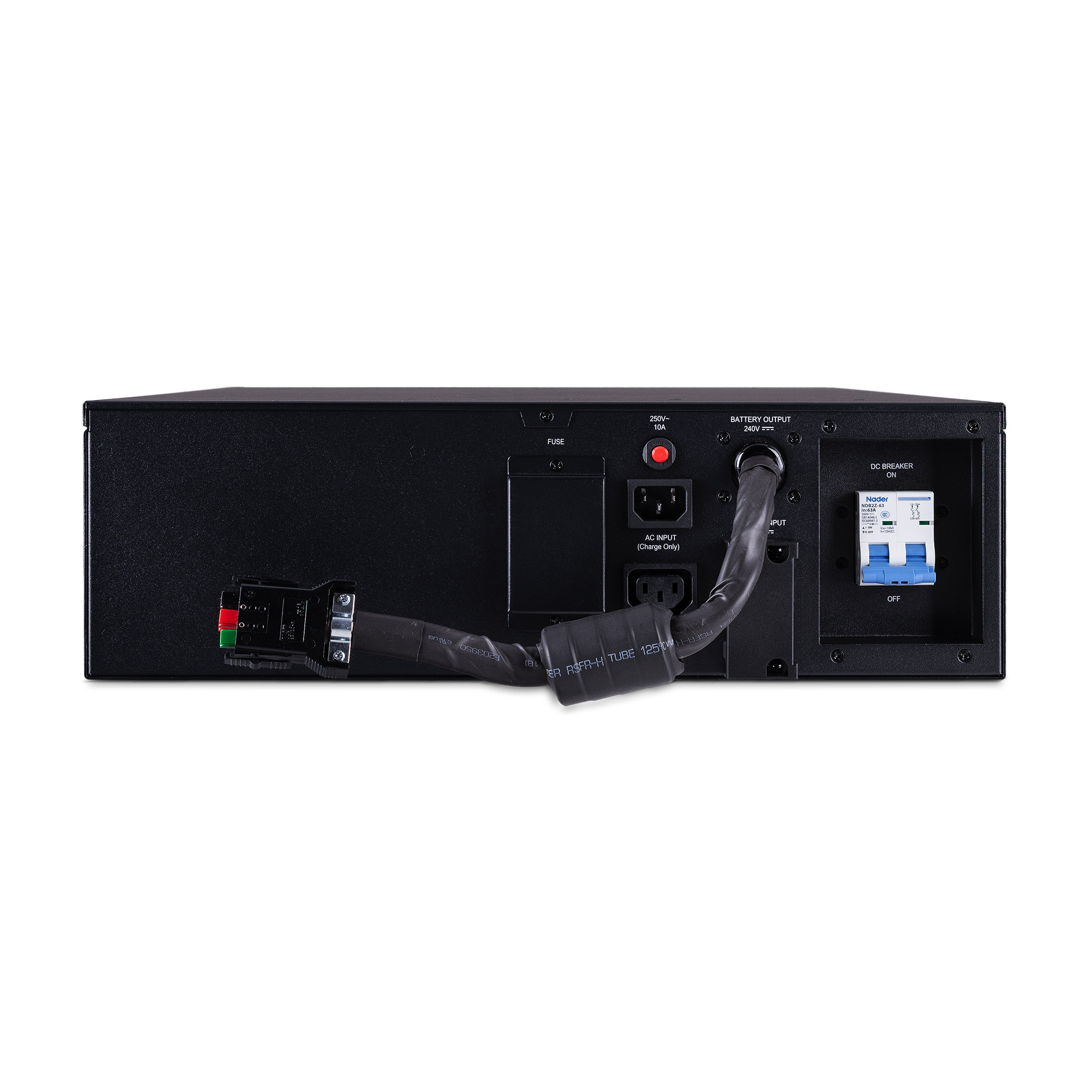

  • Plug-and-Play DC Connectors
    Allows for daisy-chaining additional EBMs to a UPS system.
  • Resettable AC Fast Charge Circuit Breaker
    Resets the EBM swiftly in case of an overload.
  • Rack/Tower Configuration
    Allows for horizontal rackmount or vertical tower installation.
  • Three-Year Warranty
    CyberPower will replace a defective EBM (including batteries) within three years of the purchase date. See warranty for details.
Compatible Products
Specifications
Expand All
General
Nominal Voltage 240 V
Current Rating 30 A
Battery
Battery Quantity 20
Battery Size 12 V/7 Ah
Battery Type Sealed lead acid
Built-in Charger (Fast Charge) Yes
Charger Input Voltage 200 V to 240 V
Charger Max. Output Current 1.5 A
Expansion Ready (daisy-chain) Yes
Hot Swappable Yes
Replaceable Yes
Replacement Battery (2) RB1270X10
Typical Recharge Time* 4 h (0% to 90%)
Physical
Form Factor Rack / Tower Convertible
Enclosure Construction Steel
Rack Mounting Hardware Included
Physical Dimensions
Dimensions (WxHxD, in) 17.05 x 5.2 x 26
Dimensions (WxHxD, mm) 433 x 132 x 660
Weight (lb) 167.2
Weight (kg) 76
Rack Units 3U
Max. Mounting Rail Depth (in) 36.02
Max. Mounting Rail Depth (mm) 915
Min. Mounting Rail Depth (in) 20.47
Min. Mounting Rail Depth (mm) 520
Shipping Dimensions
Dimensions (WxHxD, in) 23.62 x 14.76 x 35.43
Dimensions (WxHxD, mm) 600 x 375 x 900
Weight (lb) 204.6
Weight (kg) 92.8
Environmental
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Operating Relative Humidity 0% to 90% non-condensing
Operating Elevation 0 ft to 10,000 ft (0 m to 3,000 m)
Storage Temperature -4 °F to 113 °F (-20 °C to 45 °C)
Storage Relative Humidity 0% to 95% non-condensing
Storage Elevation 0 ft to 50,000 ft (0 to 15,000 m)
Compatibility
UPS Models OL6KRT
OL6KRTF
OL8KRT
OL8KRTF
OL10KRT
OL10KRTF
OL10KRTHW
Certifications
Safety UL 1778
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Extended 2-Year Warranty WEXT5YR-BP5

*Typical recharge time when unit has internal battery charger (Fast Charge Technology) connected and operating.

Feature Focus
Higher Capacity UPS for Longer Runtimes

To determine the size of the UPS that you need, identify the total power load (measure in VA/Watts) of the connected equipment, along with the amount of runtime required (in minutes). Also, think about any equipment that might be connected to the UPS in the future, which could affect the calculations for load and runtime.

Estimating expected UPS runtimes can be challenging, particularly when the consistency of the utility power is not well known. Selecting a UPS with a load capacity 30-35% above the required power load offers the advantage of longer runtimes. This can lower the risk of overloading the UPS and causing an unnecessary UPS shutdown.

Although the initial outlay of a UPS increases with its size because of the higher capacity required for components, long-term operating costs typically decrease. When a UPS operates below maximum capacity, it reduces the stress on components. Sizing a UPS to run loads significantly lower than its capacity also increases spare capacity for future growth, along with extending runtimes.
