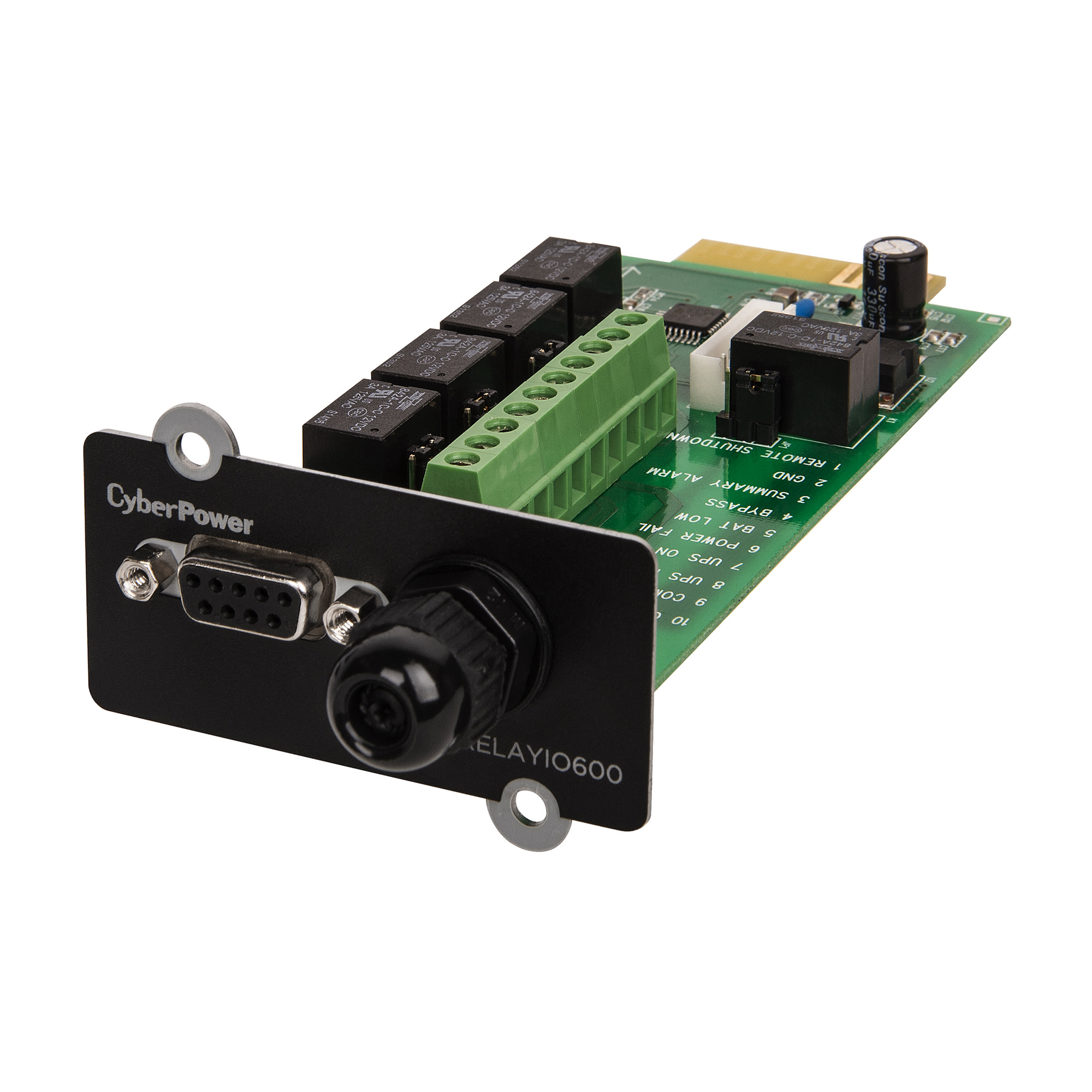

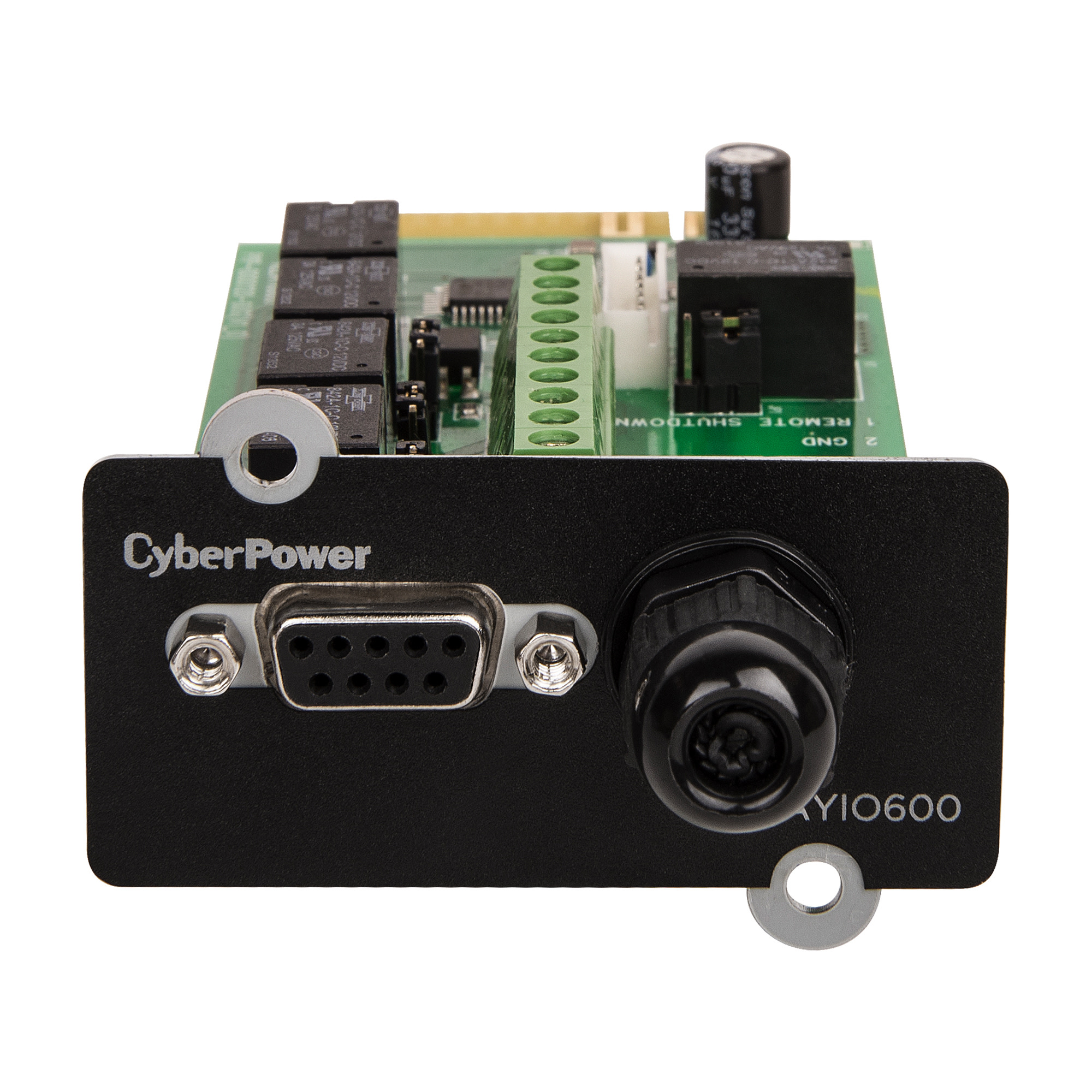

RELAYIO600

$269.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • UPS status monitoring: Relay I/O Card
  • 5 relay output contact closures: Indicate UPS status information
  • 1 relay input contact closure: Remote shutdown UPS on Battery Mode
  • Connections: DB9 or Internal Terminal Block
  • Warranty: 3-year
Overview

Product Overview

Enhance any double-conversion CyberPower Smart App Online UPS system with the RELAYIO600, a local management solution that provides users with the ability to monitor UPS status and events via five contact closure outputs. Easy to install, the RELAYIO600 allows for hardwired visual/audible based notifications.

An input contact closure allows the UPS to be shut down remotely, when in Battery Mode, to preserve battery power in the event of a prolonged power outage. The RELAYIO600 card has five dedicated relays for event notifications: UPS Fail, Summary Alarm, Bypass/UPS Off, Battery Low, and Power Fail (Outage). The output relay contacts can be wired to the control room status panel of the UPS, to which an audible alarm can be connected. The RELAYIO600 comes with a three-year warranty.

Product Features
  • Configurable Relay Output Contacts
    The five relay output contact closures can be configured as normally open (NO) or normally closed (NC).
  • Remote Shutdown in Battery Mode
    Preserves battery power in the event of a prolonged power outage.
  • Interfacing with External Alarms
    External alarm devices can be interfaced via the DB9 port or the internal terminal block.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Compatible Products
Specifications
Expand All
Output
USB Charge Port No
Management & Communications
Hardware Connection Port Serial
Physical
Color Black
Dimensions
Physical Dimensions – (WxHxD) (cm) 6.71 x 4.32 x 15.57 (cm)
Physical Dimensions – (WxHxD) (in) 2.64 x 1.7 x 6.13 (in)
Physical Dimensions – (WxHxD) (mm) 67 x 43 x 156 (mm)
Physical Weight (kg) 0.09
Physical Weight (lb) 0.2
Dimensions – Shipping
Shipping – Weight (kg) 9.53
Shipping – Weight (lb) 21.0
Shipping Dimensions – (WxHxD) (cm) 5.89 x 16.43 x 16.92 (cm)
Shipping Dimensions – (WxHxD) (in) 2.32 x 6.47 x 6.66 (in)
Shipping Dimensions – (WxHxD) (mm) 58.93 x 164.34 x 169.16 (mm)
Environmental
Operating Elevation 0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity 0 – 90 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 14 – 122 °F (-10 – 50 °C)
Compatibility
UPS Models Smart App Online Series
Certifications
Environmental RoHS Compliant
Safety FCC Class A
CE
Warranty
Extended Warranty Option WEXT5YR-ACC1A
Product Warranty 3 Year Limited Warranty
