OL6KRTHD


Smart App Online
  • Capacity: 6000 VA / 6000 W
  • High Density: 2U Size
  • Power Factor (PF): 1
  • Topology: Double-conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
  • Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option

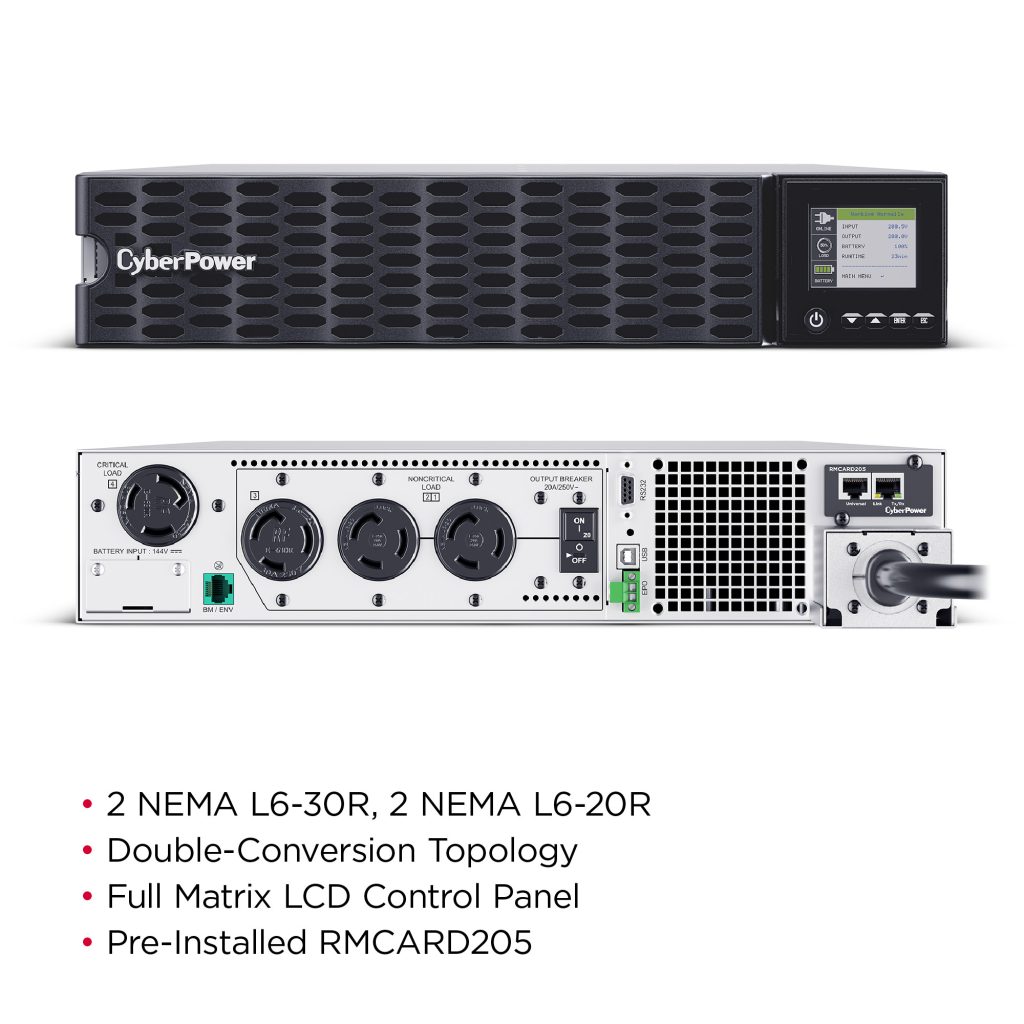

  • Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
  • Communication ports: USB, Serial, SNMP, EPO
  • Management software: PowerPanel® Business Edition
  • Energy saving: ECO Mode Efficiency >96%
  • Warranty: 3 year
MSRP  $4,600.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.

Product Overview


The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models – giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

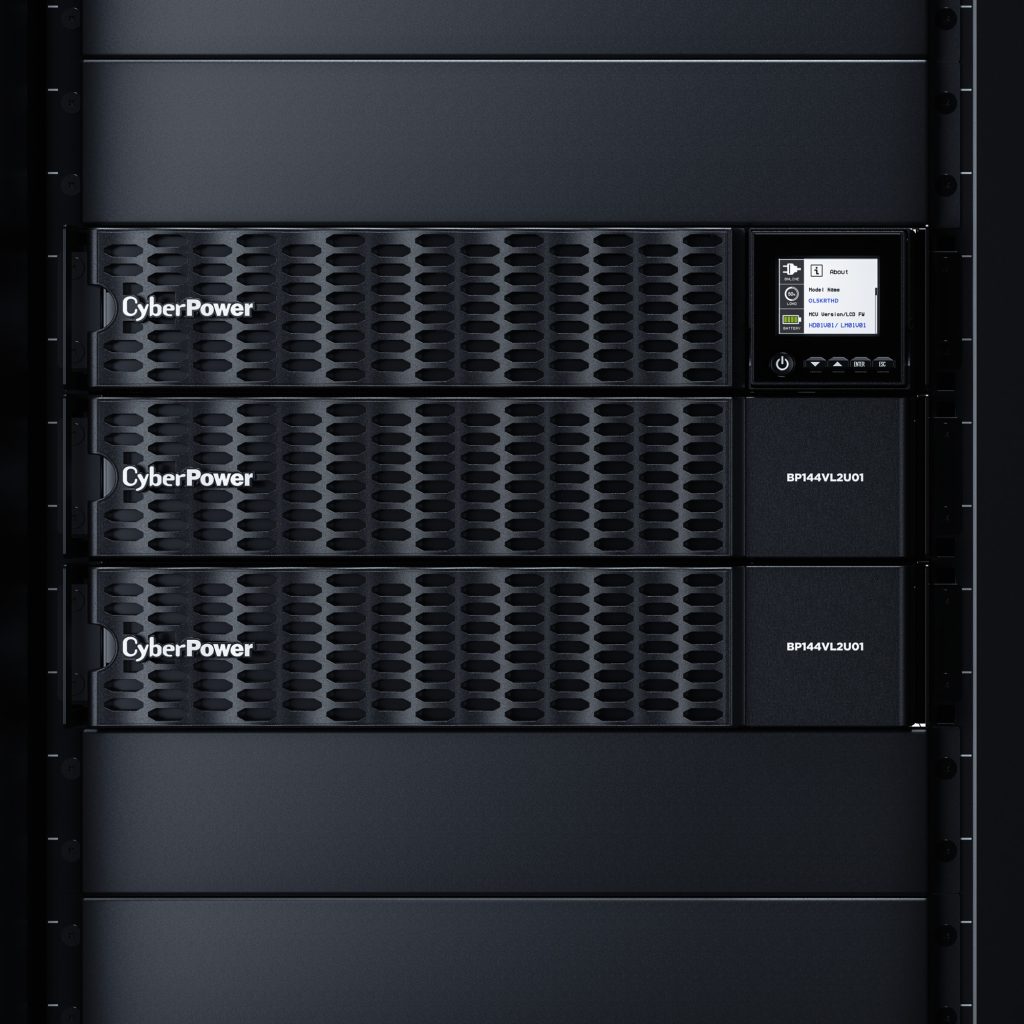

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it’s all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

  • Double-Conversion Topology
    Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
  • Sine Wave Output
    Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

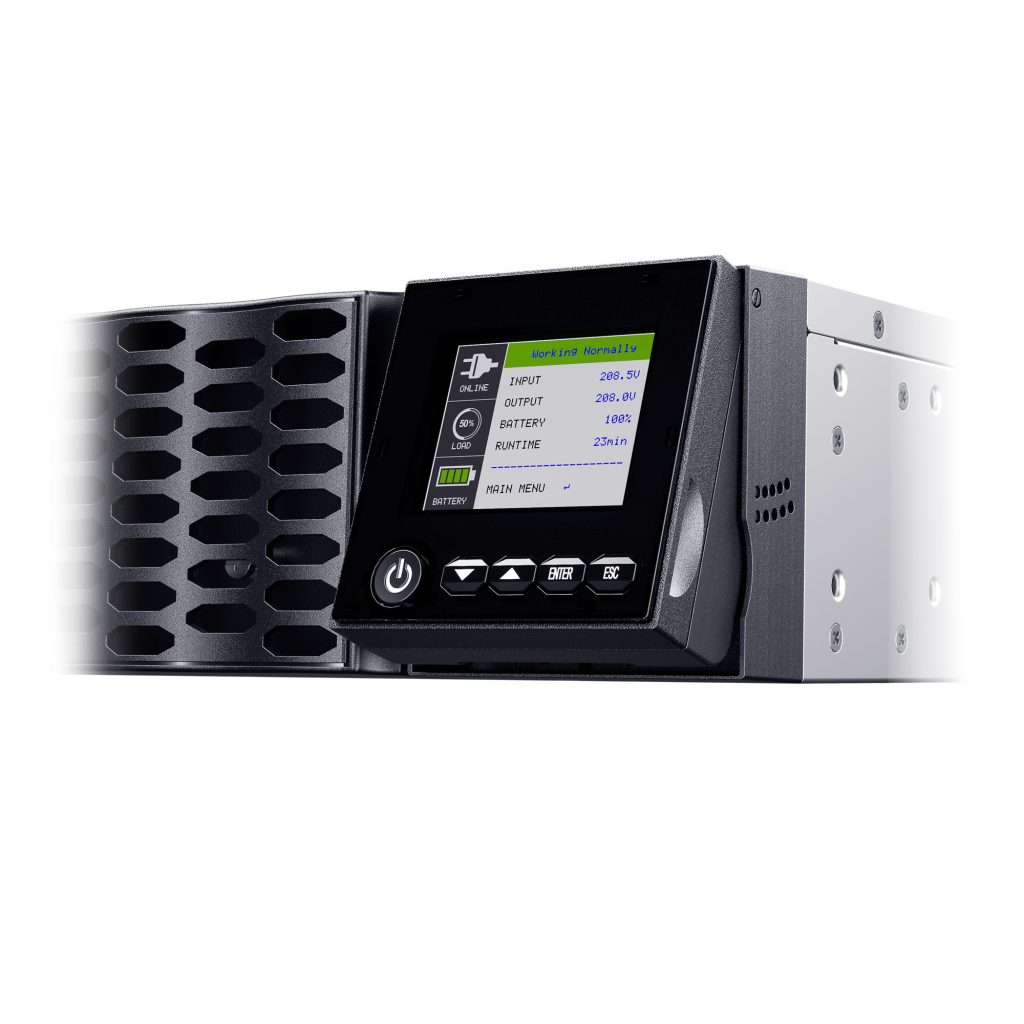

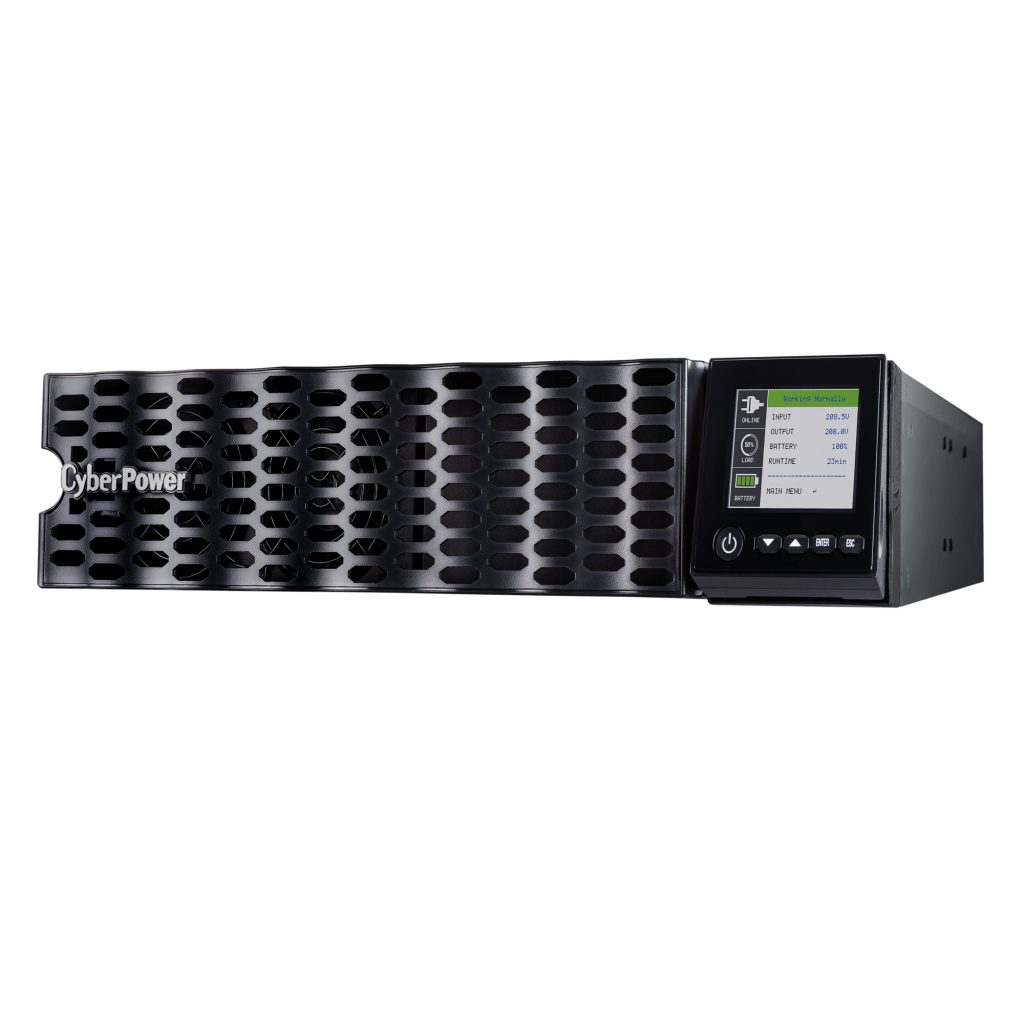

  • Full Matrix LCD Control Panel
    Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.
  • Tool-less Front Panel
    Tool-less front panel removal makes battery replacement easier.
  • Hot-Swappable Batteries
    Keeps equipment running by eliminating downtime during UPS power maintenance.
  • Extended Battery Module (EBM)
    Extends runtime by adding up to 10 EBMs.
  • Smart Battery Management (SBM)
    Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle chargingprocess.
  • Battery Equalization Technology
    Battery Equalization is an advanced charging process that maintains the
    voltages of the batteries at the same level to increase battery life.
  • Fast Charge Technology
    Allows UPS batteries to return to full capacity more rapidly by
    utilizing a built-in charger. Restores charge from 0-90% within four
    hours regardless of the number of EBMs.

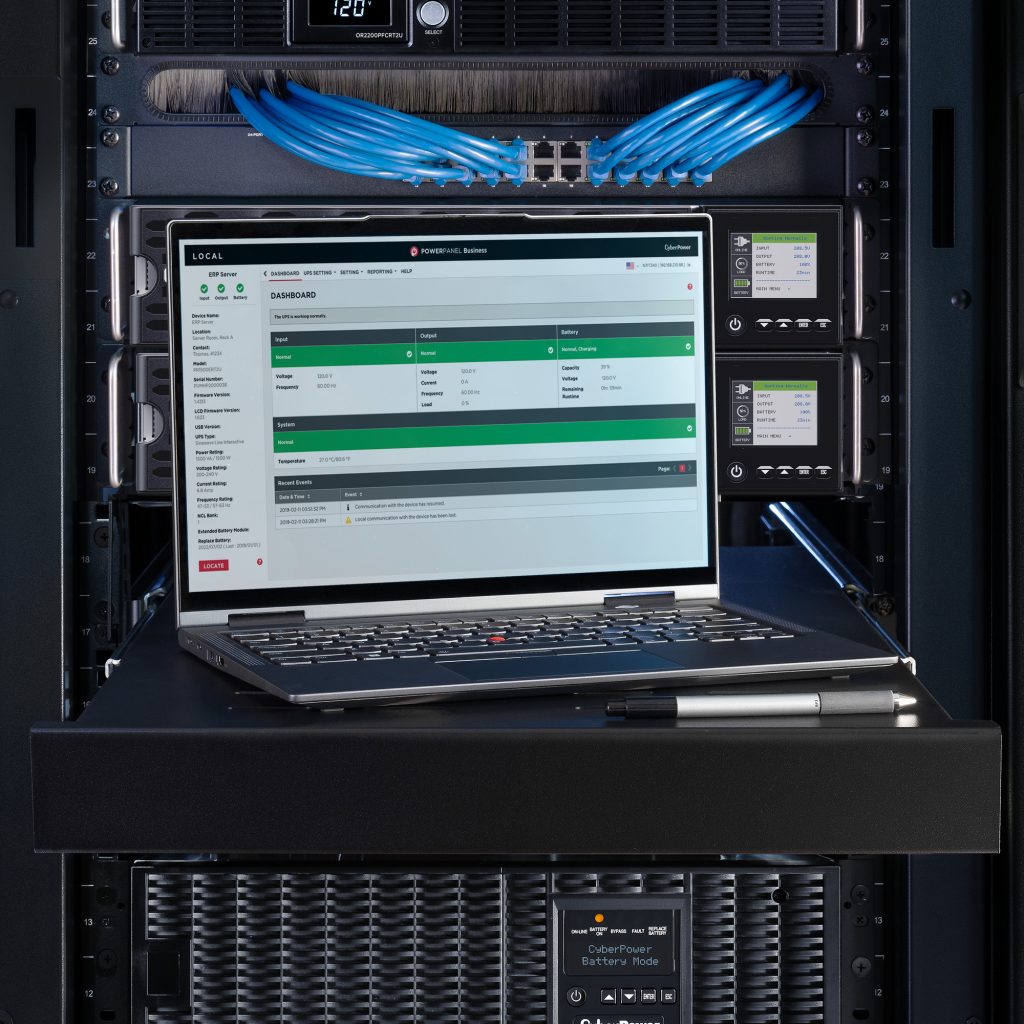

  • PowerPanel® Business Software
    Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
  • RMCARD205
    Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

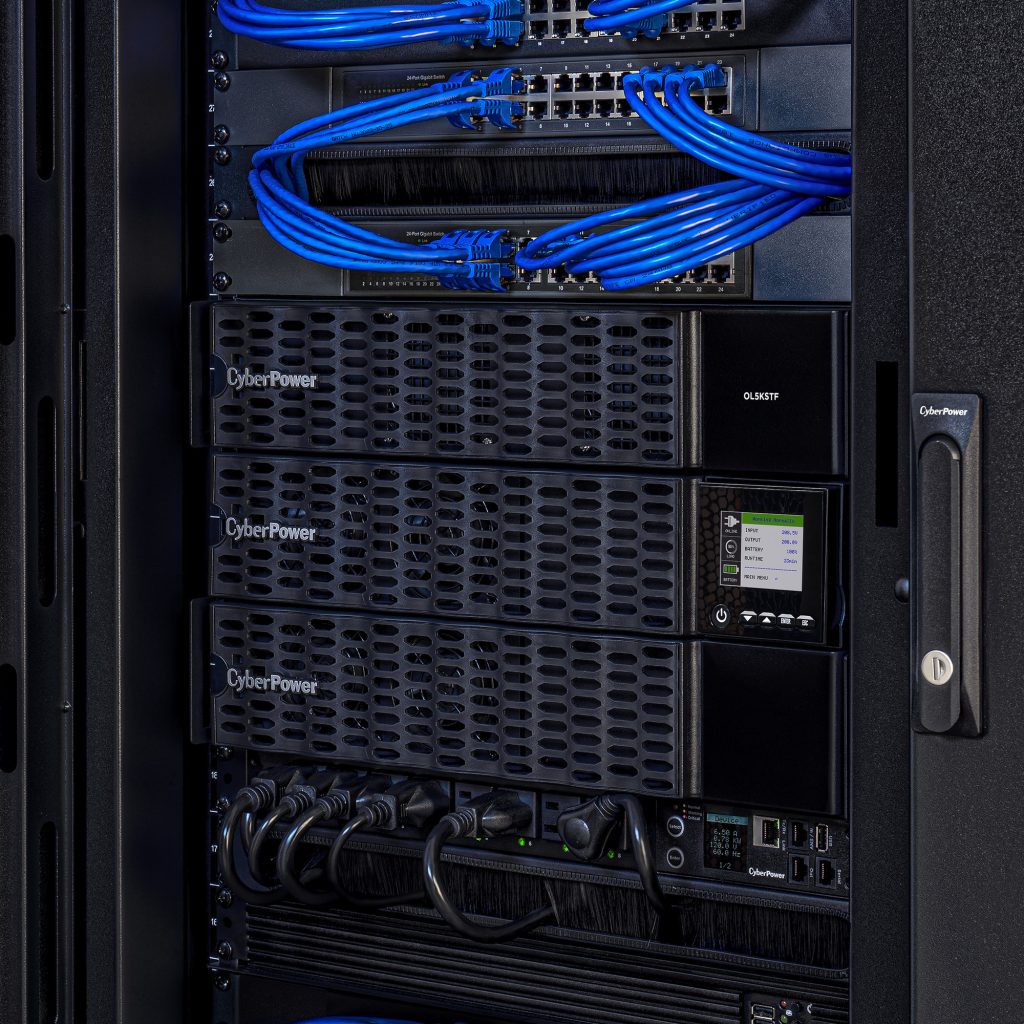

  • Hanging Rack Mount Rail
    Ensures easy installation and slides out safely with a safety catch.
  • Tamper-Proof Input Circuit Breaker
    Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.
  • EMI/RFI Filters
    Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.
  • Energy Star Certified & GreenPower UPS™ ECO Mode
    Improves UPS efficiency up to 96% reducing electrical and cooling costs.
  • Upgradeable UPS Firmware
    Keeps equipment running by eliminating downtime during UPS power maintenance.
  • Multiple Language Options
    The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.
  • Critical & Non-Critical Load Banks
    Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.
  • Emergency Power Off (EPO)
    Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
  • Generator Compatible
    Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
  • Converter Mode
    Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
  • USB & Serial Connectivity
    Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
  • Audible Alarms
    Identifies when the UPS is running on battery power, overloaded, or has a low battery.

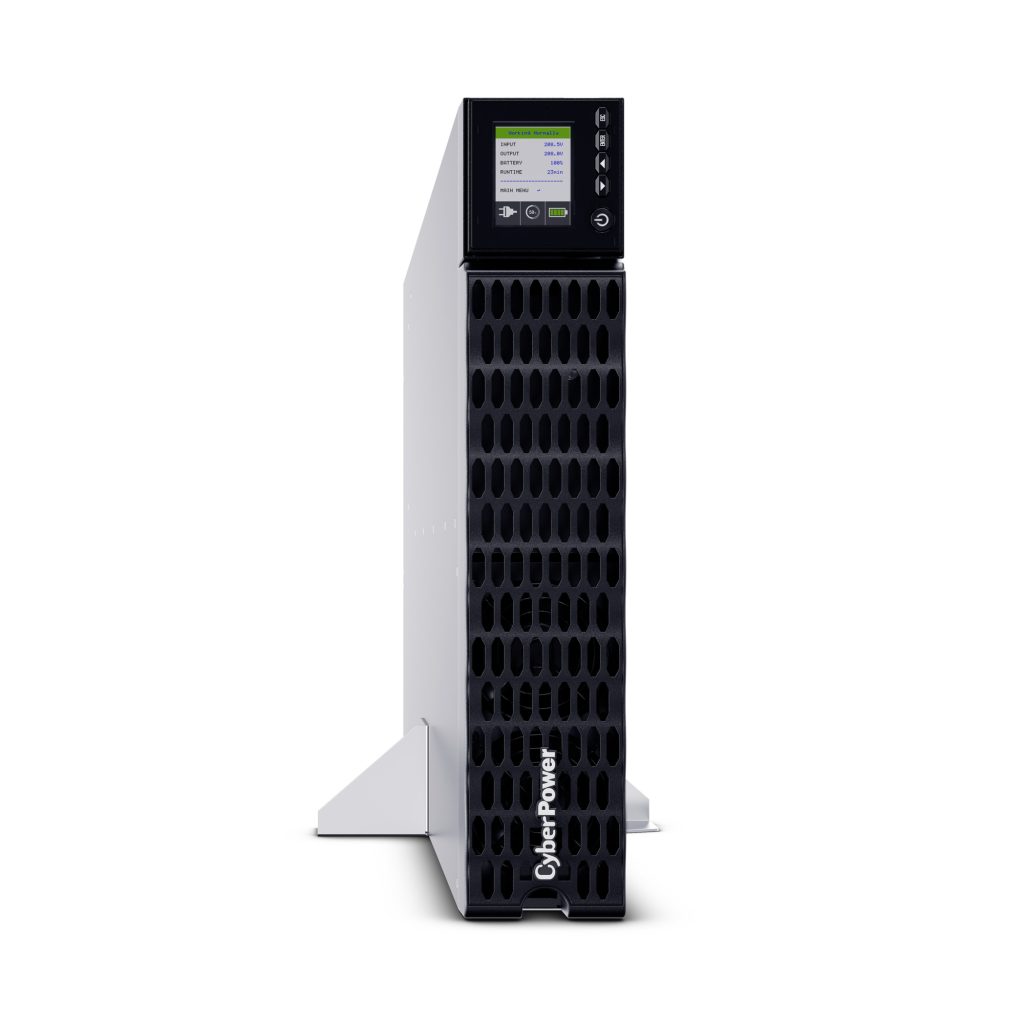

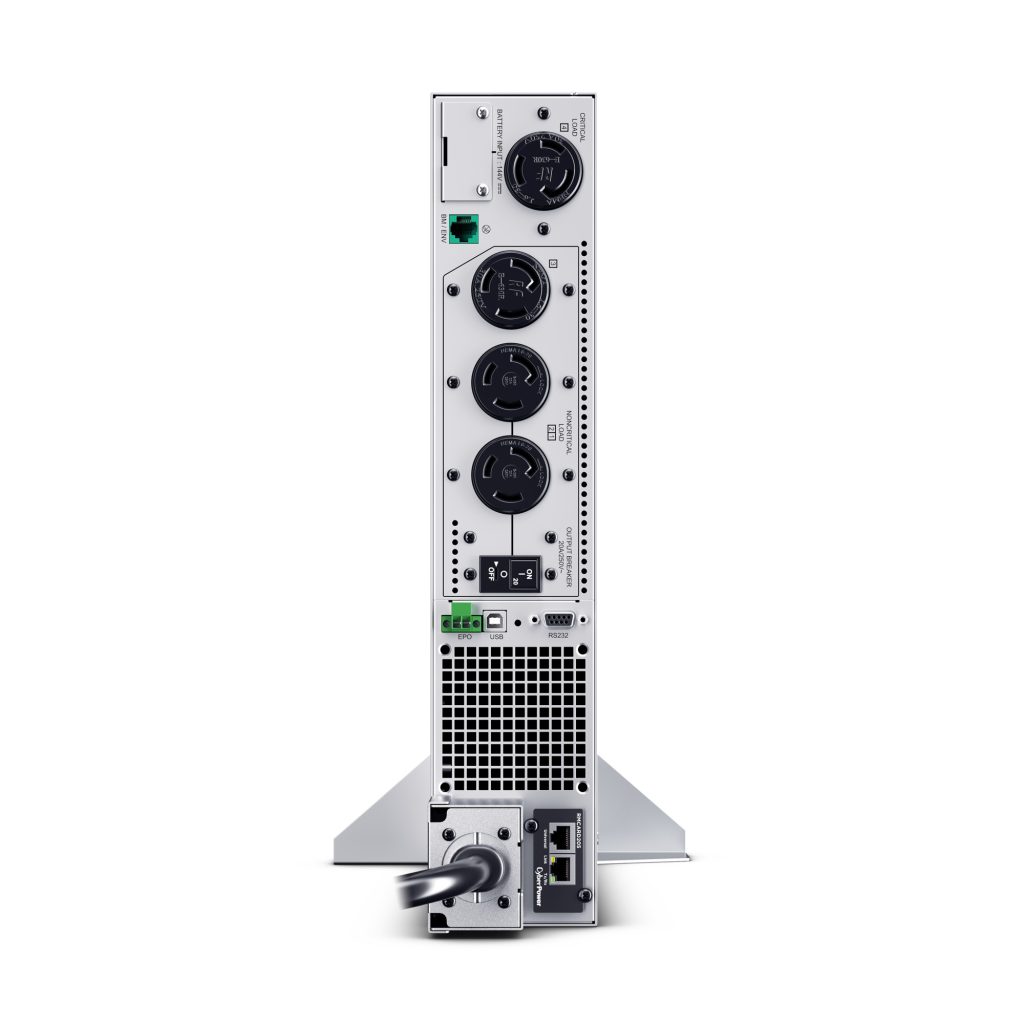

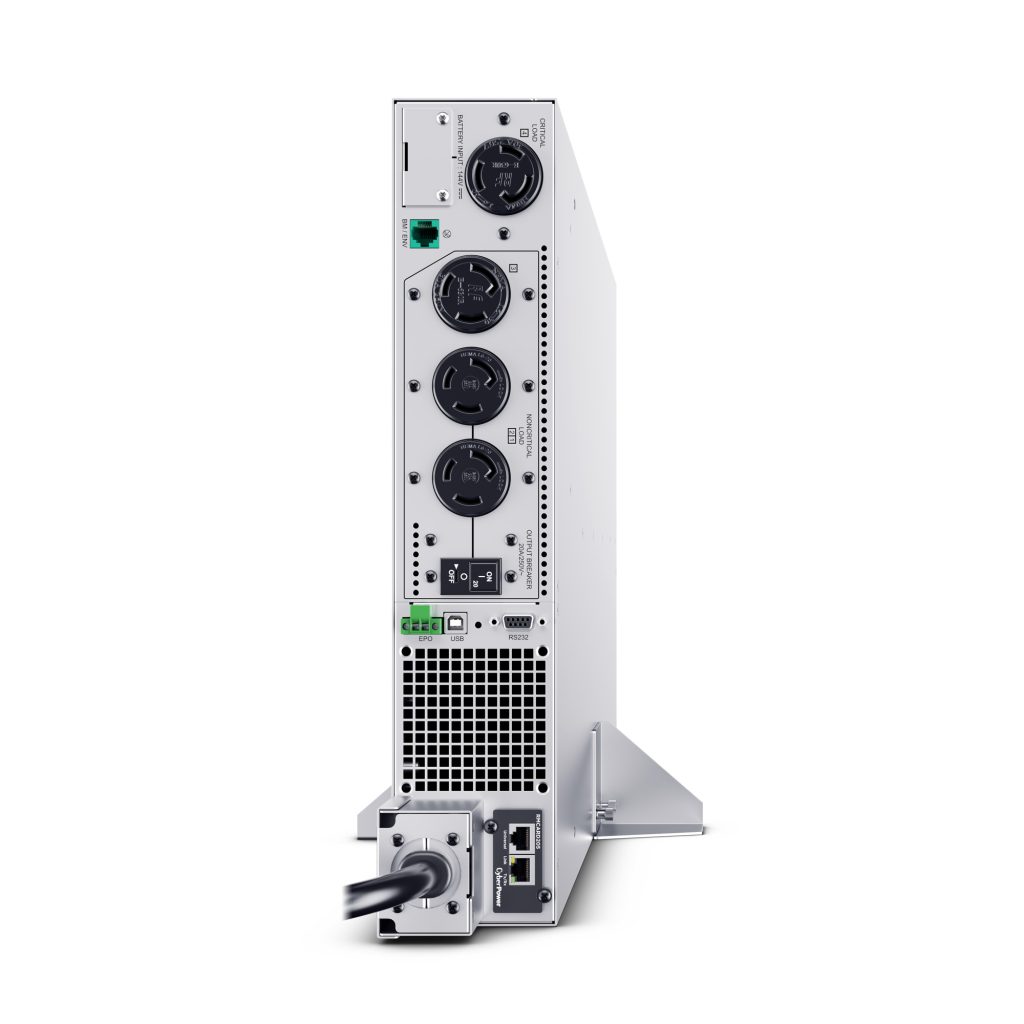

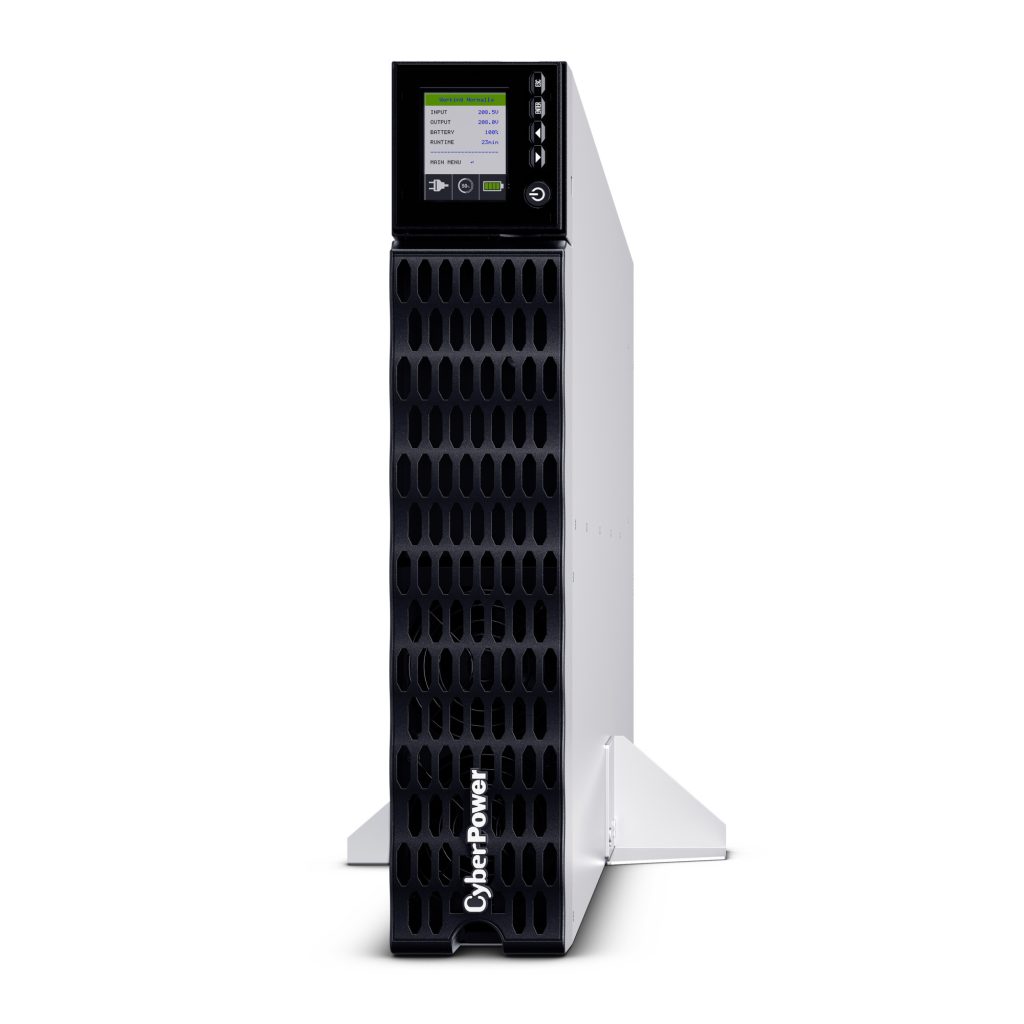

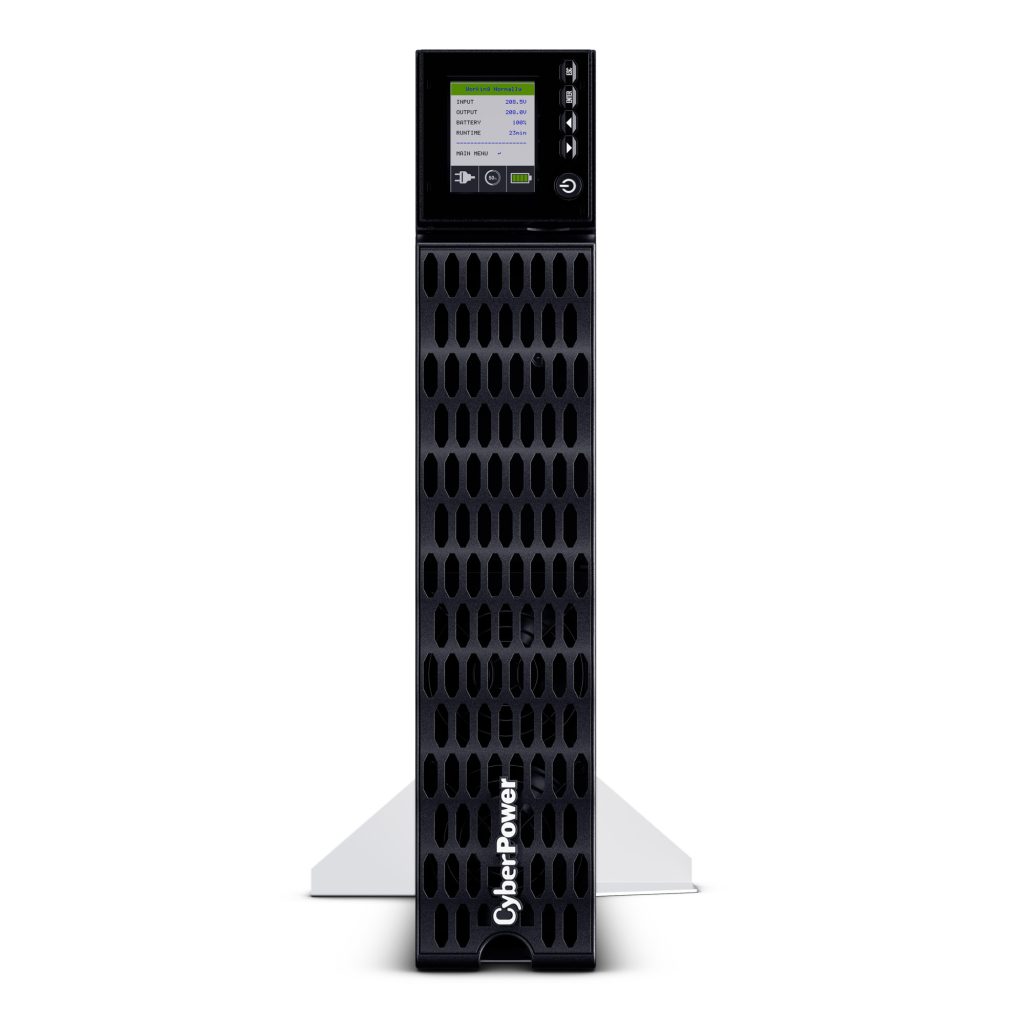

  • Rack/Tower Versatility
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Gives you peace of mind knowing we will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    Affirms we will replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, Installation and Operation Manual, Quick Start Guide,
Registration Warranty Card, PowerPanel Management Software Download Card,
Input terminal block cover & NEMA L6-30P Power Cord, Rackmount left
rail, Rackmount right rail, Left hanging bracket, Right hanging bracket,
Serial Interface Cable (RS-232), USB communication cable, 2 x Rackmount
ears, 8 x Flat head screws M5X7L, 12 x Pan head screws M5X12L, 6 x Pan head
screws M5X6L, 8 x Plastic washers, 18 x Screw hole dust covers, 12 x Rubber
pads, 2 x Stand, Input bottom cover, Screwdriver


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.
General
Energy Saving Yes – ECO Mode Efficiency >96%
Energy Star Certified Yes
UPS Topology Double Conversion
Battery
Battery Equalization Technology Yes
Battery Quantity 12
Battery Size 12V/6Ah
Battery Type Sealed lead acid
Extended Battery Module Option BP144VL2U01
Hot Swappable Yes
Replacement Battery (1) RB1260X12
Runtime at Full Load (min) 1.4
Runtime at Half Load (min) 4.9
Smart Battery Management (SBM) Mode Yes
Typical Recharge Time 4 Hours (0-90%)
User Replaceable Yes – Qualified Personnel Only

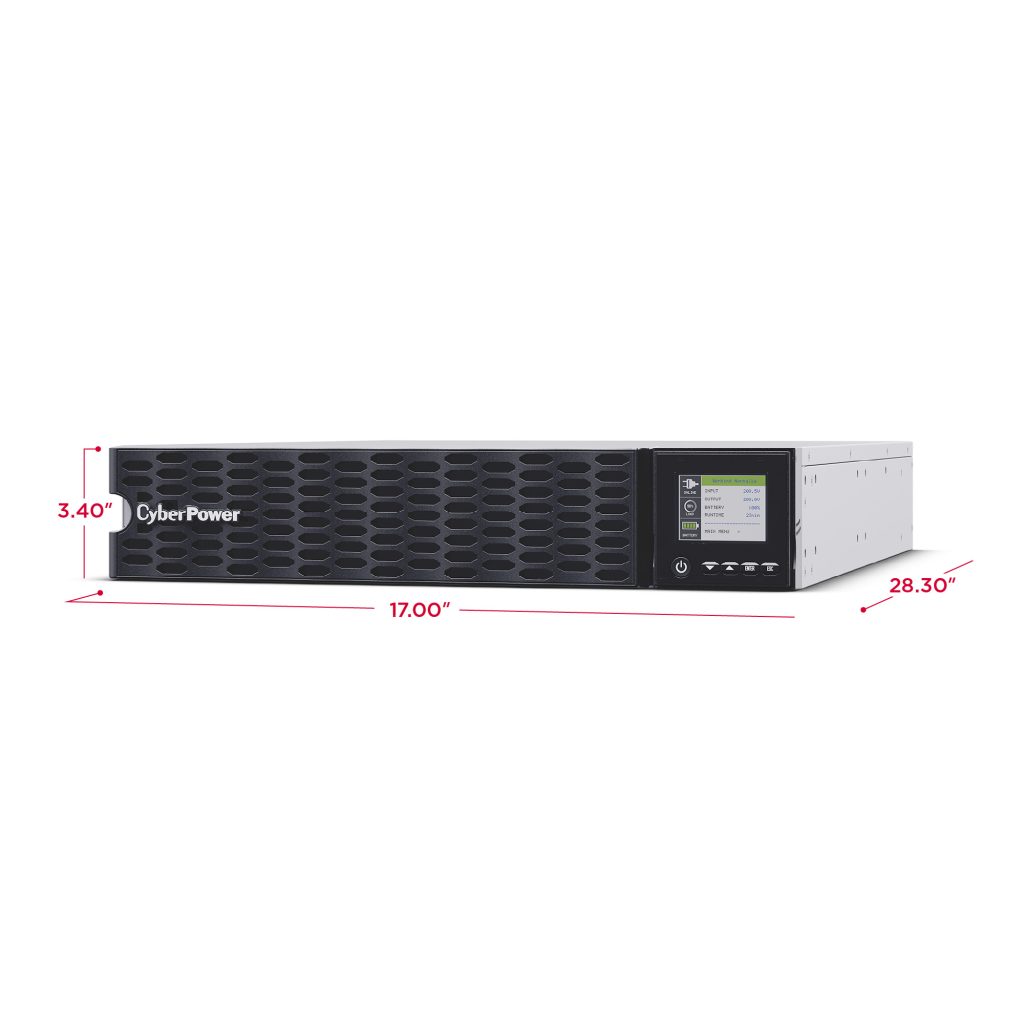

Dimensions
Physical Dimensions – (WxHxD) (cm) 43.18 x 8.64 x 71.88 (cm)
Physical Dimensions – (WxHxD) (in) 17 x 3.4 x 28.3 (in)
Physical Dimensions – (WxHxD) (mm) 432 x 86 x 719 (mm)
Weight (kg) 41.91
Weight (lb) 92.4
Dimensions – Shipping
Shipping – Weight (kg) 51.98
Shipping – Weight (lb) 114.6
Shipping Dimensions – (WxHxD) (cm) 59.94 x 21.59 x 109.98 (cm)
Shipping Dimensions – (WxHxD) (in) 23.6 x 8.5 x 43.3 (in)
Shipping Dimensions – (WxHxD) (mm) 599.44 x 215.9 x 1099.82 (mm)
Input
Backfeed Protection Yes
Cold Start Yes
Cord Length (ft) 10
Cord Length (m) 3
Input Frequency Range 40Hz-70Hz (auto-sensing)
Input Power Factor 0.99
Input Voltage 200-240VAC
Input Voltage Range 120-139VAC for 0-25% Load
140-159VAC for 0-50% Load
160-179VAC for 0-75% Load
180-280VAC for 0-100% Load
Plug Type Hardwire with NEMA L6-30P Power Cord Option
Output
Bypass Internal Bypass (Automatic and Manual)
Crest Factor 3:1
ECO Mode Bypass Voltage Range ±10%, ±15% (Configurable)
Harmonic Distortion THD < 3% at Linear Load, < 5% at Non-linear Load
On Battery Frequency 50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
On Battery Voltage 200, 208, 220, 230, 240Vac (Configurable) ±2%
On Battery Waveform Sine wave

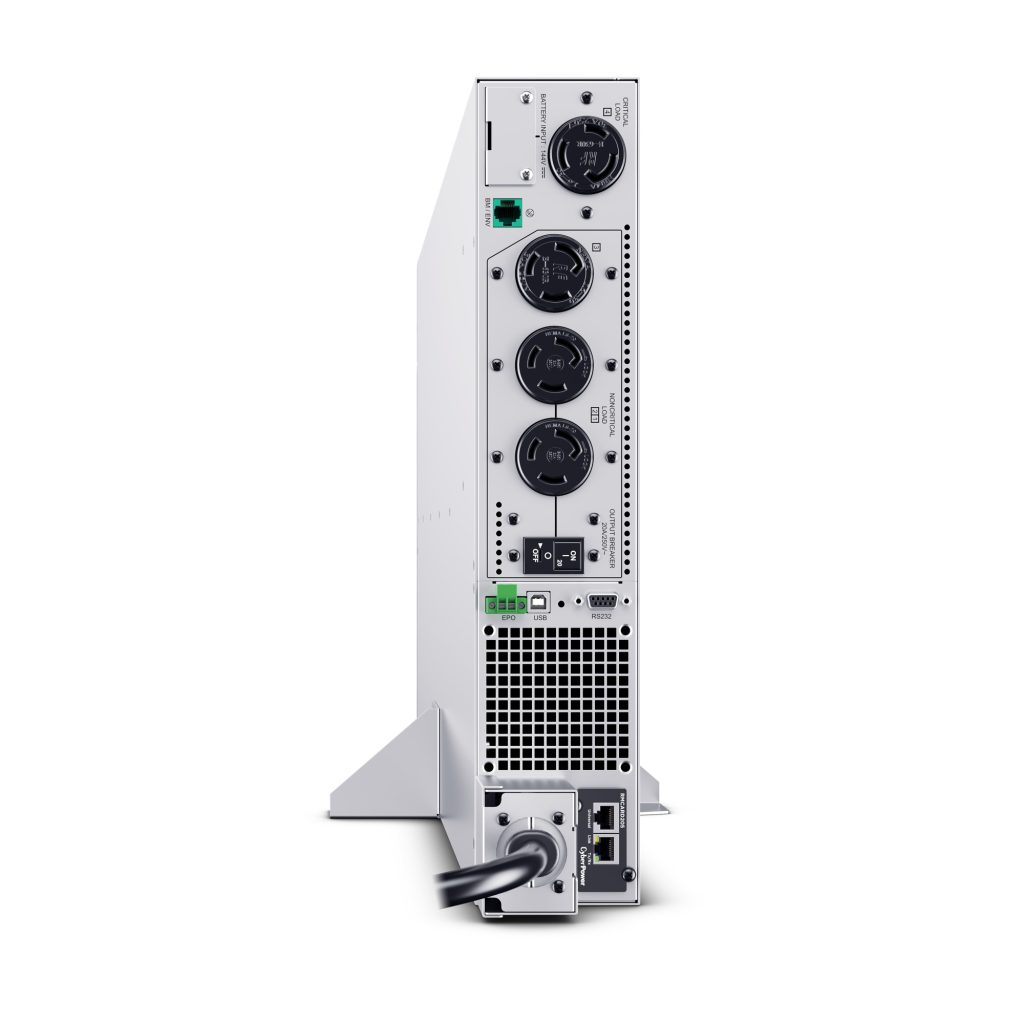

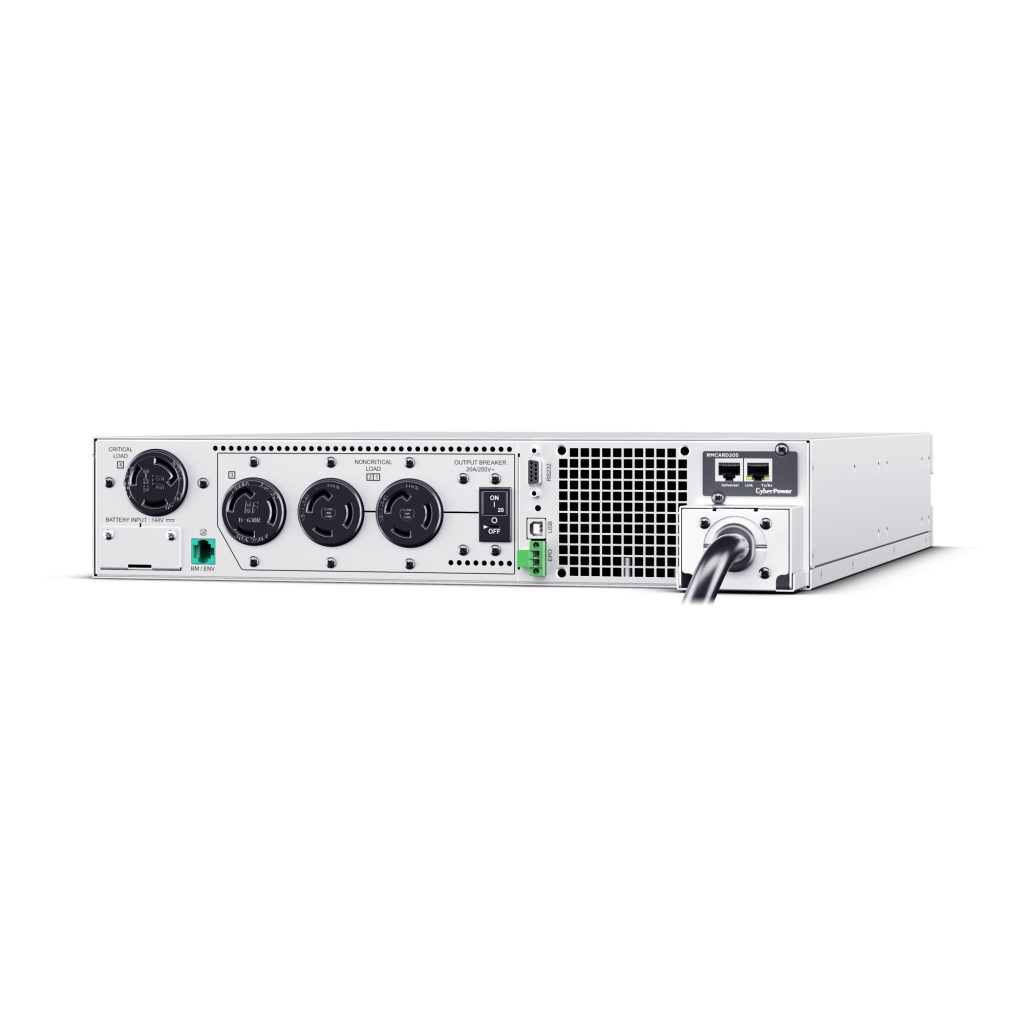

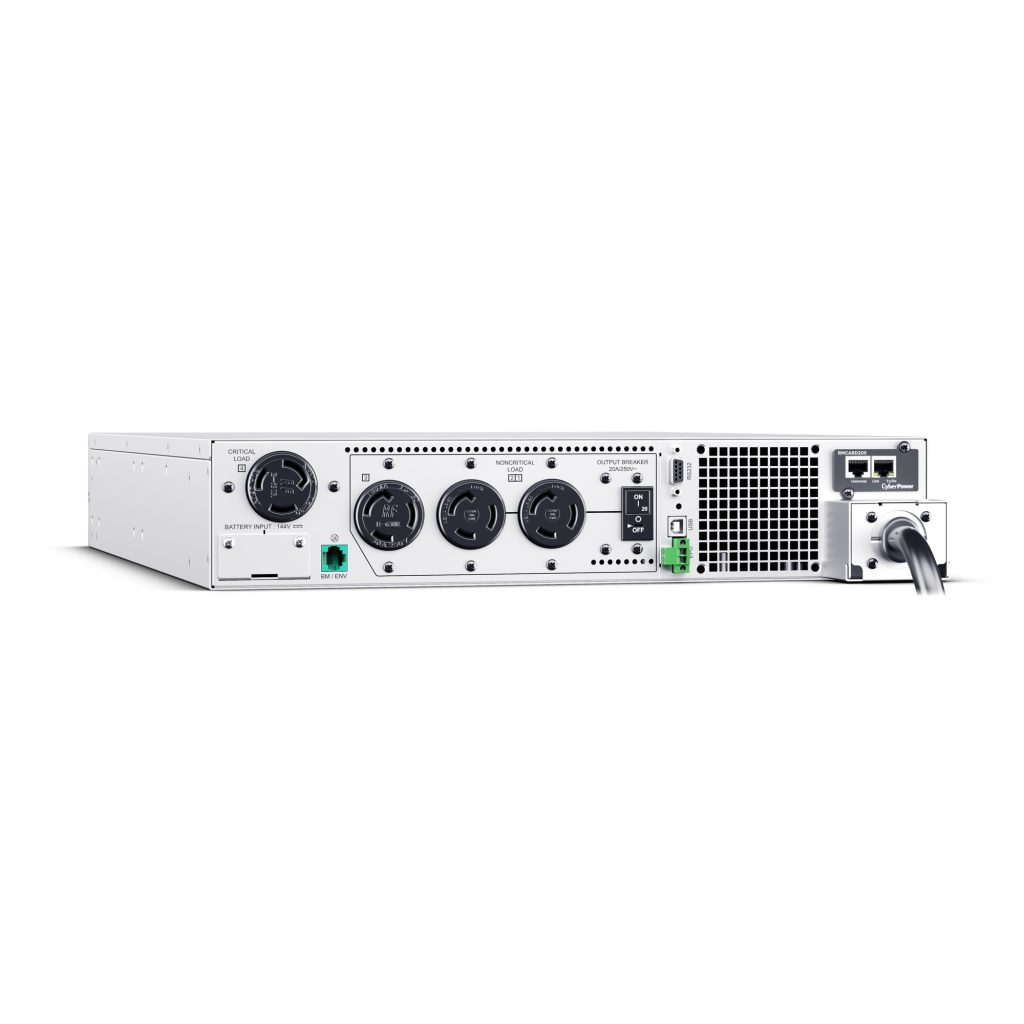

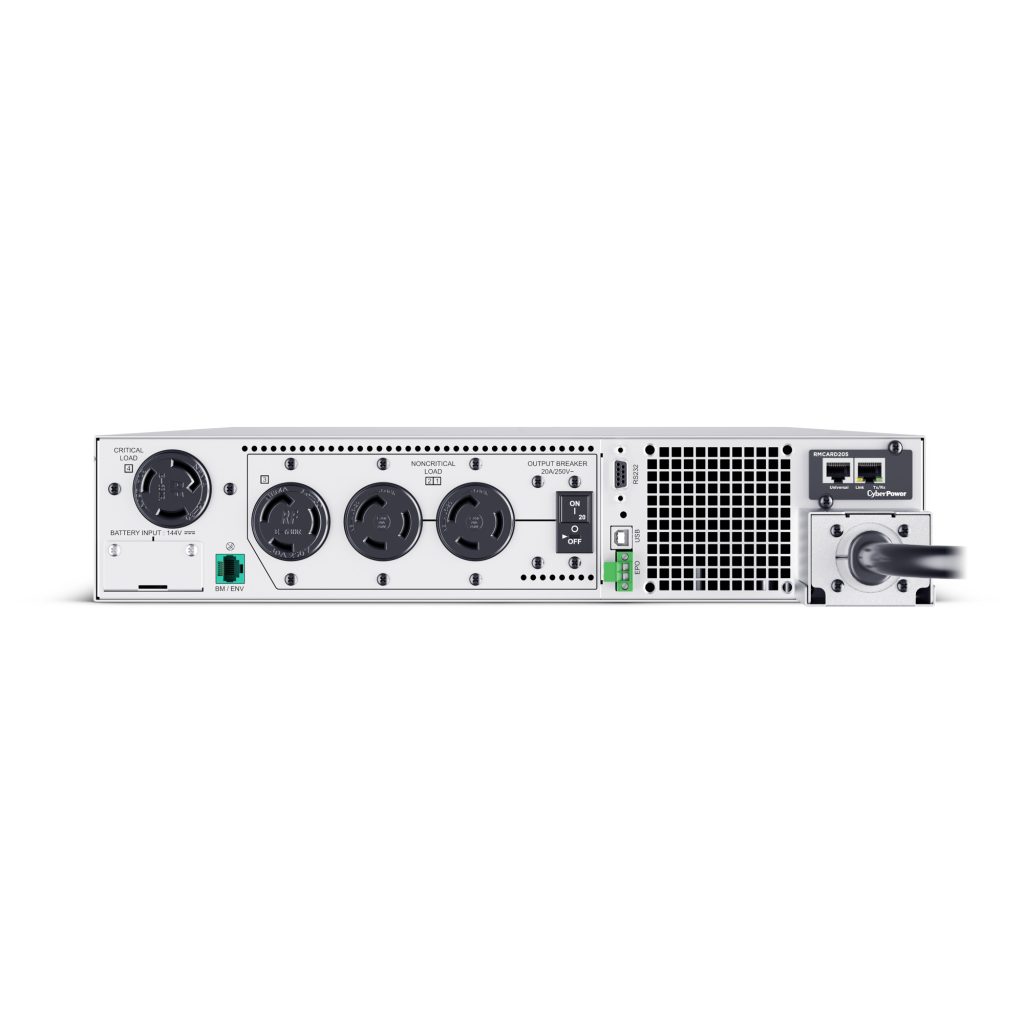

Outlet Type (2) NEMA L6-20R, (2) NEMA L6-30R
Outlets – Total 4
Overload Protection Line Mode:
105~125% Load for 1 min
126~150% Load for 10 sec
Battery Mode:
105~130% Load for 10 sec
131~150% Load for 2 sec
Rated Power Factor 1
Short Circuit Protection UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
Transfer Time 0ms
VA 6,000 (6 kVA) →w/ Hardwire Terminal
5,400 (5.4 kVA) – 240VAC →w/ Power cord
5,400 (5.4 kVA) – 230VAC →w/ Power cord
5,100 (5.1 kVA) – 220VAC →w/ Power cord
4,850 (4.85 kVA) – 208VAC →w/ Power cord
4,500 (4.5 kVA) – 200VAC →w/ Power cord
Watts 6,000 (6 kW) →w/ Hardwire Terminal
5,400 (5.4 kW) – 240VAC →w/ Power cord
5,400 (5.4 kW) – 230VAC →w/ Power cord
5,100 (5.1 kW) – 220VAC →w/ Power cord
4,850 (4.85 kW) – 208VAC →w/ Power cord
4,500 (4.5 kW) – 200VAC →w/ Power cord
Surge Protection & Filtering
EMI/RFI Filtration Yes
Surge Suppression 2430 Joules, per IEC 61000-4-5 Level 3
Management & Communications
Audible Alarms Battery Mode, Battery Low, Overload, UPS Fault
Auto Rotatable LCD Control Panel Option Yes
Dry Contacts No
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LCD Control Panel Multi-Function Color TFT-LCD Readout that Supports:
(15) Types of UPS status, (7) Types of Controls, (20) Types of Set Up,
(12) Event Logs, (11) Types of About, (4) Types of Diagnostics
LED Indicators Power On (White)
Management Cable USB cable, Serial cable
Removable LCD Control Panel Option No
SNMP / HTTP Remote Monitoring Yes – RMCARD205 pre-installed
Serial Port Yes
Software PowerPanel Business Edition
Physical
Enclosure Construction Steel
Form Factor Rack / Tower Convertible (Rotatable LCD)
Mounting Hardware Included Yes
Rack Height 2U
Environmental
Audible noise at 1m from surface of unit 43 dBA to 66 dBA (0% to 100% load)
Operating Elevation 0-10000 feet (0-3000 meters)
Operating Relative Humidity 0% – 90% non condensing
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Elevation 0-50000 feet (0-15000 meters)
Storage Relative Humidity 0% – 95% non condensing
Storage Temperature -4°F to 113 °F (-20°C to 45 °C)
UPS Online Thermal Dissipation (100% load) 1613 BTU/hr
Certifications
Environmental RoHS Compliant
Safety UL 1778 5th Ed.
CSA C22.2 NO.107.3-05
FCC Part 15 Class A
Warranty
CEG Amount $300,000
Connected Equipment Guarantee Lifetime
Extended 2-Year Warranty Optional WEXT5YR-U20B
Product Warranty 3 Years Limited
OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.
High Density

Getting more power in less space will become critical as growing data centers and IT closets confront physical space limitations. CyberPower has responded with a new UPS high density power solution that offers more power in less space. Designed for corporate server IT networks, this high-density UPS system has a smaller footprint on the rack (in terms of U rack height) and takes up significantly less space than similar competitive counterparts. Using less space gives you greater flexibility and more room to grow.


Battery Equalization Technology

A chain is only as strong as its weakest link. This proverb holds true for a multi-battery string; the weakest battery reduces the performance and life of the entire battery string. Battery Equalization Technology is an advanced charging process that improves the performance and extends the life of a multi-battery string by charging each battery to a similar voltage.

By charging each battery to a similar voltage, the multi-battery string will charge and discharge at the same level. This improves runtime and extends the time between each battery replacement resulting in lower overall battery costs.

Battery Equalization Technology is a component of a Battery Management System and has been used at the datacenter level for many years. However, this technology has not been available at the individual UPS level until now.


Full Matrix LCD Control Panel

Our new state-of-the-art, multi-function, color matrix LCD screen is simple to set up and easy to use. The new design provides display zones for instant confirmation of UPS working status, load %, battery capacity, and status parameters. Color icons clearly communicate status: green for normal, yellow for warning, and red for fault notices.

Other added LCD control functions allow you to set up sensitivity levels, mute the alarm, monitor power vitals, and add key information such as the IP address and serial number. Plus, the control panel can pivot out 18 degrees in the rack and automatically rotates 90 degrees when placed into a tower configuration for easier viewing.


OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.

Shutdown software supports 32-bit versions of most Linux builds.

Shutdown software supports 64-bit versions of most Linux builds.

Shutdown software supports most Mac OS systems 10.5+

Shutdown software supports 32-bit and 64-bit versions of Windows

Shutdown software supports VMWARE vSphere, ESXi 4.1 and later

Shutdown software supports VMWARE vSphere, ESXi 4.1 and later

OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
Visit our support page

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.
 Model Output VAOutput WForm FactorWaveformOutlets MSRP
 OL1000RTXL2U 1000 VA900 WRackmountSine Wave8 x NEMA 5-15R $645.00
 OL1000RTXL2UN 1000 VA900 WRackmountSine Wave8 x NEMA 5-15R $839.00
 OL1500RTXL2U 1500 VA1350 WRackmountSine Wave8 x NEMA 5-15R $815.00
 OL1500RTXL2UN 1500 VA1350 WRackmountSine Wave8 x NEMA 5-15R $995.00
 OL2200RTXL2U 2200 VA1800 WRackmountSine Wave1 x L5-20R, 6 x NEMA 5-20R $1,165.00
 OL2200RTXL2UN 2200 VA1800 WRackmountSine Wave1 x L5-20R, 6 x NEMA 5-20R $1,389.00
 OL3000RTXL2U 3000 VA2700 WRackmountSine Wave1 L5-30R, 6 x NEMA 5-20R $1,425.00
 OL3000RTXL2UN 3000 VA2700 WRackmountSine Wave1 L5-30R, 6 x NEMA 5-20R $1,719.00
 OL3000RTXL2UHVN 3000 VA2700 WRackmountSine Wave1 x NEMA L6-30R, 2 x NEMA L6-20R $1,899.00
 OL5KRTHD 5000 VA5000 WRackmountSine Wave2 x NEMA L6-20R, 2 x NEMA L6-30R $3,845.00
 OL6KRTHD 6000 VA6000 WRackmountSine Wave2 x NEMA L6-20R, 2 x NEMA L6-30R $4,600.00
 OL6KRT 6000 VA5400 WRackmountSine Wave2 x NEMA L6-20R, 2 x NEMA L6-30R $3,845.00
 OL8KRT 8000 VA8000 WRackmountSine Wave1 x Hardwire Terminal Block, 3 x NEMA L6-30R $4,795.00
 OL10KRT 10000 VA10000 WRackmountSine Wave1 x Hardwire Terminal Block, 3 x NEMA L6-30R $5,795.00
 OL6KRTF 6000 VA5400 WRackmountSine Wave1 x Hardwire Terminal Block, 1 x NEMA L6-30R, 2 x NEMA L6-20R, 6 x NEMA 5-20R $4,799.00
 OL8KRTF 8000 VA8000 WRackmountSine Wave1 x Hardwire Terminal Block, 3 x NEMA L6-30R, 6 x NEMA 5-20R $5,695.00
 OL10KRTF 10000 VA10000 WRackmountSine Wave1 x Hardwire Terminal Block, 3 x NEMA L6-30R, 6 x NEMA 5-20R $7,095.00
 OL6KRTMB 6000 VA6000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R $4,199.00
 OL8KRTMB 8000 VA8000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R $5,299.00
 OL10KRTMB 10000 VA10000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R $5,795.00
 OL6KRTMBTF 6000 VA6000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R, 6 x NEMA 5-20R $4,695.00
 OL8KRTMBTF 8000 VA8000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R, 6 x NEMA 5-20R $5,895.00
 OL10KRTMBTF 10000 VA10000 WRackmountSine Wave1 x Hardwire Terminal Block, 2 x NEMA L6-20R, 4 x NEMA L6-30R, 6 x NEMA 5-20R $6,755.00
 OL6KRTHW 6000 VA6000 WRackmountSine Wave1 x Hardwire Terminal Block $3,495.00
 OL8KRTHW 8000 VA8000 WRackmountSine Wave1 x Hardwire Terminal Block $4,695.00
 OL10KRTHW 10000 VA10000 WRackmountSine Wave1 x Hardwire Terminal Block $5,195.00

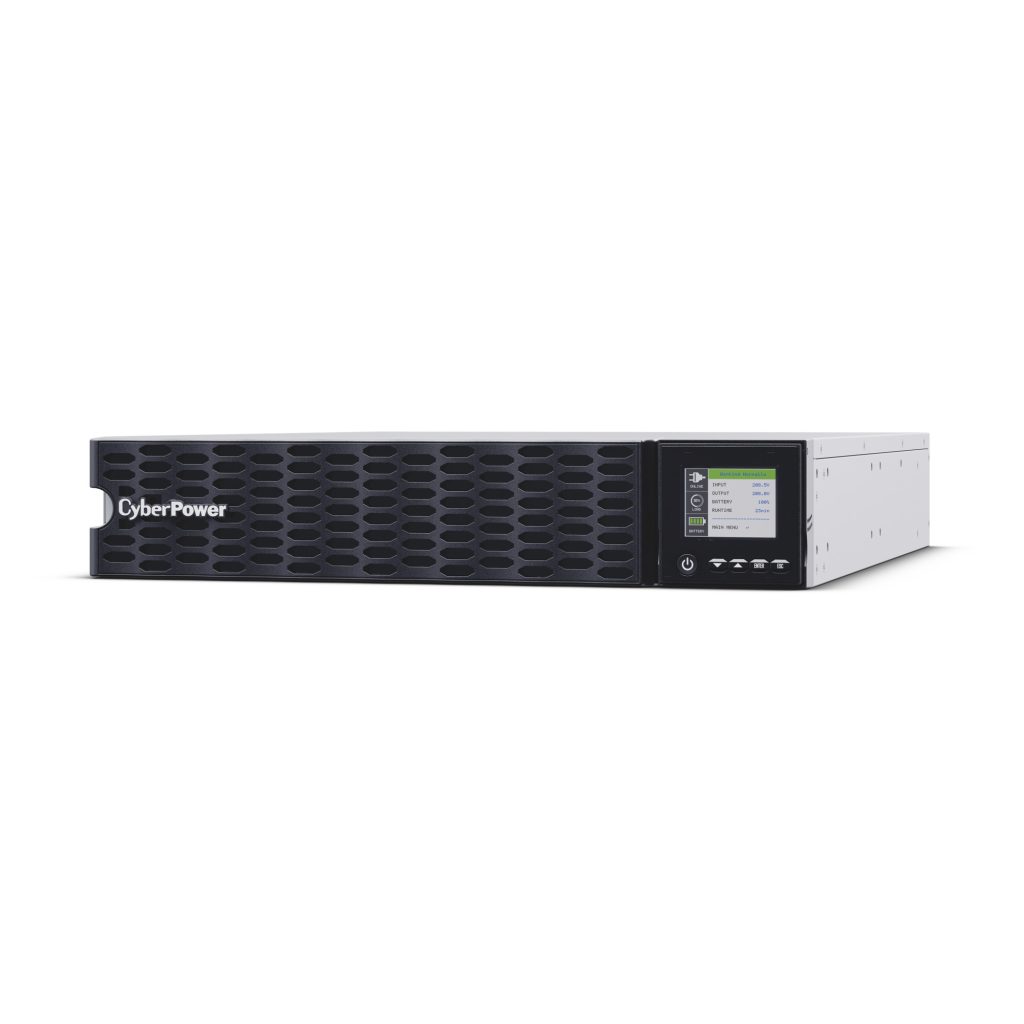

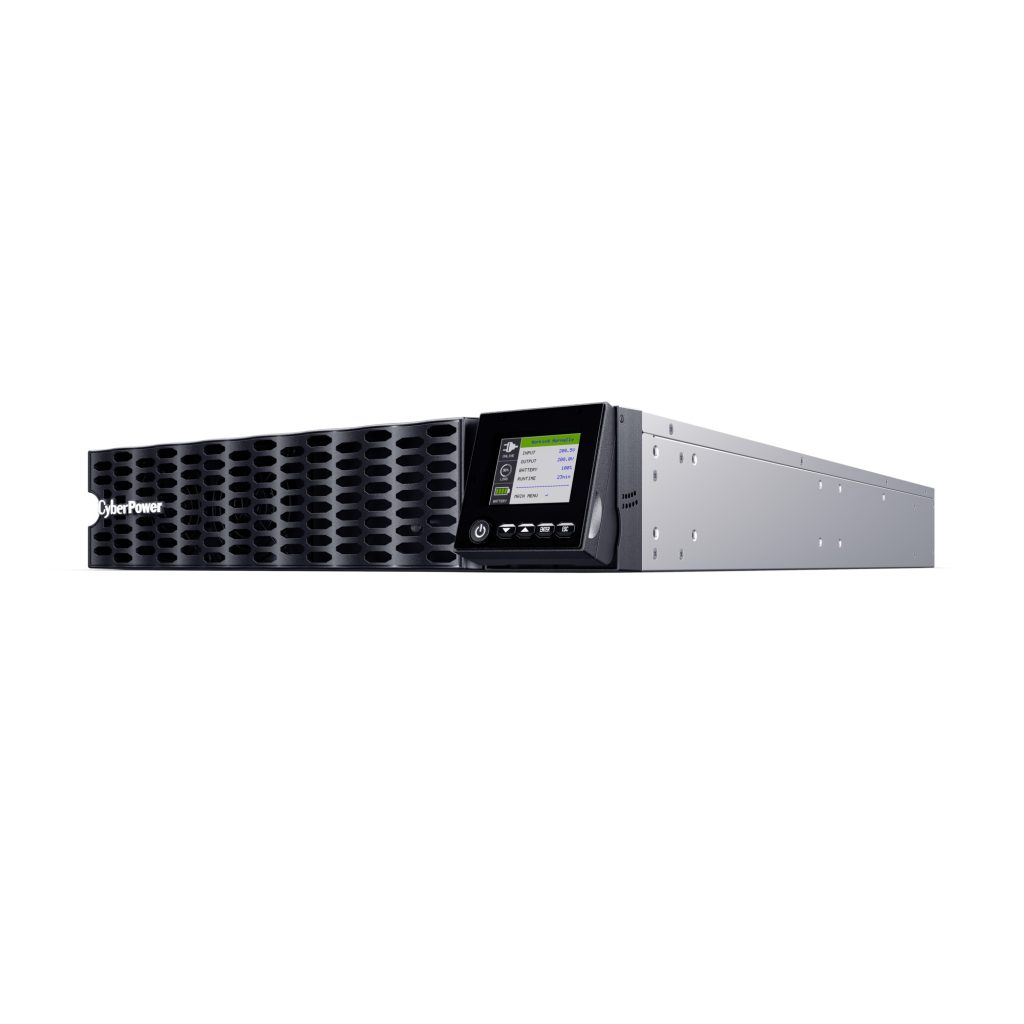

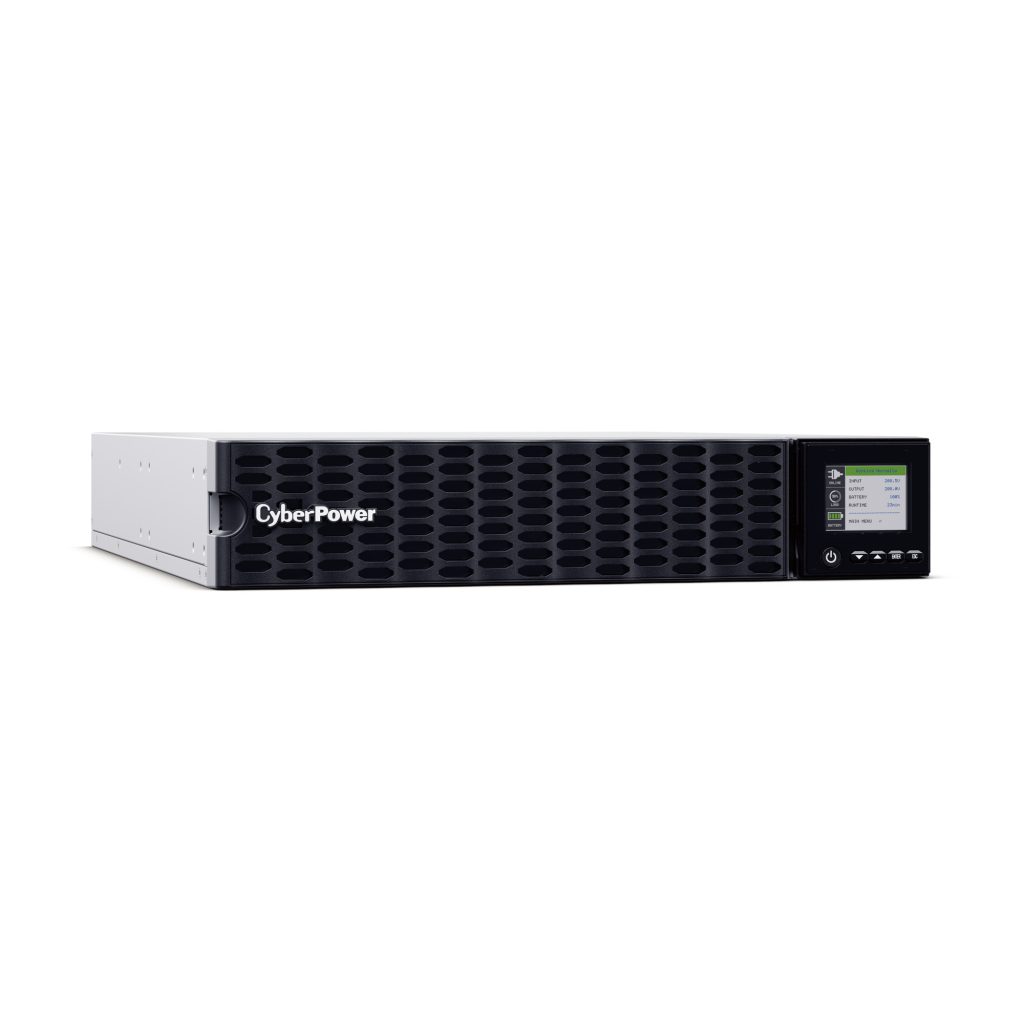

OL6KRTHD | Smart App Online UPS Series
Safeguard mission-critical servers, applications, and network equipment with this space saving design and double-conversion power protection.
