Smart App LCD UPS Series

MSRP $439.00

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Serial, SNMP
  • Management software: PowerPanel® Business Edition
  • Remote management: Yes
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
Where To Buy

Product Description

OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment

Product Overview

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

  • Data Line Protection
    Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR)
    Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Simulated Sine Wave Output
    Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS™ Bypass Design
    Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Multifunction LCD Screen
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • PowerPanel® Business Edition Software
    Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
    This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual, Rackmount Brackets x 2, Telephone Cable, PowerPanel Business Edition Software CD, Serial Interface Cable (DB-9), USB A+B Type Cable, Warranty Registration Card

OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass
ENERGY STAR® QualifiedYes
Voltage90 – 140 VAC
Frequency Range57 – 63 Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle
Cord Length10 ft
VA1,500 VA
Watts900 W
Automatic Voltage RegulationYes
On Battery Voltage120 VAC ± 10%
On Battery Frequency60 Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlet TypeNEMA 5-15R
Outlets – Total6
Outlets – Battery & Surge Protected4
Outlets – Surge-Only Protected2
Overload ProtectionInternal Circuitry Limiting

Circuit Breaker

Transfer Time4 ms

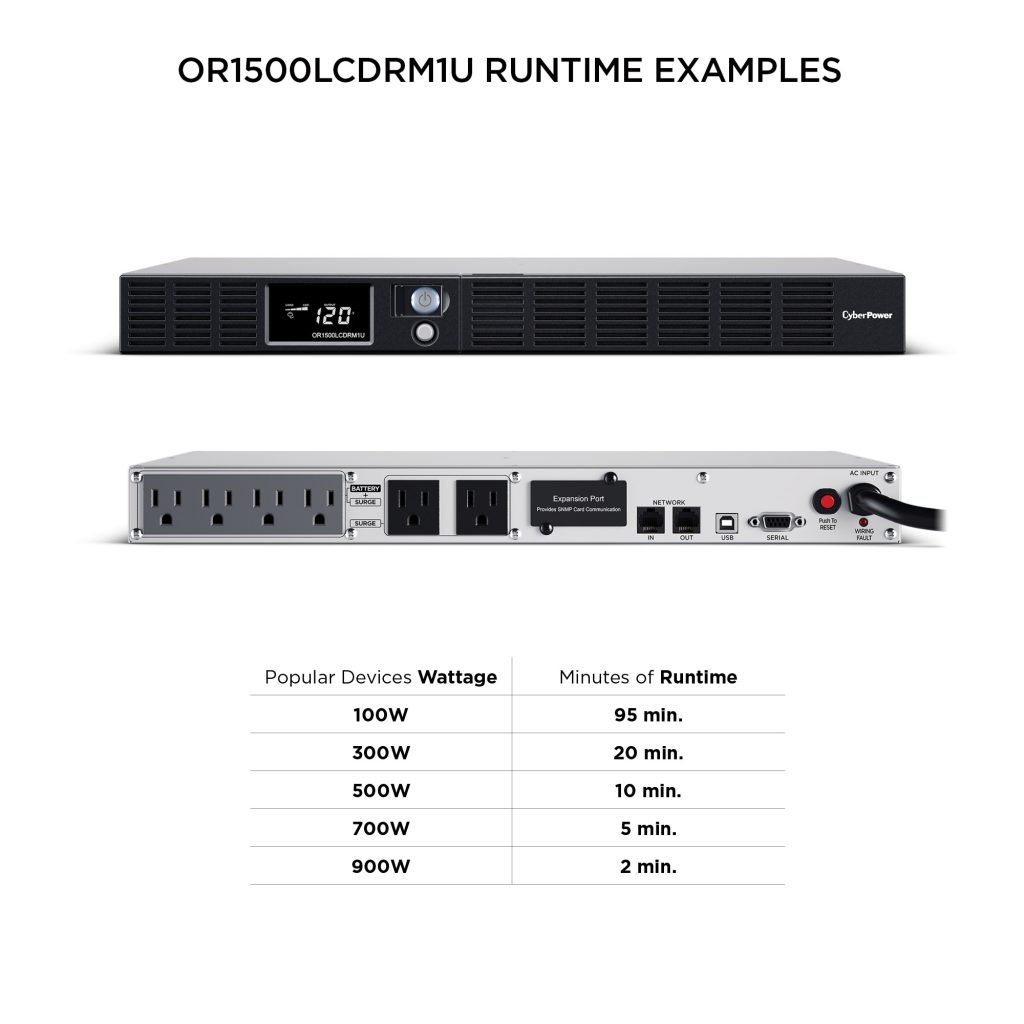

Runtime at Half Load11 minute
Runtime at Full Load2 minutes
Battery TypeSealed Lead-Acid
Battery Size6V/9Ah
Battery Quantity4
User ReplaceableYes
Replacement Battery CartridgeRB0690X4
Replacement Battery Cartridge Quantity1
Typical Recharge Time8 hours
Surge Protection & Filtering
Surge Suppression1,030 J
Phone RJ11 / Ethernet RJ451-In, 1-Out (Combo)
Management & Communications
Multifunction LCD PanelDisplays:

Current/Load Level


Battery Level

Input Voltage

Output Voltage

Battery In Use


Silent Mode

Normal Mode

HID Compliant USB PortYes
Serial PortYes
Management CableNone
Audible AlarmsOn Battery

Low Battery


SoftwarePowerPanel® Business Edition
SNMP / HTTP Remote MonitoringYes, with optional RMCARD205
Rack Size1U
Form FactorRack
Dimensions – W×H×D (in)17.25 × 1.75 × 19.5 inches
Weight (lbs)45.6 lbs
Operating Temperature32 – 95 °F (0 – 35 °C)
Operating Humidity0 – 95% (non-condensing)

cUL 107.1


EnvironmentalRoHS Compliant
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$300,000
OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment
Efficient Remote Management

The Smart App Series offers full-featured network UPS management capabilities with the PowerPanel® Business Edition software and an optional SNMP network management card. These remote management tools enable centralized power management, monitoring, control, and configuration. They also provide for safe shutdown of connected servers, workstations, and other devices via a standard Web browser or network management system (NMS).

Safe Shutdown

The PowerPanel® Business Edition software, included with every Smart App Sinewave UPS, enables an administrator to remotely manage each aspect of the UPS and facilitate the orderly automatic shutdown of connected equipment in the event of an extended power outage. This software also provides comprehensive network power management for corporate servers and critical workstations supported by the UPS, such as application/operating system shutdown, event logging, reporting, alerts and notifications.

Programmable Outlet Control

Smart App UPS systems allow programming of critical outlets and non-critical outlets, giving administrators the ability to prioritize outlets and increase battery backup runtimes for the most critical equipment during extended power outages. Programmable outlet control also gives an administrator the option to delay-start non-critical outlets, permitting the internal batteries to fully recharge more quickly. This feature is vital to data centers where seamless, uninterrupted equipment bootup is a necessity.

GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.

Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer—a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.

OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment

Shutdown software supports most Mac OS systems 10.5+

Shutdown software supports 32-bit and 64-bit versions of Windows

Shutdown software supports 32-bit versions of most Linux builds.

Shutdown software supports 64-bit versions of most Linux builds.

OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment
Are the rackmount ears strong enough to hold up my rackmounted UPS? Does it also need to have rear supports?

The front-mount rackmount ears are specifically designed and tested to hold up their own weight in both a two-post and four-post rack enclosure. Rear supports are not needed, but users can install them if they wish.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST


Monday - Friday
7am — 6pm CST

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.

CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

OR1500LCDRM1U | Smart App LCD UPS Series
Protect department and workgroup servers, workstations, network devices, and telecom equipment
     ModelOutput VAOutput WattsForm FactorWaveformOutlets MSRP
     OR500LCDRM1U500 VA300 WRackmountSimulated Sine Wave6 x NEMA 5-15R $175.00
     OR700LCDRM1U700 VA400 WRackmountSimulated Sine Wave6 x NEMA 5-15R $225.00
     OR1000LCDRM1U1000 VA600 WRackmountSimulated Sine Wave6 x NEMA 5-15R $369.00
     OR1500LCDRM1U1500 VA900 WRackmountSimulated Sine Wave6 x NEMA 5-15R $439.00
     OR1500LCDRT2U1500 VA900 WRack/TowerSimulated Sine Wave8 x NEMA 5-15R $399.00
     OR2200LCDRT2U2200 VA1320 WRack/TowerSimulated Sine Wave8 x NEMA 5-20R $479.00
     OR1500LCDRTXL2U1500 VA1125 WRack/TowerSimulated Sine Wave8 x NEMA 5-15R $499.00
     OR2200LCDRTXL2U2190 VA1650 WRack/TowerSimulated Sine Wave8 x NEMA 5-20R $649.00
     CPS1500AVR1500 VA900 WRackmountSimulated Sine Wave8 x NEMA 5-15R $379.95
    OR1500LCDRM1U | Smart App LCD UPS Series
    Protect department and workgroup servers, workstations, network devices, and telecom equipment

      Extended Battery Module:

      • Protocol support: TCP/IP, UDP, SNMP/HTTP, NTP, DNS, SMTP
      • Remote management: HTTP, NMS
      • Auto shutdown: Workstations, multiple servers
      • Auto shutdown clients: 50
      • Auto event notification: SMTP, SMS, SNMP trap
      • Remote scheduling: Shutdown, startup, reboot
      • Ethernet speeds: 10/100 Mbps
      • Environmental Sensor compatible: Yes
      • Upgradable firmware: Yes
      • Security management: MD5
      • Warranty: 3 year
