THE NEXT GENERATION

Smart App Sinewave UPS Series is here

These new units provide professional-grade power protection for your corporate, small business, or network installations. This UPS series is the one you’ve been asking for. The series includes Battery Equalization Technology that increases battery life and Fast Charge Technology which recharges batteries from 0% to 90% in three hours.

WATCH VIDEO

BACKUP ON
THE FOREFRONT

User-driven design

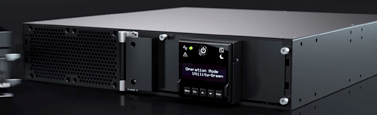

front 3/4 view

CUSTOMER-INSPIRED

Toolless front panel enables easy battery replacement. The faceplate features side latches for simple removal, and captive screws can be loosened by hand to open the battery cover.

Multifunctional LCD customizes local monitoring with 47 status and control settings.

Adjustable screen tilts 15 degrees and rotates 90 degrees for easy viewing in any orientation.

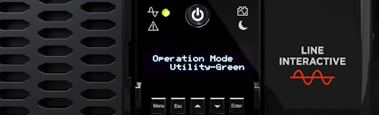

front panel close-up

PROFESSIONAL-GRADE

Sine wave output safeguards sensitive server and storage equipment.

Remote management capabilities help monitor and control the UPS remotely. Supports remote monitoring via standard web browser, command line interface (CLI), or network management system (NMS).

Power Factor of 1 gives this unit the highest capacity UPS series in its class and makes the unit energy efficient.

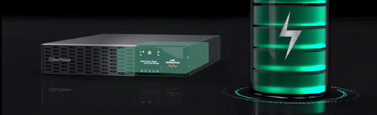

battery equalization

INNOVATIVE TECHNOLOGY

Battery Equalization Technology increases battery life by maintaining battery voltages at the same level.

Fast Charge Technology recharges batteries from 0% to 90% in three hours.

PowerPanel® Business Edition software provides a user-friendly interface for monitoring and managing UPS and backup power.

INNOVATION DRIVEN BY INSPIRATION

These customer-inspired features were added for corporate servers and network environments to keep your business running smoothly.

toolless front panel

Toolless Front Panel

Enables easy battery replacement. The faceplate features side latches for simple removal, and captive screws can be loosened by hand to open the battery cover.

multifunction lcd

Multifunctional LCD

Customizes local monitoring with 47 status and control settings. Adjustable Screen tilts 15 degrees and rotates 90 degrees for easy viewing in any orientation.

critical and non-critical outlets

Critical & Non-Critical Outlets

When this feature is enabled, non-critical outlets shut down early to provide additional runtime for equipment that takes longer to power down safely.

surge outlets

Battery & Surge Protected Outlets

These outlets safeguard your connected equipment during an AC power surge or spike, and provide enough battery backup power for you to save files and properly shut down during an outage.

remote monitoring

Remote Management Capabilities

Help monitor and control the UPS remotely. Supports remote monitoring via standard web browser, command line interface (CLI), or network management system (NMS). Management card (sold separately).

PROFESSIONAL-GRADE BATTERY BACKUP

MODEL VA WATTS OUTLETS WARRANTY
PR750RT2U 750 750 8 Three-Year
PR1000RT2U 1000 1000 8 Three-Year
PR1000RT2UN 1000 1000 8 Three-Year
PR1500RT2U 1500 1500 8 Three-Year
PR2000RT2U 2000 2000 8 Three-Year
PR750RTXL2U 750 750 8 Three-Year
PR1000RTXL2U 1000 1000 8 Three-Year
PR1500RTXL2U 1500 1500 8 Three-Year
PR2000RTXL2U 2000 2000 8 Three-Year
PR2200RT2U 2200 2200 8 Three-Year
PR3000RT2U 3000 3000 8 Three-Year
PR2200RTXL2U 2200 2200 8 Three-Year
PR3000RTXL2U 3000 3000 8 Three-Year

EXTENDED BATTERY MODULES

MODEL VA WATTS RECHARGE TIME WARRANTY UPS COMPATIBILITY
BP48VP2U01 EBM 48 60 6 hours Three-Year PR750RTXL2U, PR1000RTXL2U
BP48VP2U02 EBM 48 60 6 hours Three-Year PR750RTXL2U, PR1000RTXL2U
