Essential Surge Protectors

B100W

DISCONTINUED
  • Surge suppression: 350 J
  • Volts: 125 V
  • Plug type: NEMA 5-15P
  • Plug style: Wall tap
  • Outlet type: 1 NEMA 5-15R
Overview

Product Overview

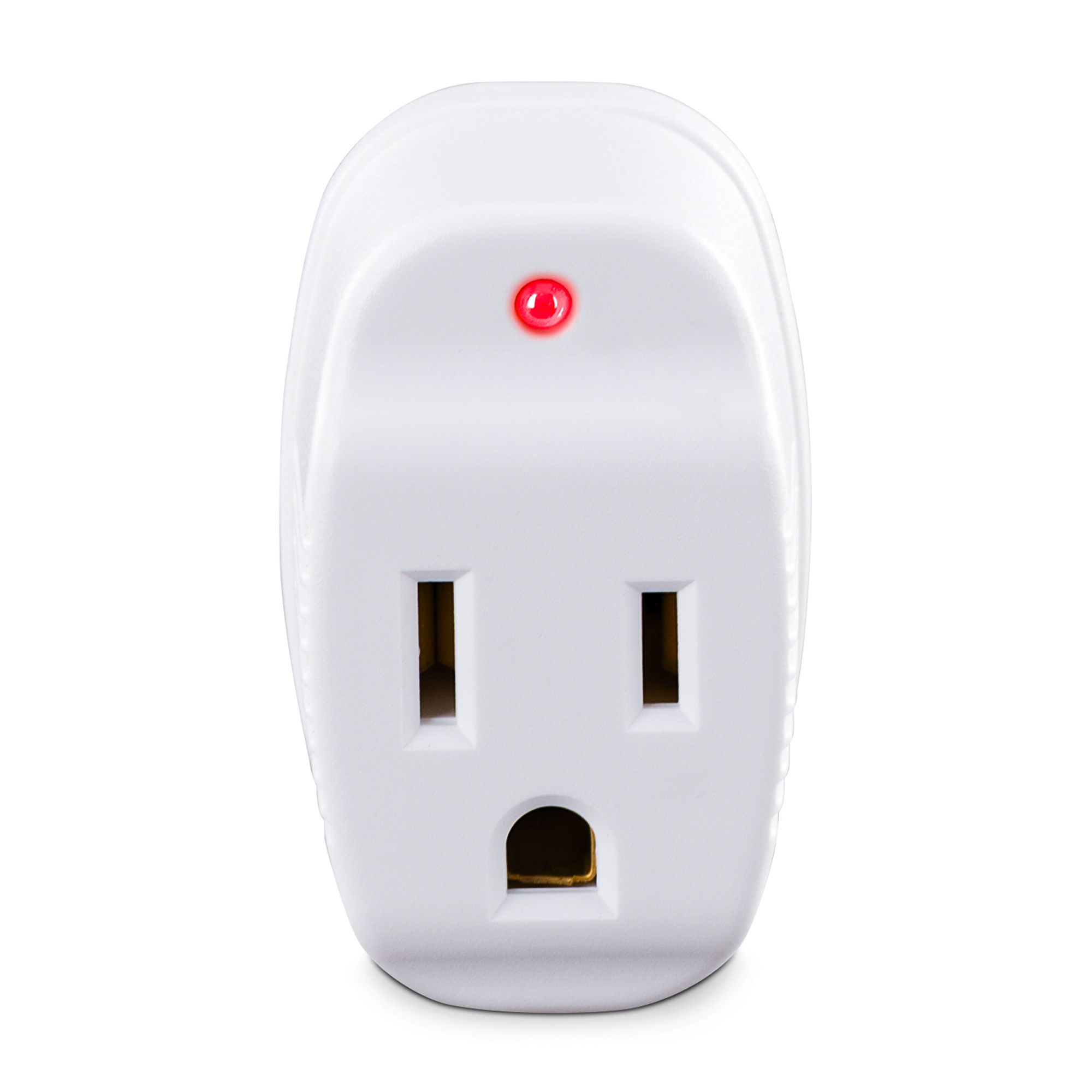

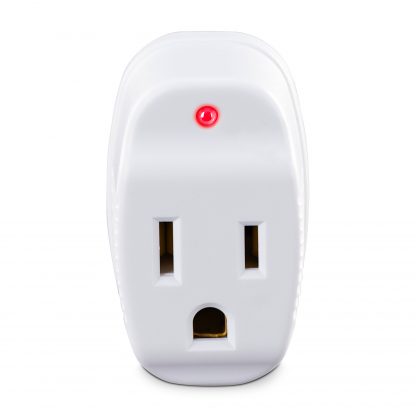

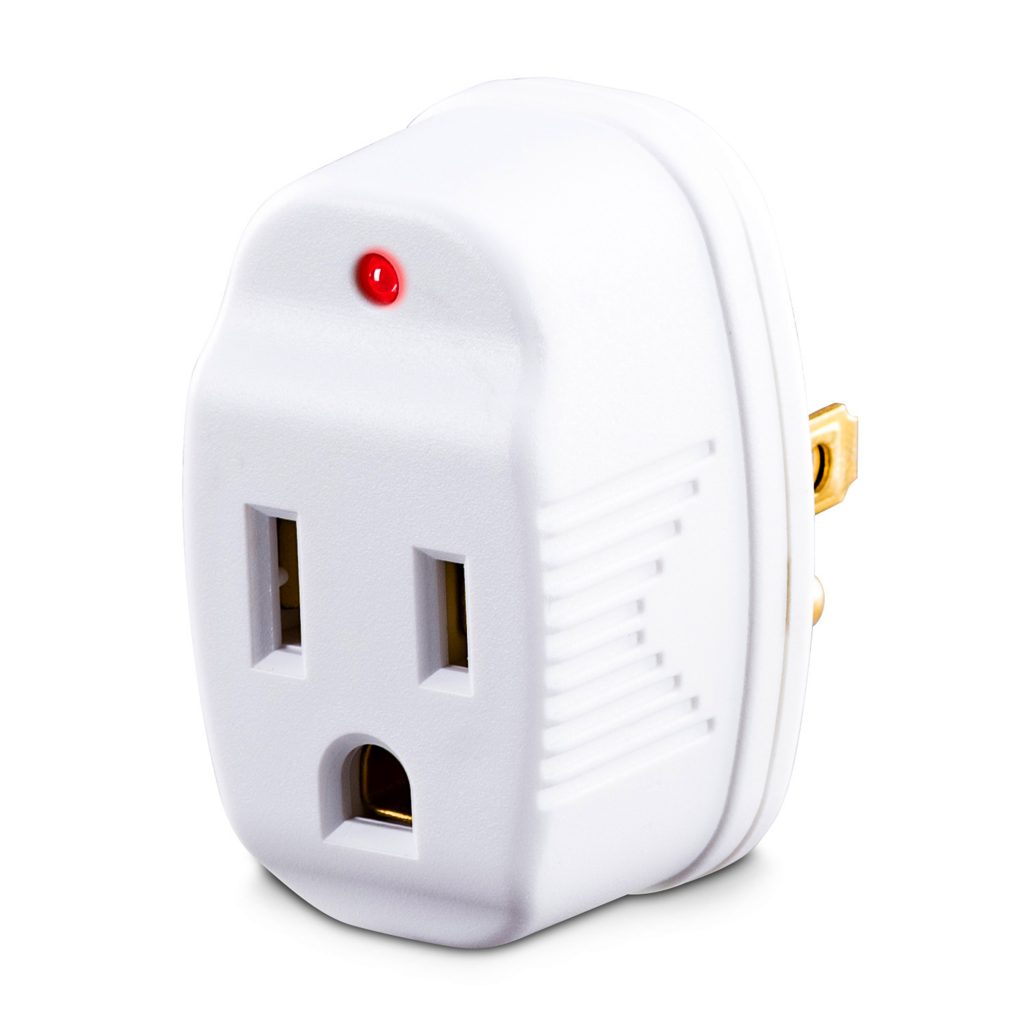

The single-outlet B100W Surge Protector wall tap from CyberPower protects electronic devices from damage caused by power spikes and surges. The ultra-compact B100W is ideal for at home or on-the-go. Rated at 350 joules, this surge suppressor features an LED to indicate the connected equipment is protected. The B100W Surge Protector comes with Lifetime Limited Warranty and a $15,000 Connected Equipment Guarantee.

Product Features
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Metal Oxide Varistor (MOV) Technology
    Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.

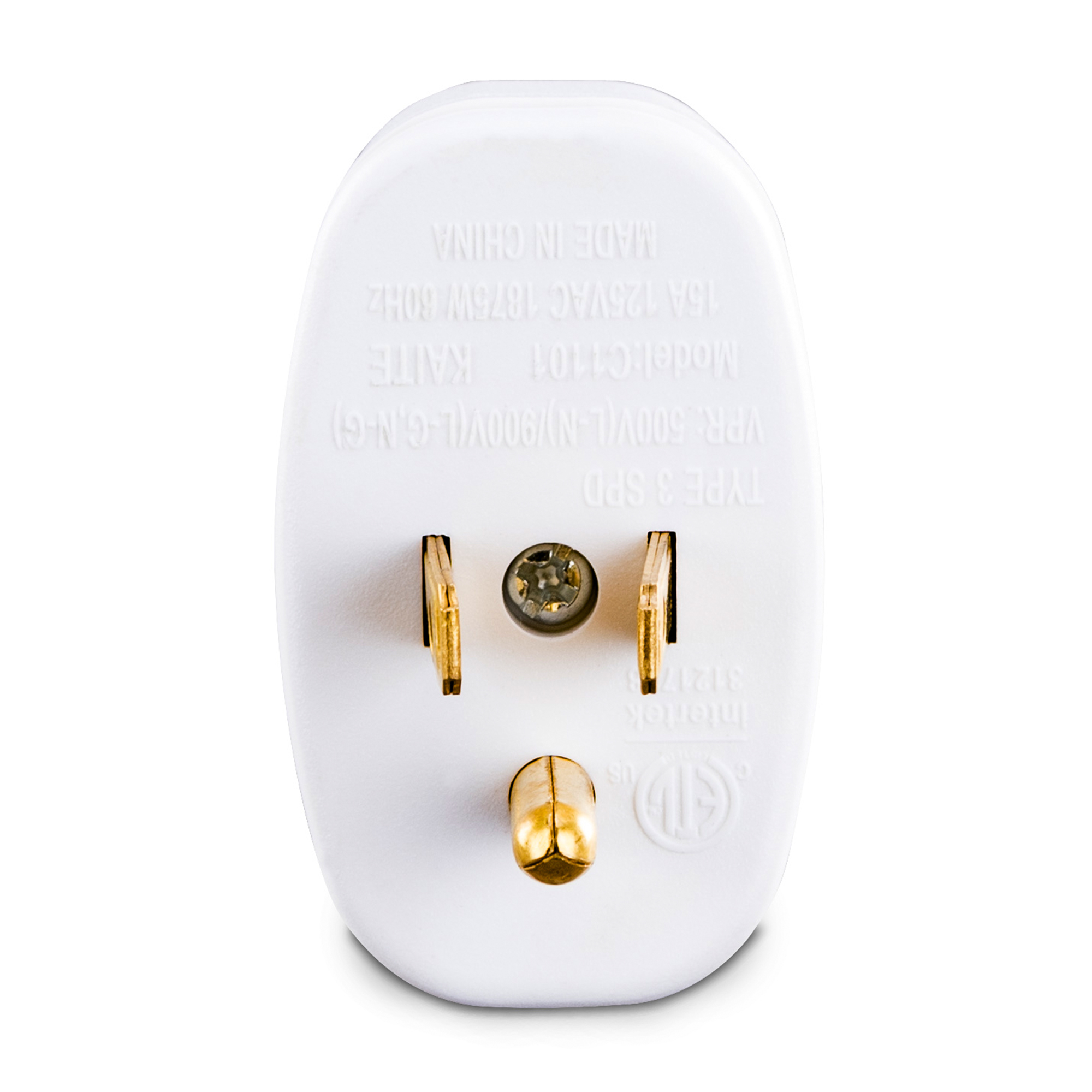

  • Wall Tap Plug
    Enables the model to be plugged directly into a wall outlet without a power cord.
  • LED Indicator
    Lights to indicate the model’s status: Protected.
  • Impact-Resistant Casing
    Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Limited Lifetime Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
Input
Input Plug Type NEMA 5-15P
Maximum Input Current 15A (Derated to 12A)
Plug Style Wall Tap
Switch None
Output
Outlet Type 1 – NEMA 5-15R
Outlets – Total 1
USB Charge Port No
Surge Protection & Filtering
Clamping Voltage 800V (H-N, H-G, N-G)
EMI/RFI Filtration None
Maximum Surge Current 45000 A
Maximum Surge Current H-G 15000 A
Maximum Surge Current H-N 45000 A
Maximum Surge Current N-G 15000 A
Maximum Surge Voltage 6000 V
Response Time <1 Nanosecond
Surge Suppression (Joules) 350 J
Management & Communications
Indicators Protected
Physical
Color White
Form Factors Supported Direct Plug
Material of Construction Plastic
Dimensions
Physical Dimensions – (WxHxD) (cm) 3.0 x 5.0 x 5.0 (cm)
Physical Dimensions – (WxHxD) (in) 1.18 x 1.97 x 1.97 (in)
Physical Dimensions – (WxHxD) (mm) 30 x 50 x 50 (mm)
Physical Weight (kg) 0.03
Physical Weight (lb) 0.06
Dimensions – Shipping
Shipping – Weight (kg) 0.03
Shipping – Weight (lb) 0.06
Shipping Dimensions – (WxHxD) (cm) 4.95 x 14.27 x 11.15 (cm)
Shipping Dimensions – (WxHxD) (in) 1.95 x 5.62 x 4.39 (in)
Shipping Dimensions – (WxHxD) (mm) 49.53 x 142.75 x 111.51 (mm)
Certifications
Environmental RoHS Compliant
Safety UL1449 4th Edition
Warranty
CEG Amount $15000
Connected Equipment Guarantee Lifetime
Product Warranty Limited Lifetime Warranty
Support
If my surge protector has a surge light, should it be illuminated?

Yes. The surge light should be illuminated. This indicates that the CyberPower surge suppressor is functioning properly. If the light is not illuminated, it indicates that the surge protector has received a catastrophic surge and will need to be replaced. CyberPower will replace the surge suppressor free of charge, provided the warranty terms and conditions are met.

Should I register the CyberPower product I purchased?

We recommend that you promptly register the product you purchased. You may register online by clicking the Registration button at the top of the page.

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area
