BP36V60ART2U


Extended Battery Modules

MSRP $565.00

  • Output: 36V/60A
  • Recharge time: 4 hours
  • Battery type & quantity: 12V/9AH (6)
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Fast Charge Technology: Yes
  • Warranty: 3 year
Where To Buy

Product Description

BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages

Product Overview

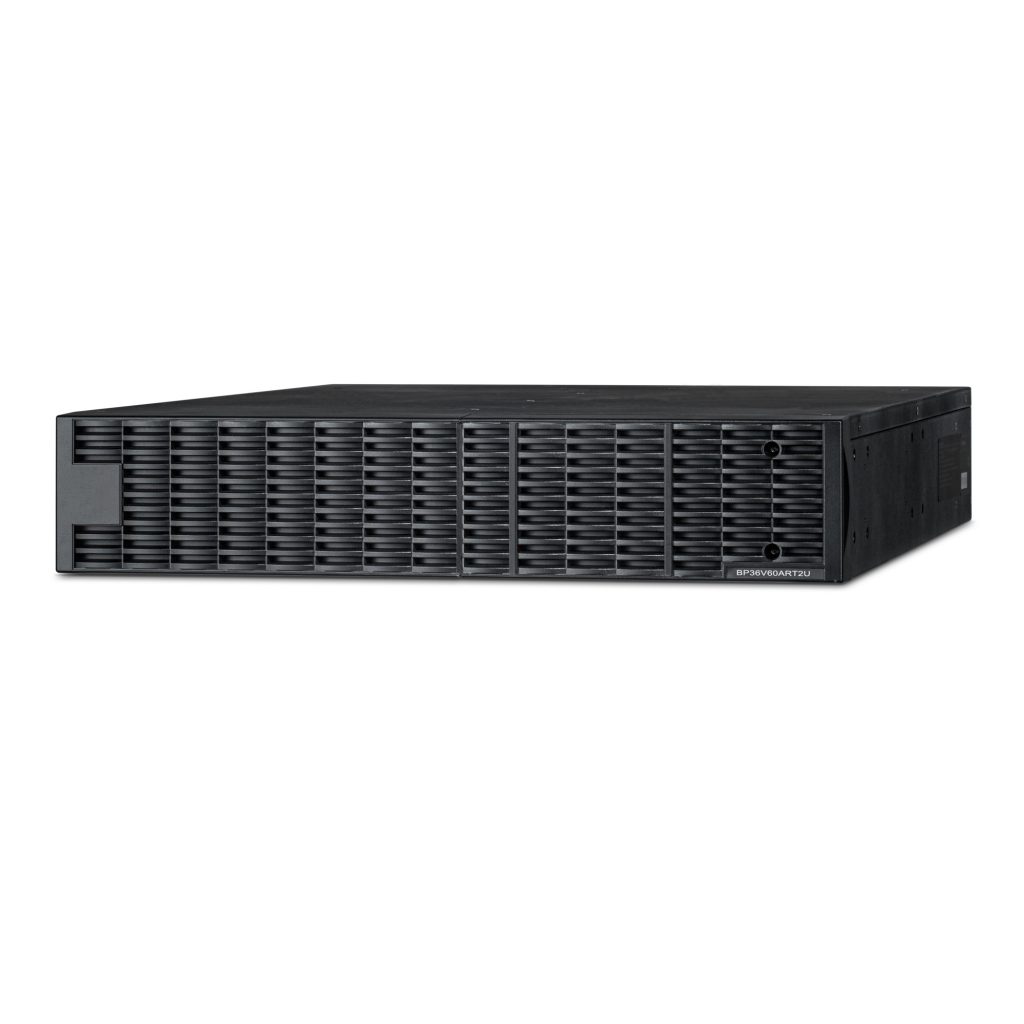

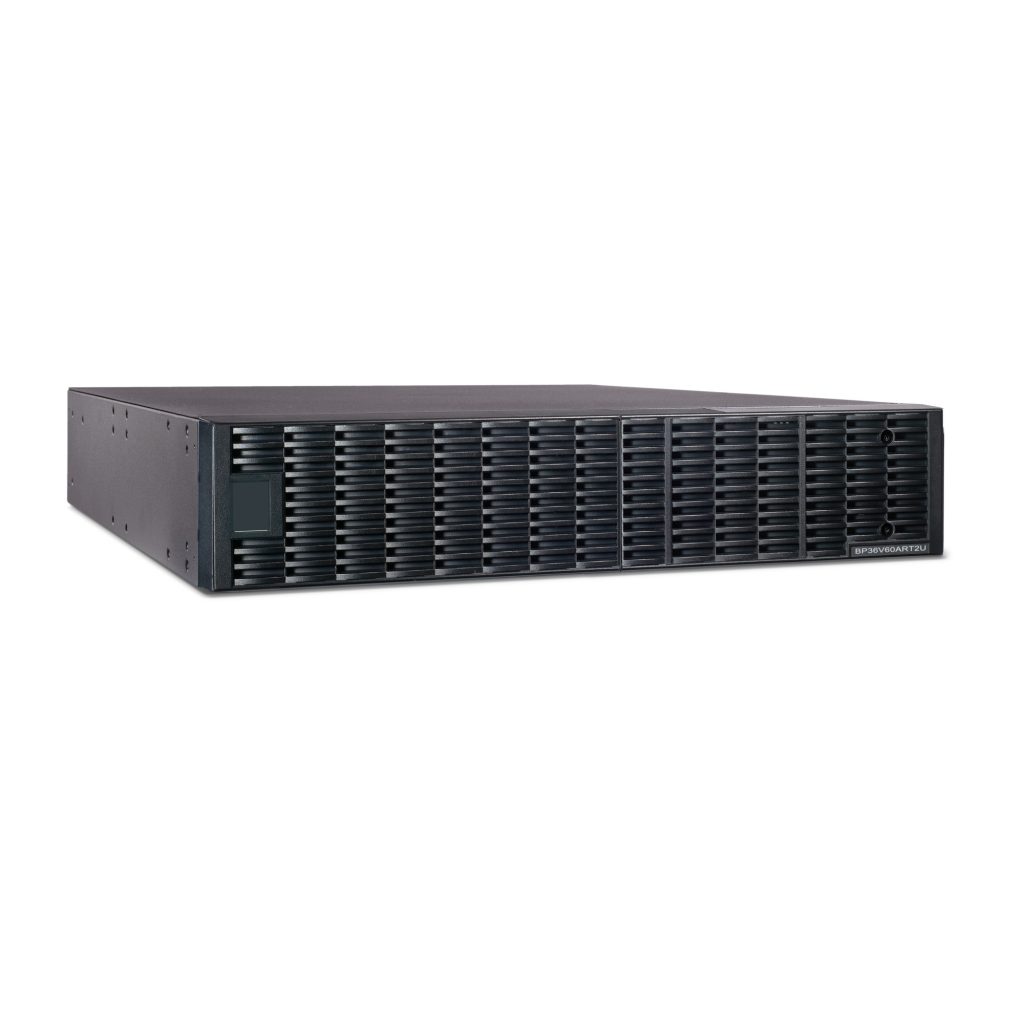

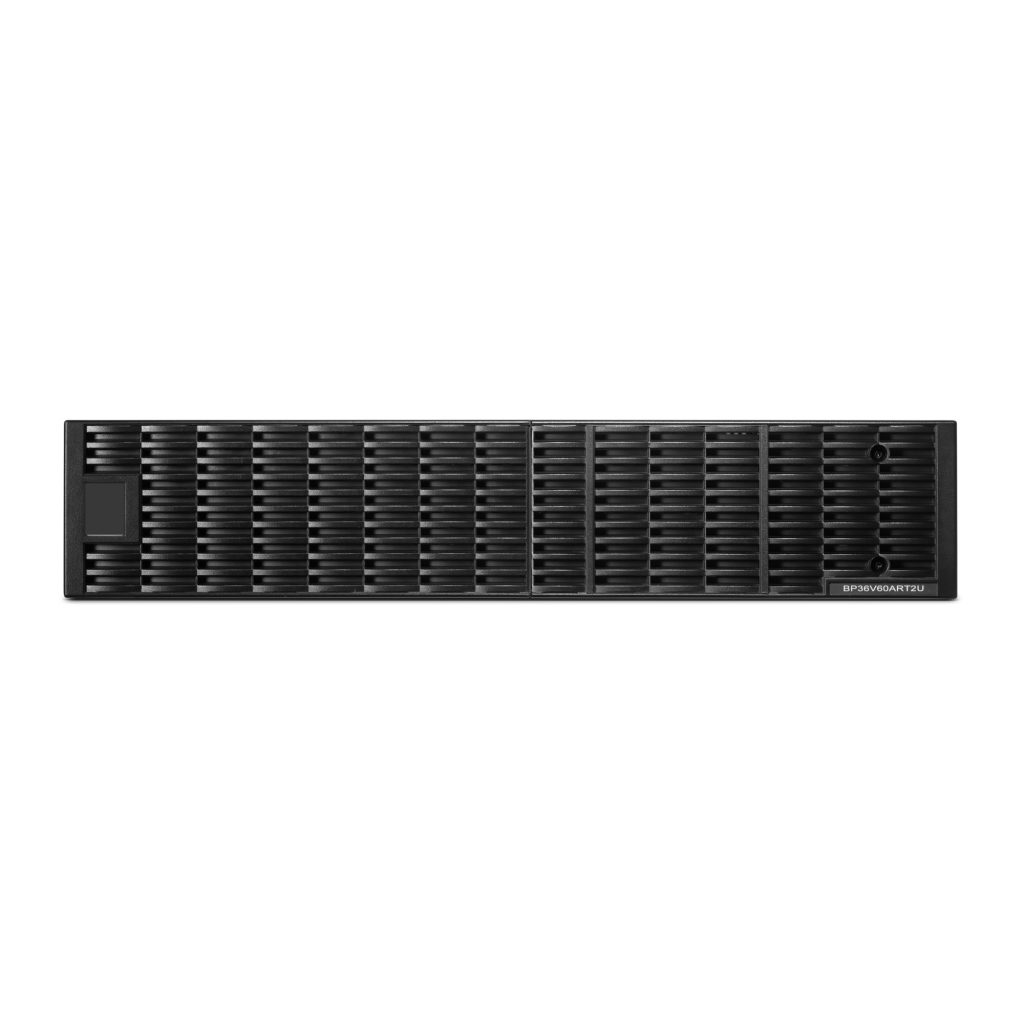

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U and OL1500RTXL2U. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.

Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of five hours, regardless of whether one or ten EBMS are installed, and comes with a three-year warranty.

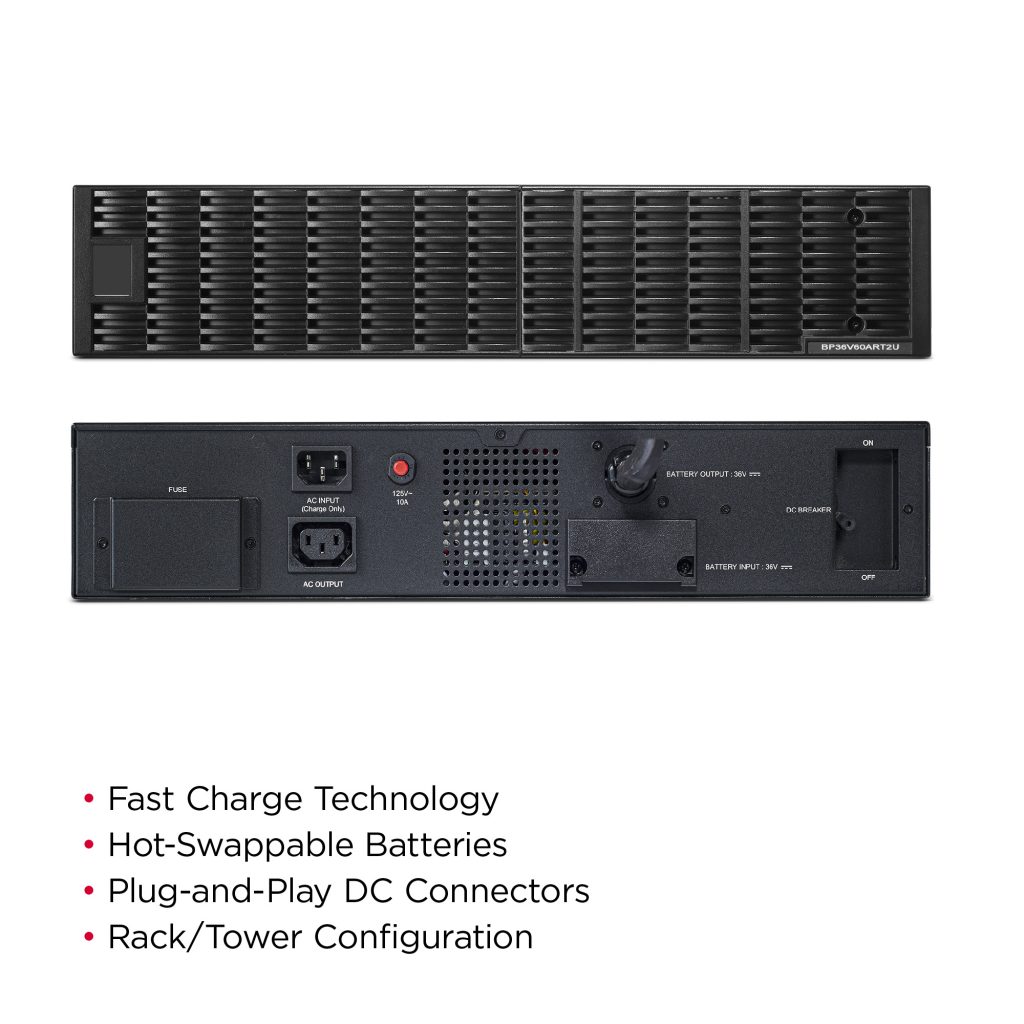

  • Extended Battery Module
    Expands runtime and quickly restores full backup power with Fast Charge Technology.
  • Hot-Swappable Batteries
    Can be replaced without powering down vital equipment.
  • Fast Charge Technology
    Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
  • Smart Battery Management
    Uses a three-cycle charging mode that improves battery life and reduces generated heat.
  • Plug-and-Play DC Connectors
    Allow for daisy-chaining additional EBMs to a UPS system.

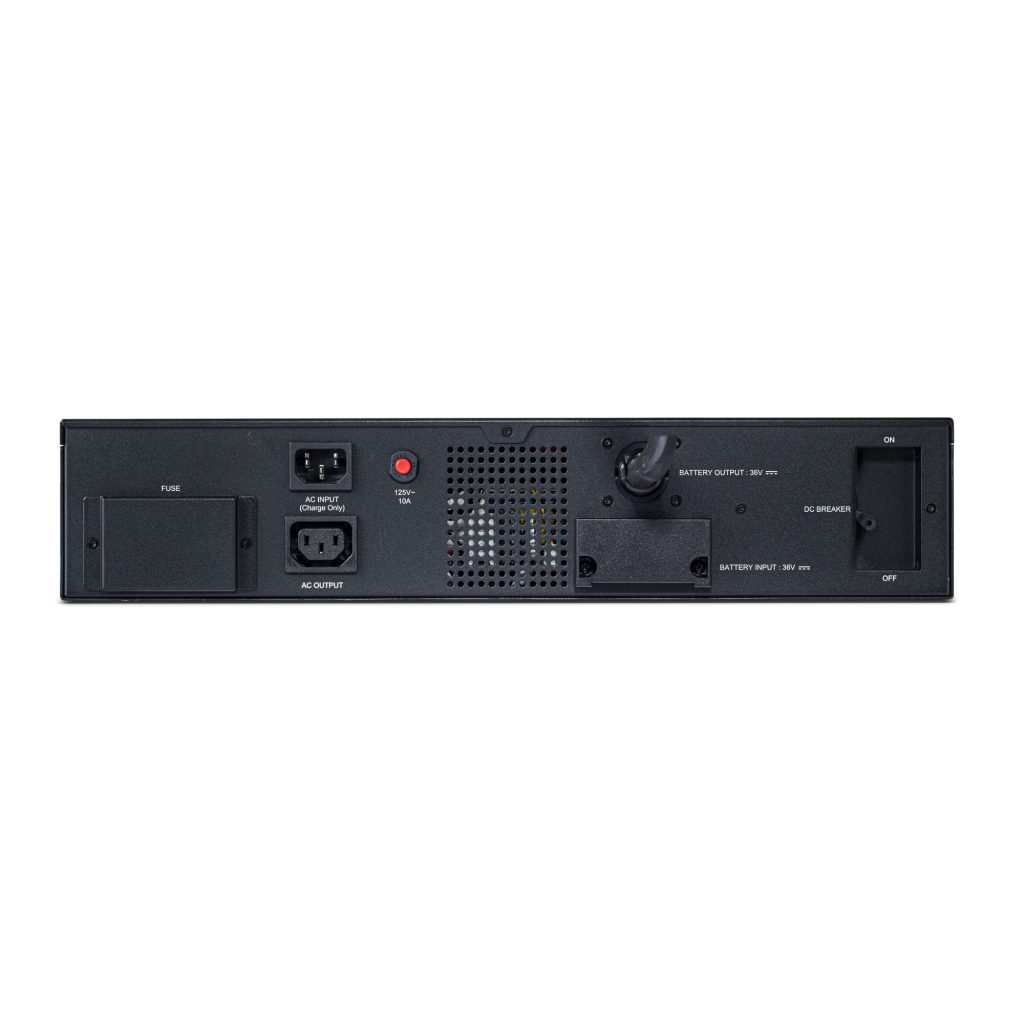

  • User-Replaceable DC Fuses
    Are located behind an easy-access panel.

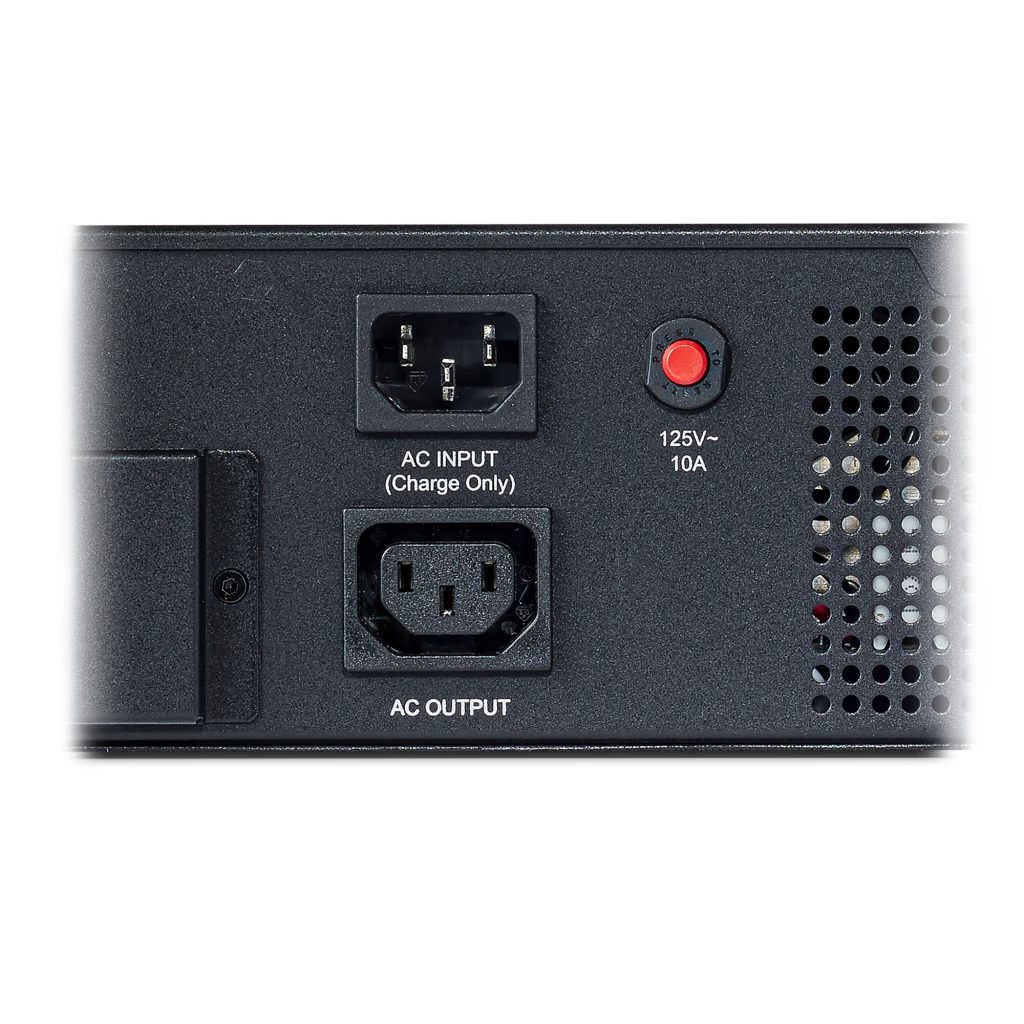

  • Resettable AC Circuit Breaker
    Resets the UPS swiftly in case of an overload.

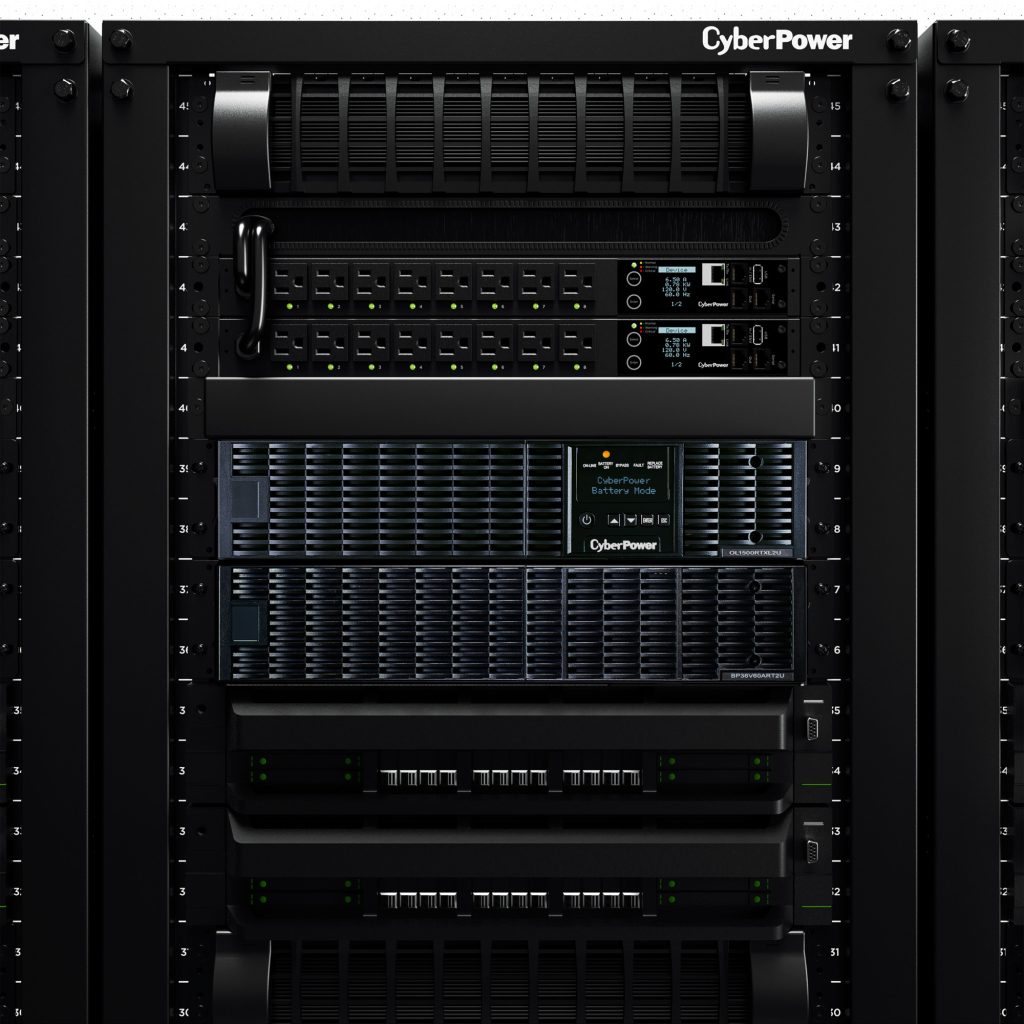

  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
General
Voltage 36V
Amperage 60A
Battery
Battery Type Sealed Lead-Acid
Battery Size 12V/9Ah
Hot-Swappable Yes
Battery Quantity 6
User Replaceable Yes
Replacement Battery (1) RB1290X3R & (1) RB1290X3L
Typical Recharge Time 4 hours
Built-in Charger Yes
Expansion Ready (Daisy-Chain) Yes
Physical
Rack Size 2U
Enclosure Contruction Steel
Mounting Hardware Included

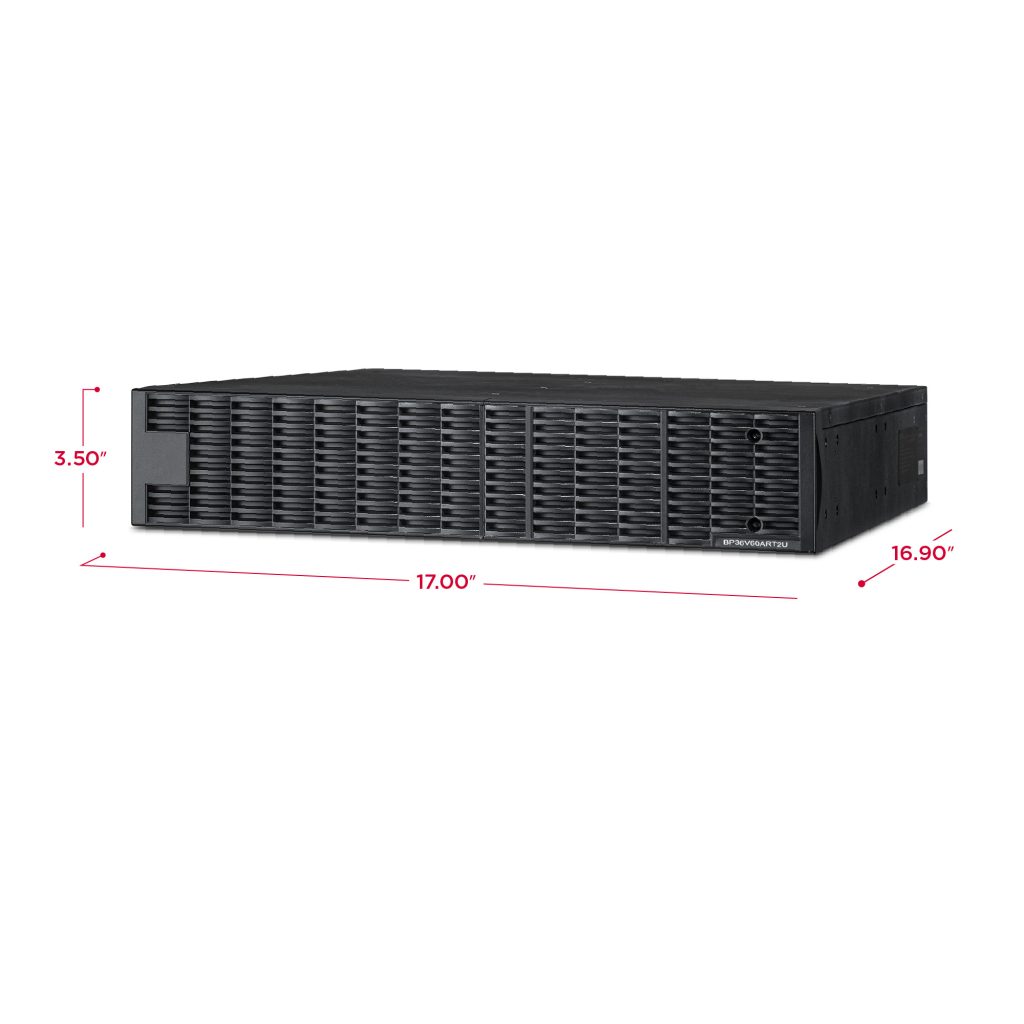

Dimensions – W×H×D (in) 17 × 3.5 × 16.9 inches
Dimensions – W×H×D (mm) 550 × 240 × 590 mm
Weight (lbs) 50.6 lbs
Weight (kg) 22.9 kg
Shipping Dimensions – W×H×D (in) 21.65 × 9.45 × 23.23 inches
Shipping Weight (lbs) 65.34 lbs
Shipping Weight (kg) 29.6 kg
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Humidity 0 – 90% (non-condensing)
Operating Elevation 0 – 10,000 ft (0 – 3,000 m)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Elevation 0 – 50,000 ft (0 – 15,000 m)
Certifications
Safety UL1778
CSA C22.2 NO.107.3-05
FCC DOC Class A
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
Higher Capacity UPS for Longer Runtimes

To determine the size of the UPS that you need, identify the total power load (measure in VA/Watts) of the connected equipment, along with the amount of runtime required (in minutes). Also, think about any equipment that might be connected to the UPS in the future, which could affect the calculations for load and runtime.

Estimating expected UPS runtimes can be challenging, particularly when the consistency of the utility power is not well known. Selecting a UPS with a load capacity 30-35% above the required power load offers the advantage of longer runtimes. This can lower the risk of overloading the UPS and causing an unnecessary UPS shutdown.

Although the initial outlay of a UPS increases with its size because of the higher capacity required for components, long-term operating costs typically decrease. When a UPS operates below maximum capacity, it reduces the stress on components. Sizing a UPS to run loads significantly lower than its capacity also increases spare capacity for future growth, along with extending runtimes.


BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
Should I register the CyberPower product I purchased?

We recommend that you promptly register the product you purchased. You may register online by clicking the Registration button at the top of the page.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
tech@cpsww.com

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
 Model Battery VoltageUPS Models MSRP
 BP36V60ART2U 36 VOL1000RTXL2U, OL1500RTXL2U $565.00
 BP48V45ART2U 48 VPR1000LCDRTXL2U, PR1500LCDRTXL2Ua, PR750LCDRTXL2U $429.00
 BP48V75ART2U 48 VOR1500LCDRTXL2U, OR2200LCDRTXL2U, PR1000LCDRTXL2Ua, PR1500LCDRTXL2U, PR2200LCDRTXL2U, PR3000LCDRT2U, PR3000LCDRTXL2U $439.00
 BPL48V75ART2U 48 VPR3000LCDRTXL2U, PR5000LCDRTXL5U, PR6000LCDRTXL5U $599.00
 BP72V60ART2U 72 VOL2200RTXL2U, OL3000RTXL2U, OL3000RTXL2UHV $810.00
 BP240V30ART3U OL6000RT3U $1,125.00
BP36V60ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages

    Extended Battery Module:


    • Capacity: 1000 VA / 900 W
    • Power Factor (PF): 0.9
    • Topology: Double-Conversion
    • Waveform: Sine Wave
    • Output: 100, 110, 115, 120, 125 VAC (Configurable) ± 2%
    • Plug type & cord: NEMA 5-15P, 10 ft. cord
    • Outlet types: 8 × NEMA 5-15R
    • Communication: USB, Serial, SNMP, Relay, EPO
    • Data line protection: Telephone, Network
    • Management software: PowerPanel® Business Edition
    • ENERGY STAR® qualified: Yes
    • Warranty: 3 year
  • Extended Battery Module:


    • Capacity: 1500 VA / 1350 W
    • Power Factor (PF): 0.9
    • Topology: Double-Conversion
    • Waveform: Sine Wave
    • Output: 100, 110, 115, 120, 125 VAC (Configurable) ± 2%
    • Plug type & cord: NEMA 5-15P, 10 ft. cord
    • Outlet types: 8 × NEMA 5-15R
    • Communication: USB, Serial, SNMP, Relay, EPO
    • Data line protection: Telephone, Network
    • Management software: PowerPanel® Business Edition
    • ENERGY STAR® qualified: Yes
    • Warranty: 3 year
