BPL48V75ART2U


Extended Battery Modules

MSRP $599.00

  • Output: 48V/45A
  • Recharge time: 8 hours
  • Battery type & quantity: 12V/9AH (12)
  • Weight: 96 lbs.
  • Form factor: Rack/Tower
  • Hot swappable: Yes
  • Warranty: 3 year

Product Description

BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages

Product Overview

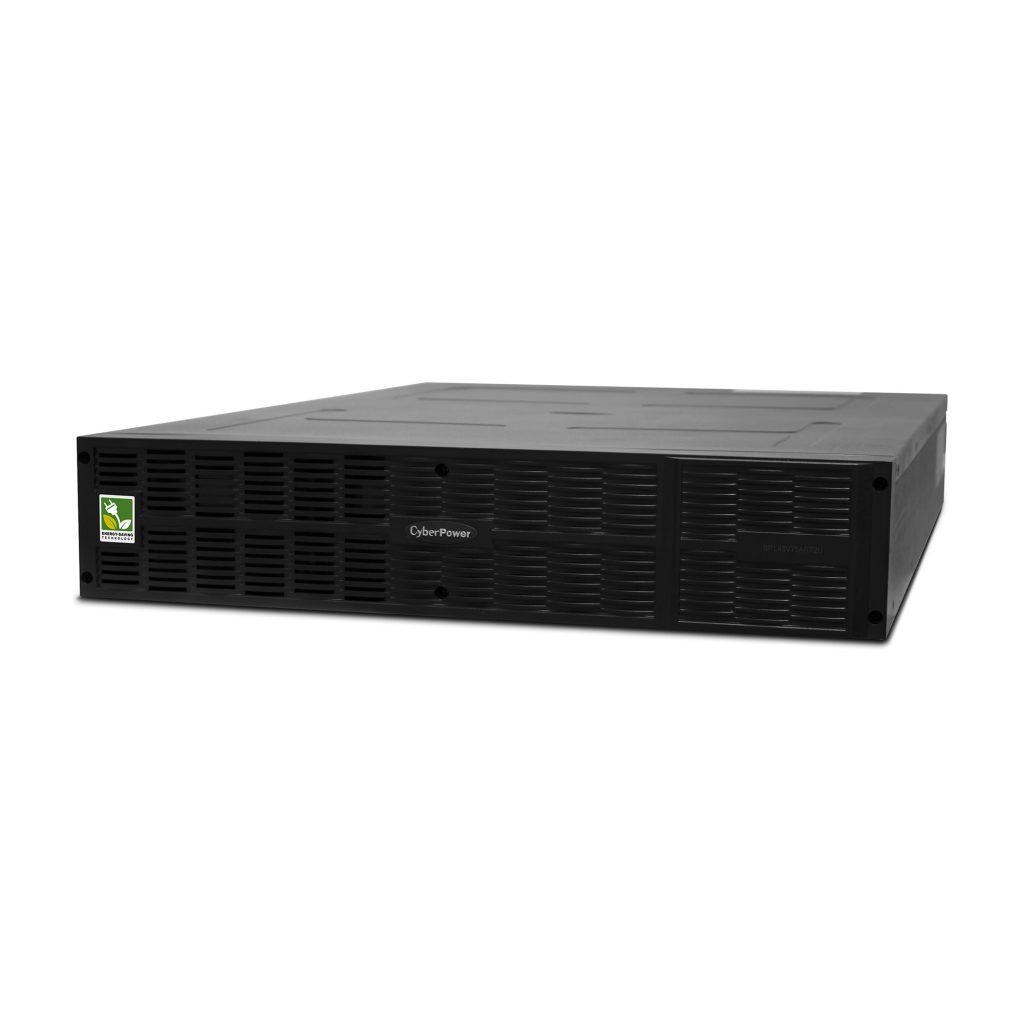

The CyberPower BPL48V75ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Sinewave UPS systems PR3000LCDRTXL2U*, PR5000LCDRTXL5U, and PR6000LCDRTXL5U. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. The BPL48V75ART2U typically has a UPS charging time of eight hours. It comes with a three-year warranty.

*The BPL48V75ART2U is compatible with the PR3000LCDRTXL2U standard with a blue and white LCD. The current PR3000LCDRTXL2U, standard with a black and white LCD, uses the BP48V75ART2U battery pack.

  • Extended Battery Module
    Expands runtime and quickly restores full backup power with Fast Charge Technology.
  • Smart Battery Management
    Uses a three-cycle charging mode that improves battery life and reduces generated heat.
  • Hot-Swappable Batteries
    Can be replaced without powering down vital equipment.
  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
General
Voltage48V
Amperage75A
Battery
Battery TypeSealed Lead-Acid
Battery Size12V/9Ah
Hot-SwappableYes
Battery Quantity12
User ReplaceableYes
Typical Recharge Time8 hours
Built-in ChargerYes
Replacement BatteryBB Battery – HR9-12
InterfacePP75
Physical
Rack Size2U
Dimensions – W×H×D (in)17.25 × 3.5 × 23.6 inches
Weight (lbs)96.0 lbs
Environmental
Operating Temperature32 – 104 °F (0 – 40 °C)
Operating Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Certifications
SafetyUL1778
cUL
FCC DOC Class B
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
Higher Capacity UPS for Longer Runtimes

To determine the size of the UPS that you need, identify the total power load (measure in VA/Watts) of the connected equipment, along with the amount of runtime required (in minutes). Also, think about any equipment that might be connected to the UPS in the future, which could affect the calculations for load and runtime.

Estimating expected UPS runtimes can be challenging, particularly when the consistency of the utility power is not well known. Selecting a UPS with a load capacity 30-35% above the required power load offers the advantage of longer runtimes. This can lower the risk of overloading the UPS and causing an unnecessary UPS shutdown.

Although the initial outlay of a UPS increases with its size because of the higher capacity required for components, long-term operating costs typically decrease. When a UPS operates below maximum capacity, it reduces the stress on components. Sizing a UPS to run loads significantly lower than its capacity also increases spare capacity for future growth, along with extending runtimes.


BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
Should I register the CyberPower product I purchased?

We recommend that you promptly register the product you purchased. You may register online by clicking the Registration button at the top of the page.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
tech@cpsww.com

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

BPL48V75ART2U | Extended Battery Modules
Extend battery runtime for UPS systems during power outages
     ModelBattery VoltageUPS Models MSRP
     BP36V60ART2U 36 VOL1000RTXL2U, OL1500RTXL2U $565.00
     BP48V45ART2U 48 VPR1000LCDRTXL2U, PR1500LCDRTXL2Ua, PR750LCDRTXL2U $429.00
     BP48V75ART2U 48 VOR1500LCDRTXL2U, OR2200LCDRTXL2U, PR1000LCDRTXL2Ua, PR1500LCDRTXL2U, PR2200LCDRTXL2U, PR3000LCDRT2U, PR3000LCDRTXL2U $439.00
     BPL48V75ART2U 48 VPR3000LCDRTXL2U, PR5000LCDRTXL5U, PR6000LCDRTXL5U $599.00
     BP72V60ART2U 72 VOL2200RTXL2U, OL3000RTXL2U, OL3000RTXL2UHV $810.00
     BP240V30ART3U OL6000RT3U $1,125.00
    BPL48V75ART2U | Extended Battery Modules
    Extend battery runtime for UPS systems during power outages

      Extended Battery Module:


      • Capacity: 5000 VA / 4000 W
      • Topology: Line Interactive
      • Waveform: Sine Wave
      • Output: 208Vac ± 5%
      • Plug type & cord: NEMA L6-30P, 10 ft. cord
      • Outlets: 5 (2 critical load, 3 surge + battery backup)
      • Communication: USB, Serial, SNMP, Relay, EPO
      • Data line protection: Telephone, Network
      • Management software: PowerPanel® Business Edition
      • Cisco compatible: Yes
      • Remote management: Yes
      • Environmental sensor: Yes, with optional RMCARD205
      • ENERGY STAR® qualified: Yes
      • Warranty: 3 year
      • Connected Equipment Guarantee: $300,000
    • Extended Battery Module:


      • Capacity: 6000 VA / 4500 W
      • Topology: Line Interactive
      • Waveform: Sine Wave
      • Output: 208Vac ± 5%
      • Plug type & cord: NEMA L6-30P, 10 ft. cord
      • Outlets: 5 (2 critical load, 3 surge + battery backup)
      • Communication: USB, Serial, SNMP, Relay, EPO
      • Data line protection: Telephone, Network
      • Management software: PowerPanel® Business Edition
      • Cisco compatible: Yes
      • Remote management: Yes
      • Environmental sensor: Yes, with optional RMCARD205
      • ENERGY STAR® qualified: Yes
      • Warranty: 3 year
      • Connected Equipment Guarantee: $300,000
    • Extended Battery Module:


      • Capacity: 3000 VA / 3000 W
      • Topology: Line Interactive
      • Waveform: Sine Wave
      • Output: 120 VAC ± 5%
      • Runtime (half/full): 5 minutes / 2 minutes
      • Plug type & cord: NEMA L5-30P, 10 ft. cord
      • Outlets: 9 surge + battery backup
      • Outlet types: 8 × NEMA 5-20R, 1 × NEMA L5-30R
      • Communication: USB, Serial, SNMP, Relay, EPO
      • Management software: PowerPanel® Business Edition
      • Cisco compatible: Yes
      • Remote management: Yes
      • Environmental sensor: Yes, with optional RMCARD205
      • ENERGY STAR® qualified: Yes
      • Warranty: 3 year
      • Connected Equipment Guarantee: $400,000
