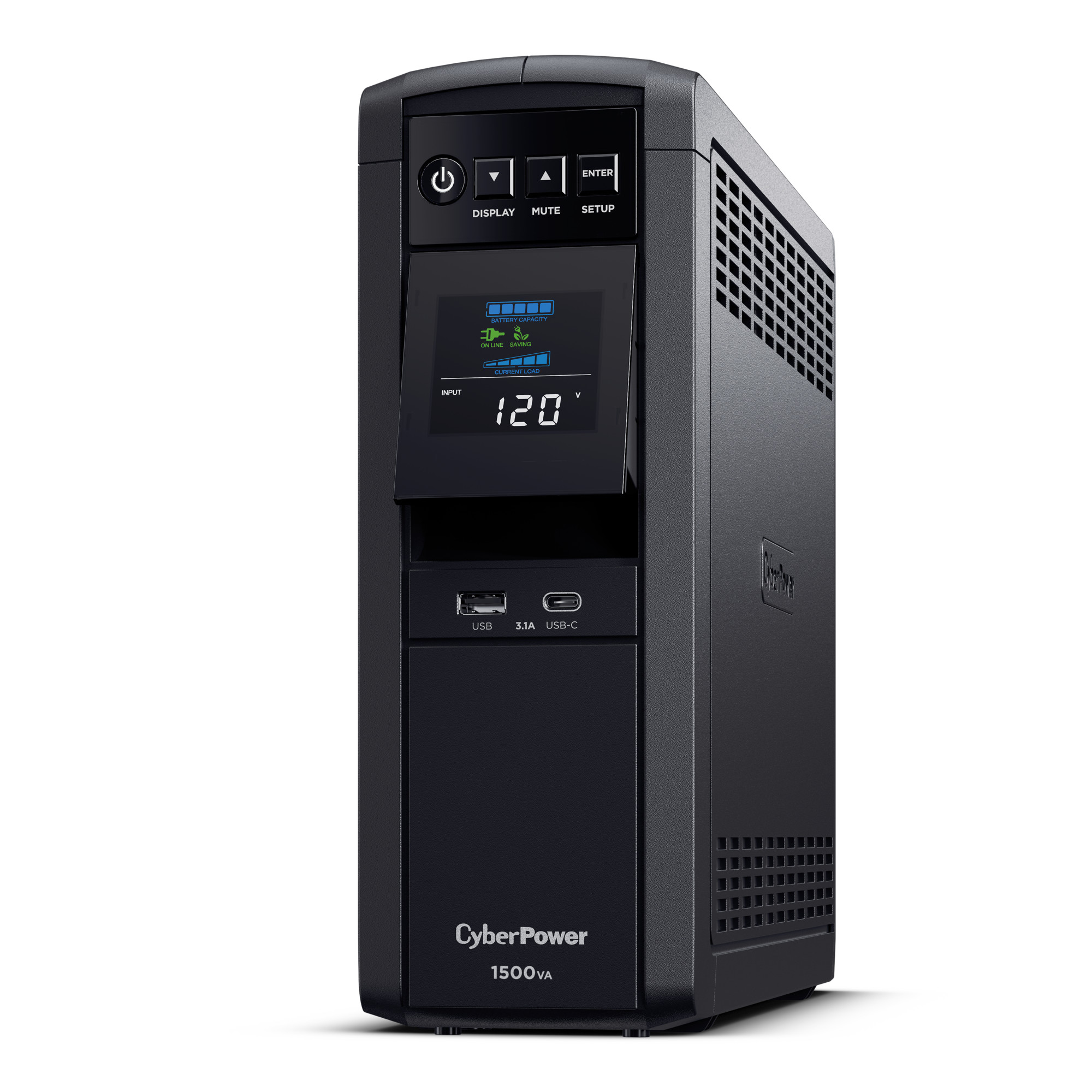

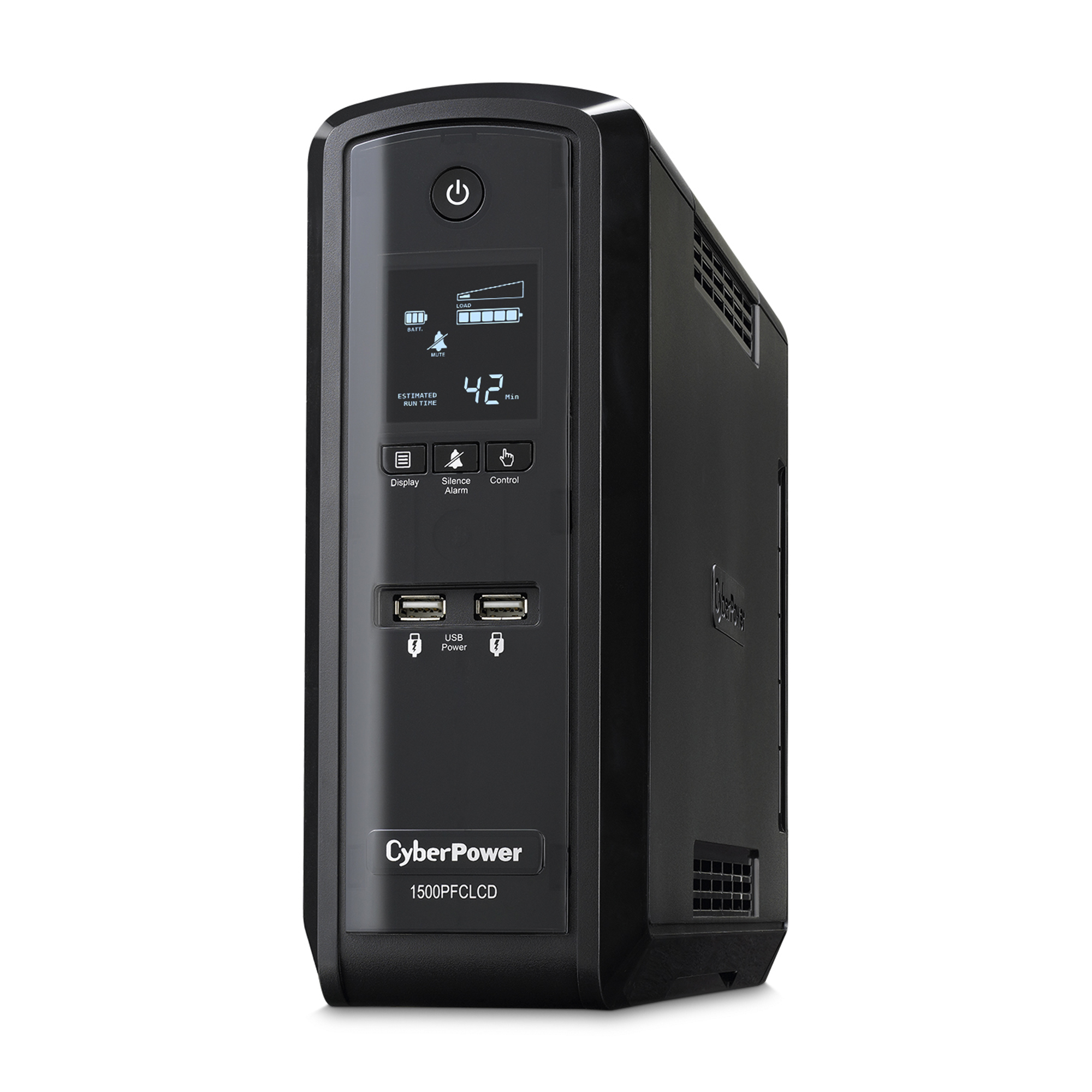

CP1500PFCLCD


PFC Sinewave UPS Series

MSRP $259.95

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 10 × NEMA 5-15R
  • USB charge ports: 2
  • Communication: USB, Serial
  • Data line protection: Telephone, Ethernet, Coaxial
  • Management software: PowerPanel® Personal Edition
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
Where To Buy

Product Description

CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment

Product Overview

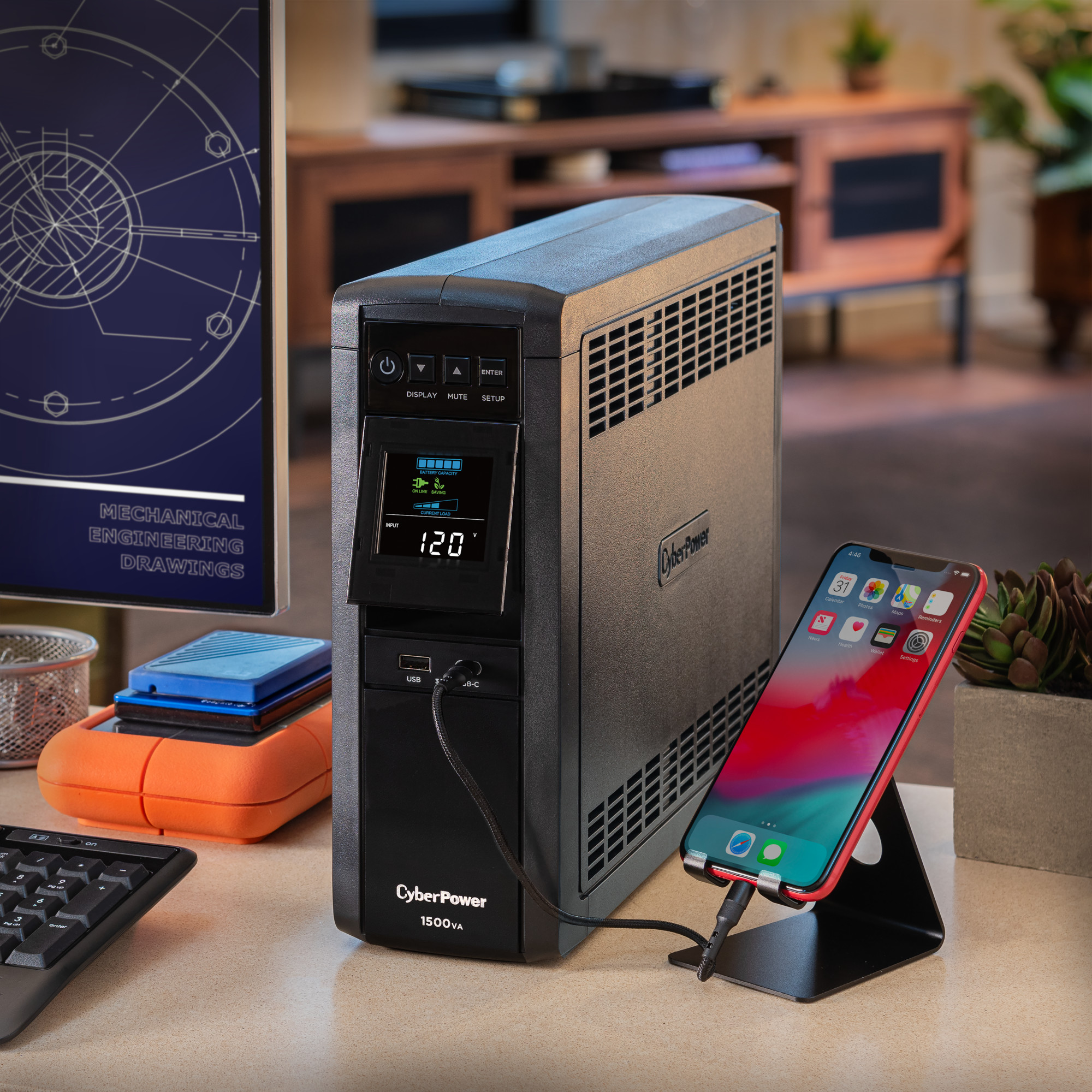

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup, power protection (using sine wave output), and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Two USB charge ports (1 Amp shared) power portable devices such as mobile phones, MP3 players, and cameras. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

  • Battery Backup
    Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection
    Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology
    Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR)
    Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Sine Wave Output
    Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
  • USB Charge Ports
    Charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
  • GreenPower UPS™ Bypass Design
    Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

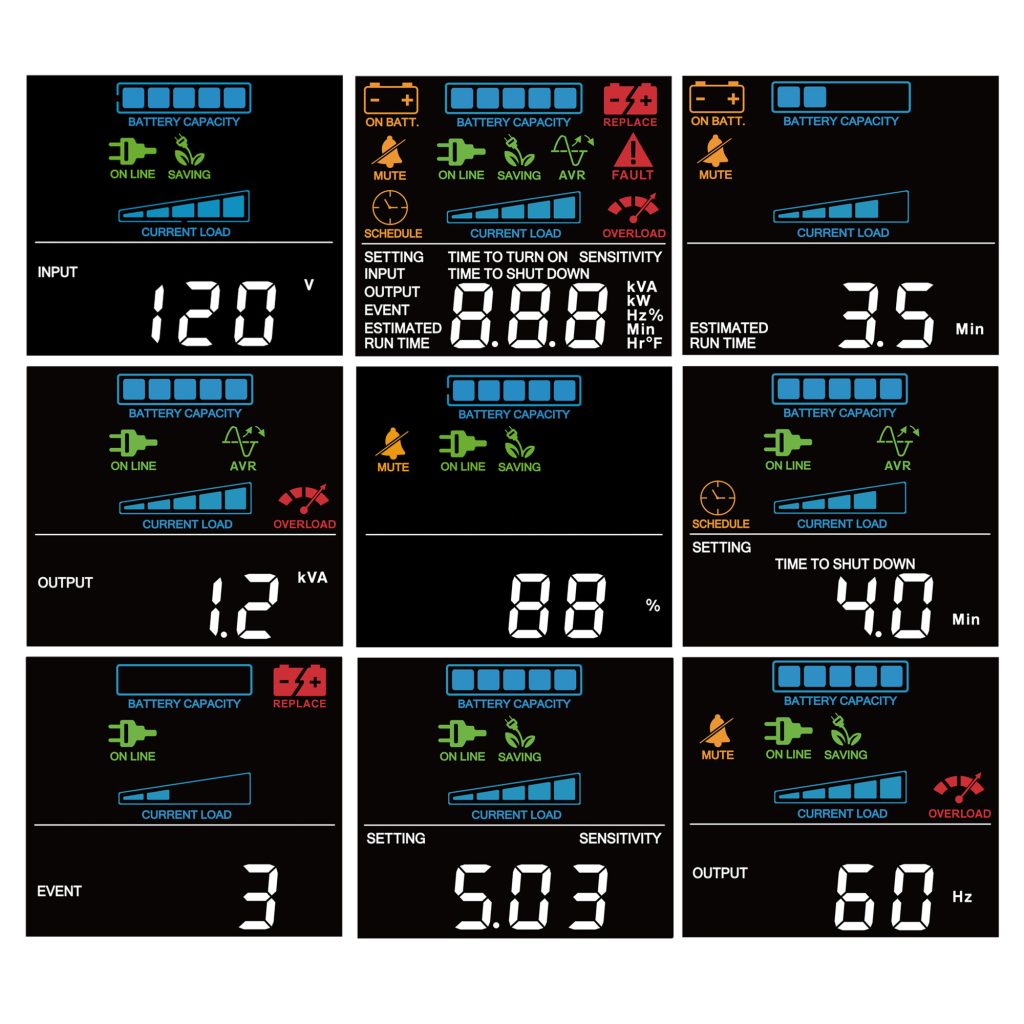

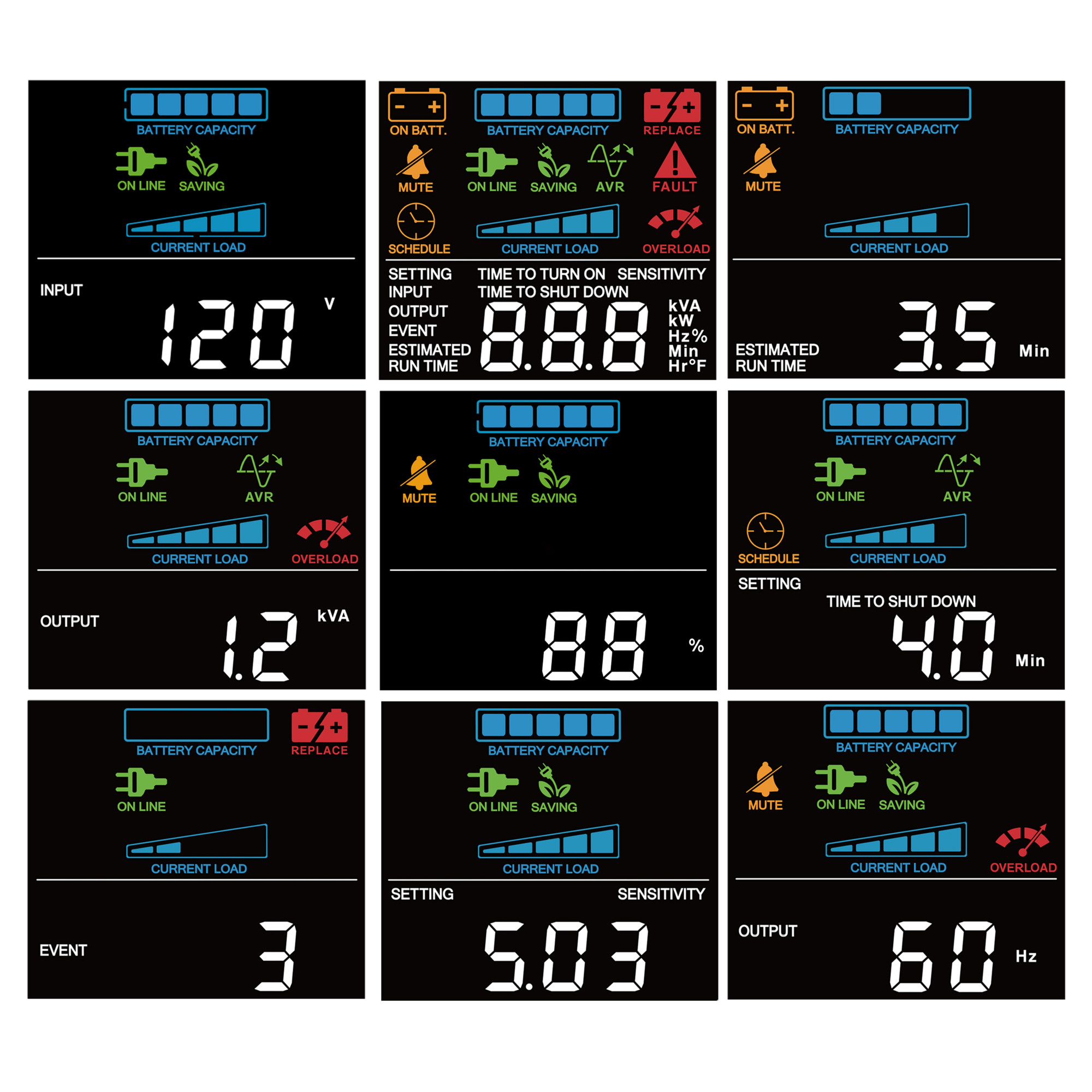

  • Multifunction LCD Panel
    Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • PowerPanel® Personal Edition Software
    Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Connect your computer to the HID-compliant USB port or serial port (if available) to use the power management features provided by PowerPanel® Personal Edition software. Free software download available. See the Resources tab.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, User Manual, Telephone Cable, PowerPanel Personal Edition Software CD, Coaxial Cable, USB A+B Type Cable, Warranty Registration Card, Function Setup Guide

CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment
General
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass
Active PFC CompatibleYes
Input
Voltage90 – 139 VAC
Frequency57 – 63 Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45° Offset Right
Cord Length5 ft
Adjustable Voltage Range78 – 142 VAC
Output
VA1,500 VA
Watts900 W
On Battery Voltage120 VAC ± 5%
On Battery Frequency60 Hz ± 1%
Automatic Voltage Regulation (line mode)12%
On Battery WaveformSine Wave

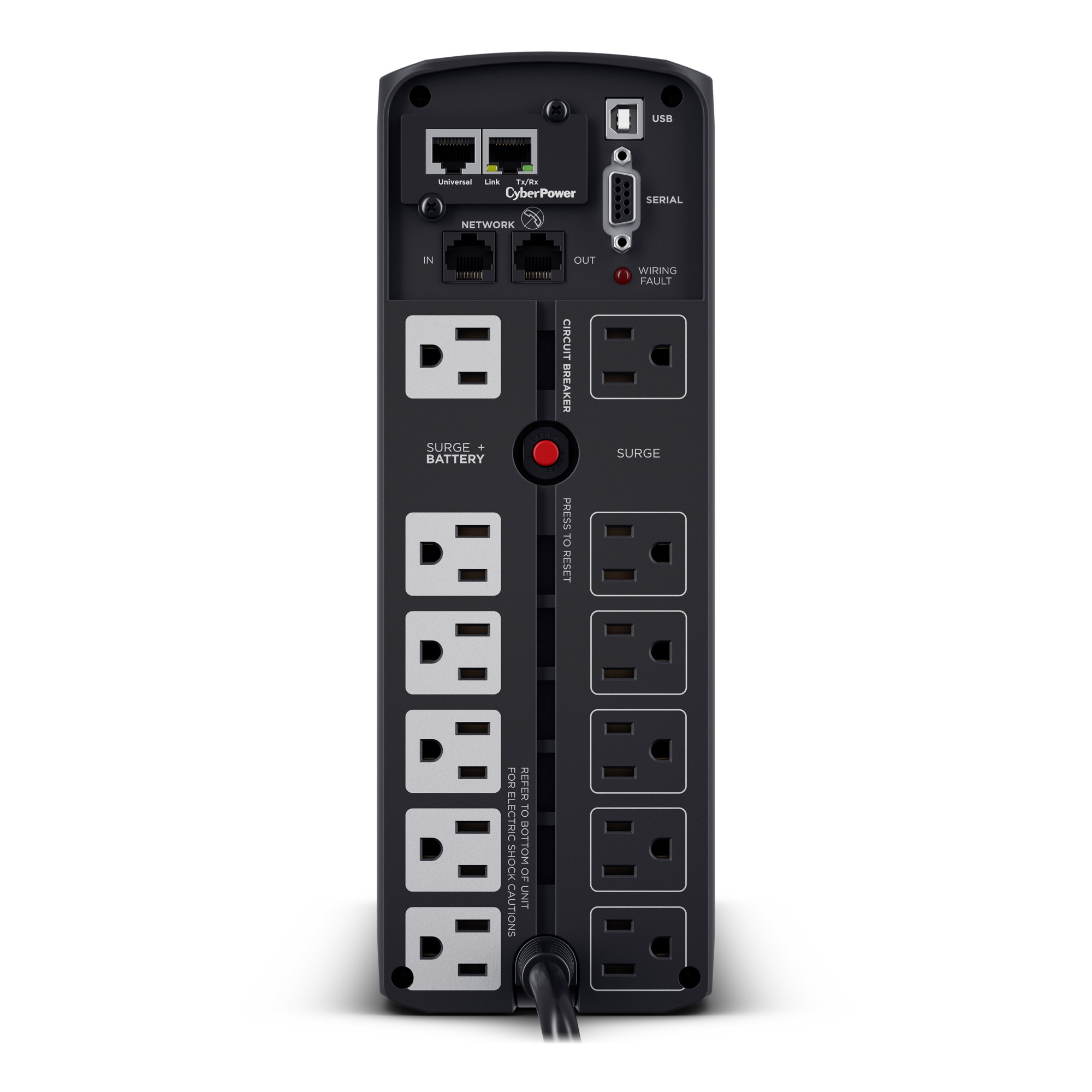

Outlets – Total10
Outlets – Battery & Surge Protected5
Outlets – Surge-Only Protected5
Overload ProtectionInternal Circuitry Limiting

Circuit Breaker

Transfer Time4 ms
USB ChargeYes – Two (2) USB 5V/1A charging ports
Battery
Runtime at Half Load11 minutes
Runtime at Full Load2 minutes
Battery TypeSealed Lead-Acid
Battery Size12V/8.5Ah
Battery Quantity2
Hot-SwappableNo
User ReplaceableYes
Replacement Battery CartridgeRB1280X2B
Replacement Battery Cartridge Quantity1
Typical Recharge Time8 hours
Surge Protection & Filtering
Surge Suppression1,030 J
EMI/RFI FilterationYes
Coax Protection RG61-In, 1-Out
Phone RJ11 / Ethernet RJ451-In, 1-Out (Combo)
Management & Communications
HID Compliant USB PortYes
Serial PortYes
LED IndicatorsPower On

Wiring Fault

Audible AlarmsOn Battery

Low Battery

Overload

Fault

SoftwarePowerPanel® Personal Edition

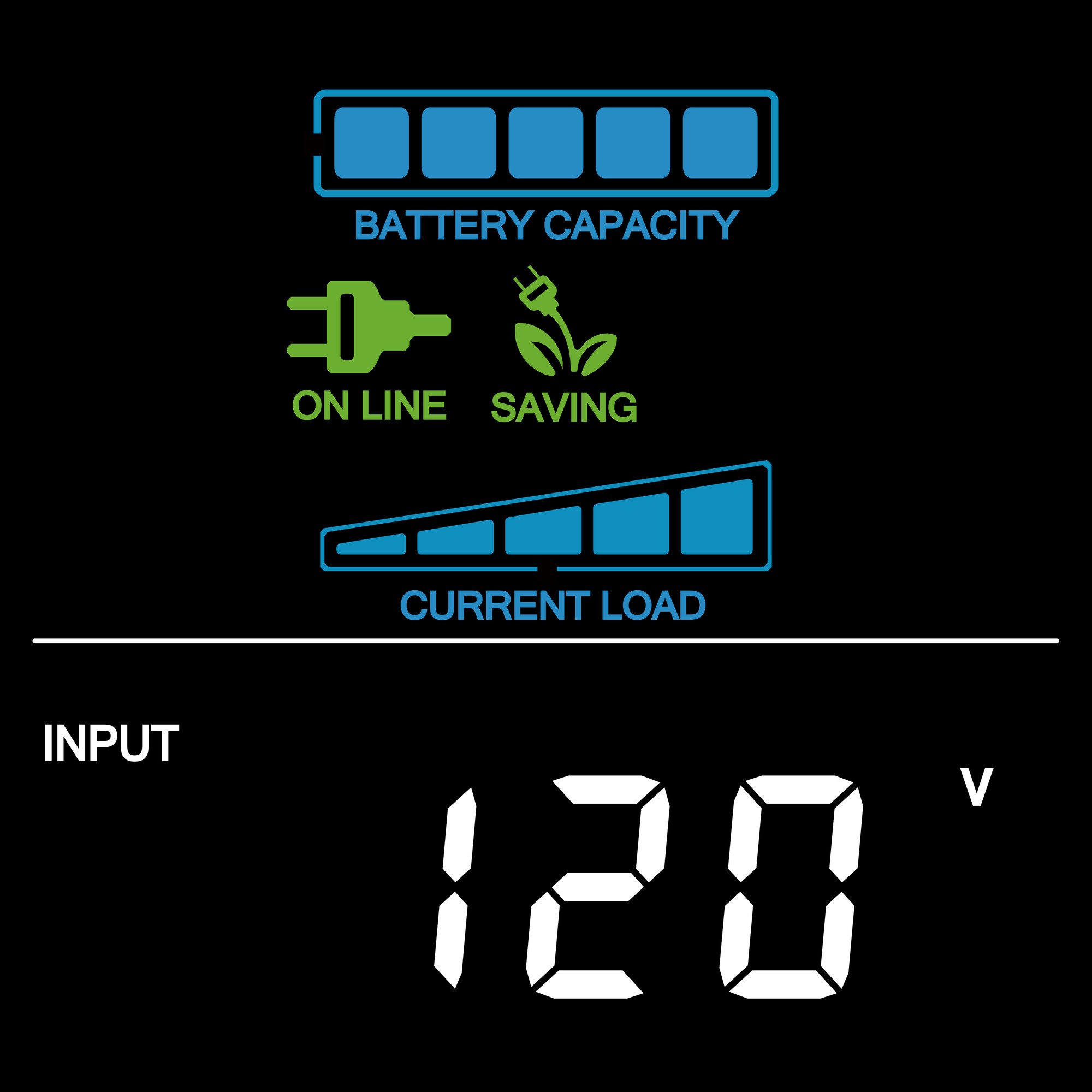

Multifunction LCD PanelDisplays:

Current/Load Level

Runtime

Battery Level

AVR In Use

Battery In Use

Input Voltage

Output Voltage

Output Frequency

Overload

Silent Mode

Management CableUSB Cable
Emergency Power Off (EPO) PortNo
Physical
Form FactorMini-Tower

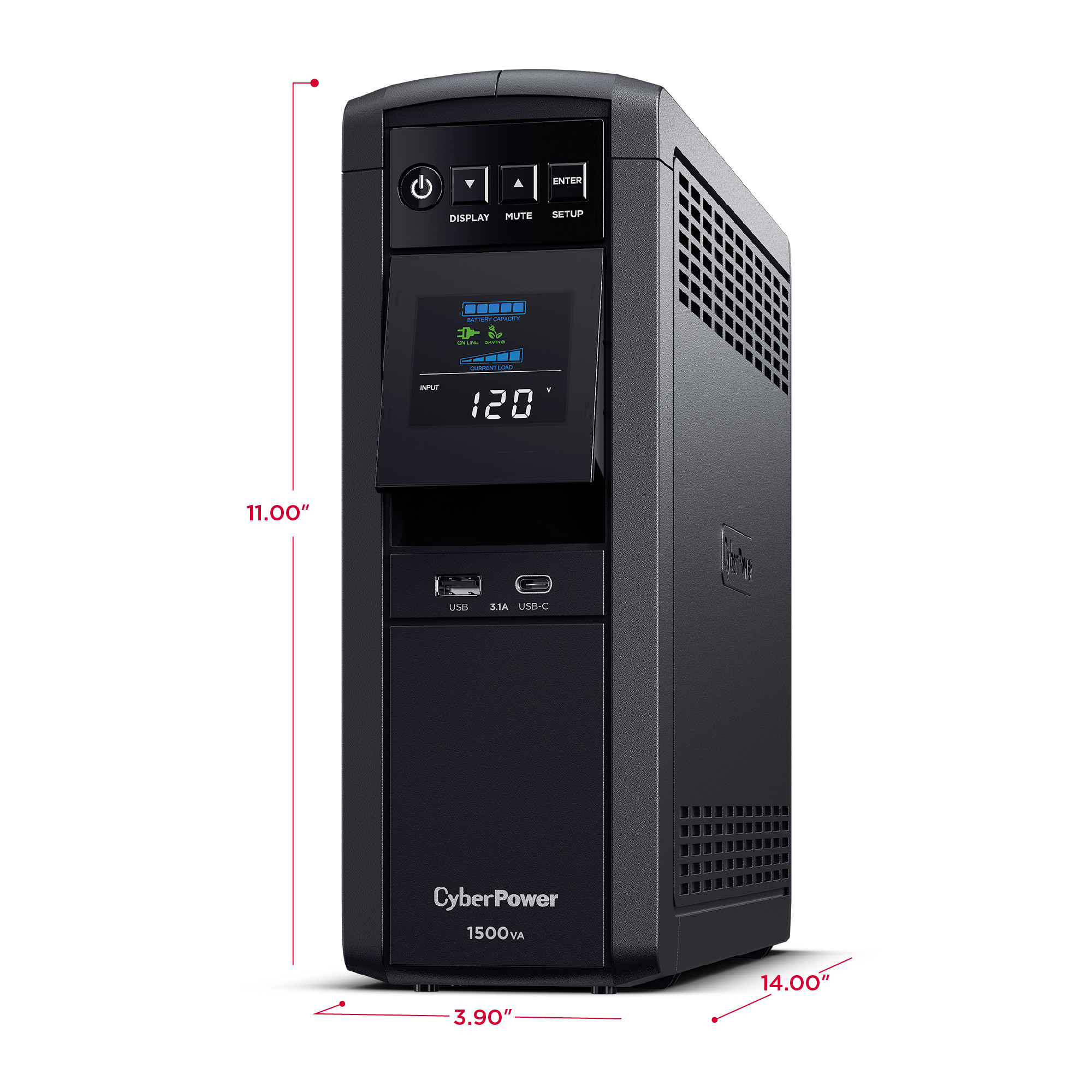

Dimensions – W×H×D (in)3.9 × 10.4 × 14.2 inches
Weight (lbs)24.7 lbs
Environmental
Operating Temperature32 – 104 °F (0 – 40 °C)
Operating Humidity0 – 90% (non-condensing)
Certifications
SafetyUL1778

cUL 107.3

FCC DOC Class B

EnvironmentalRoHS Compliant
Warranty
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$500,000
CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment
GreenPower UPS Technology: Bypass Design

GreenPower UPS™ Technology from CyberPower improves operating efficiency, reduce heat generation, and consume less power than conventional UPS models.

Our patented Bypass Design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.


Sine Wave Power

In the U.S., utility companies provide power to households and offices by distributing single phase alternating current (AC) power at a frequency of 60 Hz. Electrical power can be graphically depicted as a sine wave whereby the electrical signal alternates from +120 volts to -120 volts at a rate of 60 times per second (60 Hz). To enable more efficient operation of large, heavy equipment, utility companies provide commercial and industrial locations with three phase AC power which consists of three overlapping sine waves offset by 120 degrees.

Although utility companies strive to distribute 100% sine wave power, many factors can introduce electrical noise into the AC power signal in the form of sine wave distortions and as voltage sags, surges, spikes, or other irregularities. Sine wave power is important for the optimal functioning of sensitive desktop computers and related peripheral equipment. Without sine wave power output, microprocessor-based equipment can become inoperative or sustain damage from power signal distortions.


Active Power Factor Correction Supplies for IT Equipment

During the past thirty years, people have become more aware of the amount of energy used by IT equipment and devices. For many years, desktop computers and workstations inefficiently consumed power, partly due to the design of the power supplies which transformed AC power (from the wall outlet) to DC power (used by computers). This voltage transformation was relatively inefficient as reflected in low power factor ratings.

In 1992, the U.S. Environmental Protection Agency (EPA), in collaboration with advocates in the IT industry, developed the ENERGY STAR® program to prompt the development of energy-efficient products. Today this program is recognized as an international standard.

To comply with ENERGY STAR standards, manufacturers of desktop and workstation computers incorporate Active Power Factor Correction (Active PFC) as part of the engineering designs, enabling energy efficiencies of 95% or higher. Computers with Active PFC power supplies require sine wave AC power, as supplied by utility companies, for trouble-free operation. For this reason, sine wave UPS systems have become the best choice for backup power.

Simulated or stepped sine wave power, provided by entry-level UPS systems, may be problematic or incompatible with Active PFC devices. Sine wave power varies continuously from positive to negative. Simulated sine wave power mimics a sine wave by using a squared-off approximation. Due to this approximation, simulated sine wave power momentarily creates a zero power gap. When power is interrupted, a computer with an Active PFC power supply may not recognize incoming simulated sine wave power due to the zero output present in the approximated wave. This could cause the system to unexpectedly shut down or sustain system component stress.


Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) in line interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120 volts by controlling high and low voltages without resorting to battery power. This significantly increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.

How AVR Works in a Line Interactive UPS

A line interactive UPS includes an AVR autotransformer—a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.

This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR.


Transformers and Transformer Outlets

A transformer converts alternating current line voltage to a higher value or a lower value. Transformers rely upon electromagnetic induction, the process which occurs when the alternating current within a circuit generates current in a nearby circuit.

Transformers vary in design and size, as well as using different amounts of current. Small transformers plug into a wall outlet and create low direct current voltages which are used by common electronic devices. Transformer outlets are more widely spaced than other outlets to accommodate transformer block adapters or other adapters that are large in size. Transformer outlets can be used to connect any appropriate device to a surge protector.


CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment

Shutdown software supports most Window systems

CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment
Where is the serial number located on the unit?

The serial number is located on a white label adhered to the unit. The serial number is shown directly underneath the barcode.

Our Technical Support team will be happy help you with technical questions during business hours.

Chat Live
Monday - Friday
7am — 6pm CST

CHAT NOW

Email
Monday - Friday
7am — 6pm CST
tech@cpsww.com

Call Toll Free
Live Monday - Friday
7am — 6pm CST
1-877-297-6937 ( press 1 )

Ask a CyberPower tech support representative to contact you.



CyberPower Systems values your privacy and your information will never be rented or sold. Information provided will be used for CyberPower's internal use only. View our Privacy Policy.

CP1500PFCLCD | PFC Sinewave UPS Series
Protect computers, workstations, department servers, networking hardware, and A/V equipment
     ModelOutput VAOutput WattsForm FactorWaveformOutlets MSRP
     CP850PFCLCD850 VA510 WMini-TowerSine Wave10 x NEMA 5-15R $149.95
     CP1000PFCLCD1000 VA600 WMini-TowerSine Wave10 x NEMA 5-15R $169.95
     CP1350PFCLCD1350 VA810 WMini-TowerSine Wave10 x NEMA 5-15R $219.95
     CP1500PFCLCD1500 VA900 WMini-TowerSine Wave10 x NEMA 5-15R $259.95
     OR1000PFCLCD1000 VA700 WMini-TowerSine Wave8 x NEMA 5-15R $279.95
     OR1500PFCLCD1500 VA1050 WMini-TowerSine Wave8 x NEMA 5-15R $349.95
     OR1000PFCRT2U1000 VA700 WRack/TowerSine Wave8 x NEMA 5-15R $430.00
     OR1500PFCRT2U1500 VA1050 WRack/TowerSine Wave8 x NEMA 5-15R $485.95
     OR2200PFCRT2U2000 VA1540 WRack/TowerSine Wave2 x NEMA 5-20R, 6 x NEMA 5-15R $549.95
    CP1500PFCLCD | PFC Sinewave UPS Series
