9-PIN MALE MINI DIN CONNECTOR TO 9-PIN MALE MINI DIN CONNECTOR

This cable is terminated with 9-pin male mini DIN connectors on each end. This assembly is designed to connect a power adapter to a desktop ONT and features CMX/CMR outdoor rated cable.

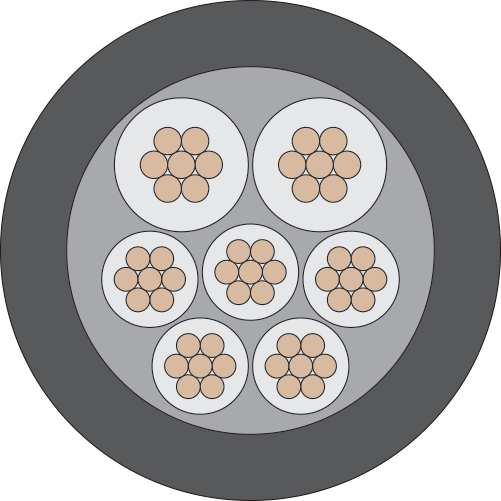

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL2BUL-004-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 4 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL2BUL-006-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 6 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL2BUL-010-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 10 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL2BUL-020-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 20 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL2BUL-030-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 30 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL2BUL-050-BLK-CM 9-Pin Male Mini DIN 9-Pin Male Mini DIN Black 50 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
3-PIN CONNECTOR TO BARREL CONNECTOR

This cable is terminated with a 3-pin connector and a 5.5mm x 2.1mm DC male power connector. This assembly is designed to connect a power adaptor to a desktop ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL3PIN500BRL-006-BLK-CM 3-Pin Connector (5.0 mm pitch) Barrel (5.5 mm x 2.1 mm) Black 6 ft 1 x 18 AWG 1 x 18 AWG LEARN MORE
7-PIN CONNECTOR TO BARREL CONNECTOR

This cable is terminated with a 7-pin, 3.5mm pitch connector and a 5.5mm x 2.5mm DC male power connector. This assembly is designed to connect a battery backup system to a desktop ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL7PIN350BRL-003-BLK Barrel (5.5 mm x 2.5 mm) 7-Pin Connector (3.5 mm pitch) Black 3 ft 1 x 20 AWG 1 x 20 AWG LEARN MORE
CBL7PIN350BRL-010-BLK Barrel (5.5 mm x 2.5 mm) 7-Pin Connector (3.5 mm pitch) Black 10 ft 1 x 20 AWG 1 x 20 AWG LEARN MORE
3-PIN CONNECTOR TO 8-PIN (2X4) CONNECTOR

This cable is terminated with a 3-pin connector and an 8-pin (2x4) connector. This assembly is designed to connect a power adapter to a desktop ONT and features CMX/CMR outdoor rated cable.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL3PIN500MLX-004-BLK-CM 3-Pin Connector (5.0 mm pitch) 8-Pin (2x4 pin) Black 4 ft 2 x 18 AWG 1 x 22 AWG LEARN MORE
CBL3PIN500MLX-006-BLK-CM 3-Pin Connector (5.0 mm pitch) 8-Pin (2x4 pin) Black 6 ft 2 x 18 AWG 1 x 22 AWG LEARN MORE
CBL3PIN500MLX-010-BLK-CM 3-Pin Connector (5.0 mm pitch) 8-Pin (2x4 pin) Black 10 ft 2 x 18 AWG 1 x 22 AWG LEARN MORE
CBL3PIN500MLX-020-BLK-CM 3-Pin Connector (5.0 mm pitch) 8-Pin (2x4 pin) Black 20 ft 2 x 18 AWG 1 x 22 AWG LEARN MORE
7-PIN CONNECTOR TO 9-PIN MALE MINI DIN CONNECTOR

This cable is terminated with a 7-pin, 3.5mm pitch connector and a 9-pin male mini DIN connector. This assembly is designed to connect a battery backup system to a desktop ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires

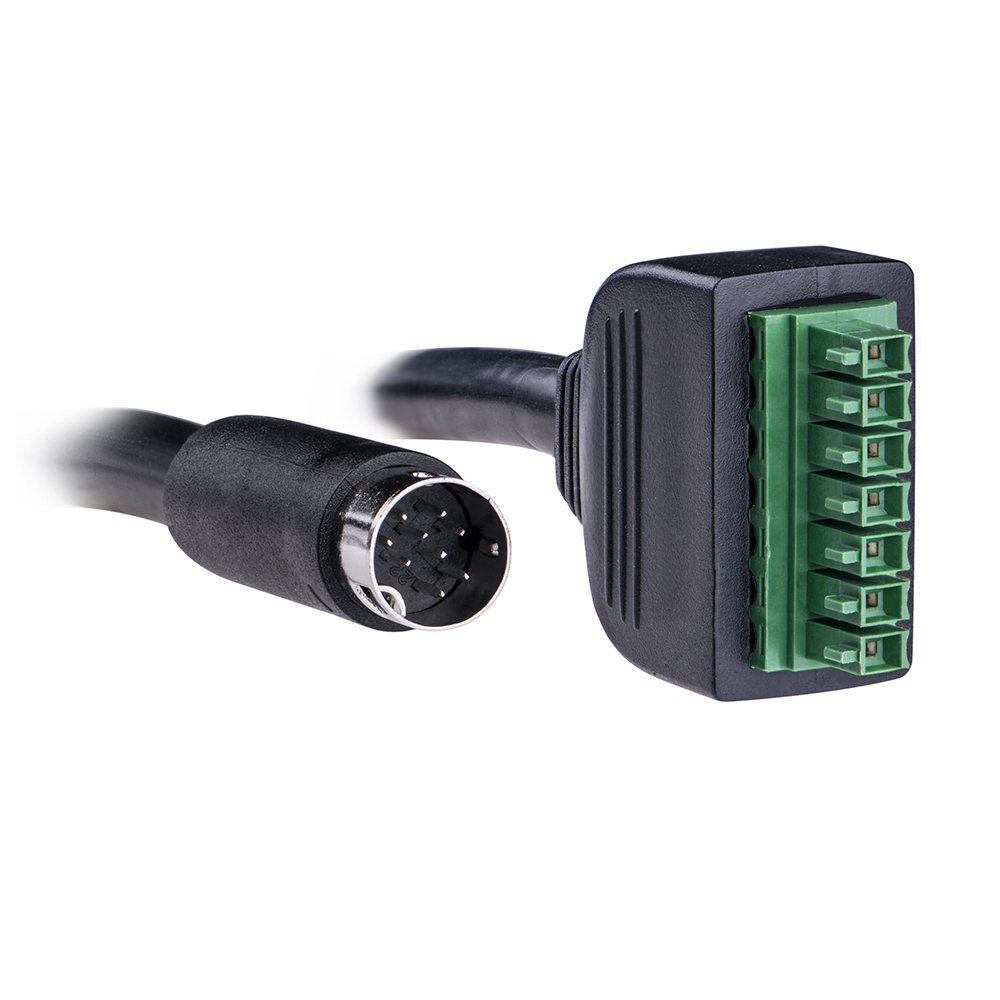

CBL7PIN350BUL-004-BLK 9-Pin Male Mini DIN 7-Pin Connector (3.5 mm pitch) Black 4 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PIN350BUL-010-BLK 9-Pin Male Mini DIN 7-Pin Connector (3.5 mm pitch) Black 10 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
7-PIN CONNECTOR TO 9-PIN MALE MINI DIN CONNECTOR

This cable is terminated with a 7-pin, 5mm pitch connector and a 9-pin male mini DIN connector. This assembly is designed to connect a battery backup system to a 7-pin adapter.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL7PINBUL-002-BLK-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Black 2 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-004-BLK-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Black 4 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-006-BLK-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Black 6 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-010-BLK-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Black 10 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-020-BLK-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Black 20 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
7-PIN CONNECTOR TO 9-PIN MALE MINI DIN CONNECTOR

This cable is terminated with a 7-pin, 5mm pitch connector and a 9-pin male mini DIN connector. This assembly is designed to connect a battery backup system to a 7-pin adapter.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires

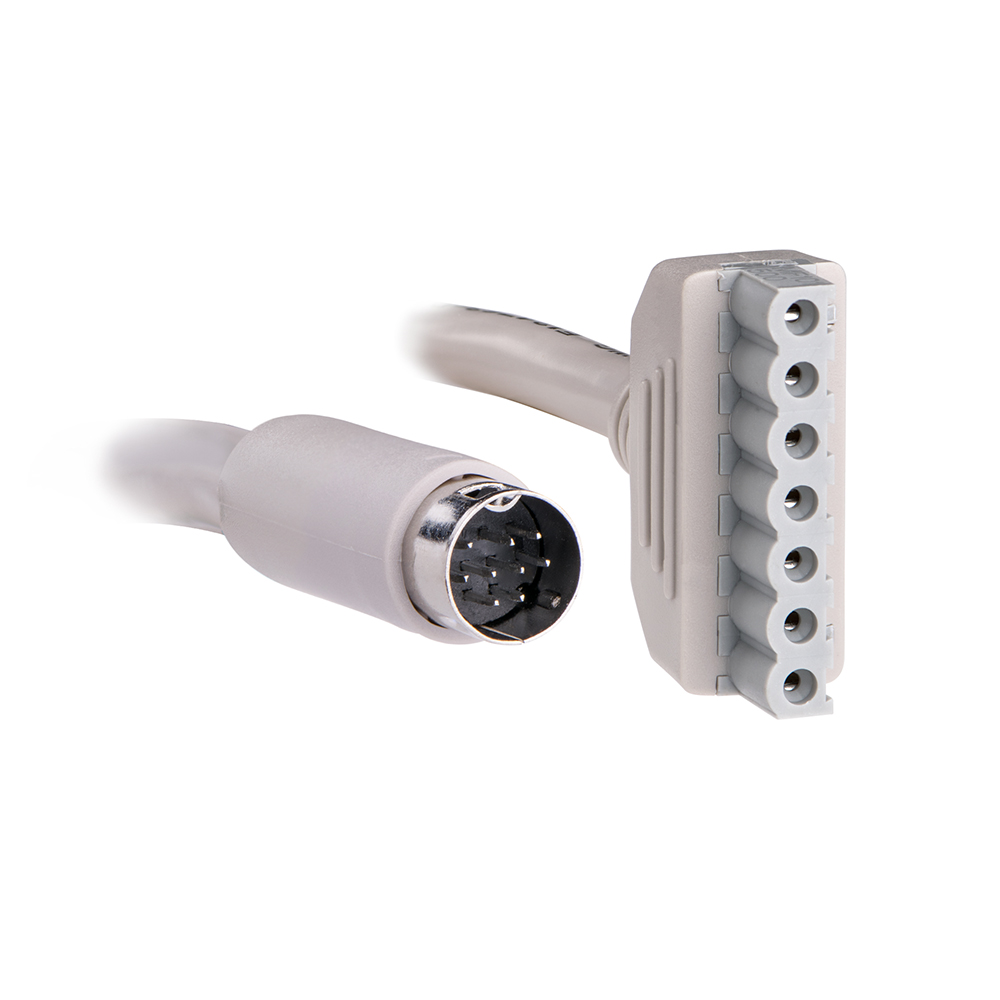

CBL7PINBUL-004-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 4 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-006-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 6 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-010-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 10 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-020-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 20 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-030-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 30 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-050-CM 9-Pin Male Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 50 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
7-PIN CONNECTOR TO 9-PIN FEMALE MINI DIN CONNECTOR

This cable is terminated with a 7-pin, 5mm pitch connector and a 9-pin female mini DIN connector. This assembly is designed to connect a battery backup system to a 7-pin adapter.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL7PINBUL-0018 9-Pin Female Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 1.5 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
CBL7PINBUL-0018-CM 9-Pin Female Mini DIN 7-Pin Connector (5.0 mm pitch) Cool Gray 1.5 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
9-PIN MALE MINI DIN TO 7 UNTERMINATED WIRES

This cable is terminated with 9-pin male mini DIN connector at one end and is unterminated at the other. This pigtail assembly is designed to connect a battery backup system to a desktop ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires

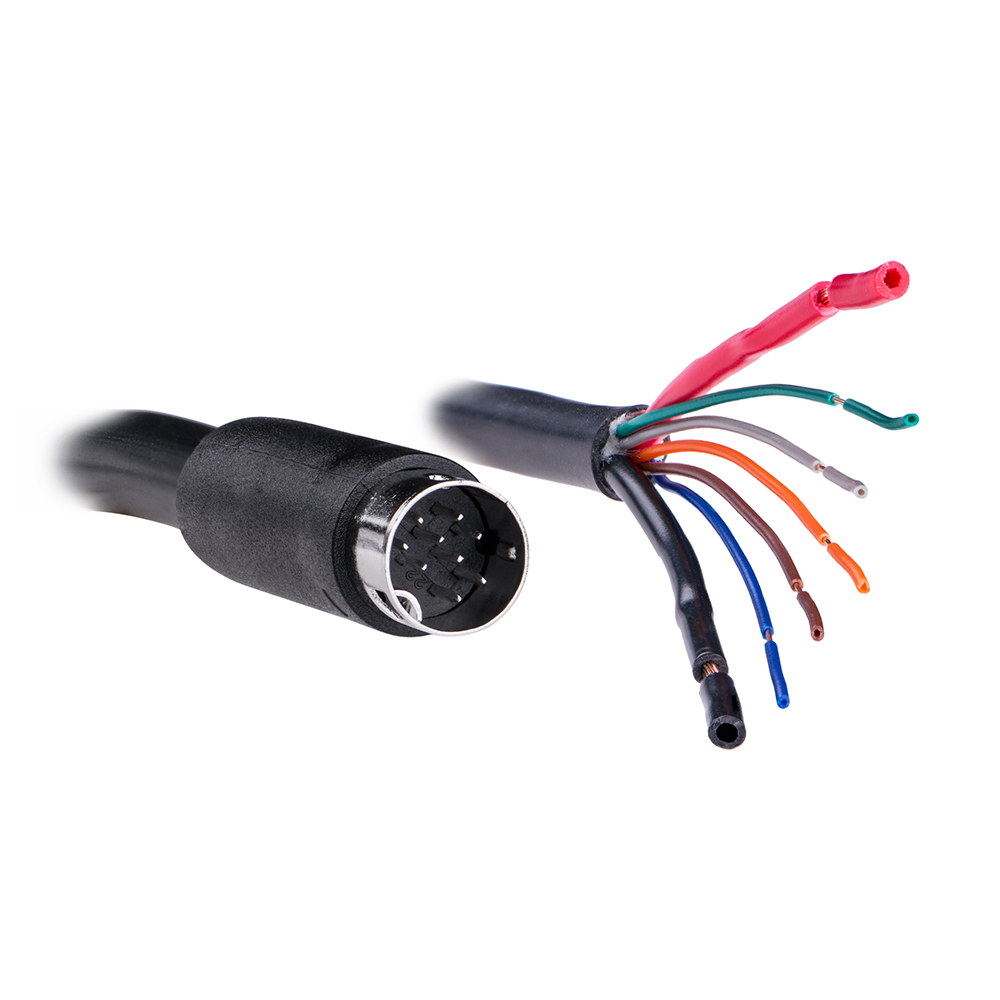

CBLBUL-020-BLK 9-Pin Male Mini DIN 7-Wire Unterminated Black 20 ft 2 x 16 AWG 5 x 24 AWG LEARN MORE
9-PIN MALE MINI DIN TO 2 UNTERMINATED WIRES

This cable is terminated with 9-pin male mini DIN connector at one end and is unterminated at the other. This pigtail assembly is designed to connect a battery backup system to a desktop ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBLBUL-010-BLK-CM 9-Pin Male Mini DIN 2-Wire Unterminated Black 10 ft 2 x 26 AWG 2 x 26 AWG LEARN MORE
7-PIN CONNECTOR TO 7 UNTERMINATED WIRES

This cable is terminated with a 7-pin, 3.5mm pitch connector at one and is unterminated at the other. This pigtail assembly is designed to connect a CyberShield™ DC battery backup system to an ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CP7PIN3 7-Pin Connector (3.5 mm pitch) 7-Wire Unterminated Cool Gray 9.5 ft 2 x 16 AWG 5 x 20 AWG LEARN MORE
CP7PIN10 7-Pin Connector (3.5 mm pitch) 7-Wire Unterminated Cool Gray 32.5 ft 2 x 16 AWG 5 x 20 AWG LEARN MORE
7-PIN CONNECTOR TO 7 UNTERMINATED WIRES

This cable is terminated with a 7-pin, 3.5mm pitch connector at one and is unterminated at the other. This pigtail assembly is designed to connect a CyberShield™ DC battery backup system to an ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL7PIN350-005-BLK 7-Pin Connector (3.5 mm pitch) 7-Wire Unterminated Black 5 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
CBL7PIN350-010-BLK 7-Pin Connector (3.5 mm pitch) 7-Wire Unterminated Black 10 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
7-PIN CONNECTOR TO 7 UNTERMINATED WIRES

This cable is terminated with a 7-pin, 5mm pitch connector at one and is unterminated at the other. This pigtail assembly is designed to connect a battery backup system to an ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires

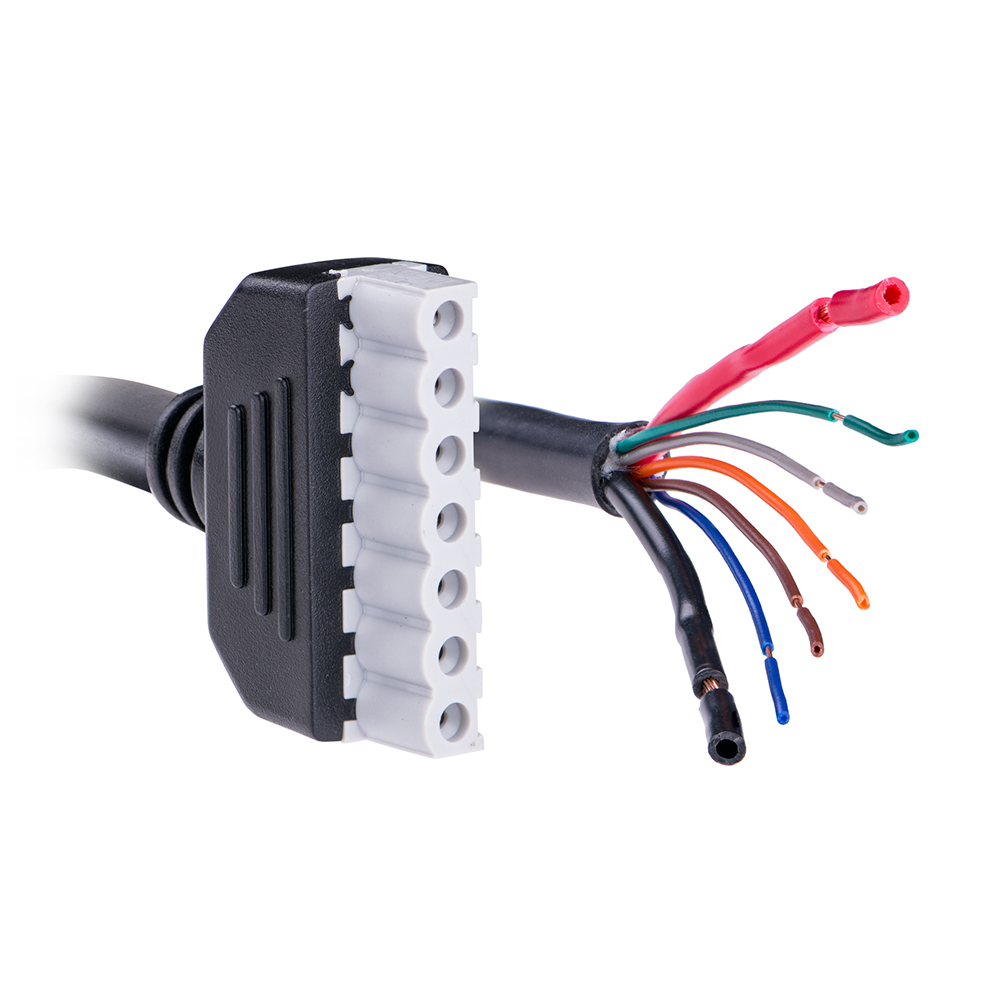

CBL7PIN500-005-BLK 7-Pin Connector (5.0 mm pitch) 7-Wire Unterminated Black 5 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
CBL7PIN500-010-BLK 7-Pin Connector (5.0 mm pitch) 7-Wire Unterminated Black 10 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
CBL7PIN500-020-BLK 7-Pin Connector (5.0 mm pitch) 7-Wire Unterminated Black 20 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
7-PIN CONNECTOR TO 8-PIN (2X4) CONNECTOR

This cable is terminated with a 7-pin, 3.5mm pitch connector and a 8-pin (2x4) connector. This assembly is designed to connect a battery backup system to an ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL7PIN350MLX-004-BLK 8-Pin Molex (2x4 pin) 7-Pin Connector (3.5 mm pitch) Black 4 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
CBL7PIN350MLX-010-BLK 8-Pin Molex (2x4 pin) 7-Pin Connector (3.5 mm pitch) Black 10 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
8-PIN (2X4) CONNECTOR TO 7 UNTERMINATED WIRES

This cable is terminated with an 8-pin (2x4) connector at one end and is unterminated at the other. This assembly is designed to connect battery backup system to an ONT.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBLMLX-020-BLK 8-Pin Molex (2x4 pin) 7-Wire Unterminated Black 20 ft 2 x 20 AWG 5 x 22 AWG LEARN MORE
3-PIN CONNECTOR TO 3-PIN CONNECTOR

This cable is terminated with a 3-pin connector at each end. This assembly is designed to connect a battery backup system to an ONT and features CMX/CMR outdoor rated cable.

Cross Section Diagram
View
Schematic
Part Number Connector A Connector B Color Length Power Wires Signal Wires
CBL23PIN500-010-BLK-CM 3-Pin Connector (5.0 mm pitch) 3-Pin Connector (5.0 mm pitch) Black 10 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL23PIN500-004-BLK-CM 3-Pin Connector (5.0 mm pitch) 3-Pin Connector (5.0 mm pitch) Black 4 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL23PIN500-006-BLK-CM 3-Pin Connector (5.0 mm pitch) 3-Pin Connector (5.0 mm pitch) Black 6 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
CBL23PIN500-020-BLK-CM 3-Pin Connector (5.0 mm pitch) 3-Pin Connector (5.0 mm pitch) Black 20 ft 2 x 16 AWG 1 x 24 AWG LEARN MORE
