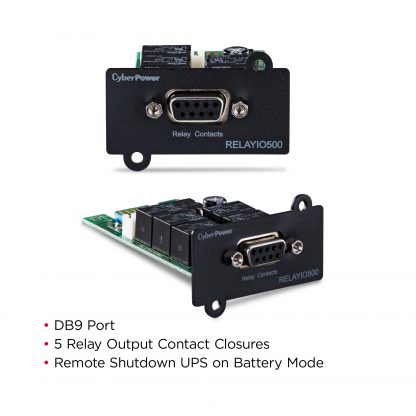

RELAYIO500

Hardware
  • UPS status monitoring: Relay I/O Card
  • 5 relay output contact closures: Indicate UPS status information
  • 1 relay input contact closure: Remote shutdown UPS on Battery Mode
  • Connections: DB9 Port
  • Warranty: 3-year
MSRP  $224.00
NEW! Check Prices at your favorite retailers or resellers
How to Buy Need a solution? Use How to Buy!

Product Description

RELAYIO500 | Hardware
Monitor and locally manage a Smart App Online UPS system

Product Overview


They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.

Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

  • Remote Shutdown in Battery Mode
    Preserves battery power in the event of a prolonged power outage.
  • Interfacing with External Alarms
    External alarm devices can be interfaced via the DB9 port.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

WARNING:

This product can expose you to chemicals including Nickle (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

RELAYIO500 | Hardware
Monitor and locally manage a Smart App Online UPS system
General
Contact Closure Outputs 5
External S/D Voltage 7.5 – 12 VDC
Input Signal Contact 1 – UPS shutdown in Battery Mode
Output Relay Rating (Max.) 30 VDC / 125 VAC, 3A (per relay)
Output
USB Charge Port No
Management & Communications
Hardware Connection Port Serial
Physical
Color Black
Dimensions
Physical Dimensions – (WxHxD) (cm) 4.19 x 1.52 x 8.13 (cm)
Physical Dimensions – (WxHxD) (in) 1.65 x 0.6 x 3.2 (in)
Physical Dimensions – (WxHxD) (mm) 42 x 15 x 81 (mm)
Physical Weight (kg) 0.05
Physical Weight (lb) 0.11
Dimensions – Shipping
Shipping – Weight (kg) 9.3
Shipping – Weight (lb) 20.5
Shipping Dimensions – (WxHxD) (cm) 5.87 x 16.61 x 16.89 (cm)
Shipping Dimensions – (WxHxD) (in) 2.31 x 6.54 x 6.65 (in)
Shipping Dimensions – (WxHxD) (mm) 58.67 x 166.12 x 168.91 (mm)
Environmental
Operating Elevation 0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity 0 – 95 % (non-condensing)
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Elevation 0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity 0 – 95% (non-condensing)
Storage Temperature 14 – 122 °F (-10 – 50 °C)
Compatibility
UPS Models OR Series UPS systems
PR Series UPS systems
OL1000RTXL2U
OL1500RTXL2U
OL1500RTXL2UN
OL2200RTXL2U
OL3000RTXL2U
OL3000RTXL2UHV
Certifications
Environmental RoHS Compliant
Warranty
Extended Warranty Option WEXT5YR-ACC1A
Product Warranty 3 Year Limited Warranty
